BLH13075

Fusion 700 Kit w/Motor/Blades

BLADE

BLH13075
Fusion 700 Kit w/Motor/Blades
By BLADE
$1,189.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Helicopters 700mm Class & Up
But only from... BLADE
All items from... BLADE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$1,189.99
Warehouse ?
StockStock availability for pick up
0
$1,189.99
Warehouse ?
0
$1,189.99
Store - Stratford ?
0
$1,189.99
Store - Edmonton ?
0
$1,189.99
Store - Mississauga ?
0
$1,189.99
Store - Ottawa ?
0
$1,189.99
Store - Oshawa ?
0
$1,189.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
DSMX Remote Receiver Antenna
$59.99

Avian 120-Amp HV Brushless Smart ESC 6S-12S
$309.99

Rotor Head Linkage Set Fusion 700
$9.99

H6350 Ultra Torque High Speed Heli Cyclic HV Servo
$249.99
H6360 Mid Torque Ultra Speed Heli Tail HV Servo
$249.99

Pitch Arm Fusion 700
$14.99

Main Rotor Blade Bolts Fusion 700
$5.99

Aluminum Tail Boom Fusion 700
$29.99
SPECIFICATIONS
1575 mm
Rotor Span:
700 mm
Main Blades:
292 mm
Tail Rotor Span:
105 mm
Tail Blades:
378 mm
Height:
1384 mm
Length:
5.7 kg
Weight:
12S 44.4V 4000mAh to 5000mAh LiPo (SPMX-1091)
Battery Requirements:
Brushless 4735-540Kv 10-Pole
Motor (included):

FEATURES
  • Also available in money-saving “Super Combos” including top-of-the-line Spektrum servos, a flight controller, receiver, plus a Smart ESC
  • An all-new design to offer the perfect fusion of convenience, performance, and value
  • Includes carbon fiber 700mm main rotor and 105mm tail rotor blades

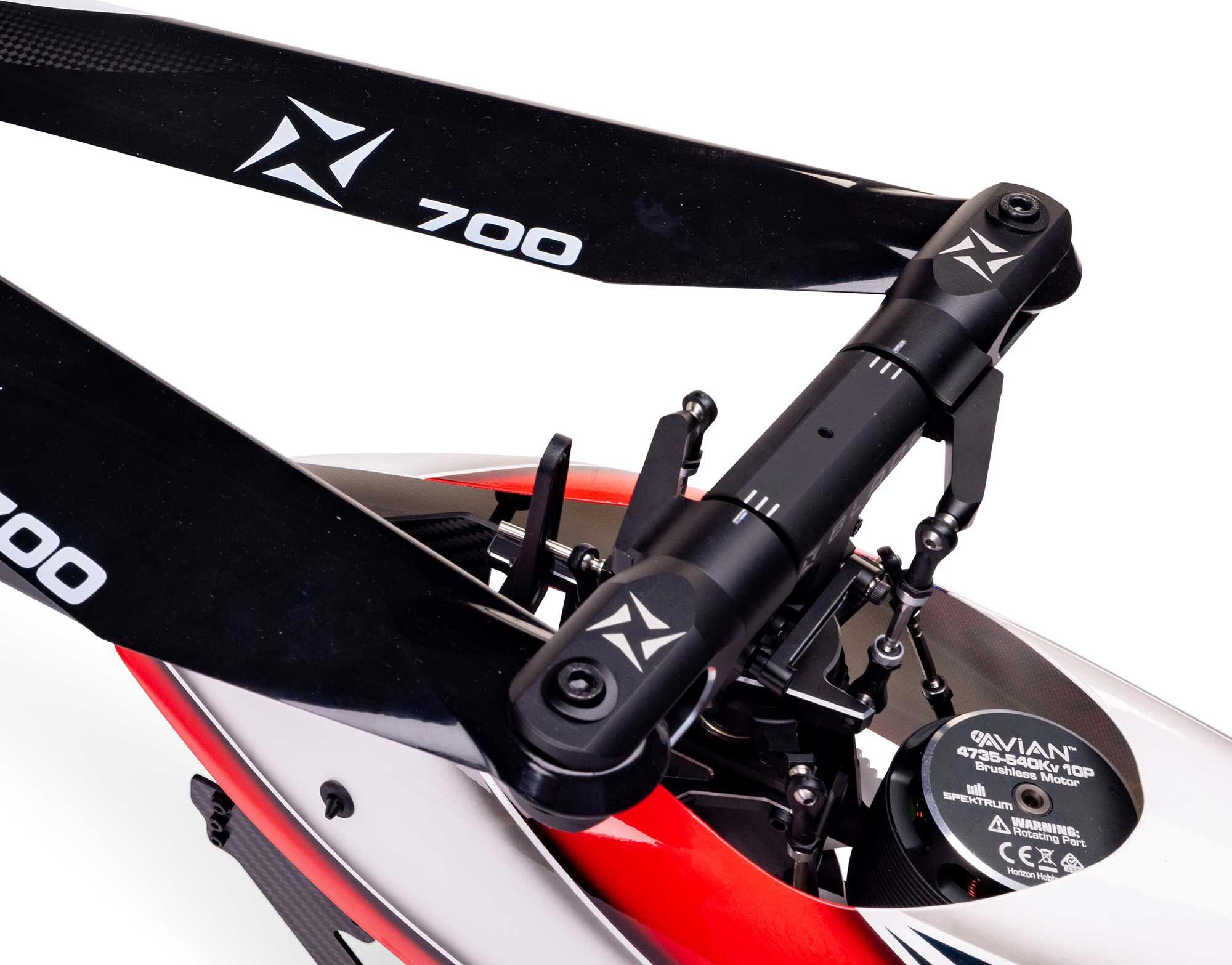

  • Includes a 4735-540Kv brushless outrunner motor that delivers incredible torque and power
  • Optional lower Kv motor, different tooth count tail pulleys and longer tail blades for low head speed 3D (LH3D) and other styles of flying

Like the Fusion series models that came before it and are still available with spare parts support since 2018, the top-of-the-line Blade Fusion 700 blends the lines between convenience and capabilities, plus quality and value. The extremely strong carbon fiber and aluminum airframe is ready to pair with the included blades and motor, and popular 12S battery setups, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a 700-sized helicopter with cutting-edge capabilities – along with incredible durability and reliability – a reality!

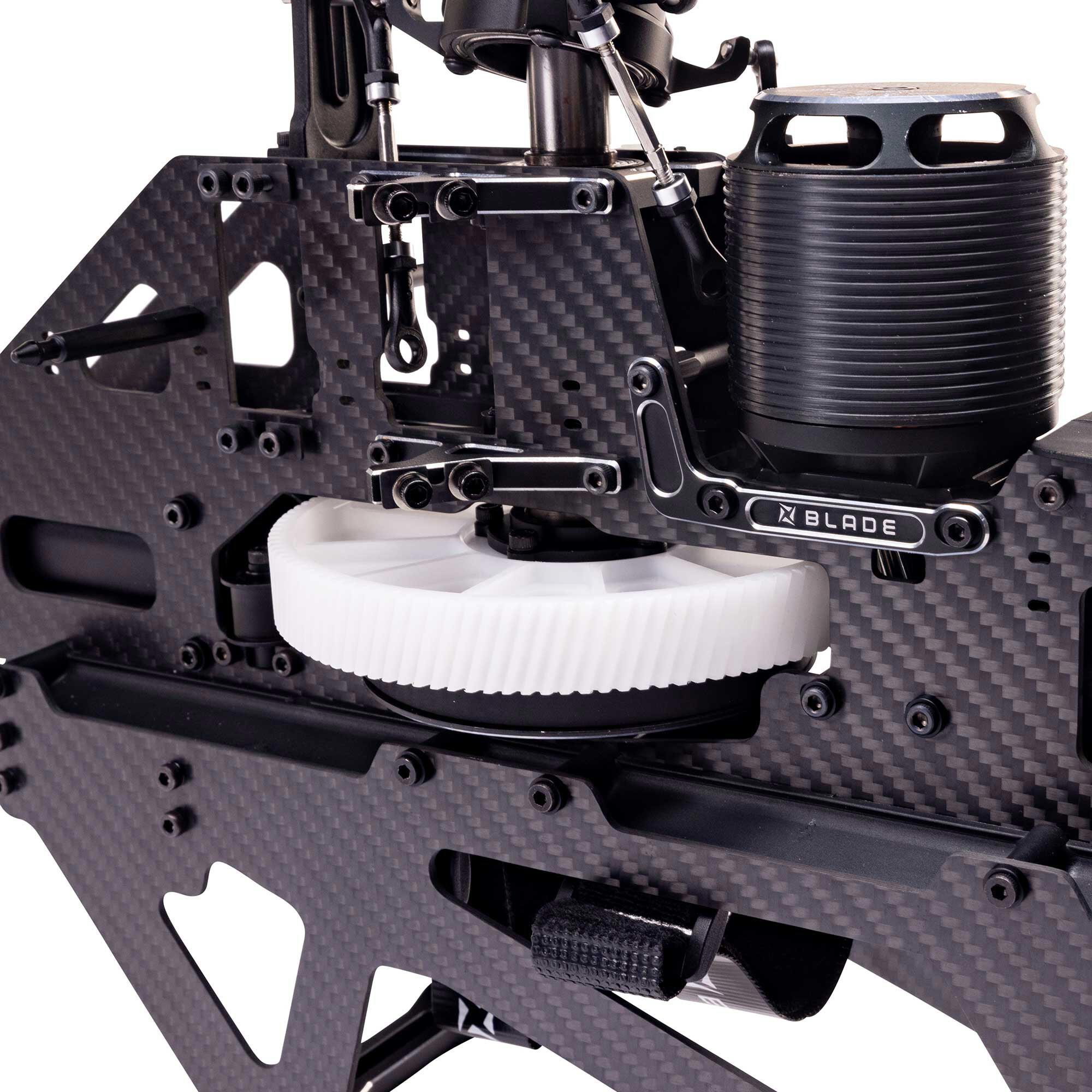

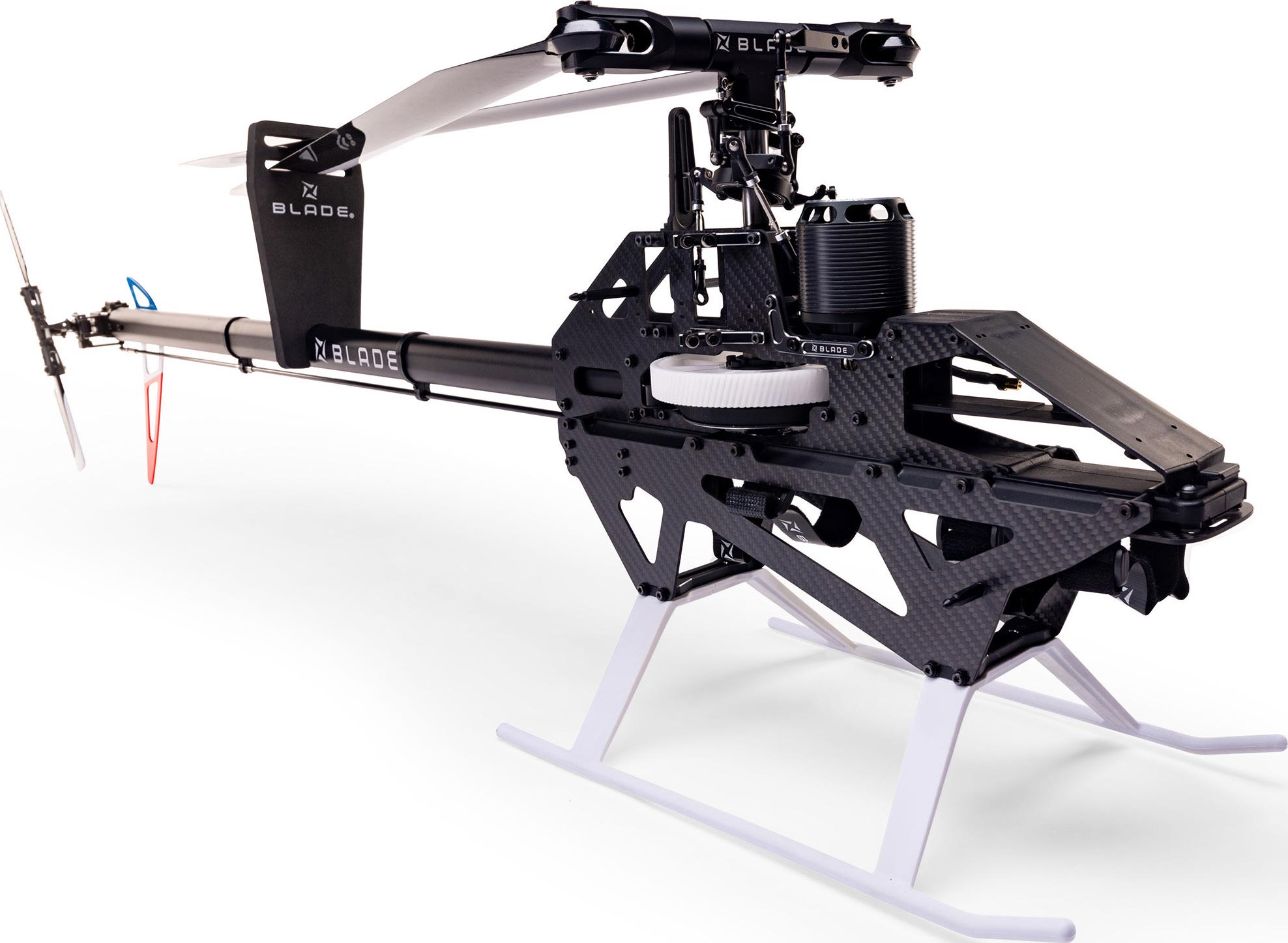

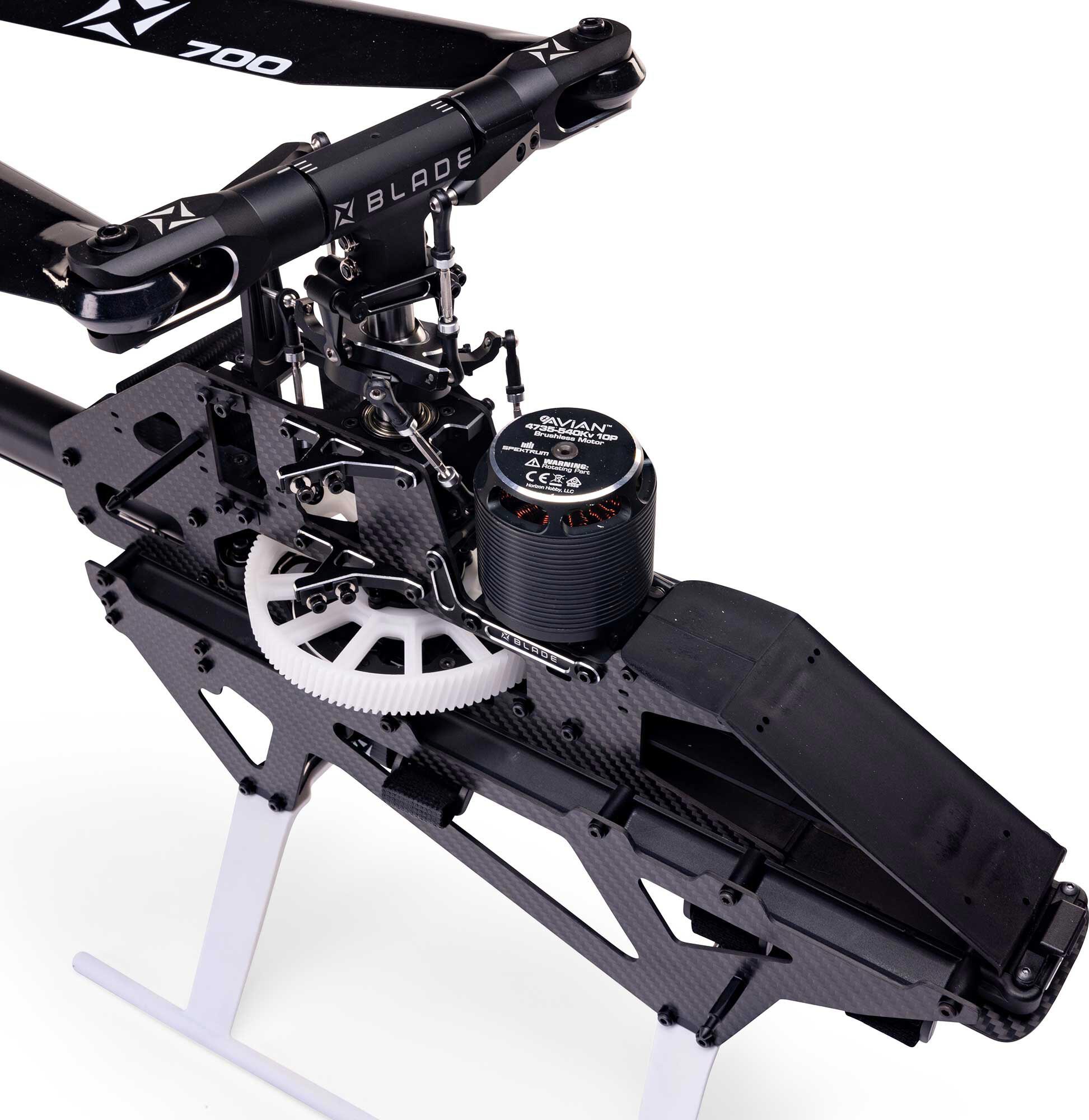

Designed with nearly two decades of engineering and development experience, the Fusion 700 offers the pinnacle of Blade helicopter performance. It packs modern-day high-performance features into a high-quality, rugged, and reliable airframe that’s ready to deliver pro-level flight performance for sport, precision, and aggressive 3D flying. The extremely durable carbon fiber and aluminum airframe design assembles quickly, plus it’s easy to maintain and repair. The Delrin helical main gear is driven by the included 4735-540Kv brushless outrunner motor that delivers incredible torque and performance with popular 12S or two pieces of 6S 4000-5000mAh LiPo battery setups. A belt-driven tail assembly featuring machined aluminum construction ensures locked-in tail performance on every flight. So whether you’re an intermediate pilot moving up to your first-ever 700-sized model, or you’re already a world-class 3D pilot, the Fusion 700 delivers an unmatched combination of convenience, capabilities, quality, and value!

The Fusion 700 is available as a kit that includes the motor plus carbon fiber 700mm main rotor and 105mm tail rotor blades that you can complete with the ESC, servos, flight controller, and receiver you choose. It’s also available in two money-saving Super Combos that include top-of-the-line Spektrum components including H6350 and H6360 brushless servos, an updated and upgraded FC6350HX flybarless control system, a DSMX compatible receiver, and your choice of a 120-amp or 200-amp high voltage Smart ESC. Both combos are compatible with 12S 4000-5000mAh battery setups, and the 120A ESC version is a great choice for almost everyone including those who will be performing 3D aerobatics. And the 200A ESC version offers plenty of headroom for world-class pilots who perform the most aggressive 3D maneuvers possible!

An optional 4730-350Kv motor, along with different tooth count tail drive pulleys and longer 115mm tail rotor blades, are available separately for those who prefer scale, sport, and low head speed 3D (LH3D) style flying with longer flight times. There’s also an optional orange-painted canopy plus carbon fiber tail fin and black landing gear available for those who prefer a different look.

In addition to offering combos and optional parts that allow you to equip and customize the Fusion 700 the way you like, we also know how important spare parts support and long-term availability are. The full line of spare parts for the Fusion 700 are competitively priced and, along with the helicopter itself, will be available for many years to come – just like the Fusion 360, 480, and 550 helicopters and parts have been since as far back as 2018.

In The Box

(1) Blade Fusion 700 Helicopter Kit

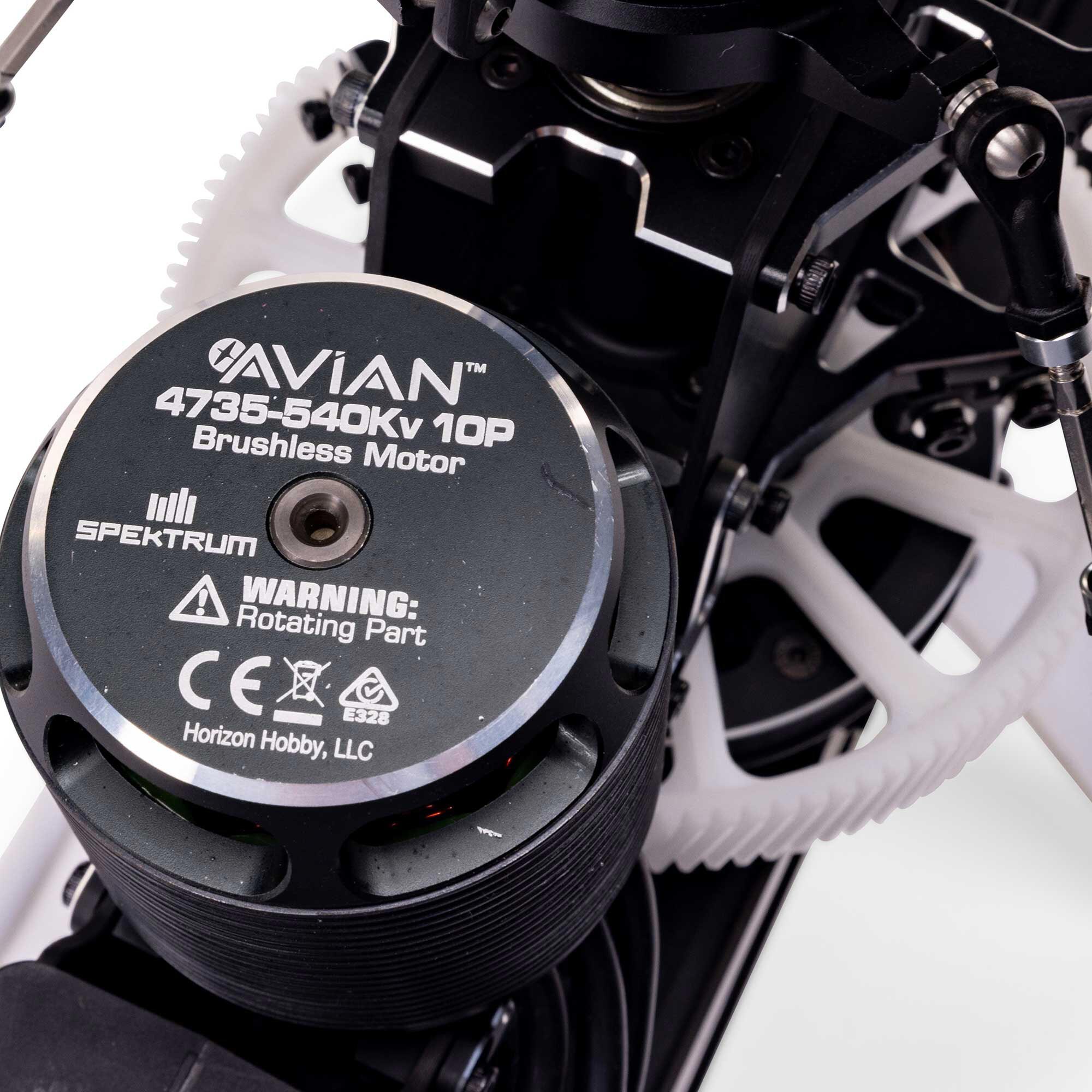

(1) Spektrum Avian 4735-540Kv 10-Pole Brushless Outrunner Motor (included)
(1) Blade 700mm Carbon Fiber Main Rotor Blade Set (included)
(1) Blade 105mm Carbon Fiber Tail Rotor Blade Set (included)
(1) Foam Blade Holder (included)
(1) Blade Fusion 700 Kit Manual

Needed to Complete

(1) Full-range 6+ channel Transmitter
(1) Flybarless Control System with Built-In and/or External Receiver
(1) 120A+ 12S Brushless Helicopter Compatible ESC
(3) High-Torque Standard Sized Cyclic Servos
(1) High-Speed Standard Sized Tail Servo
(2) 6S 22.2V or (1) 12S 44.4V 4000–5000mAh LiPo battery with EC5 or IC5 Connector
(1) Compatible Lipo Charger
