Tritronic 1X 1/10 Waterproof Brushed 60A ESC
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... YEAH RACING
All items from... YEAH RACING
But only from... YEAH RACING
All items from... YEAH RACING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
125 g
Weight:
1/10: Touring Car
Type:
60 A
Max Continuous Current:
360 A
Max Burst Current:
Yes
Waterproof:
2 - 3 cells
LiPo Cells:
5 - 9 cells
NiMH/NiCd Cells:
39 g
Weight:
36.5 mm
Length:
32 mm
Width:
18 mm
Height:
FEATURES
- Water-proof and Dust-proof: Suitable for racing in all weather conditions, offering durability and reliability.
- Compact Size with Built-in Capacitor Module: Space-saving design with integrated capacitor module for smoother operation.
- Multiple Running Modes: Supports Forward, Reverse, and Brake running modes (Fwd/Rev/Br), providing flexibility for different vehicle types and driving preferences.
- High Current Endurance: Capable of handling high currents, ensuring stable performance during intense races.
- Built-in BEC Output: Features a powerful Battery Eliminator Circuit (BEC) output capacity to power the receiver and servos.
- Throttle Range Calibration: Automatic throttle range calibration simplifies setup and ensures precise control.
- Easy Parameter Adjustment: ESC parameters can be easily adjusted using jumpers, making customization straightforward.
- Multiple Protections: Offers various protections including low voltage cut-off protection for the battery, overheat protection, and throttle signal loss protection, enhancing safety and reliability.

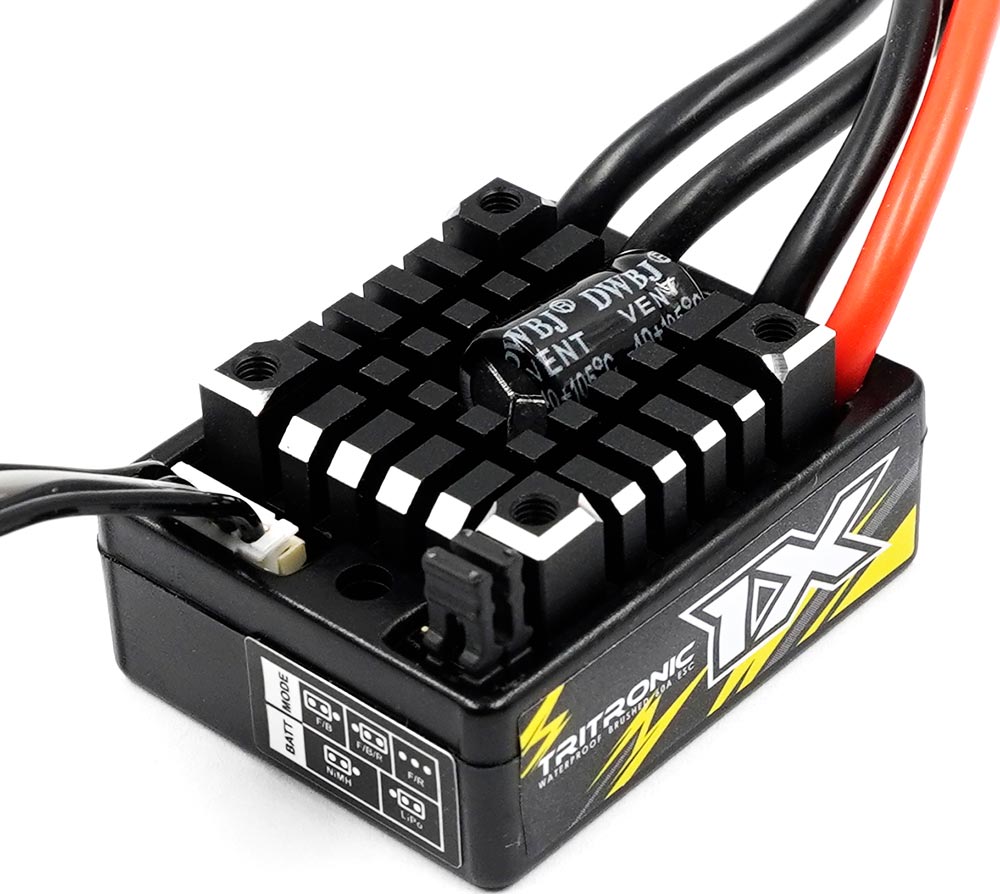

- Aluminum Black Heat Sink: Equipped with an aluminum black heat sink for efficient heat dissipation, helping to maintain optimal operating temperatures for the ESC.
Aluminum heatsink brushed ESC with a minimal footprint designed for crawlers! Easy adjust settings switching between drive modes and battery voltage cutoff with simple jumper plugs located at the front of the ESC.
