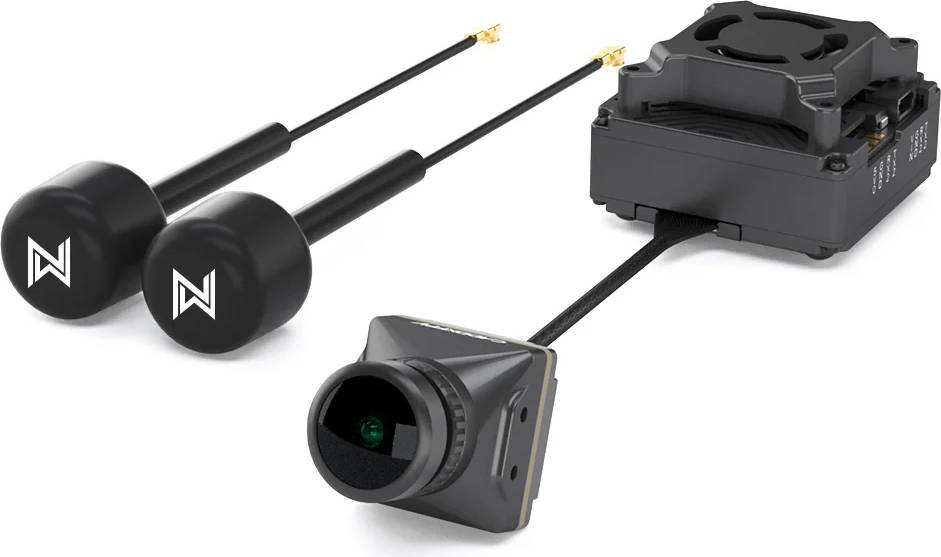

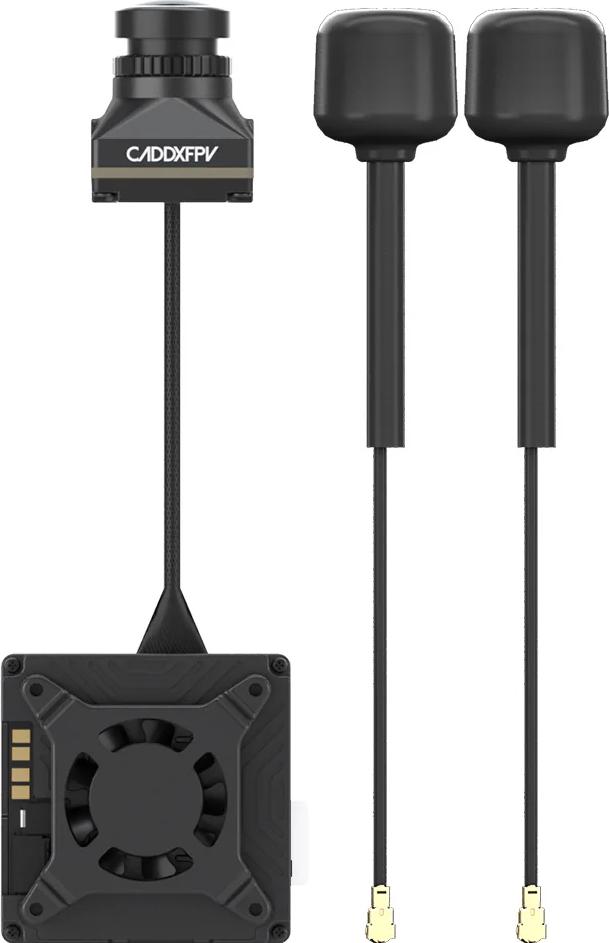

Avatar GT HD FPV Kit w/Pro Camera/DVR

Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.

Specifications:

• Camera
  • Model Avatar HD Pro Camera
  • Image Sensor 1/1.8-Inch Sony Starvis ? sensor
  • Resolution 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps;
  • Ratio 16/9; 4/3
  • Lens 8Mp
  • FOV 160°
  • Aperture F1.6
  • Shutter Rolling shutter
  • Min.Illumination 0.00001Lux
  • Weight 9.5g
  • Dimensions 19*19*24mm
  • Coaxial Cable 140mm
  • Gyroflow supported
• VTX
  • Model Avatar GT
  • Communication Frequency 5.725-5.850 GHz
  • Transmitter Power (EIRP) FCC: <30dBm, MAX:33dBm ; CE: <14dBm;
  • SRRC: <20dBm; MIC: <25dBm
  • I/O Interface Micro SD card slot; JST1.0*4(power cable)
  • Supported SD Cards Micro SD (up to 256 GB)
  • Mounting Holes 25.5*25.5mm; 20*20mm
  • Dimensions 34*34*23mm
  • Recording 1080p/720p
  • Weight 41.6g (Antenna included)
  • Operating Temperature -10-40?
  • Channels 8
  • Wide Power Input 11.1V-25.2V
  • Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPilot
  • OSD Canvas mode
  • Latency Average delay 22ms
  • Antenna 2(IPEX)

Note: Check area for risk of use before use.

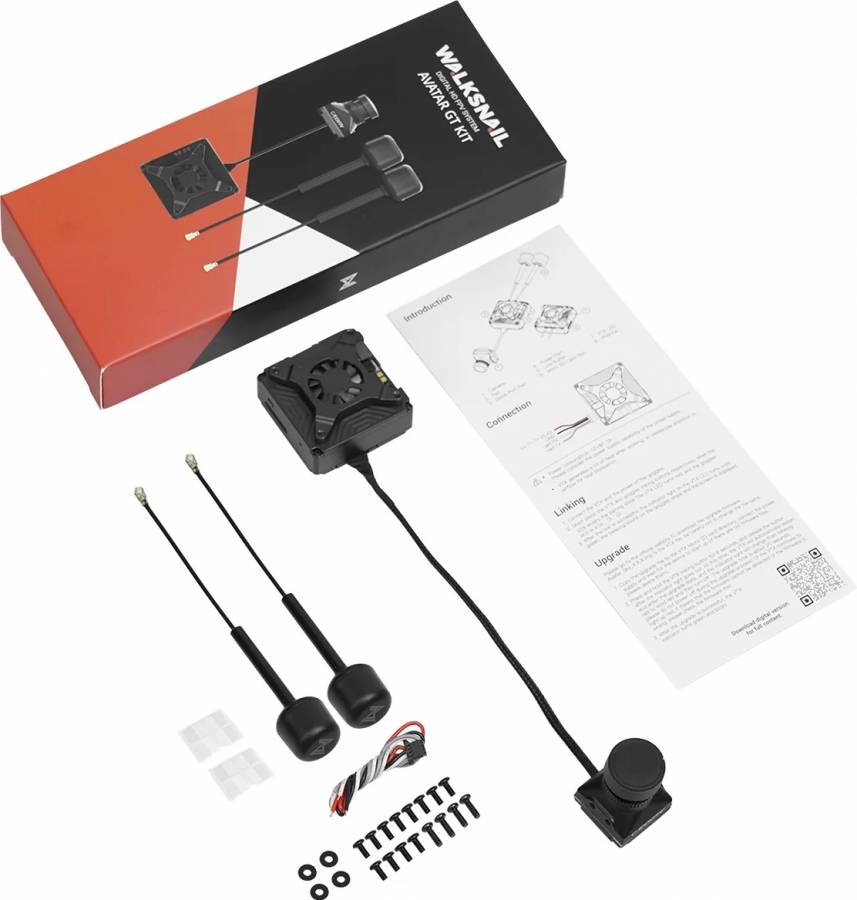

Packing List:

• 1 x Walksnail Avatar GT KIT
• 1 x Quick Guide
• 2 x M2*4mm screws
• 2 x M2*5mm screws
• 2 x M2*6mm screws
• 2 x M2*5*0.5mm spacer
• 2 x SD card stickers
• 1 x 4pin power cord
