Avatar HD Goggles L
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Video Equipment Accessory, Video Goggles
But only from... WALKSNAIL INNOVATION TECHNOLOG
All items from... WALKSNAIL INNOVATION TECHNOLOG
But only from... WALKSNAIL INNOVATION TECHNOLOG
All items from... WALKSNAIL INNOVATION TECHNOLOG
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
159 mm
Length:
121 mm
Width:
72 mm
Height:
5.725 - 5.850 GHz
Frequency:
1080p 60fps, 720p 60fps
Transmission Resolution:
Average 32ms
Min. Latency:
LHCP
Polarization:
＞4km
Transmission Distance:
8
Channel:
1920x1080/60Hz
Screen Resolution:
LCD
Screen Material:
75 deg
FOV:
4.5 in
Screen Size:
up to 256G
SD card:
350 g
Weight:
FEATURES
- Equipped with an in-house developed full-stack image transmission head tracking system.
- The head tracking sensor, employing a nine-axis gyro module, is integrated into the goggles to capture the pilot's head movements.
- Paired with a gimbal, it sends signals via the image transmission system to control the camera's pan and tilt, providing pilots with a cockpit-like sensation.
- The Avatar HD system adopts industry-leading H.265 encoding technology, delivering 1080P/60FPS FPV video quality for an immersive and responsive experience.
- Supports PPM signal output to Radio Controllers via the Goggles L's 3.5mm headphone TX connector, which in turn outputs to the drone.
- Offer distortion-free and high-resolution imaging at 1920X1080, coupled with a 4.5-inch HD display for clarity and eye protection.
- With a built-in Micro SD card slot, users can easily record their flights with just one touch, capturing every exhilarating moment.
- Features a high-performance directional antenna with a gain of up to 4.9 dBi, the goggles ensure stable signal transmission, enabling longer flight distances.
- Compatible with 2-6S voltage input, the goggles are compatible with all drone batteries, providing users with greater flexibility.
- The detachable lens design supports various vision needs, allowing for the installation of nearsighted, farsighted, or blue light-blocking lenses to meet individual preferences.
- The Goggles L is suitable for RC cars, FPV drones, and fixed-wing. With the most competitive cost, Goggles L allows you to experience true digital HD FPV visuals, bringing clarity and immersion to your FPV adventures.
To provide users with a cost-effective entry into HD systems while ensuring an excellent experience, we have developed the first single-screen HD goggles equipped with head tracking functionality. This innovative device is designed to deliver an unparalleled FPV experience, allowing pilots to enjoy the combined benefits of head tracking and HD visuals.
What's in the Box?
Avatar HD Goggles L
Straight DC5.5-XT60 Power Cord x1
Storage Bag x1
Lens Cleaning Cloth x1
click image to enlarge

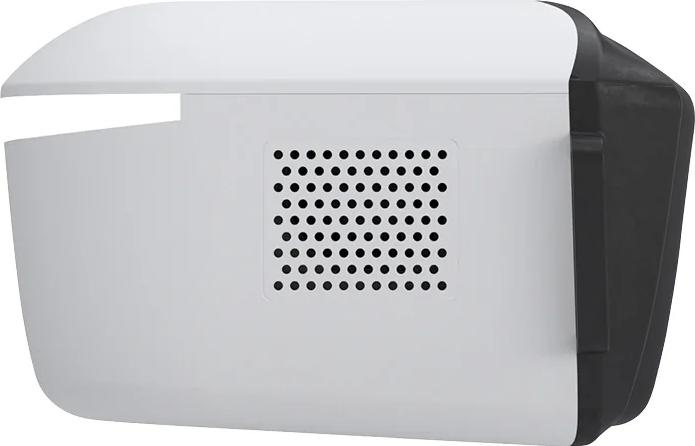

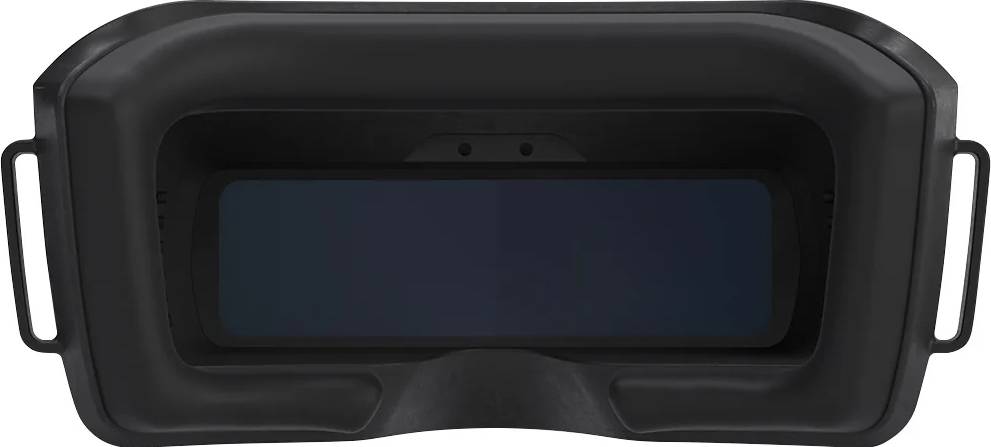

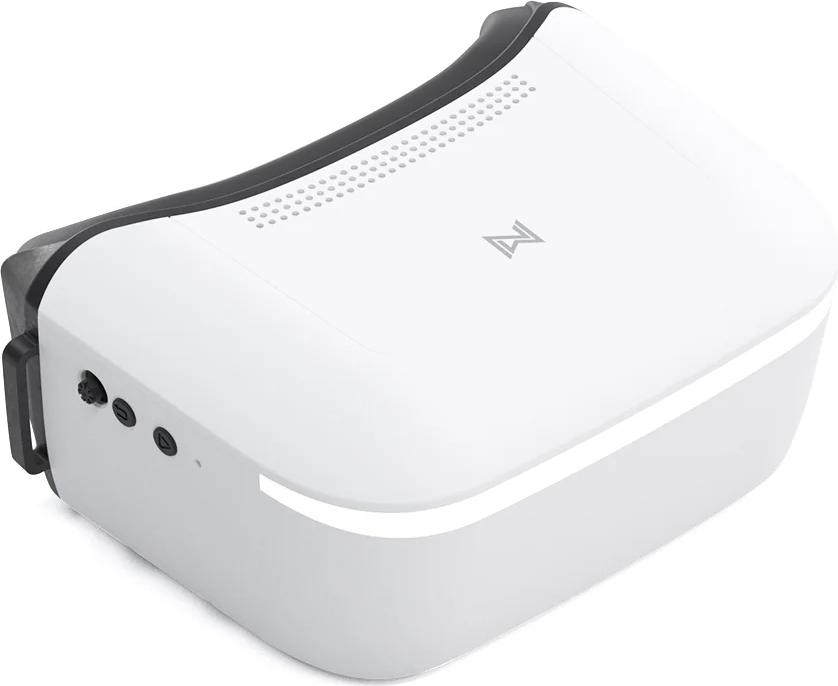

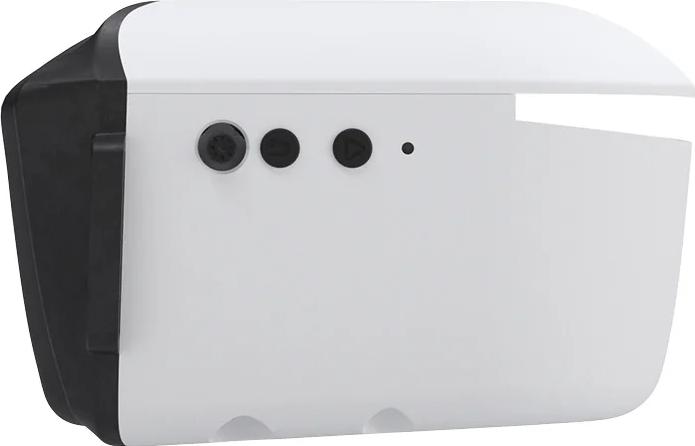

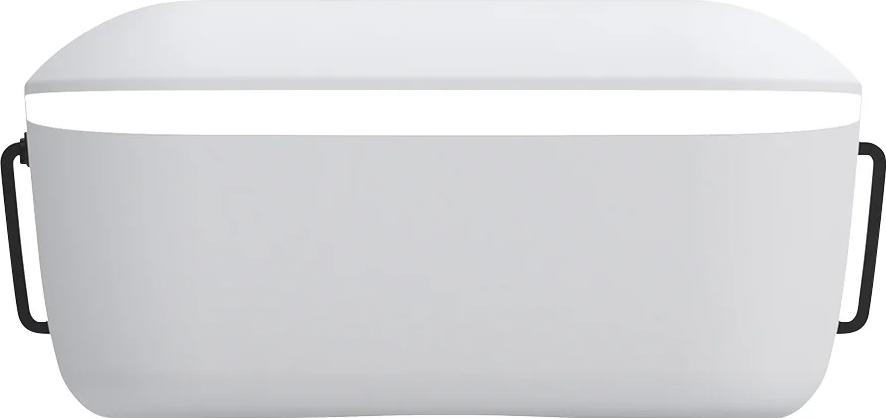

ADDITIONAL PHOTOS
|
|
|
|
WN02-FP004
