WSN01-FP004

Moonlight VTX + DVR

Product Info
WSN01-FP004
Moonlight VTX + DVR
By WALKSNAIL INNOVATION TECHNOLOG
$219.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Digital Video Transmitters
But only from... WALKSNAIL INNOVATION TECHNOLOG
All items from... WALKSNAIL INNOVATION TECHNOLOG


 Inventory Status Legend
StockStock availability for on-line ordering
6
$219.99
Warehouse ?
StockStock availability for pick up
6
$219.99
Warehouse ?
0
$219.99
Store - Stratford ?
0
$219.99
Store - Edmonton ?
0
$219.99
Store - Mississauga ?
0
$219.99
Store - Ottawa ?
0
$219.99
Store - Oshawa ?
0
$219.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES

Specifications:

Model: Moonlight Kit
Firmware name: AvatarMoonlight_Sky_X.X.X
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)?Micro SD card Slot?IPEX-1
Sensor: Starlight sensor
FOV Max: 160°
Aperture: F2.1
Shutter: Rolling shutter
ISO: 100-25600
Recording resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps: 150Mbps
Video format: MP4 (H.264)
3D DNR: Support
Gyroflow: Support
Built-in EIS: Support
Wide Power Input: 7.4V-25.2V
Power consumption: 12V@1.4A, 8V@2.2A
Memory card type: U3 MicroSD, Max 256G

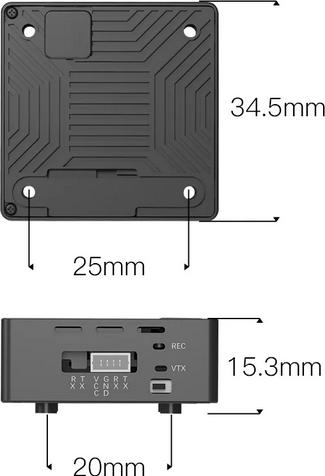

VTX size: 15.3mm*34.5mm*34.5mm
VTX Installation hole distance: 20*20mm/25*25mm (M2)
Weight: Gross weight: 38.5g(Antenna not included)
OSD: Canvas mode
Latency Average delay: 22ms
Antenna: 2 (IPEX)

click image to enlarge
ADDITIONAL PHOTOS


WN01-FP004
