Servo 19kg Low Profile
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Servos Digital
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

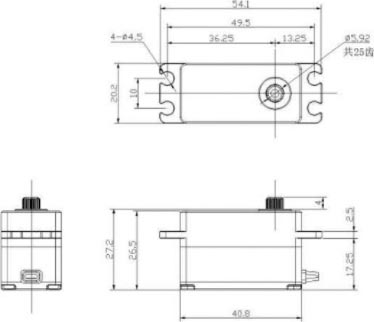

SPECIFICATIONS
25 Tooth
Output Spline:
41 mm
Length:
20 mm
Width:
27 mm
Height:
0.011 sec/60°
Speed @ 4.8V:
0.095 sec/60°
Speed @ 6.0V:
0.083 sec/60°
Speed @ 7.4V:
0.073 sec/60°
Speed @ 8.4V:
19 Kg-cm (264 oz-in)
Torque @ 8.4V:
FEATURES
High precision and ideal torque for drift car: brushless motor, high precision, stable, low noise, IP67 waterproof, dustproof
Metal Gear
Lof Profile Servo
Brushless Motor
Aluminum Servo horn included
click image to enlarge

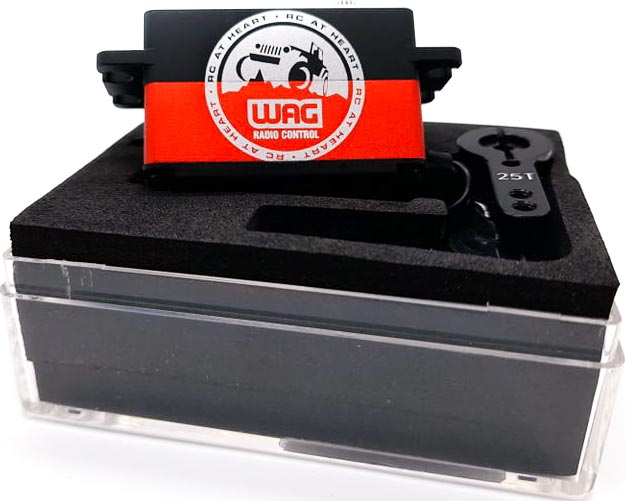

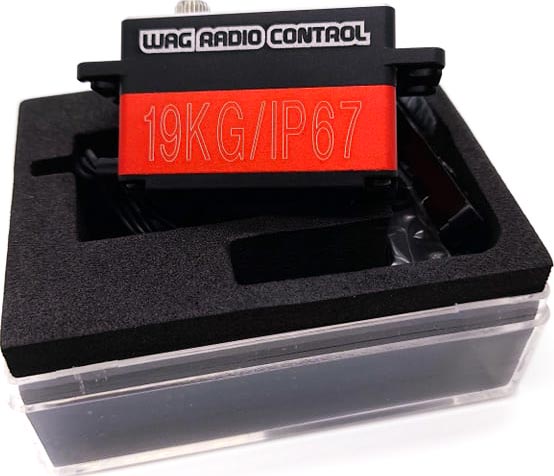

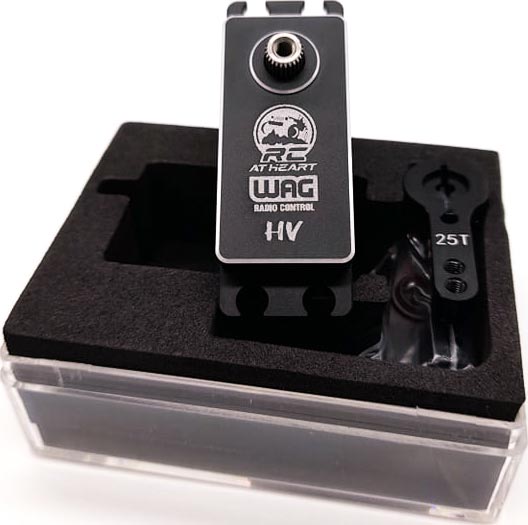

ADDITIONAL PHOTOS
|
|
|
WSB-LP
