Servo 45kg
|
click to enlarge
|
More like this... Servos Digital
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

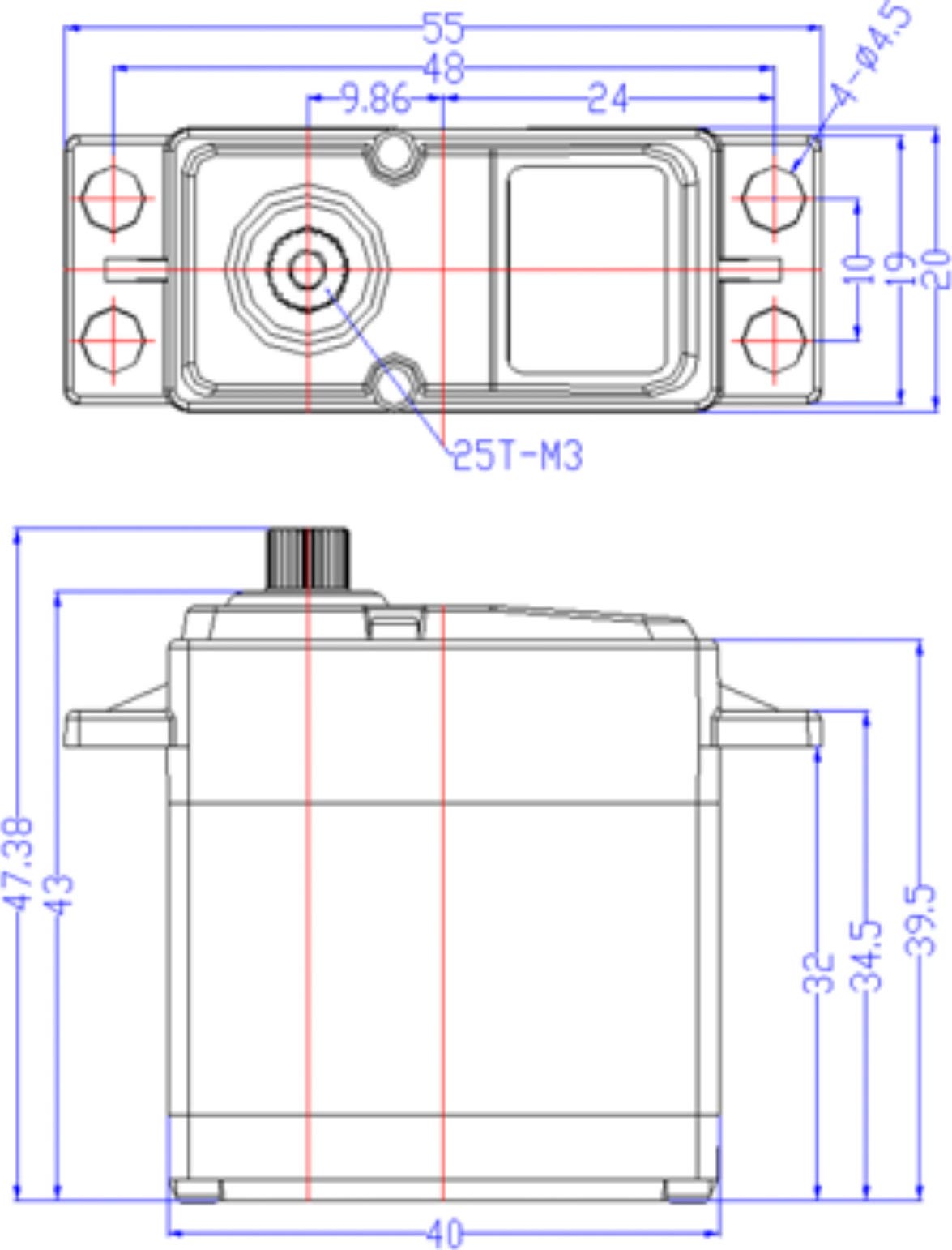

SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
43 mm
Height:
28 Kg-cm (388.8 oz-in)
Torque @ 4.8V:
0.14 sec/60°
Speed @ 4.8V:
39 Kg-cm (541.6 oz-in)
Torque @ 7.4V:
0.10 sec/60°
Speed @ 7.4V:
45 Kg-cm (625 oz-in)
Torque @ 8.4V:
0.085 sec/60°
Speed @ 8.4V:
FEATURES
- High precision and torque: high precision, stable, low noise, waterproof, dustproof. The maximum torque of this Steering Servo for RC is 45kg/cm and speed up to 0.085sec/60°@8.4V.

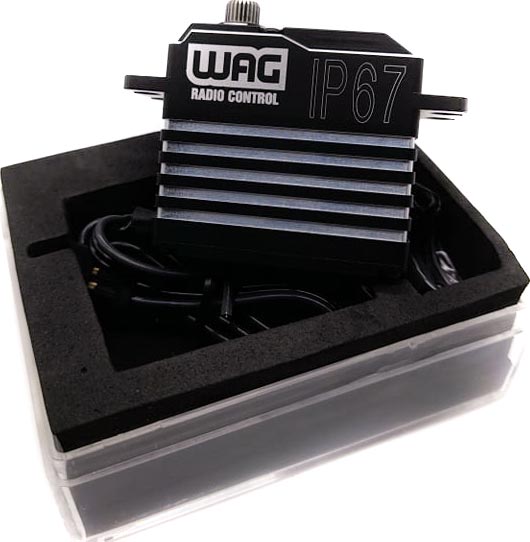

- IP67
- Metal Gear

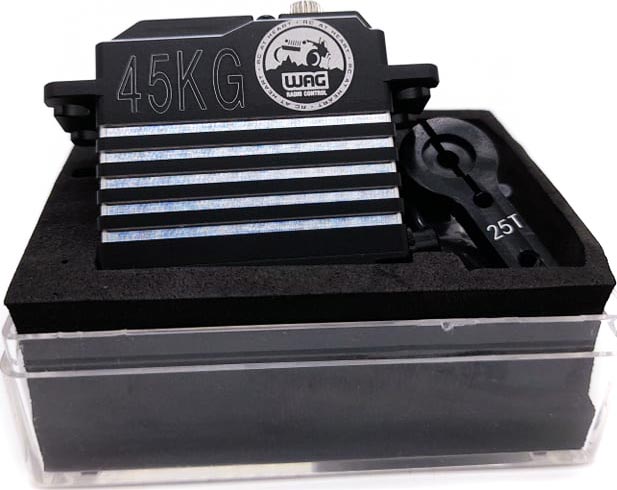

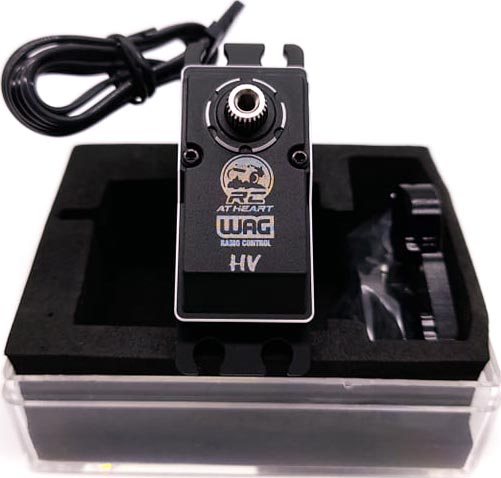

click image to enlarge
ADDITIONAL PHOTOSWSB-45
