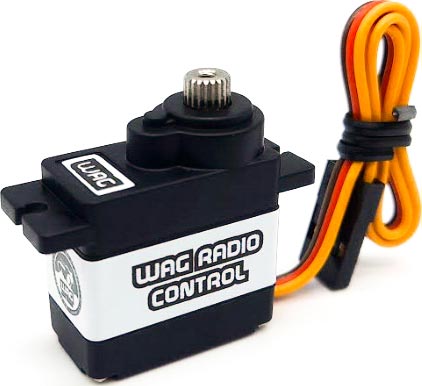

Servo Micro 2.2kg IP54
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Servos Digital
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.

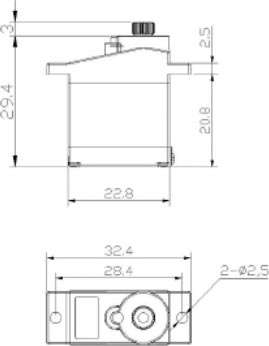

SPECIFICATIONS
32.4 mm
Length:
29.4 mm
Height:
11 g
Weight:
Steel
Geartrain:
4.8 - 6.0 v
Voltage Range:
1.8 Kg-cm (25 oz-in)
Torque @ 4.8V:
0.13 sec/60°
Speed @ 4.8V:
2.2 Kg-cm (30 oz-in)
Torque @ 6.0V:
0.11 sec/60°
Speed @ 6.0V:
FEATURES
High precision and torque: high precision, stable, low noise, water resistant, dust resistant (IP54).
click image to enlarge

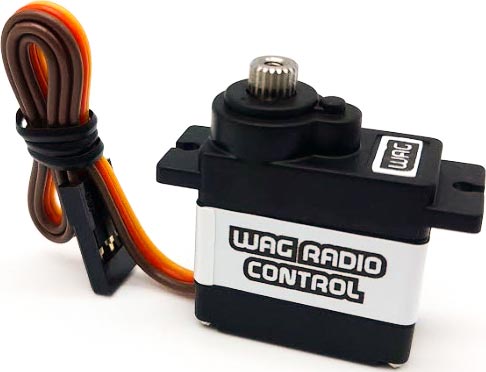

ADDITIONAL PHOTOS
|
|
MSW-2
