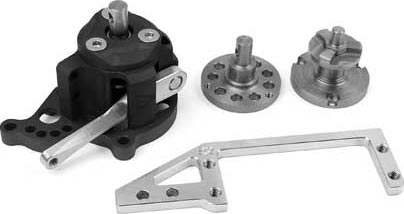

Hurtz Dig Transmission V2 Black
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Car & Truck Accessories, Aftermarket Hop Up Parts
But only from... VANQUISH
All items from... VANQUISH
But only from... VANQUISH
All items from... VANQUISH
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
- Updated dig unit was designed to increase the capability of your vehicle while maintaining maximum strength
- Compatible with Axial SCX10, SCX10-II RTR and AX10. May also be used in Wraith by changing the transmission case
- Rear output is bearing supported for better driveline efficiency and cross drilled to work with thru pin style driveshafts
- Rear output does not slide in and out, so driveshaft length is easier to manage
- Servo mount is attached to dig case for simple installation
- All drive parts are made from high quality and chromoly steel
- Total shifter travel needed to shift to all three positions is 0.73 inches, a 24mm servo horn is recommended
- Servo mount can use most standard size servos*
- The lever design of the shifter means that you do not need an expensive servo to reliably operate this unit**
- V2 design works with stock Axial 3-gear transmission cases as well as any Vanquish Products SCX10 transmission housing***
*Note: Servo case designs and offsets vary by manufacturer, Futaba, Hitec and Tactic servos have been tested to fit but not every model can be verified
**Note: A radio with an open auxiliary channel and programmable end points is needed to ensure that the dig unit works properly and that your servo will not overheat
***Note: The Hurtz dig will mount onto any Axial 3 gear transmission case that uses a bolt on metal motor plate.
PRODUCT RESOURCES
791512778869 0791512778869
VPS01350
