UP610 200W Multi-Chemistry Compact DC Charger
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
Discontinued
|
 |
More like this... Battery Chargers, Multi-Chemistry
But only from... ULTRA POWER
All items from... ULTRA POWER
But only from... ULTRA POWER
All items from... ULTRA POWER
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
0.1 - 10 A
Fast Charge Current:
0.1 - 3.0 A
Discharge Current:
200 w
Fast Charge Power:
8 w
Discharge Power:
1-6 cells
LiPo Cells:
1-6 cells
LiHV Cells (4.35v/cell):
1 - 16 cells
NiMH/NiCd Cells:
2 - 24 V
Pb (lead acid):
9 - 32 V
DC Input:
DC Only
AC Input:

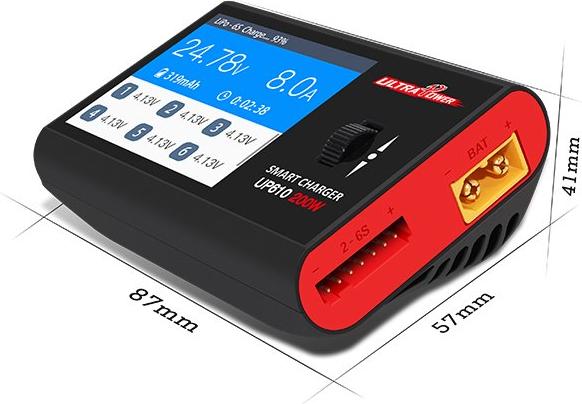

87 mm
Length:
57 mm
Width:
41 mm
Height:
110 g
Weight:
FEATURES

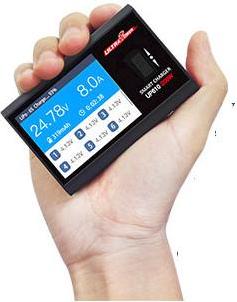

200 watts of power in a charger small enough to fit in the palm of your hand! The UP610 charger utilizes advanced synchronous DC power conversion technology to achieve an efficiency rating of over 90%. This means energy savings through efficiency, reduced heat build-up, and the ability to produce a small, compact and conveniently mobile charging device. Furthermore, the UP610 firmware can be updated through a convenient micro-USB port using a PC. Charges up to 6S LiPo or LiHV packs using a suitable DC power supply. Many users prefer using a 4S-6S LiPo as a power supply for a truly compact and portable charging system!
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
PRODUCT RESOURCES
739792056895 0739792056895
UPTUP610
