UGR70133

STEM LAB Pendulum

Product Info
UGR70133
STEM LAB Pendulum
By UGEARS
$36.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Mechanical Model Kits
But only from... UGEARS
All items from... UGEARS


 Inventory Status Legend
StockStock availability for on-line ordering
1
$36.99
Warehouse ?
StockStock availability for pick up
1
$36.99
Warehouse ?
1
$36.99
Store - Stratford ?
1
$36.99
Store - Edmonton ?
1
$36.99
Store - Mississauga ?
1
$36.99
Store - Ottawa ?
1
$36.99
Store - Oshawa ?
0
$36.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
92
Pieces:
2 Hours
Build Time (Approx):
11.5 cm
Length:
8.3 cm
Width:
16.7 cm
Height:

FEATURES

 Assemble it and discover the principle of working of the Pendulum.

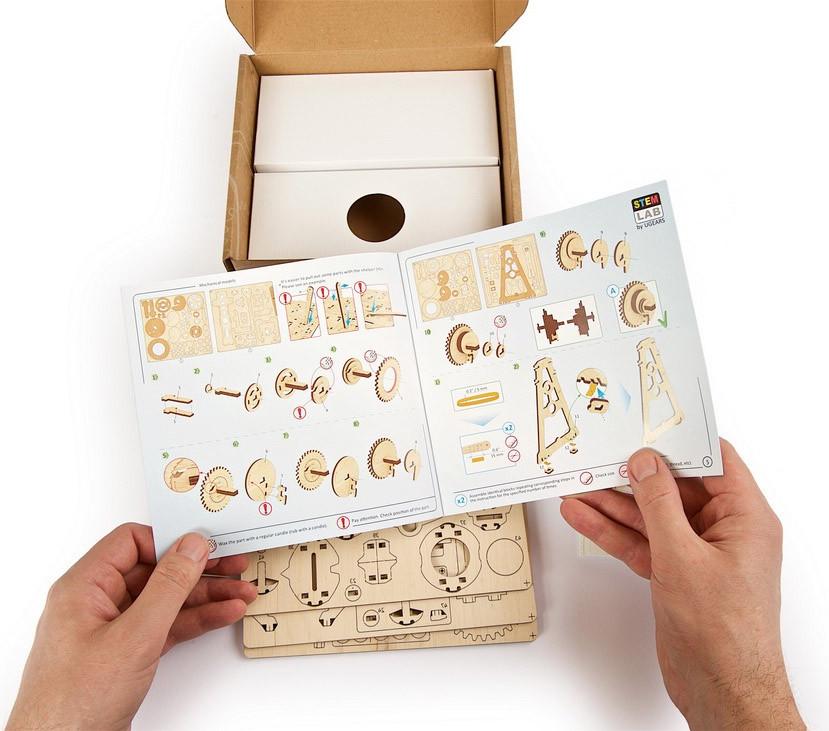

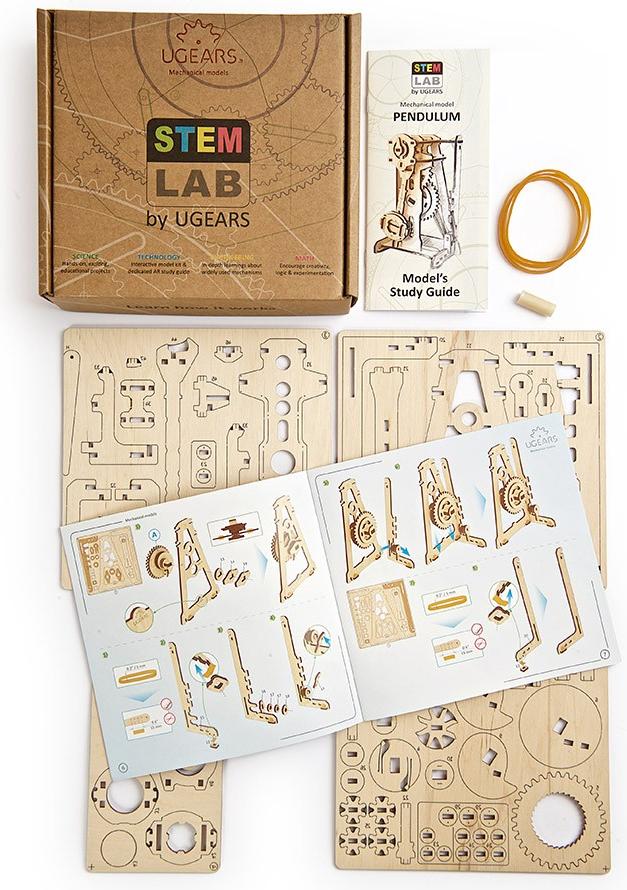

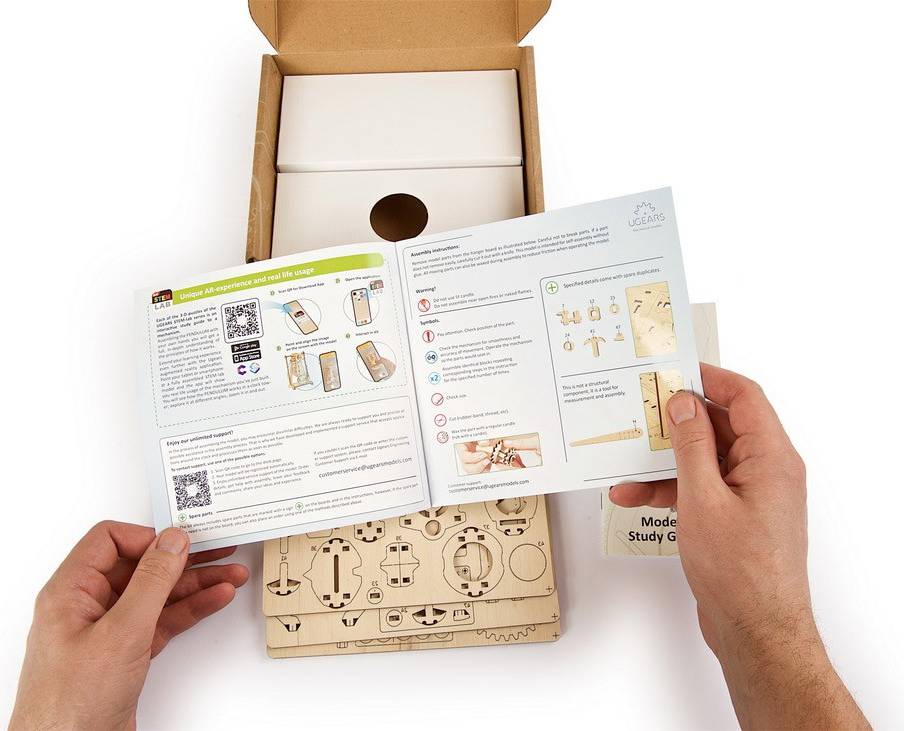

  • Experiment: the model comes with QR-code to a Pocket Model’s Study Guide with a creation story and mechanism design as well as engaging and interesting tasks.
  • Immerse yourself in Augmented Reality (AR), find out how the pendulum is used in a clock mechanism, and interact with it via the dedicated Ugears application.

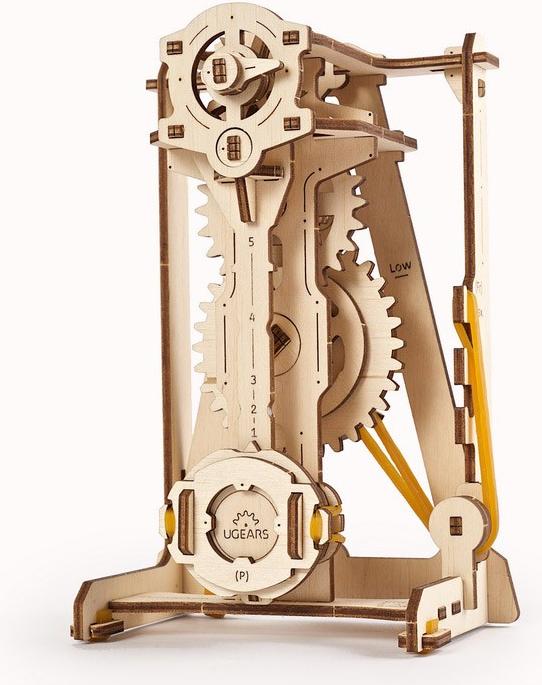

Learn how the PENDULUM works

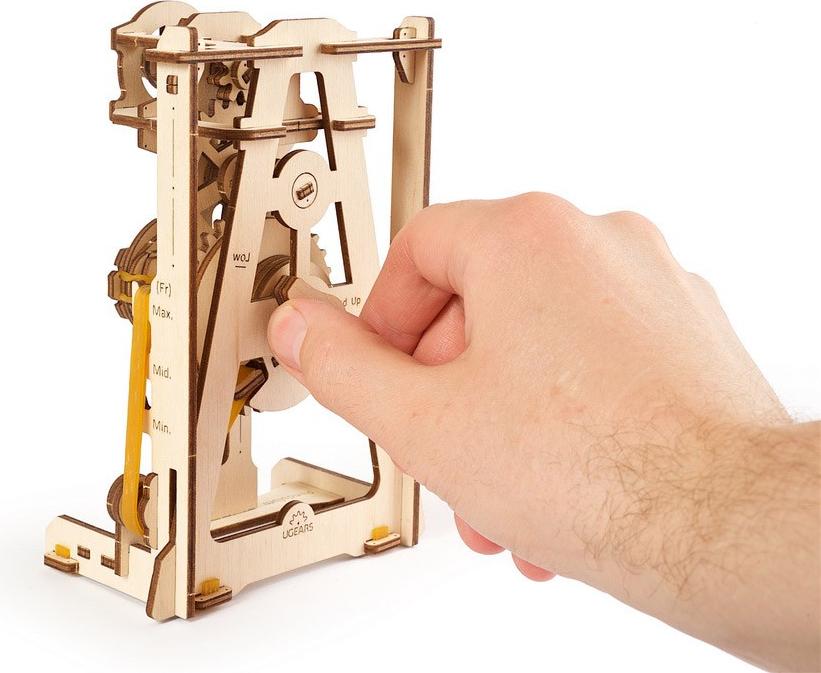

The Pendulum is a stylised educational model, an interactive study guide to the mechanism, only for learning its essentials and principles of working. The pendulum is one of the basic and most reliable time measuring mechanisms. Its working principle is based on the model's constant amplitude oscillation under the force of gravity (weight) and potential energy (tension force) of the rubber band. The rubber band powers the mechanism of the model and compensates for the pendulum's oscillations' kinetic energy loss. The device is animated by means of gear unit with a windup wheel.

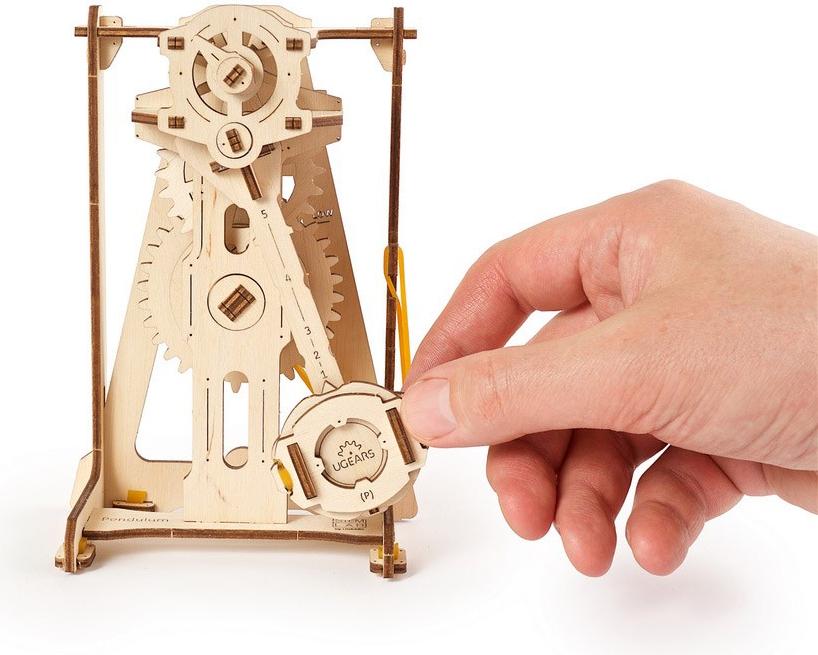

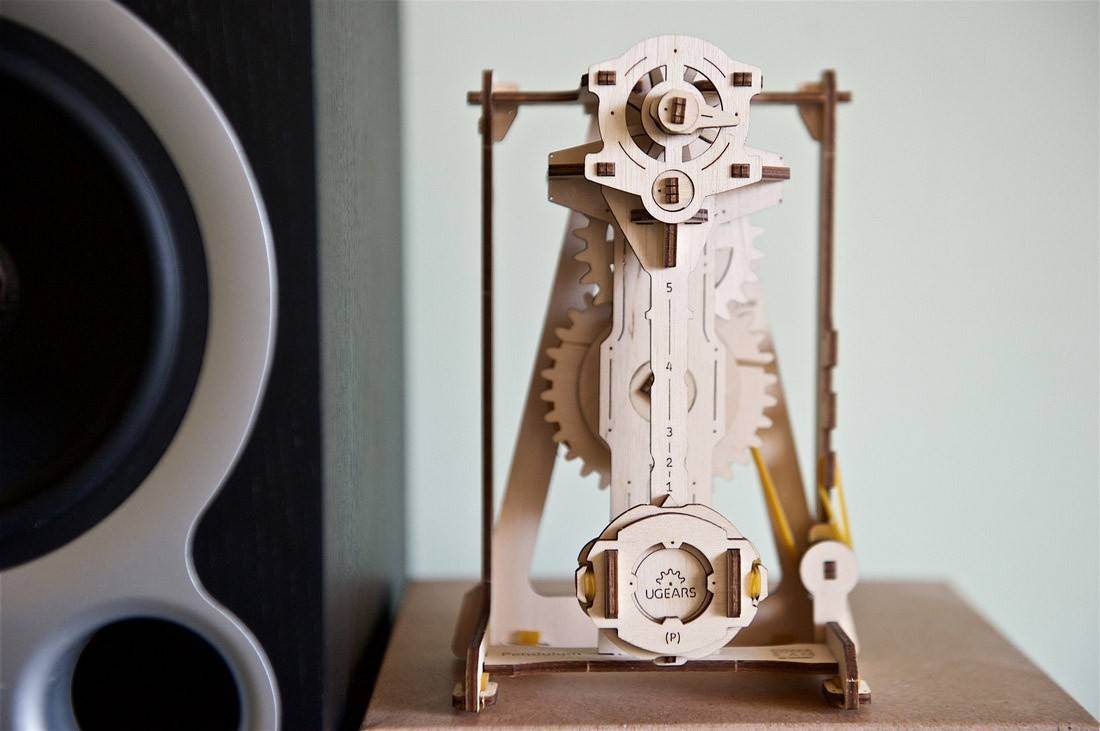

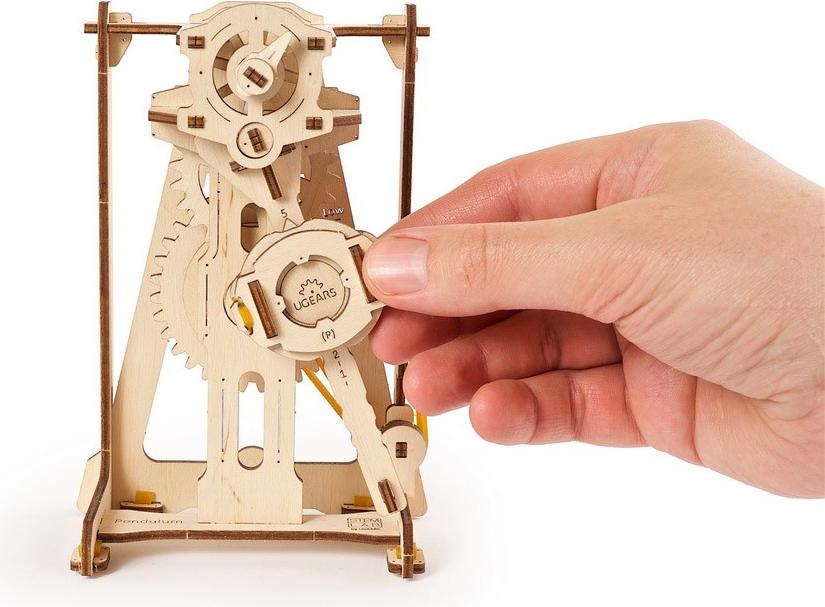

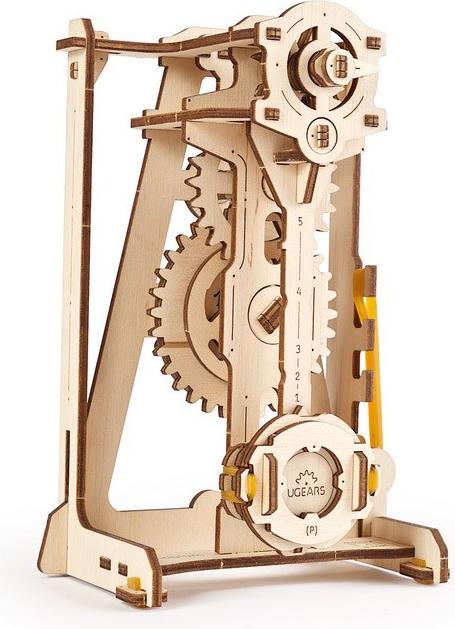

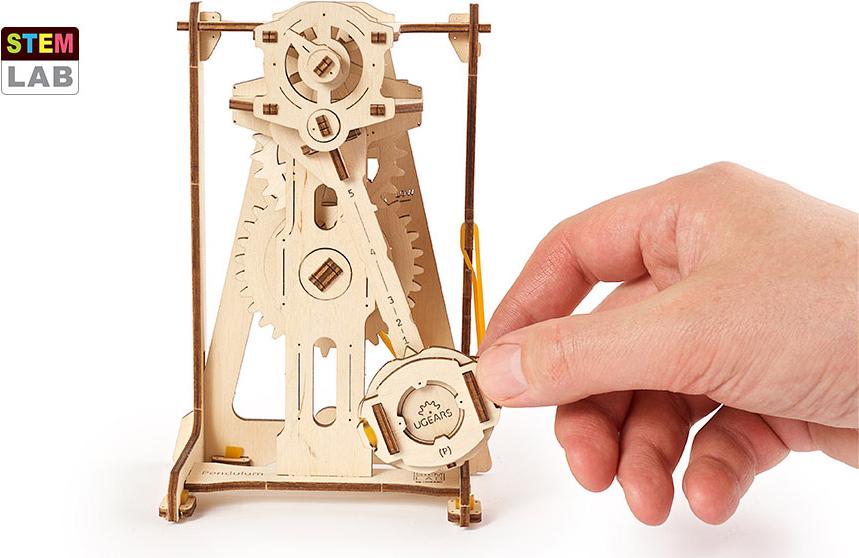

The model has an anchor escapement controlling the frequency of oscillations, a weight, a scape-wheel, gearing, rubber band, ratchet, and pawl reducing operation error. The model has several means to control the frequency of oscillations: the weight of the pendulum bob, the vertical position of the weight on the pendulum, and the tension of the rubber band.

When and who invented it
The first study of the pendulum was implemented by Galileo Galilei, an Italian engineer in the end of the 16th century. He described the property of the pendulum to preserve the consistency of the oscillations. The first person to use a pendulum in a mechanical clock and ensure a steady rate was a Dutch physicist Christiaan Huygens back in the 17th century.

Usage

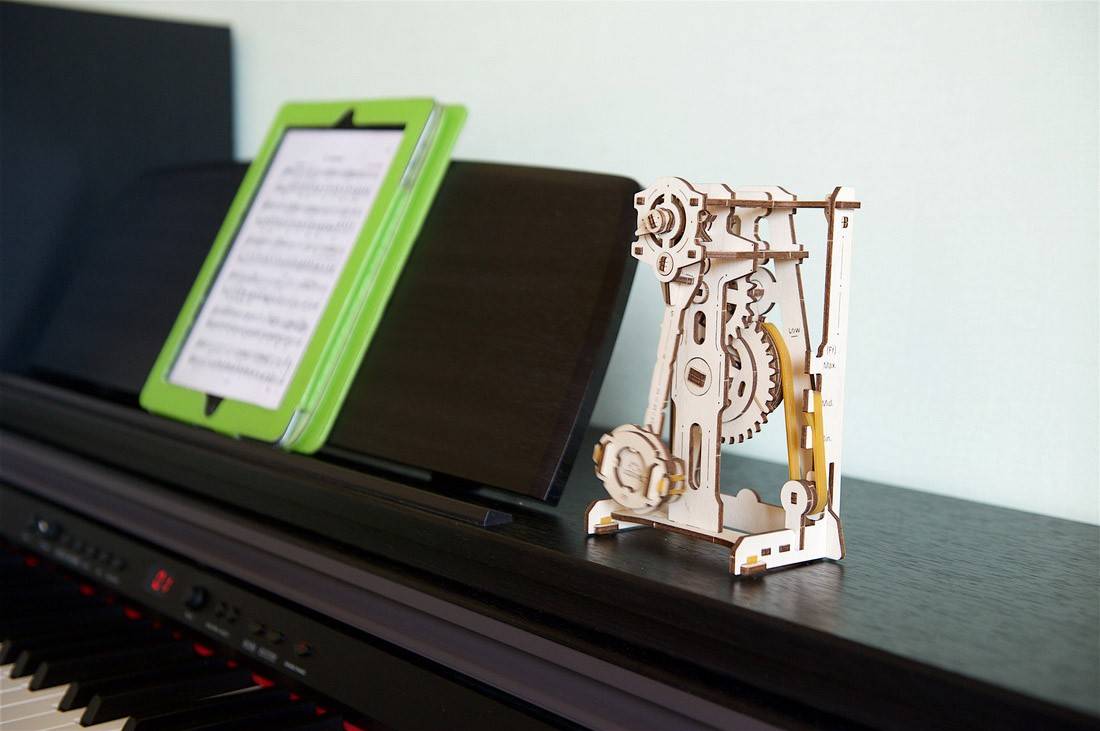

Pendulums are mainly used in mechanical clocks as an element of a launch mechanism and the way to provide a steady rate. In the musical sphere, metronomes that have pendulums as their chief constructional element, help musicians practice playing to a regular tempo. Pendulums are also used in geological surveying, seismography, sports, and laboratory research in mechanics and physics.





click image to enlarge
ADDITIONAL PHOTOS
