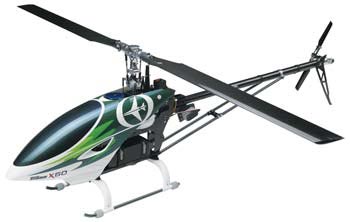

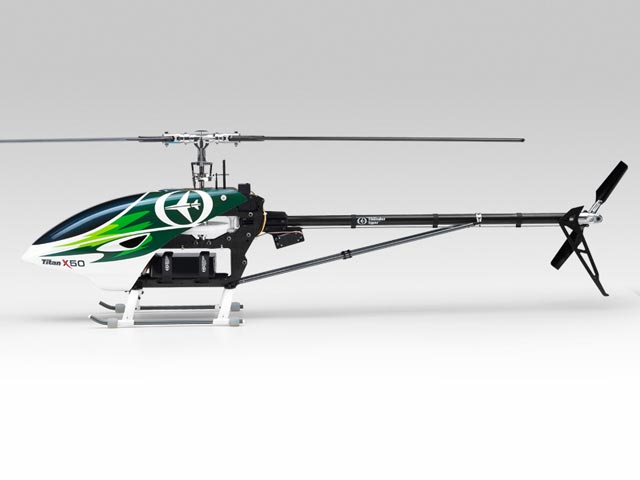

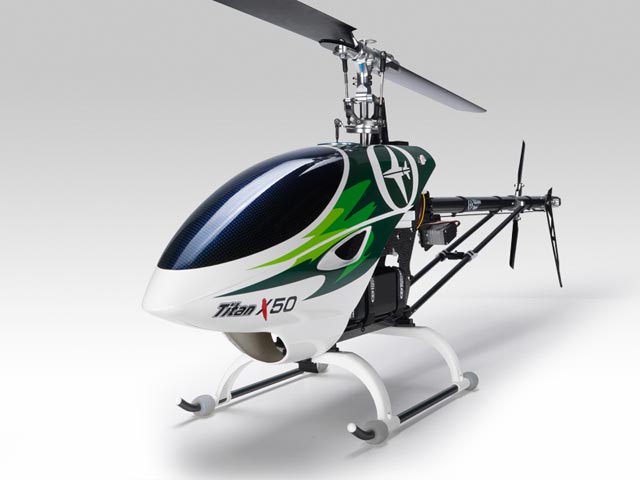

X50E Flybarless 600 Electric Helicopter Kit
 |
|
|
Discontinued
|
 |
More like this... Electric Helicopters 600mm Class
But only from... THUNDER TIGER
All items from... THUNDER TIGER
But only from... THUNDER TIGER
All items from... THUNDER TIGER
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
SPECIFICATIONS
1345 mm
Rotor Span:
260 mm
Tail Rotor:
400 mm
Height:
1200 mm
Length:
2700 lbs
Weight:
50/06-50H 600-size Heli Motor
Motor Requirements:
To match motor
ESC Requirements:
8-12S LiPo
Battery Requirements:
(3) cyclic/pitch, (1) tail rotor
Servo Requirements:
6-channel helicopter system
Radio Requirements:
FEATURES
- Flybarless design
- 10 mm main shaft — hollow to reduce weight, hardened to add durability
- 7 mm feathering shaft
- Lightweight, rigid one-piece metal main rotor hub
- Titanium turnbuckles for easy adjustment and strength
- Long, machined aluminum control arms for high resolution control
- Accepts a wide range of motor sizes, up to a maximum width of 52 mm
- Robust 135-tooth main gear
- 120° CCPM control system (convertible to 140°)
- Adjustable motor mount and pinion bearing block
- Large battery bay accommodates 8-12S LiPo power
- Sturdy pre-painted canopy with color-shifting finish
- Torque-tube tail drive system
- Machined aluminum tail case and boom support bracket
- Compound carbon/aluminum tail boom for low vibration and less weight
- Thunder Tiger V2 carbon 600 mm FBL main rotor blades

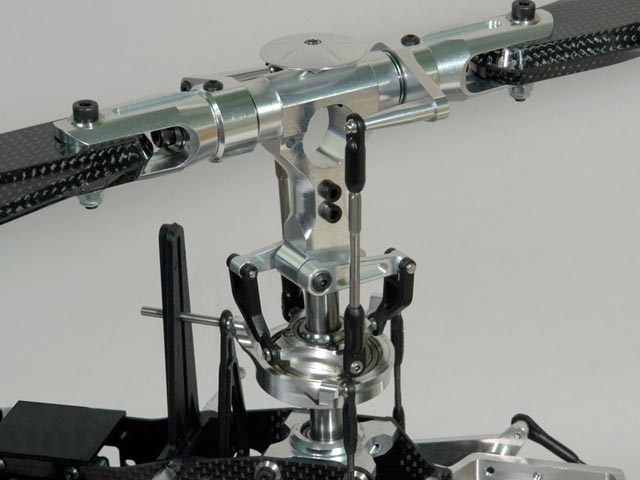

Rotor Head Features
- Hardened 10 mm main shaft and 7 mm feathering shaft
Assembled 3-piece metal main rotor grip set for easy maintenance
Flybarless Features:
- Lightweight, rigid one-piece metal main rotor hub
Enlarged titanium rod and ball linkage for rigidity and extreme pitch response
Longer metal control arms for high control resolution

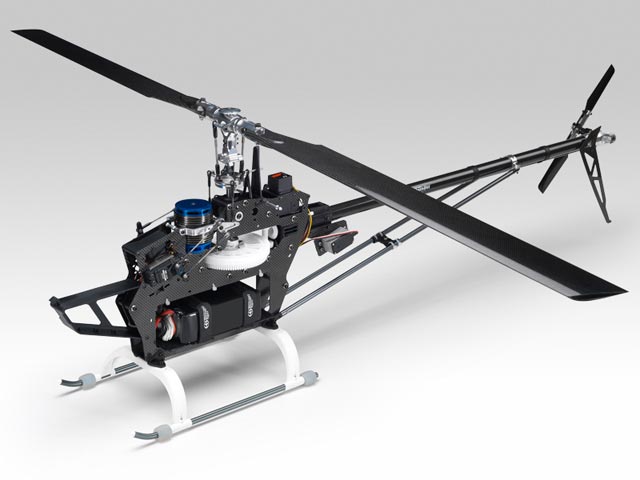

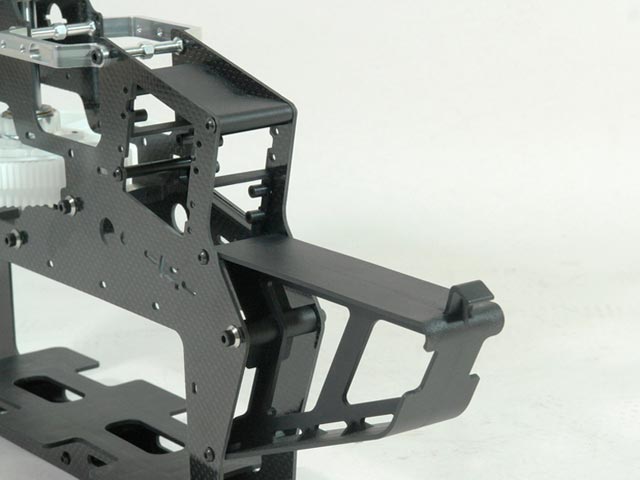

Main Frame Features:
- Top mounted motor for better CG and efficient heat dissipation
Motor mount for both M4x30mm and M3x25/ 30mm bolt position
Accepts wide range of motor sizes. Maximum diameter 52 mm

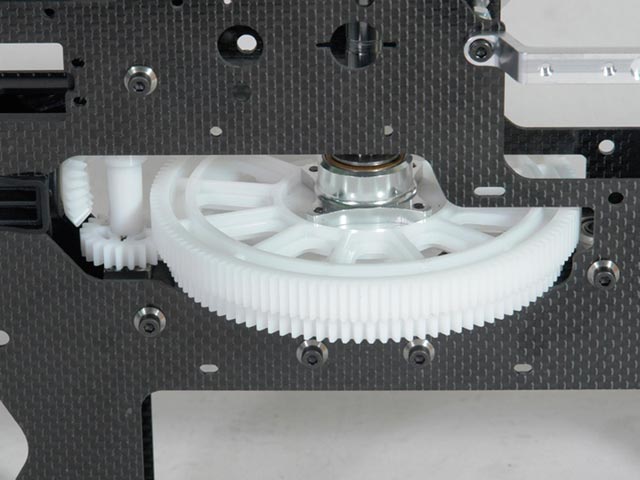

Enlarged 135T vented main gear (Mod 0.8)
Adjustable gear ratio to accommodate different motor KV.
(15T pinion included for 6 mm motor shaft)
One-piece carbon frame with 30 mm slim profile
Extended electronics tray for installation versatility
All metal control arms assembly eliminate the need for upgrades
120-degree CCPM control system, option 140-degree convertibility
Integrated reinforced ribs and control arms base around the motor for strength

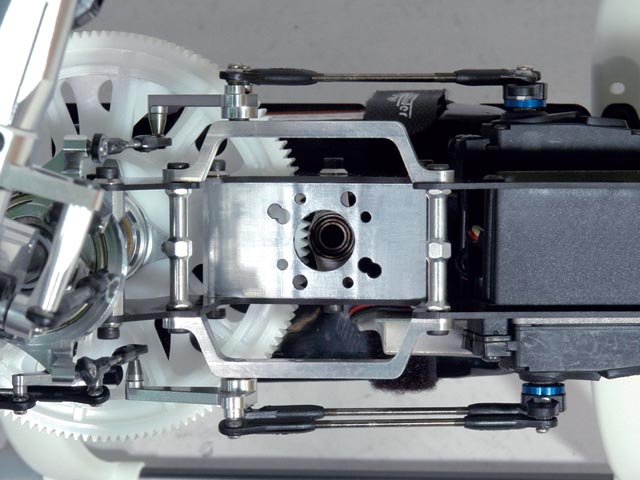

Adjustable motor mount and pinion bearing block
Enlarged room for Lipo battery pack, applicable to a 8~12-cell pack

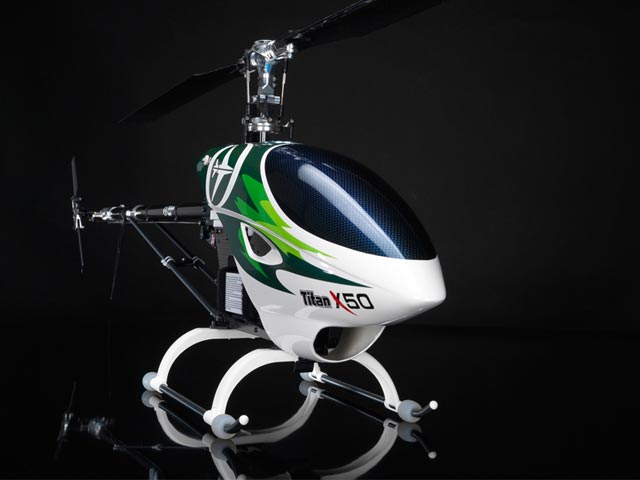

High-quality color shifting preprinted canopy

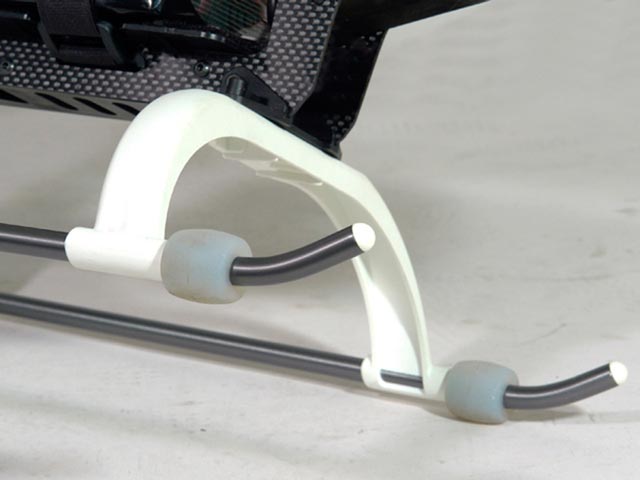

Lightweight and durable landing skid set

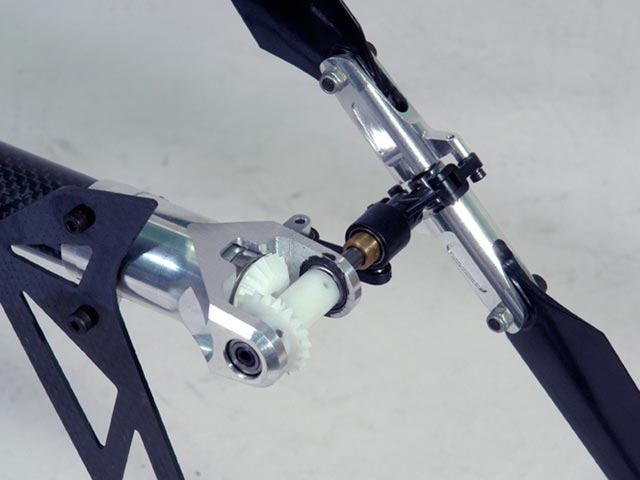

Tail Unit Feature:
- Torque-tube drive system for crisp rudder response and 100% power transfer
Dual Radial, single thrust bearings and metal tail grips with 95 mm blades
Lightweight, metal tail boom support bracket and machined tail case
Compound carbon/aluminum tail boom to reduce vibration
All metal, high precision and heavy duty tail rotor system
Easy to install trail rotor rod guide
