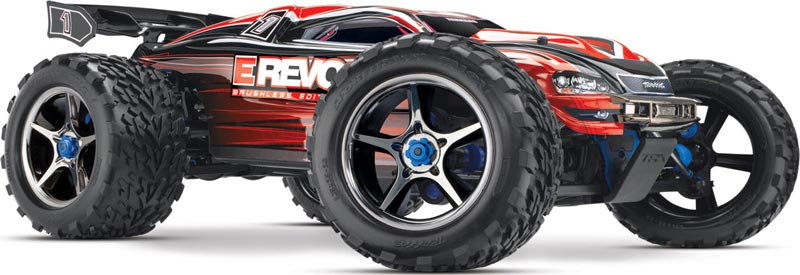

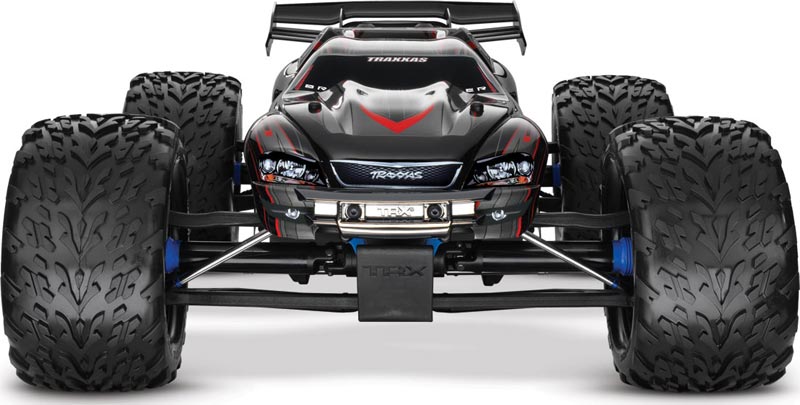

The E-Revo was built for brushless power right from the start. For other companies, brushless-ready means just making some nominal provisions for battery and motor installation and letting the aftermarket develop the upgrades necessary to make it survive. Not Traxxas. We heard the call for more power, so E-Revo was tested tough for durability with brutal 6S LiPo power and intense custom-wound brushless motors. For the uninitiated, this extreme 65+mph motor monster truck is ordinarily a predictable recipe for a box full of twisted and mangled parts. Not so with the E-Revo Brushless Edition. E-Revo's driveline has been engineered to endure the kind of horsepower and punishment that's possible with today's motor and battery technology. It looks factory because it is factory, complete with a separate motor plate for clean, low-slung single motor installation. E-Revo Brushless Edition includes Power Cell NiMH batteries for Ready-To-Race fun right out of the box, and is ready for your choice of Power Cell LiPos – no modifications needed.

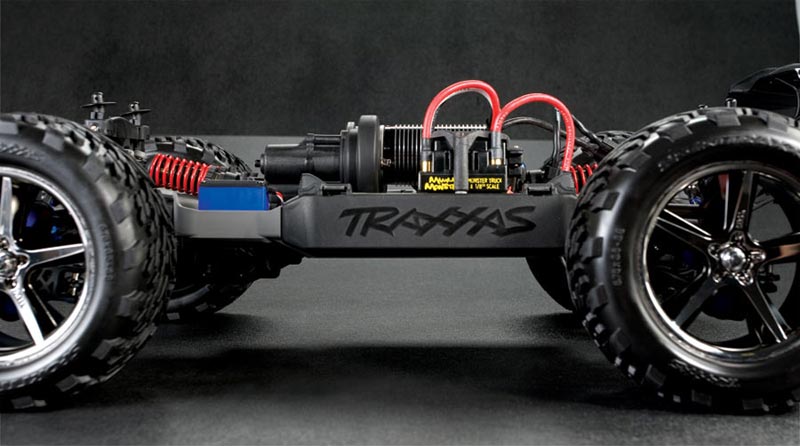

Waterproof MXL-6s Brushless Power System
Built specifically to handle the rigors of large, power-hungry trucks, the waterproof MXL-6s speed control is ready for 6S LiPo power with its massive 6.5mm gold-plated connectors, high-efficiency heatsink, integrated cooling fan and heavy-duty components. The speed control sends its power pulses to a 2200kV, 75mm motor, designed specifically for maximum performance and reliability with 6S LiPo power in torque-hungry applications. The aluminum motor can is machined to act as a massive heatsink, high-grade bearings deliver maximum efficiency, and high-strength Neodymium magnets give E-Revo Brushless Edition outrageous torque. To resist the twist, a beefy 5mm shaft transfers power to Brushless-Ready transmission.

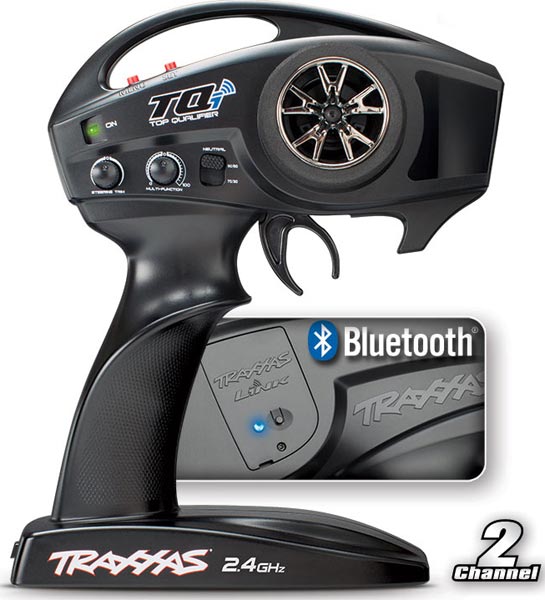

The World's Most Advanced Ready-To-Race® Radio System Now Connects Wirelessly to the Traxxas Link App
The Traxxas TQi paired with the Traxxas Link app is the most advanced, feature-rich, Ready-to-Race radio system available. Now, TQi connects wirelessly to the latest Traxxas Link app for the ultimate in ease-of-use and control. The TQi radio system can be equipped with the Traxxas Link Wireless Module to unlock exciting features such as instant Bluetooth connectivity; access to the full range of powerful TQi tuning and telemetry tools through an intuitive high-definition graphical interface; and the ability to have a friend remotely monitor real-time telemetry while you focus on mashing the throttle. Your co-driver can even make adjustments for you, remotely, while you drive. No other radio system can do that. Just like the speed and performance Traxxas engineers into the vehicles, the power and capability of TQi and Traxxas Link expands your fun into all-new territory.
Gone are the clunky controls and blocky monochrome graphics of yesterday's radio systems. This powerful app gives you complete control over the operation and tuning of your Traxxas radio controlled model with stunning visuals and absolute precision. Traxxas builds the world's fastest Ready-To-Race radio-controlled models. That level of performance demands precision control. Traxxas Link gives you the tools for exacting adjustment and superior control while always keeping you informed on your model's status and speed.
Factory-Installed Telemetry Sensors
Traxxas Link collects and records real-time telemetry data as you drive. When you equip your model with optional telemetry sensors, the Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy setup and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named and saved to compare, review, and share with friends.
Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile. Only Traxxas Link makes pro-level transmitter tuning so fast, convenient, and easy.
Sealed Watertight Receiver Box
E-Revo's receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box.

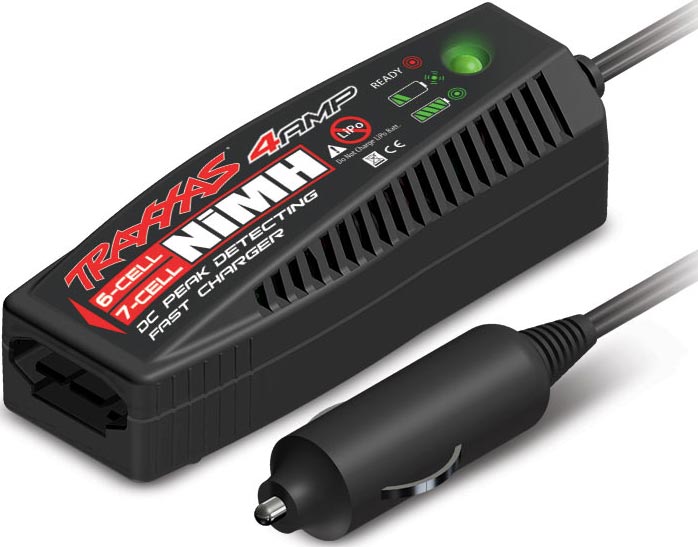

Traxxas 4amp DC Peak Detecting Fast Charger
For quick, convenient, hassle-free charging, a 4amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.

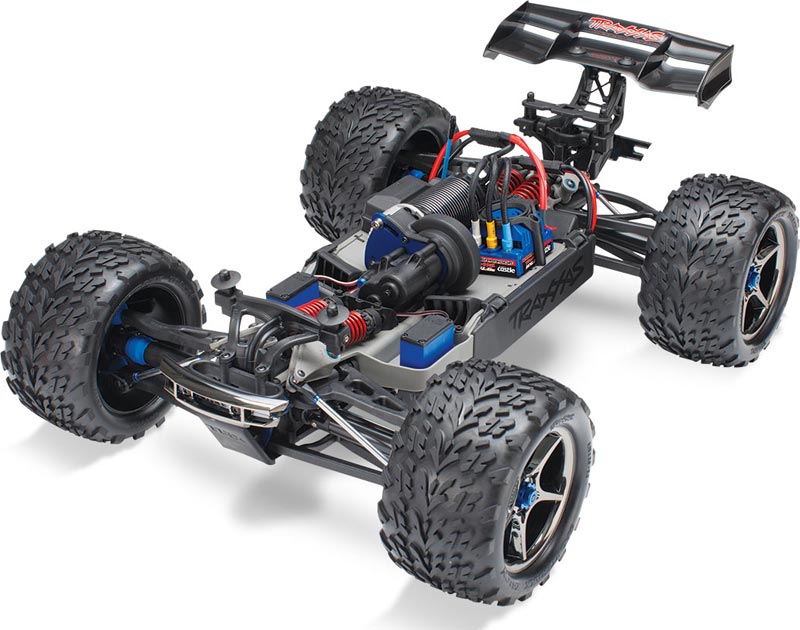

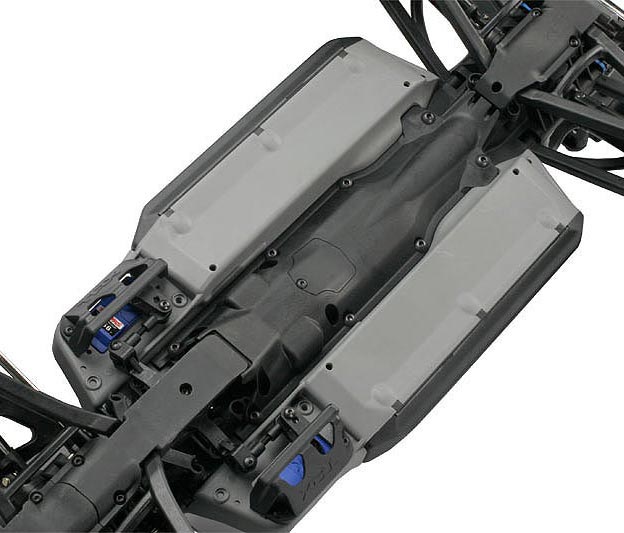

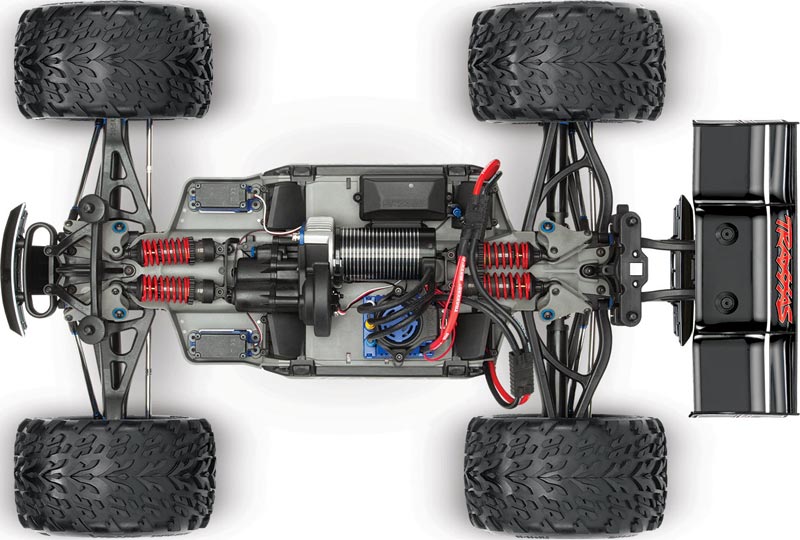

Low-CG Chassis Design
Engineered by Traxxas, the ground-breaking molded E-Revo chassis sets a new benchmark for electric monster truck looks and performance. The E-Revo chassis combines art and function to deliver a lightweight, integrated, and rigid platform that maximizes strength and reduces weight. Scalable battery compartments accept a variety of NiMH and LiPo configurations to unlock E-Revo Brushless edition's power potential. By combining the battery compartments with the chassis design, the battery packs can sit low and close to the center of the truck, plus valuable chassis surface is freed up to accommodate the electronics for a clean layout. This keeps the center of gravity (CG) as low as possible and increases side-to-side agility by keeping most of the weight close to the center

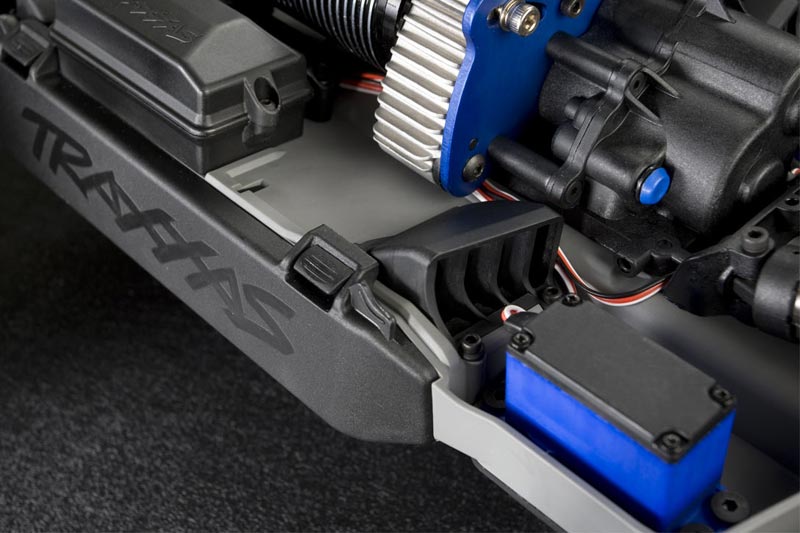

Quick Release Battery Doors

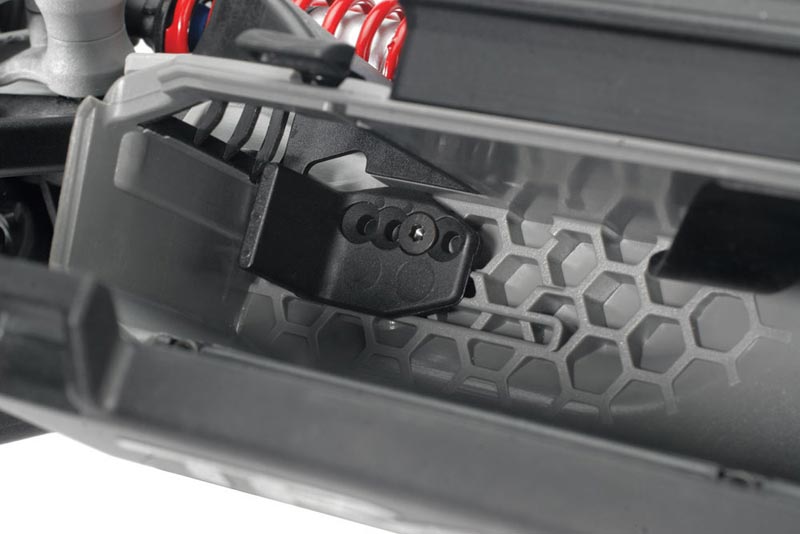

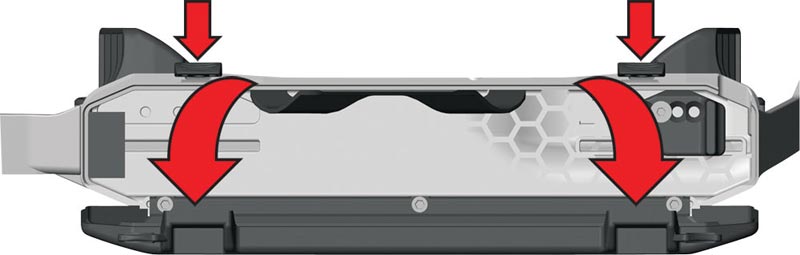

The futuristic chassis design incorporates enclosed battery compartments into the sides of the chassis for an ultra-clean look even with the battery packs installed. Innovative quick release battery doors mount directly to the chassis, so there are no clips or hold downs to lose during battery swaps. The doors pivot down using a hinged design and dual clasps secure the tops of the battery doors for impact-proof security. To open the battery doors depress the latches and pull on the battery door tabs. To close the doors simply press on the door until the latches snap into place.

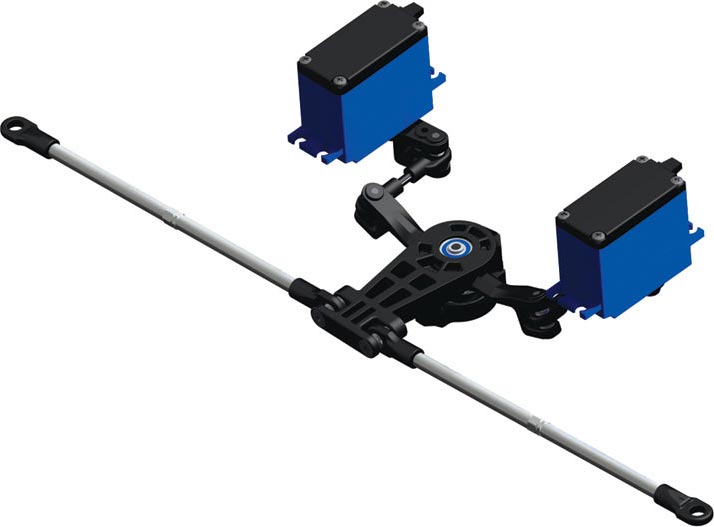

Dual-Servo Steering System
E-Revo takes a total system approach to eliminating the slow, mushy steering response typical on other monster trucks. Each servo is rated for 125 oz.-in. of torque, giving E-Revo a total of 250 oz.-in. of tire-turning twist to keep you in command no matter how tough the conditions.
