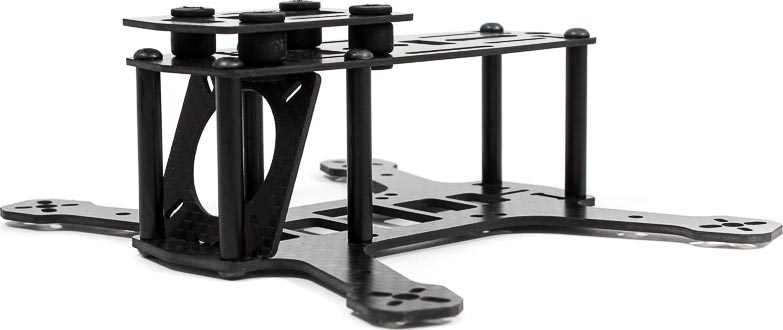

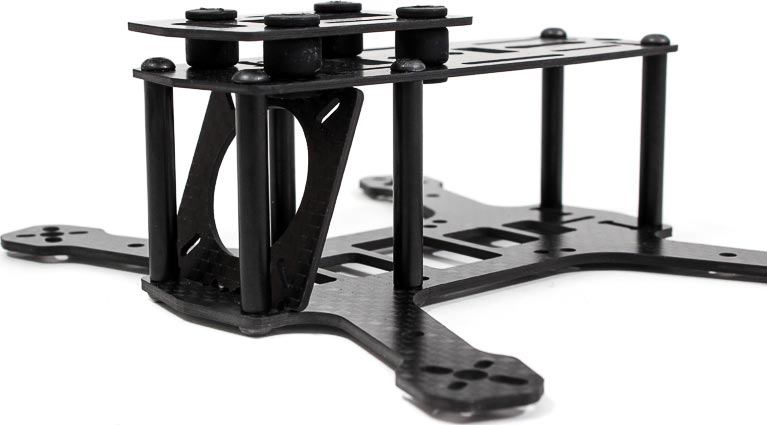

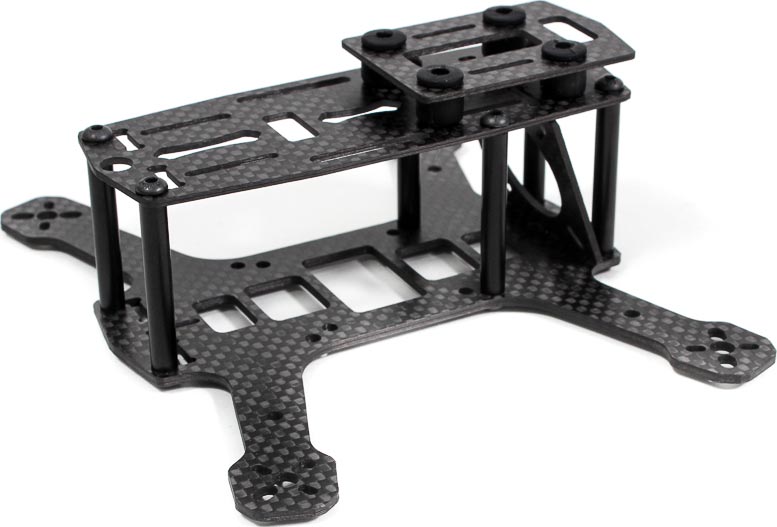

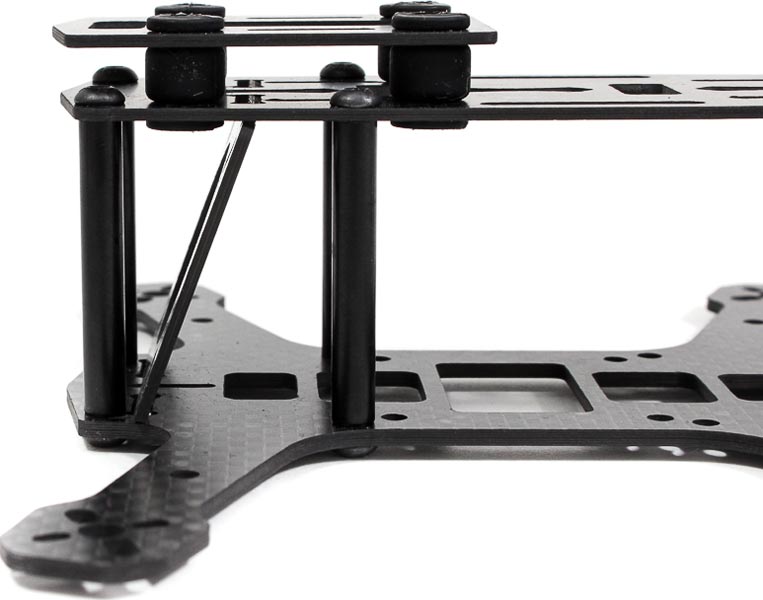

ZMR 150 Racing Quad Frame w/2mm Arm
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Multirotor Drone, Kit Racing Drones
But only from... TEAM GREAT HOBBIES
All items from... TEAM GREAT HOBBIES
But only from... TEAM GREAT HOBBIES
All items from... TEAM GREAT HOBBIES
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
150 mm
Rotor Span:
110 mm
Length:
140 mm
Width:
50 mm
Height:
1106 / 1306 size brushless outrunners
Motor Requirements:
4+ channel
Radio Requirements:
EMAX 12a/20a nano recommended
ESC Requirements:
~1000mAh 3s recommended
Battery Requirements:

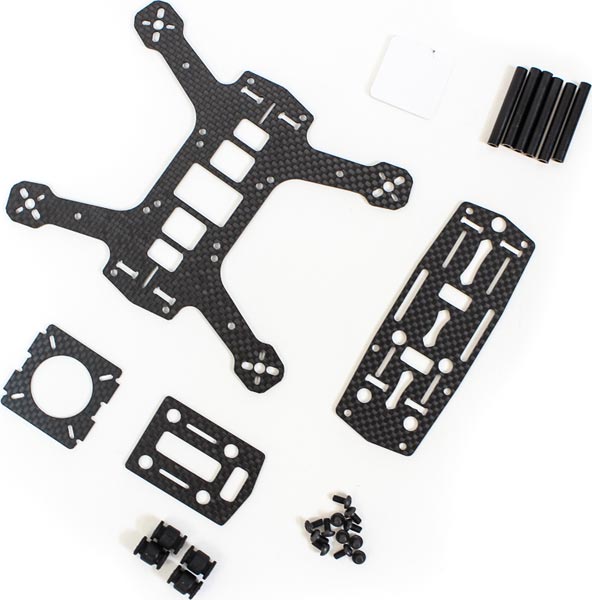

FEATURES
- Accepts flight controllers/PDB with standard 30.5mm mounting
- 2mm thick carbon fiber one piece main frame
- Accepts most 18mm motors with 12mm M2 mounting screws
- Accepts up to 3" dia props
- 1.5mm thick Carbon Fiber top plate and camera mounting plates
- 35mm black anodized aluminum standoffs
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
|
|
PRODUCT RESOURCES
