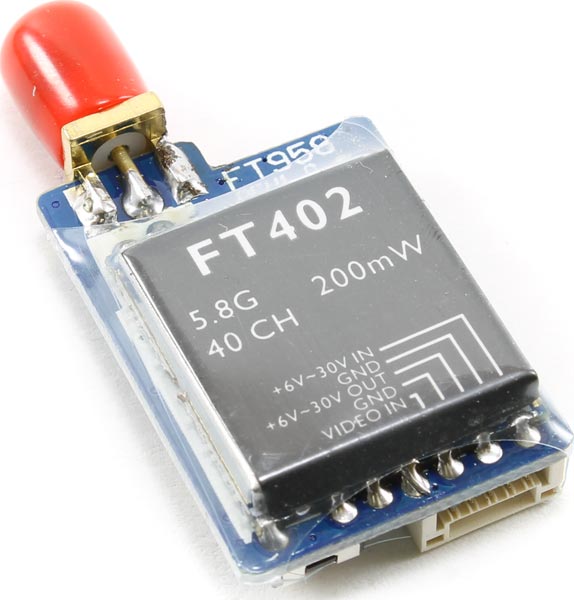

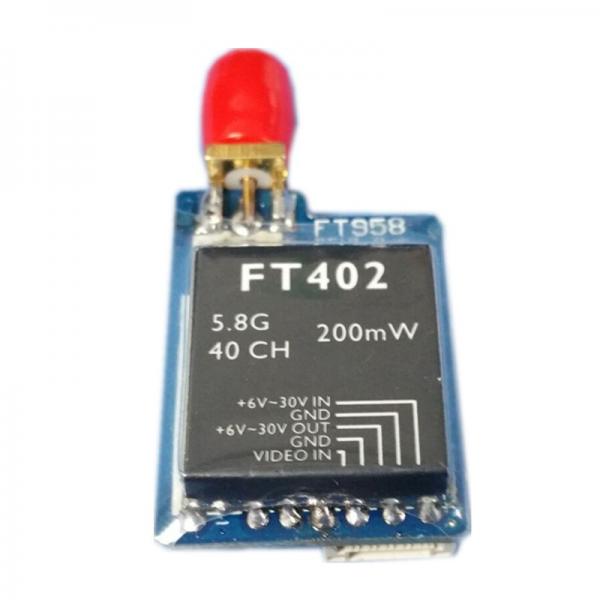

5.8GHz Super Mini Video Transmitter 200mW 40-Ch
RESOURCES
Manual/Diagram
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
More like this... Video Equipment Transmitters, 5.8GHz
But only from... TEAM GREAT HOBBIES
All items from... TEAM GREAT HOBBIES
But only from... TEAM GREAT HOBBIES
All items from... TEAM GREAT HOBBIES
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
40 ch
Channels:
5.8 GHz
Band:
6-30 V
Operating Voltage:
SMA
Antenna Connection:
30 mm
Length:
22 mm
Width:
8 mm
Height:
8 g
Weight:
200 mAh
Operating Current:
FEATURES
- FT402 E-band 5658-5917GHz, 40CH total
- RF Output Power: 200mW(23dBm±0.5dBm)
- Operating Voltage: +6.0V～+30.0V
- Supply current: 200mA±10mA
- Power indicator
- Press key to change channel and group
- Transmitter connector: SMA jack
- Required antenna connector: SMA (with pin) plug
5.8GHz Super Mini Video Transmitter 200mW 40-Ch
click image to enlarge
ADDITIONAL PHOTOS
|
|
|
PRODUCT RESOURCES
Customers who bought this item also bought...
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
FT402
