Seriously Pro Racing F3 EVO Flight Controller
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
But only from... TEAM GREAT HOBBIES
All items from... TEAM GREAT HOBBIES
- 3 primary flight modes: Acrobatic, Angle and Horizon
- Extensive control and switch configuration
- Telemetry Support (HoTT, FrSky, SmartPort, etc)
- Battery Monitoring and Warnings
- Signal Strength Monitoring (RSSI)
- Failsafe system
- Altitude Hold Mode
- Heading Hold Mode
- In-flight tuning
- Customizable LED colors

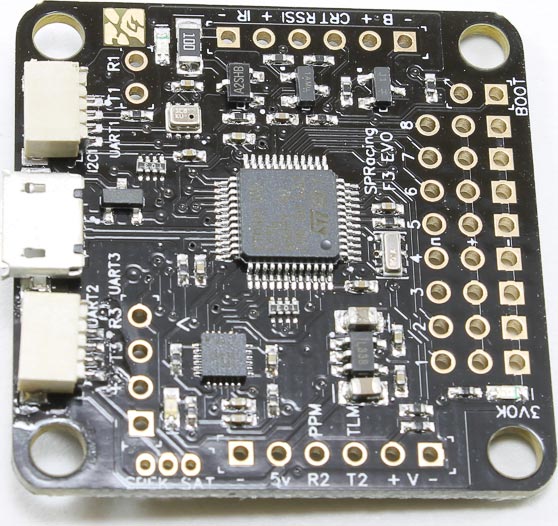

The Seriously Pro Racing F3 Mini Flight Controller was designed to give awesome flight performance in a tiny race-ready package at a wallet-friendly price.
Jaw-Dropping Flight Performance
The SPRacingF3EVO uses an advanced processor, sensor and software technology to make your aircraft fly like it's on rails. It also has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time. Loop times up to ~2x as fast as previous-generation STM32F1 based boards.
Race Timing Transponder
The SPRacingF3EVO features a race transponder system for recording your lap times. Each board comes with a special transponder code to identify you at race events. Compatible with i-LAP receiver systems.
MicroSD

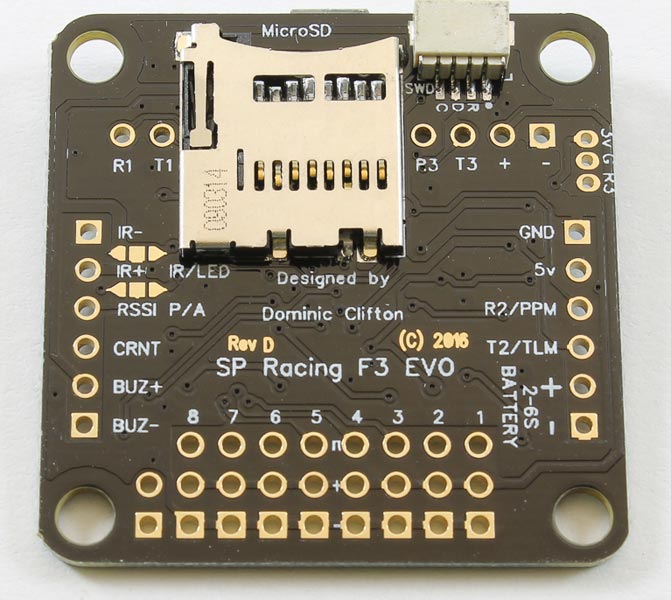

The SPRacingF3EVO is the first and only standard sized board for Cleanflight that features a MicroSD card socket for logging. Supports MicroSD/SDHC up to 32GB - just leave one in and log every flight!
USB
USB socket to configuration of flight controller and for pass-though configuration of BlHeli ESCs.
USB socket is not shared with any of the 3 serial ports. No more unplugging your OSD when configuring
Configurable
The SPRacingF3EVO runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).
Small and lightweight
The SPRacingF3EVO has a standard 36x36mm form-factor with 30.5mm mounting holes on a thick PCB for durability.
Stackable
The SPRacingF3EVO is a stackable design. Connect an OSD or PDB directly under the board for a super-tidy and wire-free installation.
Stackable designs are proven to be more durable in a crash.
Broad RC receiver support
Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM. No external inverters required (built-in), receiver powered via flight battery or USB for easy configuration.
Dedicated ports for PPM/SBus/SumH/etc for easy connections. Socket for plug and play Spektrum Satellite receiver.
Unique code
Each SPRacingF3EVO comes with a unique QR-CODE so you can download your personal transponder code.
Programmable LEDs
Output for multi-colored LED strips - great for FPV racing, line-of-sight flying orientation and night flying.
Developer Friendly
Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
OneShot ESC
Full support for OneShot ESCs for easy PID tuning and a sharper response.
Battery Monitoring
Built in battery voltage monitoring, input for additional current monitoring.
Sonar
Sonar support for precision low-altitude hold.
I2C Port
I2C port always powered, perfect for external sensors or always-on OLED Screen.
Buzzer
Buzzer port for audible warnings and notifications.
|
|
|
|
|
|
|||||||||||||||||||||||||||||||
