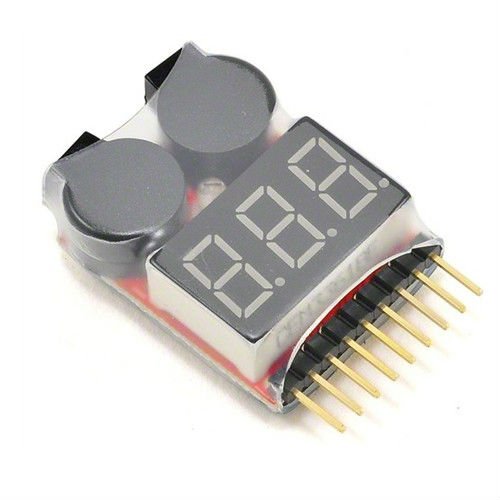

Li-Po Voltage Checker w/ Integrated Alarm
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Test Equipment
But only from... TEAM GREAT HOBBIES
All items from... TEAM GREAT HOBBIES
But only from... TEAM GREAT HOBBIES
All items from... TEAM GREAT HOBBIES
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Li-po, Li-ion, Li-Mn, Li-FE
Suitable Battery Types:
JST-RCY (BEC), JST-XH
Compatible Connector:
1S through 8S
Number of Cells:
±0.01 V
Voltage Precision:
0.5 - 4.5 V
Cell Voltage Display Range:
36 V
Total Voltage Display Range:
2S through 8S
Low Voltage Alarm Operation:
Off / 2.7 - 3.8 V
Low Cell Voltage Alarm Range:
FEATURES
Handy lipo checker and alarm!
This voltage meter will plug into the standard (XH) balance port of most lithium polymer batteries on the market. It will then display the voltage of each individual cell, as well as the total series voltage of the pack.
It also doubles as a low voltage alarm: simply leave it plugged into the balance port while running your car/airplane etc, and an alarm will sound when you reach the minimum voltage specified. Minimum voltage (per cell) is set using a button, and can be set for between 2.7 and 3.8v. Normal safe minimum voltage for lithum batteries is 3.0V per cell.
Operating Instructions
- To manually test the voltage of a lithium pack, plug the JST-XH
balance plug onto the checker’s battery connector. Be sure that
the black negative lead connects with the left most negative pin,
as shown. Once connected, the checker will cycle through
displaying the voltages of each cell in the pack and then display
the voltage of the entire pack. - To program the alarm voltage, with a battery connected, press
the program button repeatedly through the various voltages from
2.7V to 3.8V. Default is 3.2V. There is also an ‘OFF’ option. - Install the checker in your model by securing it with double sided
servo tape or hook and loop material. Plug the checker into your
balance plug just before operation. Once a cell of the pack
reaches the alarm threshold, the loud piezo alarm will sound
telling you to cease operation to protect the pack.
