The RS GEN2 SPEC is designed for Spec racing and offers professional performance at an affordable price. True ROAR Spec mode only, no timing or boost features are available. The RS SPEC brings racer-friendly tuning and flawless operation to the world of Spec racing.

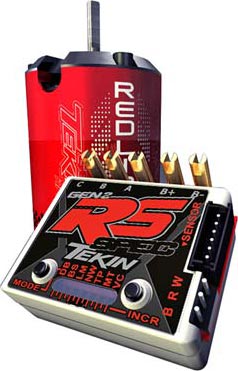

Packed with new features, the RS GEN2 SPEC provides an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package. Rated for 13.5 turn motors and higher, the GEN2 is the perfect ESC for both experienced and new racers. Couple the RS GEN2 SPEC with a Redline GEN2 brushless motor for the ultimate package in Spec racing equipment.
Features:
ROAR Spec Mode only, no Timing features
Ultra-smooth and Precise Throttle and Braking Control
Compatible with Sensored/Sensorless Brushless and Brushed Motors
Easily Access Programming, ANy place, Anytime
Datalogging Capability
EZ Access HotWire Programming Port
HotWire PC Interface for Advanced Programming and Updating
D2: Dual Drive Mode Technology
On-Board Temperature Indicator
HDAC: High Density Copper PCB's
Sensor Plug for Precise Commutation with all Motors
Gold-plated Solder Posts for Easy Wire Replacement
Self Test Diagnostics and Factory Reset
Pit Tune Mode
DGF2: Digital Glitch Filtering V2
QuickTune™ Programming
One-Touch Radio Calibration
Program Features:
Drag Brake (13 steps)
Brake / Reverse Strength (13 steps)
Current Limiter (none + 12 steps)
Neutral Width (13 steps)
Adjustable Throttle and Brake Minimums
Custom Throttle Curves
Motor/Reverse Type: Brushless, Brushed, No Rev, Rev Delay
Voltage Cutoffs (none, 2S, 3S, Custom)
ROAR Race Spec "Blinky" Mode
Save, Load and Share custom ESC setup files*
Save, Load and Share Data Log files*
Extensive Tuning via Tekin HotWire PC Interface
*Requires HotWire Sold Separately
Specs
Controls: Forward/Brake/Reverse
Input Voltage: 4-9 Cells, 2S-3S Lipo
BEC: 6.0v 3.7amps
Motor Limit Brushless Mode: 13.5 Turn, 540 2-pole (36mm)
Motor Limit Brushed Fwd Only Mode: 20 Turn Silver Can
Motor Limit Brushed Fwd/Rev Mode: 20 Turn Silver Can
Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
Dimensions: 1.0 x 1.3 x .51in (25.4 x 33 x 12.9mm)
Weight: .80oz / 22.5g
