TEKTT2335

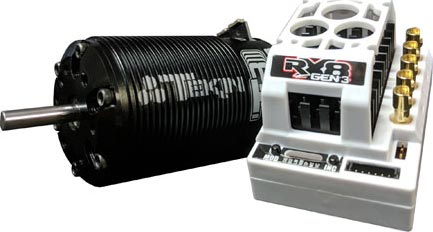

1/8 Rx8 GEN3 BL ESC 4038 T8 GEN3 BL Motor 2250kV

Product Info
TEKIN

TEKTT2335
1/8 Rx8 GEN3 BL ESC 4038 T8 GEN3 BL Motor 2250kV
By TEKIN
$459.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Car Motor Systems
But only from... TEKIN
All items from... TEKIN


 Inventory Status Legend
StockStock availability for on-line ordering
1
$459.99
Warehouse ?
StockStock availability for pick up
1
$459.99
Warehouse ?
0
$459.99
Store - Stratford ?
0
$459.99
Store - Edmonton ?
0
$459.99
Store - Mississauga ?
0
$459.99
Store - Ottawa ?
0
$459.99
Store - Oshawa ?
0
$459.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES

 Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security.

Controls: Forward/Brake/Reverse

Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
Motor Limit Brushless Mode: 2S - 2.0T 540
3S - 4000kV
4S - 3500kV
5S - 2000kV
6S - 1700kV

Motor Limit Brushed Mode: No Limit

Max Current: 300amps per phase*

Burst Current: 1000amps per phase*

BEC: 6.0v / 7.4v @ 8amps

Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm

Weight: 2.7oz / 76.5g



*per manufacturer spec



OFF ROAD



​ 1:10 4WD Short Course

​ 1:8 4WD Buggy

​ 1:8 4WD Truggy

​ 1:8 4WD Monster Truck



ON ROAD



​ 1:8 4WD Touring Car

​ 1:8 4WD GP Car



OVAL



​ 1:10 4WD SC Modified

​ 1:8 4WD Late Model



 Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3. Pair the T8 GEN3 with an RX8 GEN3 Speed Control for the ultimate in 1:8 scale racing power systems.

Voltage Limit: 2250KV - 4S LiPo

Weight: 4038 Truggy 13oz / 368

Shaft Dimensions: 5mm (.196") x 19mm

Motor Diameter:
40mm / 1.57"
42mm / 1.65" Including Fins

Motor Length: 4038 Truggy 77mm / 3.03"

Max Operating Temperature: 180°F / 82°C

Max RPM: 65,000

Bearing Dimensions:
Front: 5 x 16 x 5mm
Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm

Rebuildable: Yes
Mounting Pattern: M3 @ 25.4mm / 1"
M4 @ 25.4mm / 1"





OFF ROAD



​ 1:8 4WD Buggy

​ 1:8 4WD Truggy

​ 1:8 4WD Monster Truck



ON ROAD



​ 1:8 4WD GT

​ 1:8 4WD GP
