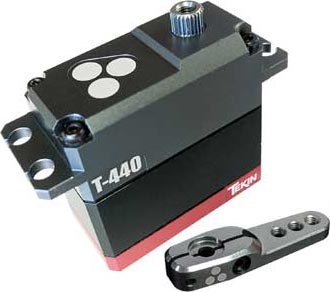

T440 Servo Std Crawler Torque Crowbar 20mm Alum Arm
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
 |
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Rock Crawling and Rock Racing
Application:
Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
40 mm
Height:
73 g
Weight:
Metal
Geartrain:
4.8 - 8.4 v
Voltage Range:
30.3 kg-cm (421 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
33.1 kg-cm (460 oz-in)
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
36.2 kg-cm (502 oz-in)
Torque @ 8.4V:
0.11 sec/60°
Speed @ 8.4V:
FEATURES
- Specifically Designed for Rock Crawling and Rock Racing Applications
- Included Aluminum 20mm Crowbar Servo Arm
- Full Aluminum Servo Housing
- Precision Cut Full Metal Gears
- ABEC5 Ball Bearings
- Digital Magnetic Position Encoder
- High Voltage Capable
- High Torque Coreless Motor
- 25T Output Spline
- Programmable via HotWire Interface
- Overload Protection Technology
- Thermal Protection Circuitry
- Low Voltage Alarm*
- Quiet, Efficient, Cool Operation
- HDAC: High Density Copper PCB's
Hit the trails hard with the Tekin T-440 Crawler Servo. Rocks, Mud, Dirt or Snow. The Element Proof Design means you can tackle any terrain. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you out of a bind. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.
*requires HotWire sold separately
