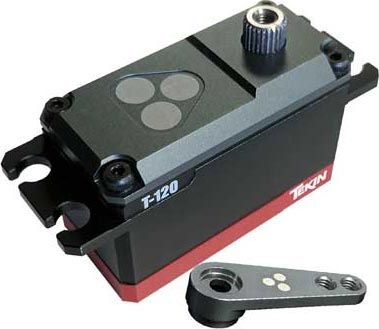

T120 Servo Lo Profile Speed Vector Alum Arm
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
1/12 and 1/10 Scale
Application:
Bearing
Bearing/Bushing:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
27 mm
Height:
54.6 g
Weight:
Metal
Geartrain:
4.8 - 8.4 v
Voltage Range:
7.9 kg-cm (110 oz-in)
Torque @ 6.0V:
0.06 sec/60°
Speed @ 6.0V:
9.2 kg-cm (128 oz-in)
Torque @ 7.4V:
0.05 sec/60°
Speed @ 7.4V:
10.1 kg-cm (140 oz-in)
Torque @ 8.4V:
0.04 sec/60°
Speed @ 8.4V:
FEATURES
- Specifically Designed for 1/12 and 1/10 Scale Applications
- Included Aluminum 20mm Vector Servo Arm
- Full Aluminum Servo Housing
- LP = Low Profile Design
- Precision Cut Full Metal Gears
- ABEC5 Ball Bearings
- Digital Magnetic Position Encoder
- High Voltage Capable
- High Torque Coreless Motor
- 25T Output Spline
- Programmable via HotWire Interface
- Overload Protection Technology
- Thermal Protection Circuitry
- Low Voltage Alarm*
- Quiet, Efficient, Cool Operation
- HDAC: High Density Copper PCB's
Speed and accuracy combine making this T-120 Lo-Pro Servo a perfect choice when precision and quick reflexes are at work. Designed to give you the industry's highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.
*requires HotWire sold separately
