TAM58726

1/10 XV-02RS Pro Chassis Kit

Product Info
TAMIYA

TAM58726
1/10 XV-02RS Pro Chassis Kit
By TAMIYA
$399.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
1
$399.99
Warehouse ?
StockStock availability for pick up
1
$399.99
Warehouse ?
0
$399.99
Store - Stratford ?
0
$399.99
Store - Edmonton ?
0
$399.99
Store - Mississauga ?
0
$399.99
Store - Ottawa ?
0
$399.99
Store - Oshawa ?
0
$399.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES
  • Ready to assemble electric power cardio control chassis kit
  • Shaft-driven 4wd system
  • Four-wheel independent double wishbone suspension
  • Full ball bearings
  • Front and rear carbon fiber damper stay
  • XV-02RS Aluminum Dampers

 This is a chassis kit that requires assembly and additional components sold separately.
Required to complete: 2-channel radio system, steering servo, speed control, 7.2-7.4v battery pack, 540 motor and 190mm body set.

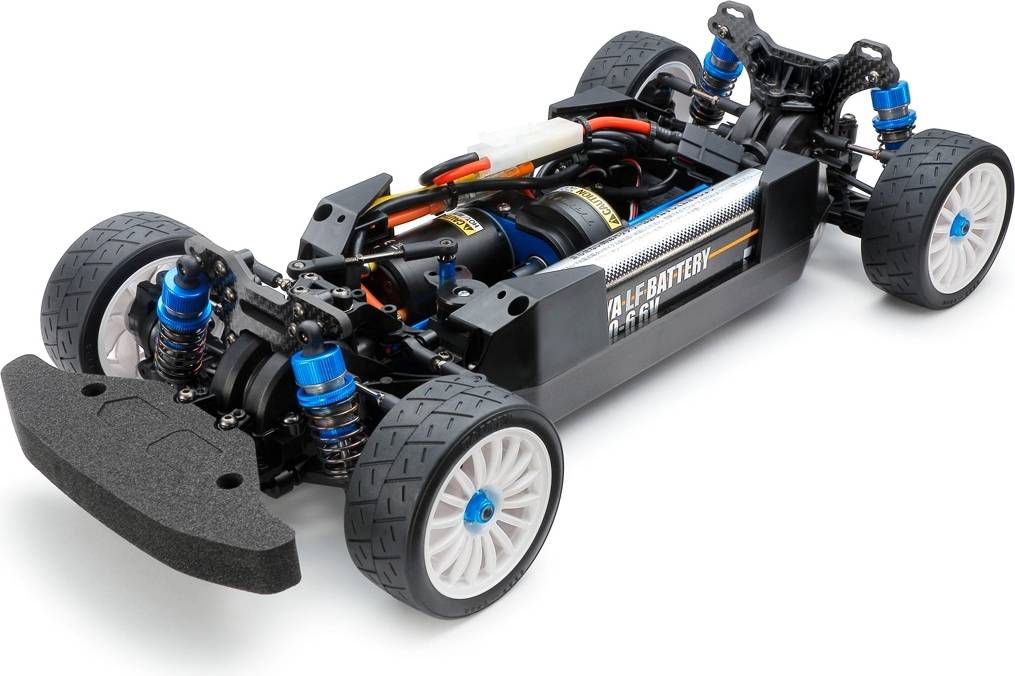

 The XV-02 RS chassis is an on-road variant of the rally XV-02 platform. The kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower chassis.

  • 1/10 scale R/C chassis assembly kit.
  • Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower chassis.
  • 18-spoke wheels are paired with racing semi-slick tires.
  • Equipped with front midship motor plus identical length front and rear long propeller shafts.
  • Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
  • Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. *Use the latter two with slipper clutch and center differential.
  • A longitudinal battery pack is positioned in the center-left for optimum balance.
  • The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact under driving conditions.
  • Caster blocks feature an angle of six degrees.
  • Includes front and rear universal drive shafts, and an aluminum servo mount.
click image to enlarge
ADDITIONAL PHOTOS
