TAM58685

1/10 Comical Hotshot (GF-01CB)

Product Info | Required Items
TAMIYA

TAM58685
1/10 Comical Hotshot (GF-01CB)
By TAMIYA
$269.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 4WD Buggy Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
1
$269.99
Warehouse ?
StockStock availability for pick up
1
$269.99
Warehouse ?
0
$269.99
Store - Stratford ?
0
$269.99
Store - Edmonton ?
0
$269.99
Store - Mississauga ?
0
$269.99
Store - Ottawa ?
0
$269.99
Store - Oshawa ?
0
$269.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
345 mm
Length:
224 mm
Width:
191 mm
Height:
174 mm
Wheelbase:
4WD
Drivetrain:
2-ch
Radio Requirements:
2-ch
Receiver Requirements:
Steering servo
Servo Requirements:
To suit motor
ESC Requirements:
7.2v rounded
Battery Requirements:
540 type
Brushed Motor Included:
No
ESC Included:

FEATURES
  • Includes a lightweight and durable stylized polycarbonate version of the Hotshot body and wing, developed specially for this model. The body is pre-painted in PS-2 Red. Stickers based upon the 2007 re-issue Hotshot are included for decoration.

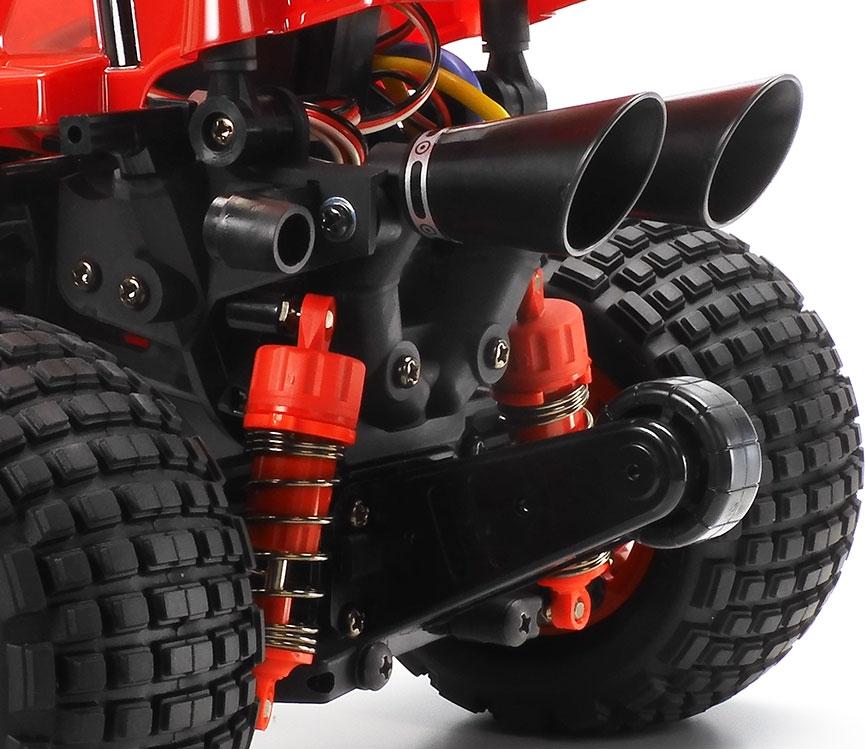

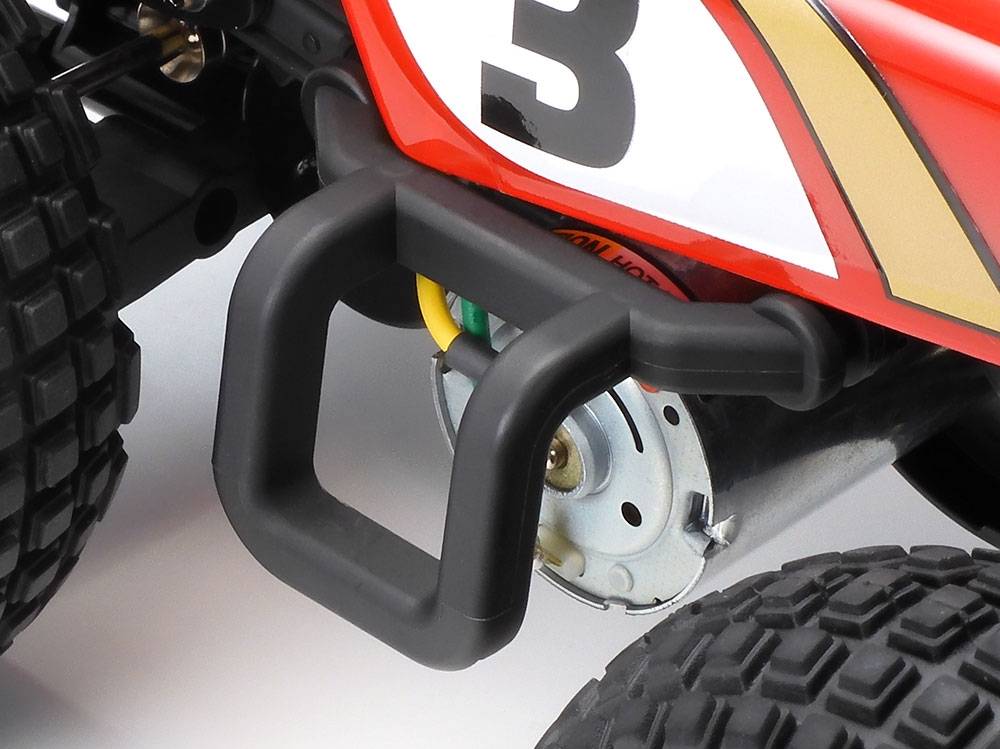

  • Stylish bumper and muffler parts are included, as well as dedicated side guard components.

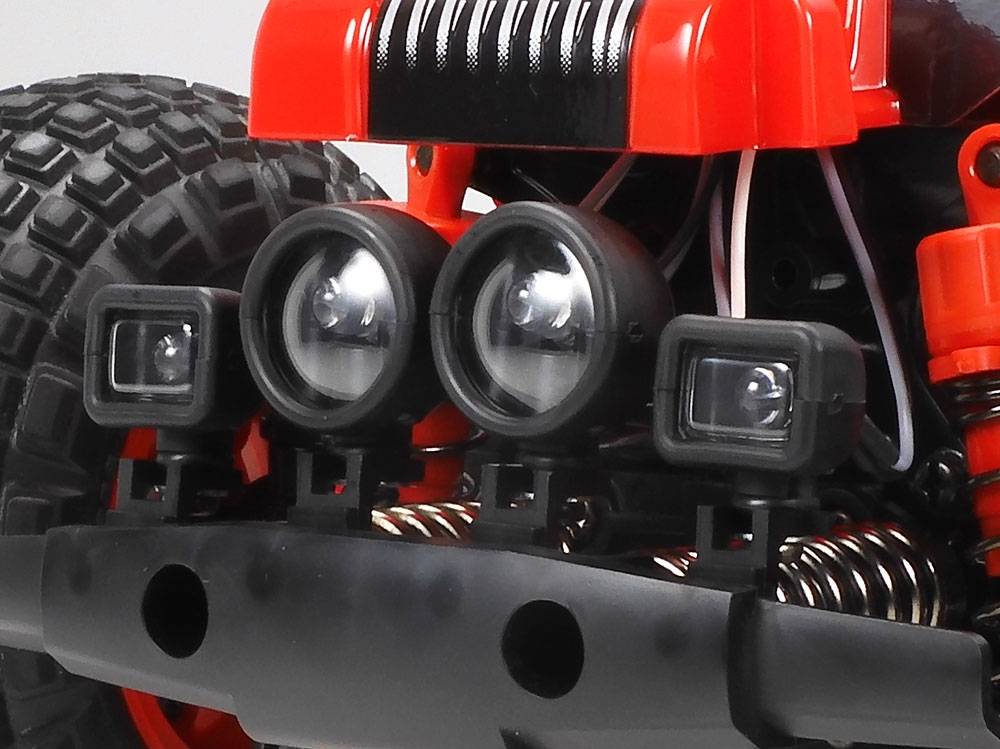

  • Separately sold 5mm LEDs can be used to light up the model. Light pods are included.

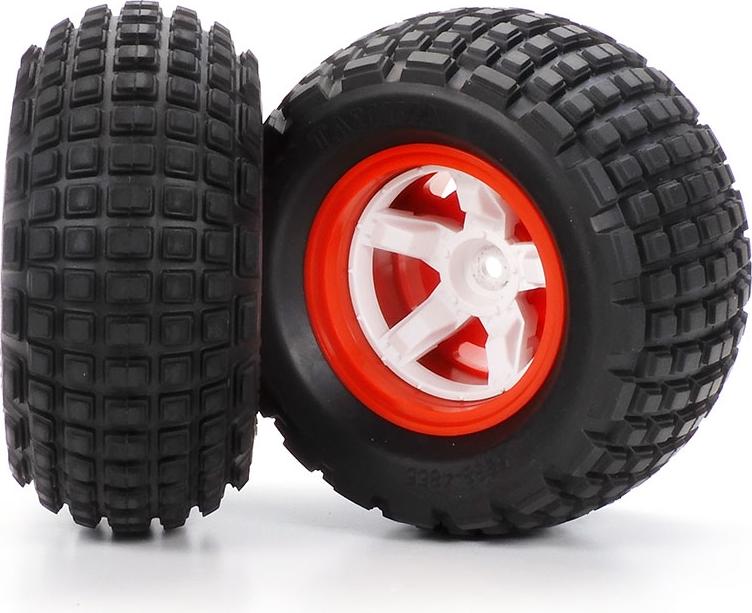

  • ST block bubble tires have stepped block patterns (width/diameter: front 45/99mm, rear 55/99mm).
  • The GF-01CB chassis offers efficient gear-driven 4-wheel drive.
  • ABS two-part wheels have red and white spoke parts.

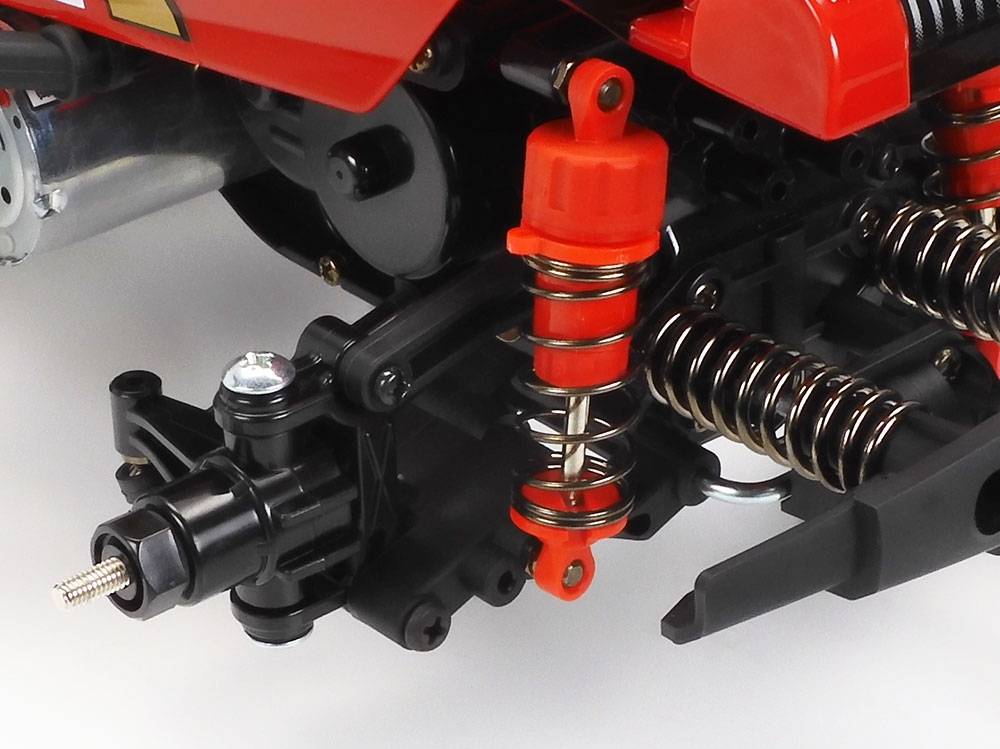

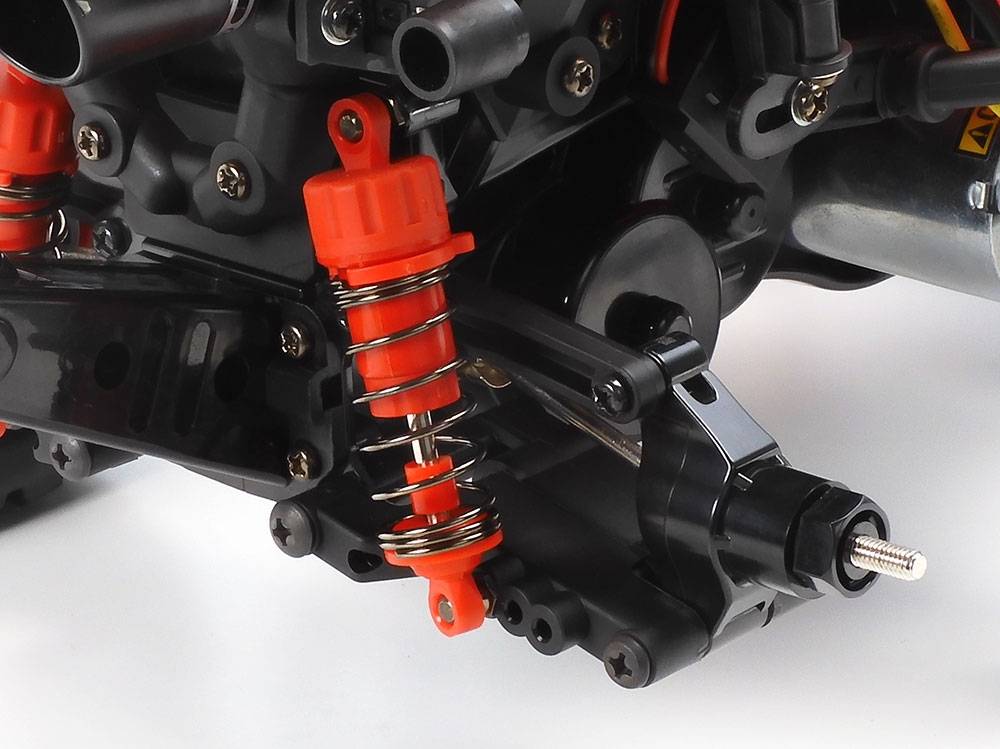

  • CVA Super Mini oil dampers molded in red ensure your ride has superior cushioning.
  • A rear wheelie bar lets you perform thrilling wheelies by slamming on the throttle.
  • Includes 540-brushed type motor.

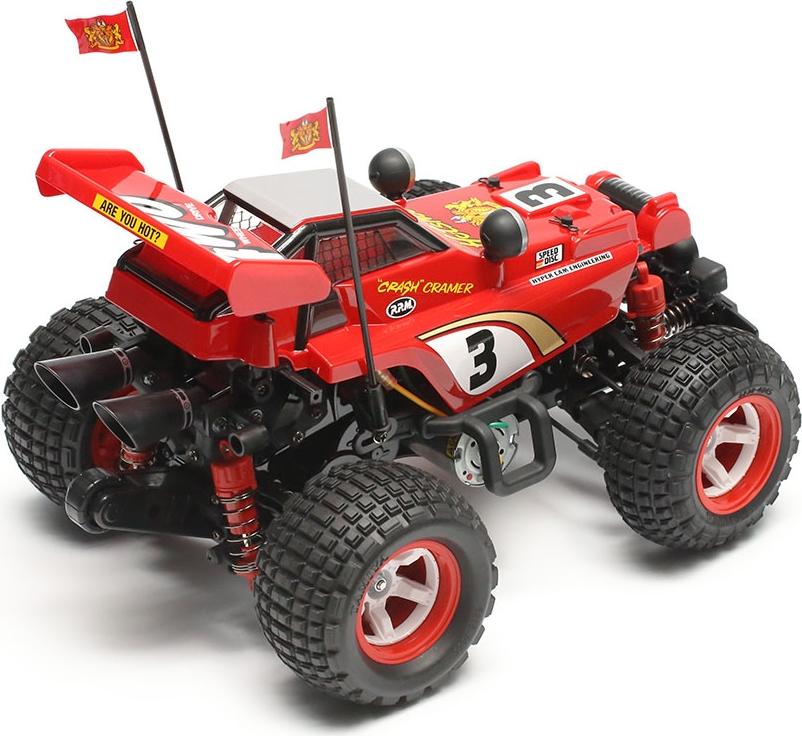

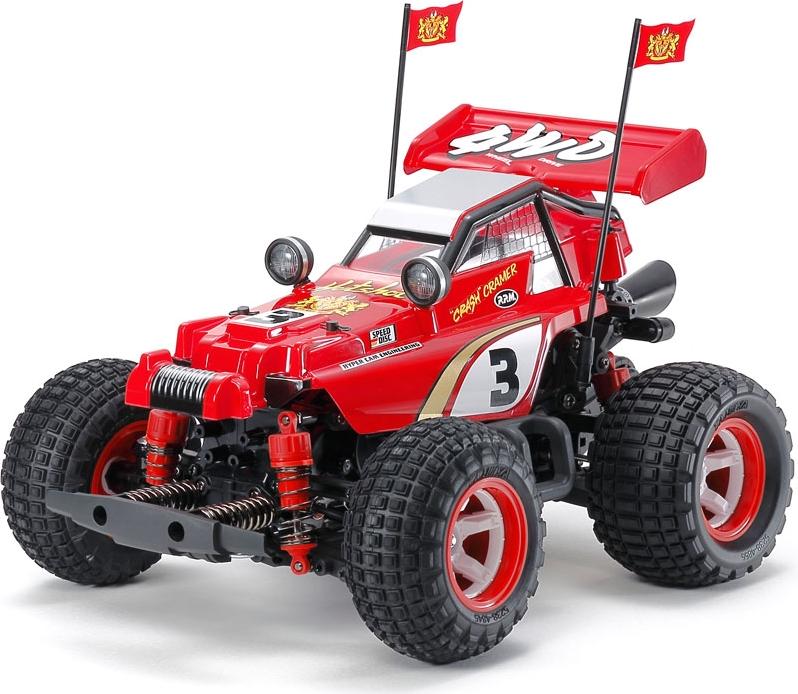

 This R/C model assembly kit creates a 4WD buggy, with a lightweight and durable stylized polycarbonate version of the legendary Hot Shot body. The reimagined comical body comes pre-painted in red and all that is needed is the application of the included stickers, and voila! A new, Comical Hot Shot which pays homage to Tamiya’s classic 1985 Hot Shot kit! The GF-01CB chassis in which the body sits on top of is a gear-driven unit that provides a thrilling drive and super wheelies when you jam on the throttle.

GF-01: Seriously Stable 4WD

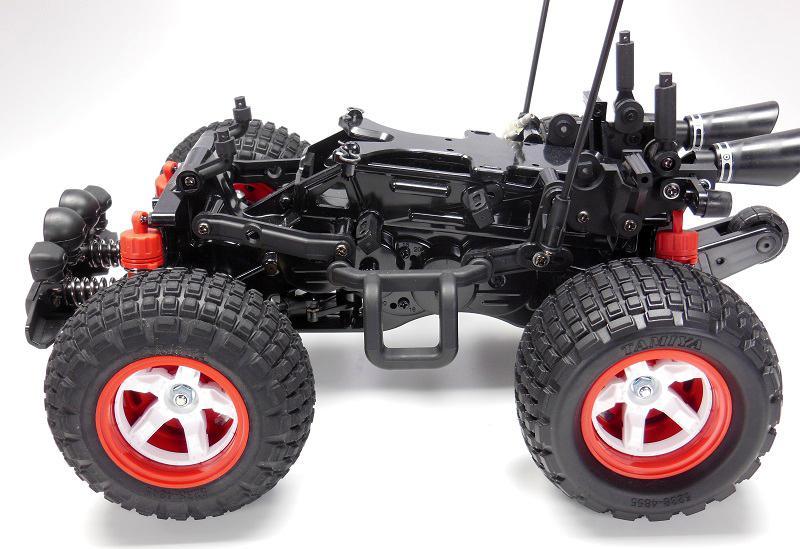

This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Sealed gearboxes protect from dust and debris and are integrated into the frame, while the built-in differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension with CVA oil dampers and a two-piece tie rod steering setup with the servo on the left for excellent response. Two-piece wheels are joined by ST block bubble tires, and WR-02 or GF-01 Hop-Up Option parts are available to hop-up your model.

Requires: 2-channel radio, steering servo, ESC,  7.2-7.4 volt battery pack and compatible charger.
NOTE: Must use round type stick battery pack. Square shaped hardcase batteries will not fit the battery compartment.
