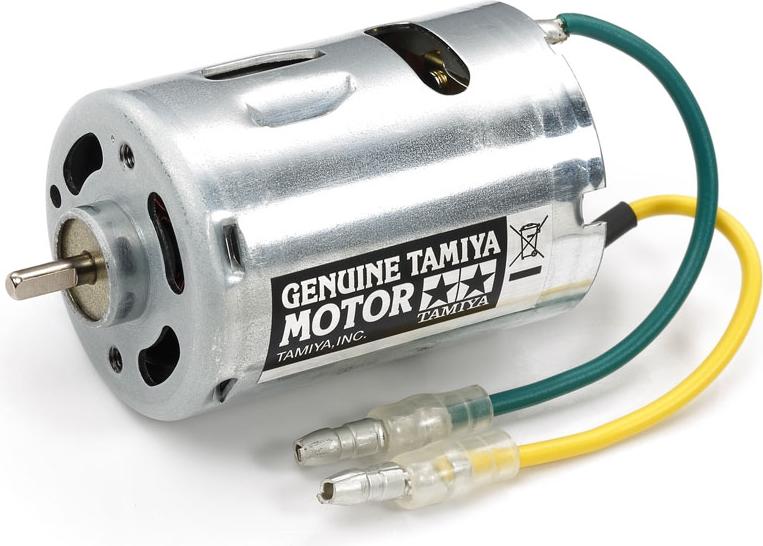

Type 540-N Motor
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
Use this motor as a spare for Tamiya kits that include brushed 540-size motors. It’s a genuine replacement motor that offers optimum balance of power and efficiency, plus superior durability.
• The Type 540-N Motor can be used as a standard motor.
• The use of kit-included pinion gears is recommended.
• Input voltage: 7.2V - 8.4V
• RPM (without load): 13,800
• Maximum torque: 283gf/cm (at 7.2V)
• Current consumption: 8.1A (at 7.2V)
PRODUCT RESOURCES
4950344516735 4950344516735
799-51673
