TAM47355

1/10 Dual Ridge Black Metallic TT-02B

Product Info | Replacement Parts | Optional Items
TAMIYA

TAM47355

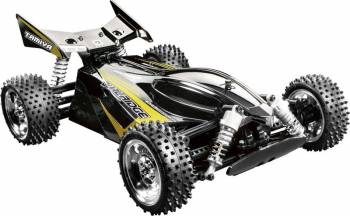

1/10 Dual Ridge Black Metallic TT-02B
By TAMIYA
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... R/C Electric 4WD Buggy Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$162.99
Warehouse ?
StockStock availability for pick up
0
$162.99
Warehouse ?
0
$162.99
Store - Stratford ?
0
$162.99
Store - Edmonton ?
0
$162.99
Store - Mississauga ?
0
$162.99
Store - Ottawa ?
0
$162.99
Store - Oshawa ?
0
$162.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
380 mm
Length:
250 mm
Width:
145 mm
Height:
266
Wheelbase:
4WD Belt Driven
Drivetrain:

FEATURES
  • Bathtub-type Chassis Frame
  • Shaft-Driven 4WD
  • Front/Rear 4-Bevel Differentials
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Double Wishbone Suspension
  • CVA Shock Units
  • Gear Ratio=10.71:1 (with kit-included pinion gear)
  • Type 540 Motor

A Shining New Star
This assembly kit creates a special black metallic version of the all-action, futuristic 4WD R/C buggy Dual Ridge, whose body was penned by renowned Japanese designer Takayuki Yamazaki of pdc_designworks. Both the dynamic body and the large wing are given a black metal-plated finish, and come pre-cut for your convenience. Simply cut out and apply the dedicated stickers, and your body is ready! Semi-gloss chrome-plated wheels and white CVA oil dampers round off this special look, which is bound to catch your eye.

The shaft-driven 4WD TT-02B buggy chassis uses a bathtub chassis with skid-shaped underside. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening a few screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gears, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.
