TAM45069

ESC TBLE-04S

Product Info | Fits What?
TAMIYA

TAM45069
ESC TBLE-04S
By TAMIYA
$99.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Car Electronic Speed Controls (ESC)
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$99.99
Warehouse ?
StockStock availability for pick up
0
$99.99
Warehouse ?
0
$99.99
Store - Stratford ?
0
$99.99
Store - Edmonton ?
0
$99.99
Store - Mississauga ?
0
$99.99
Store - Ottawa ?
0
$99.99
Store - Oshawa ?
0
$99.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES

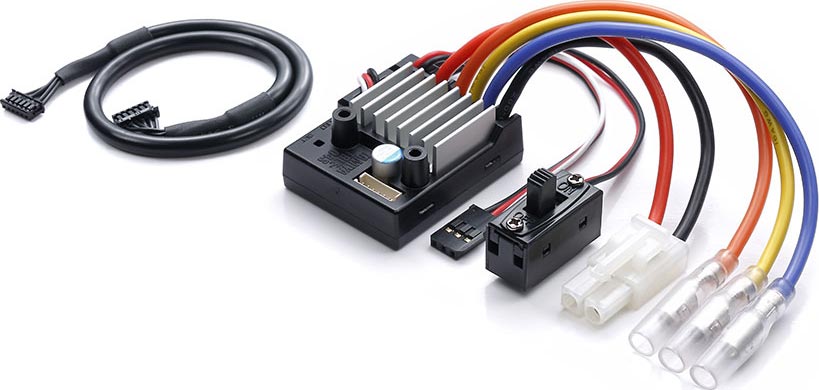

This ESC is designed for use with Tamiya Brushless Motors (Sensored) 15.5T and over, (Aftermarket brands 21.5 and over), and also brushed motors 25T and over. High point, neutral brake and brake settings are individually adjustable, while battery cut-off, reverse and motor modes can be selected. Setup is shown by an LED, and the ESC also features two protection functions. ?Maximum continuous current: 75A ?Input voltage: 6.6V - 7.2V ?Dimensions: 41.5mm x 33.4mm x 18mm ?Weight: 45g (including cables)

  • Sensored brushless ESC detects motor rotor positions with precision, enabling more efficient power supply and smoother motor response.
  • Compatible with Tamiya brushless motors (sensored) of 21.5+ turns, and Tamiya brushed motors 25 turns and over.
  • Choose from 10 different settings for both neutral brake and brake, to get your setup just how you want it.
  • Features overheating and overload protection functions to help ensure that your equipment avoids damage.
  • Weight: 47g (including cables)
  • Compatible with Ni-Cd, Ni-MH and Tamiya Li-Fe battery packs.
  • Dimensions: 41.5 x 33.4 x 18mm

LO/HI Battery Cut-off Information:
LOW & HIGH Battery Low Voltage Protection Feature: LOW battery setting cuts off @ 5.6 volts approximately. (Best for Ni-CD, NI-MH and Li-FE battery chemistry) HIGH battery setting cuts off @ 6.2 volts approximately. (Best for other battery chemistries)
