TAM42384

TRF421 Chassis Kit

Product Info | Replacement Parts
TAMIYA

TAM42384
TRF421 Chassis Kit
By TAMIYA
$999.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric On-Road 4WD Touring Sedan Kits
But only from... TAMIYA
All items from... TAMIYA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$999.99
Warehouse ?
StockStock availability for pick up
0
$999.99
Warehouse ?
0
$999.99
Store - Stratford ?
0
$999.99
Store - Edmonton ?
0
$999.99
Store - Mississauga ?
0
$999.99
Store - Ottawa ?
0
$999.99
Store - Oshawa ?
0
$999.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
FEATURES

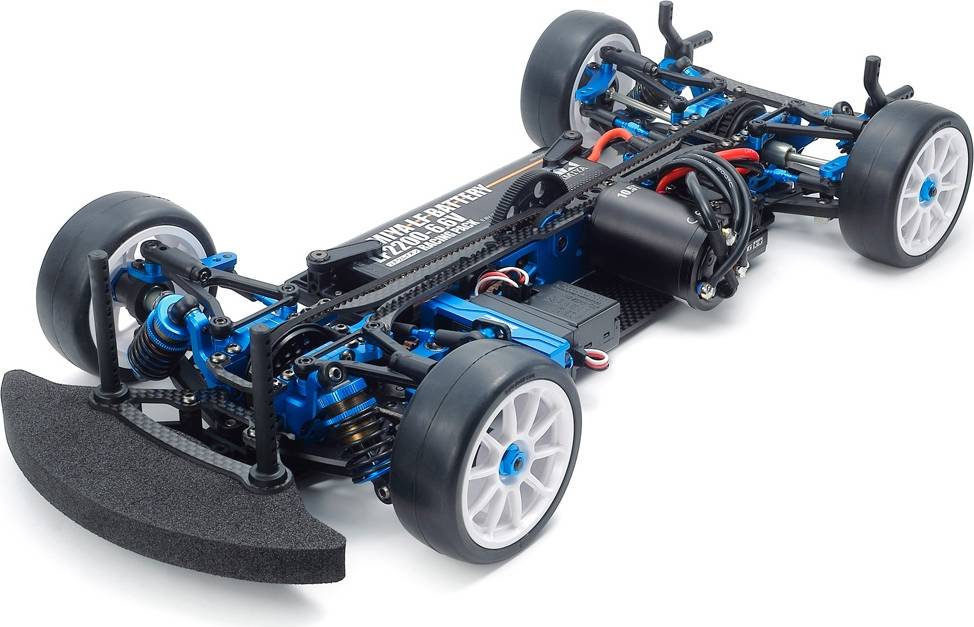

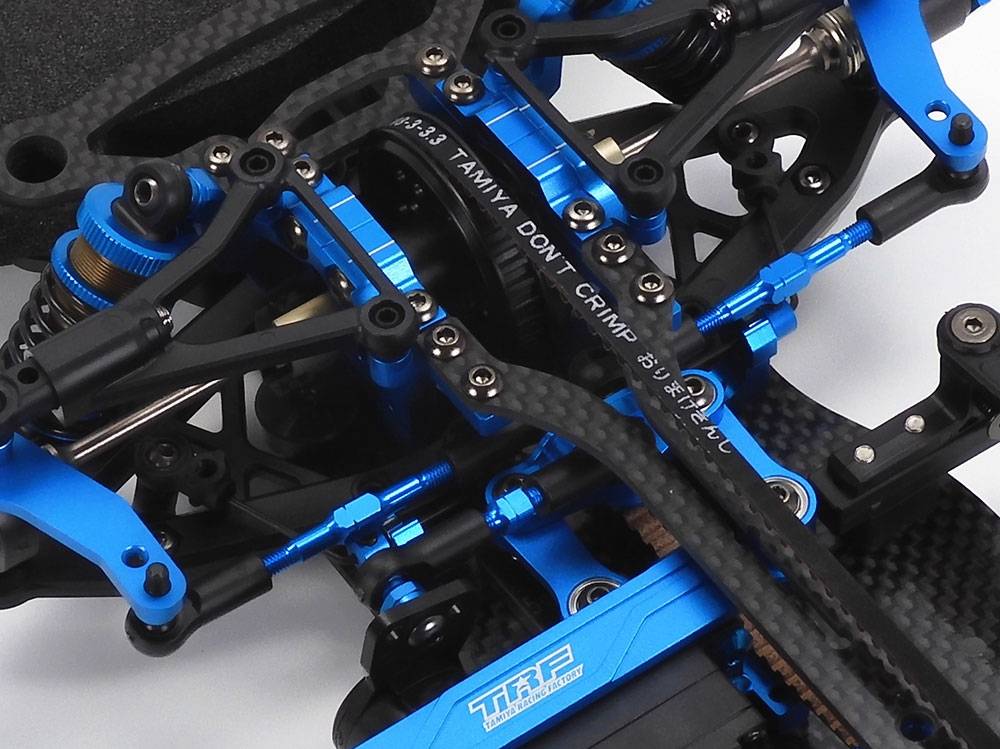

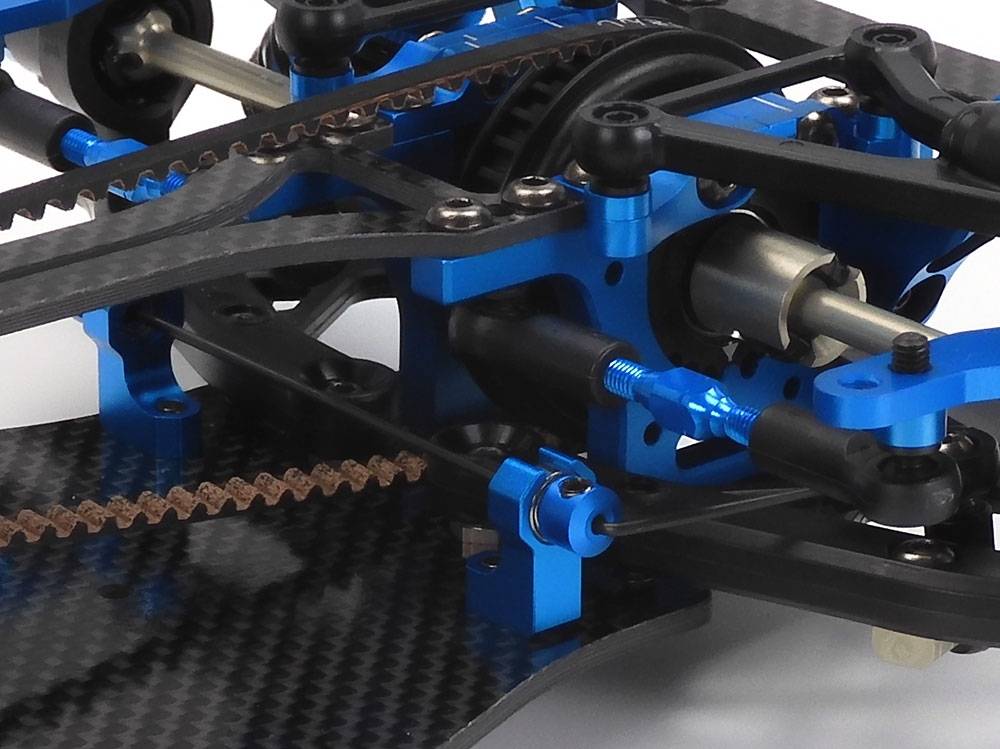

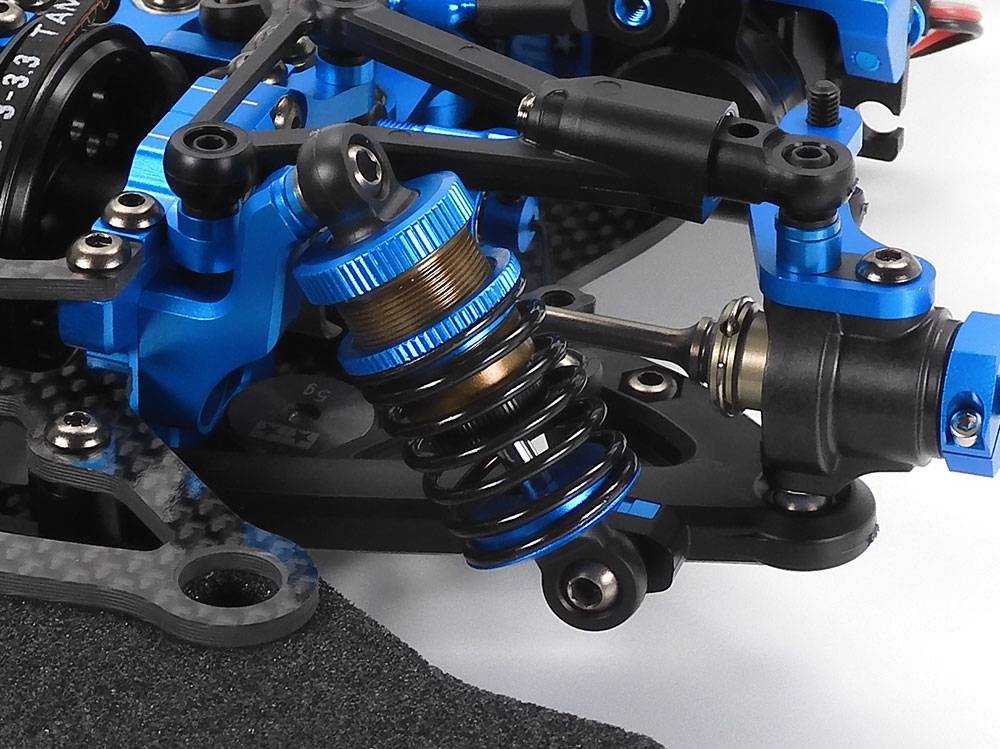

This R/C model assembly kit builds the latest model in the line of TRF chassis. A 2 belt-driven 4WD TRF421, it offers a ton of setup options with easier pit work. The motor has been moved into an almost central position while drive belts are of equal size, contributing to greater pitching stability on the throttle. A choice of one- and two-piece versions of the upper deck lets you fine-tune your setup, The refined drivetrain uses a front direct coupling and rear oil-filled gear differential. The suspension uses upper and lower A arms, with the latter employing ball connector mounts. New USBB (ultra-short big bore) dampers are mounted via aluminum stays, and can be further fine-tuned with spacers. A total of four stabilizers (three thicknesses: 1.0mm x1, 1.1mm x2, 1.2mm x1) is included, and countless parts across the chassis have been updated.

Featured Components:

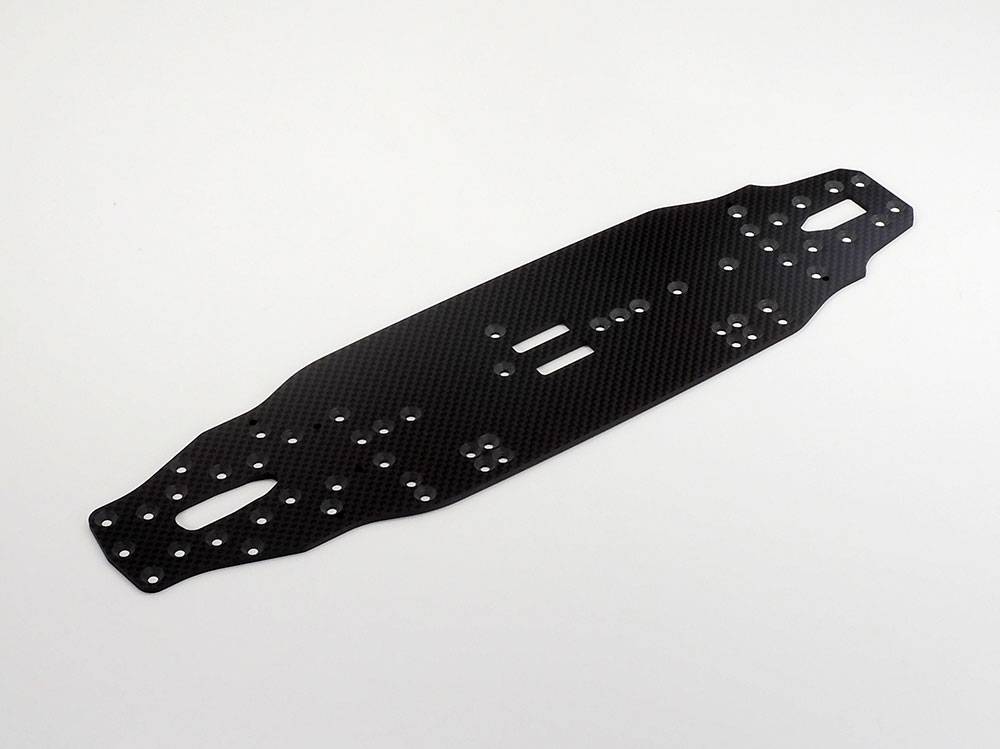

  • 2.25mm carbon fiber lower deck

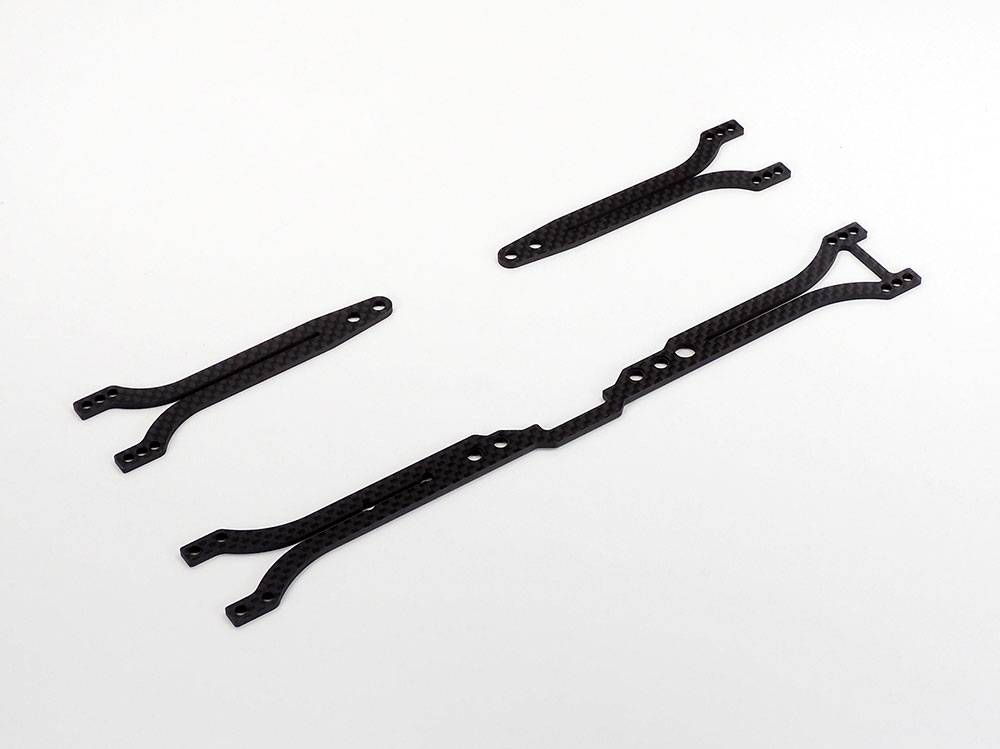

  • 2.0mm carbon fiber upper deck (1-piece & 2-piece designs included)

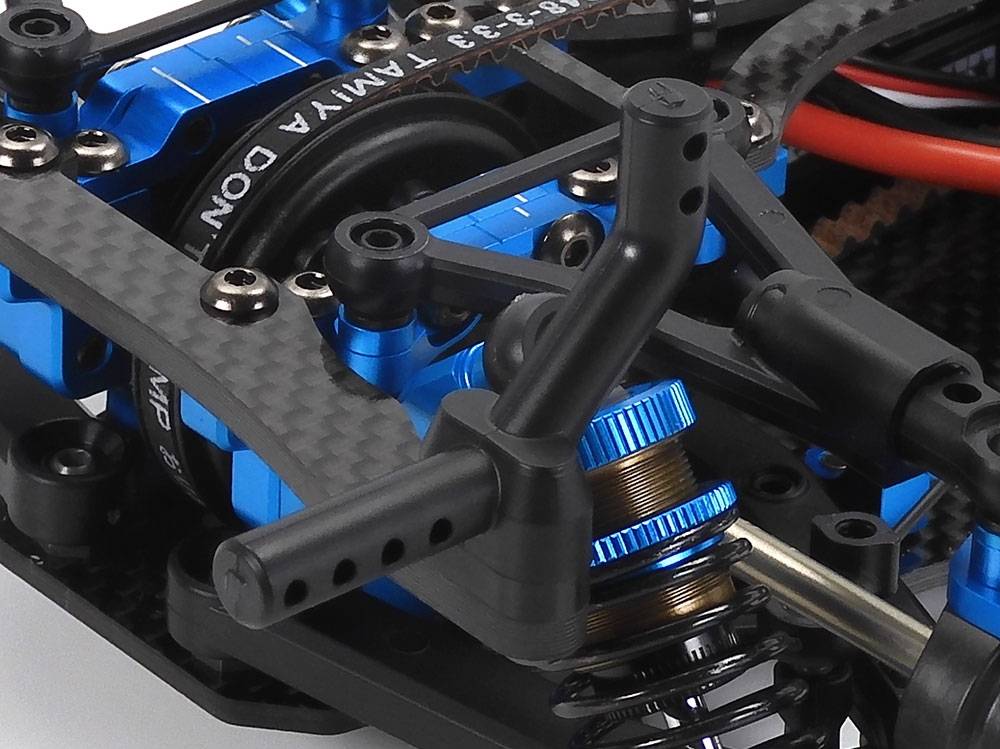

  • Aluminum damper stays
  • 2.0mm carbon fiber bumper support
  • Aluminum upper & lower bulkheads

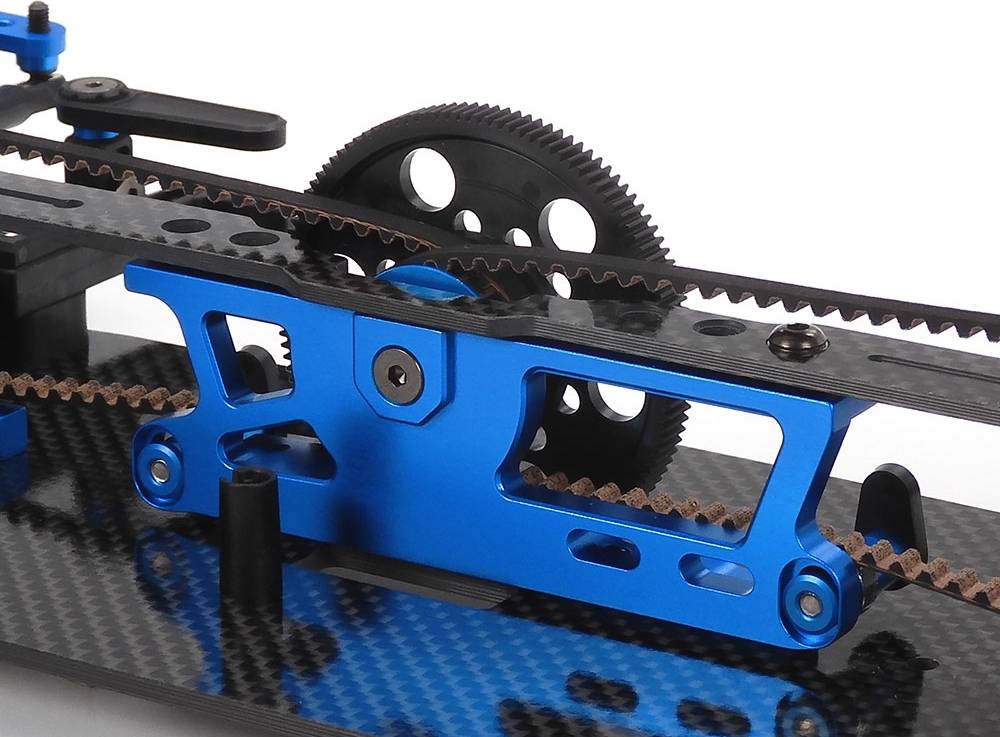

  • Aluminum motor mount
  • Aluminum servo mount
  • Aluminum steering bridge
  • Front direct coupling & double cardan drive shafts
  • Rear oil-filled gear differential & lightweight universal shafts (45mm drive shafts)

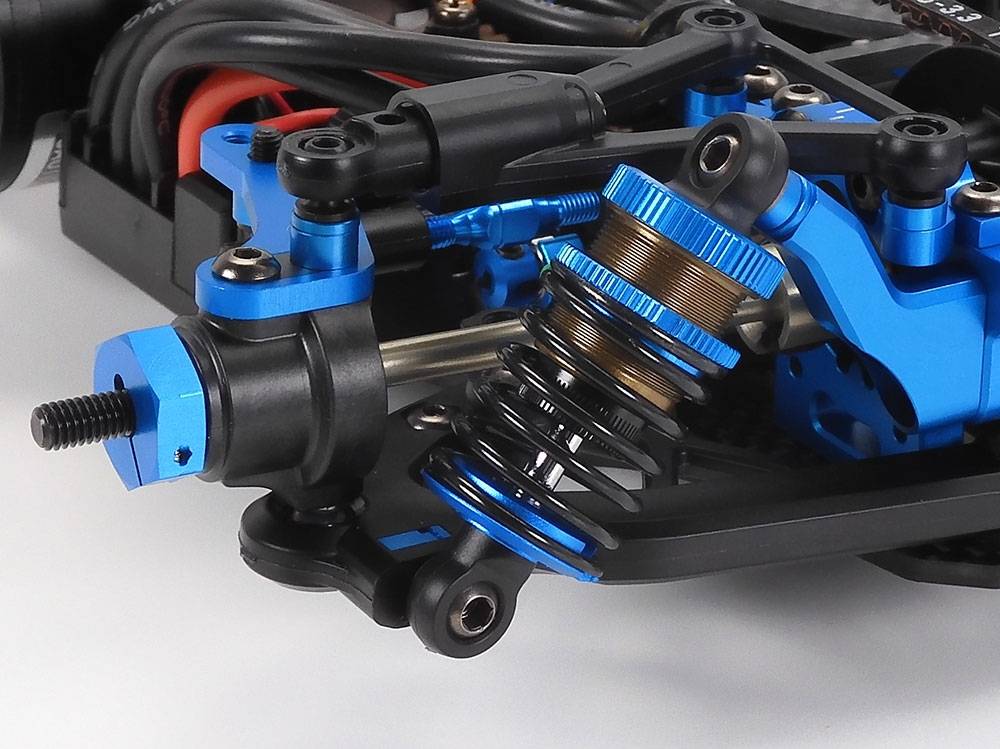

  • USBB dampers
  • Precision stabilizers
  • Aluminum bearing holders
  • Rubber sealed ball bearings Specifications:
  • Length: 397mm (not including body)
  • Width: 187mm
  • Wheelbase: 257mm
  • Double deck frame (carbon fiber 2.25mm lower and 2.0mm upper decks; 1- & 2-piece upper decks included)

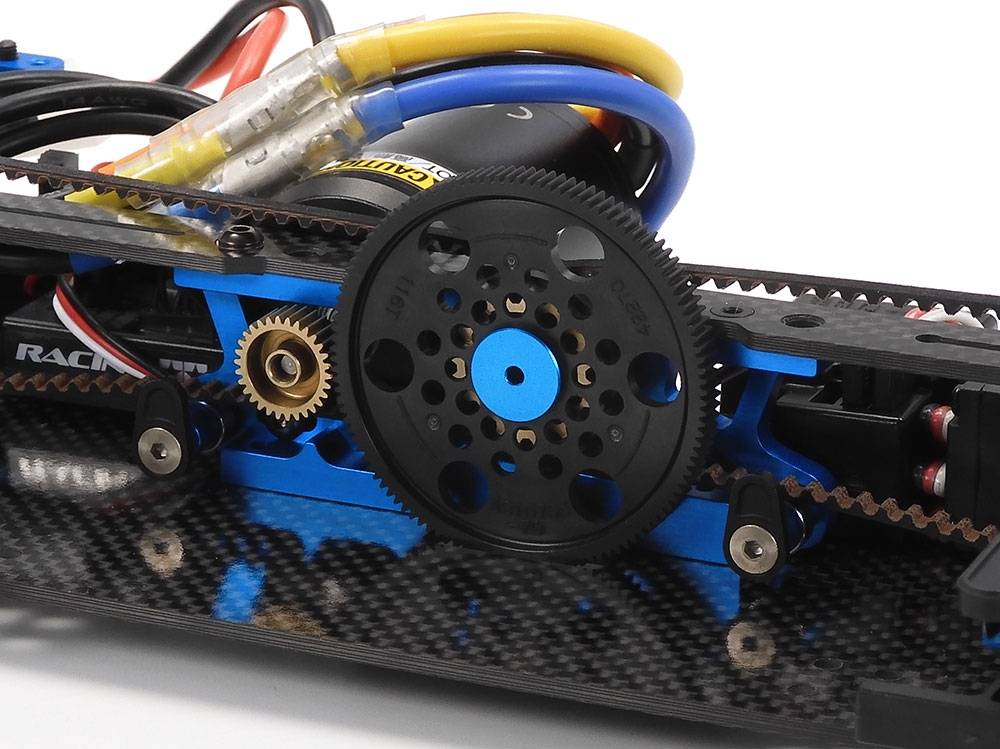

  • Transverse motor & 2-belt driven 4WD
  • Front direct coupling
  • Rear oil-filled gear differential
  • 3-piece steering tie-rod

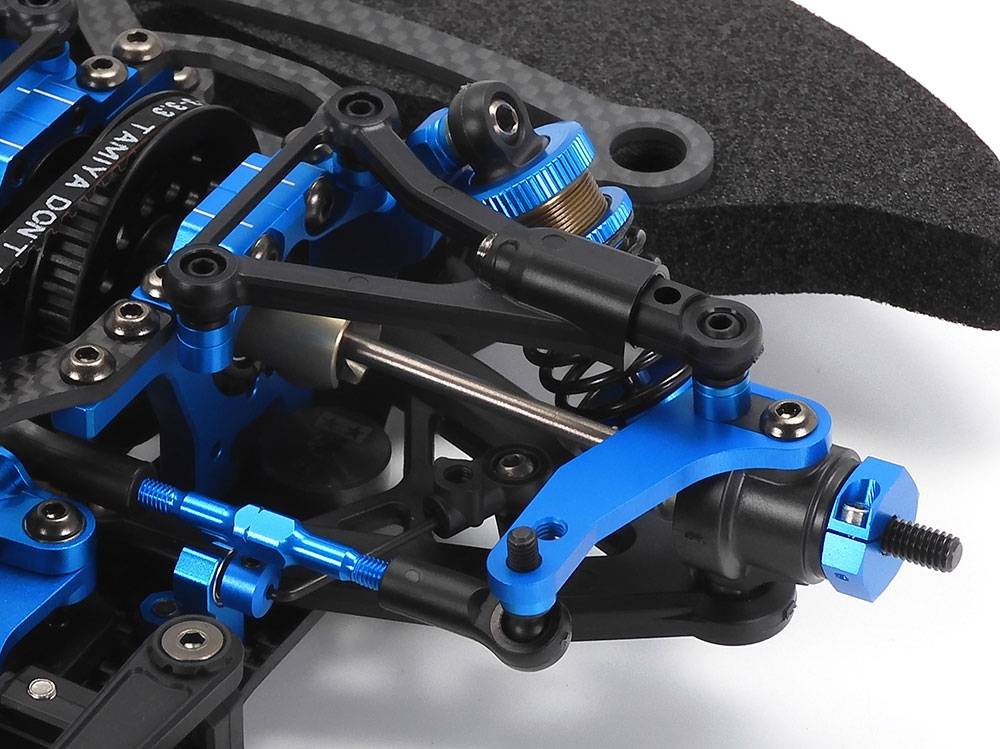

  • 4-wheel independent double wishbone suspension
  • USBB dampers

Separately Required Items:

  • Body
  • Brushless motor
  • Wheels
  • Tires
  • 2-channel R/C system w/ESC
  • R6/AA/UM3 batteries for transmitter
  • Battery pack & charger
