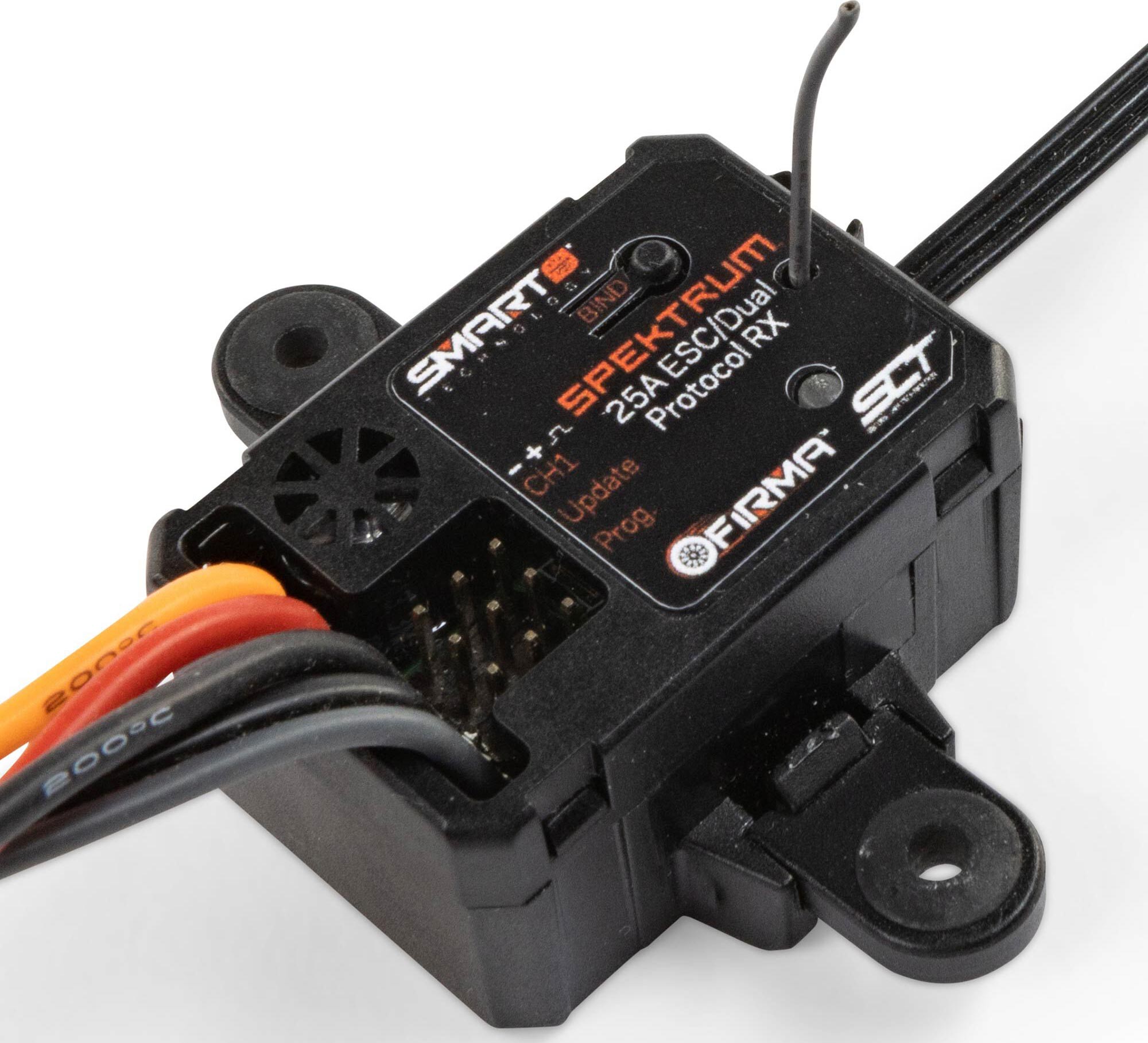

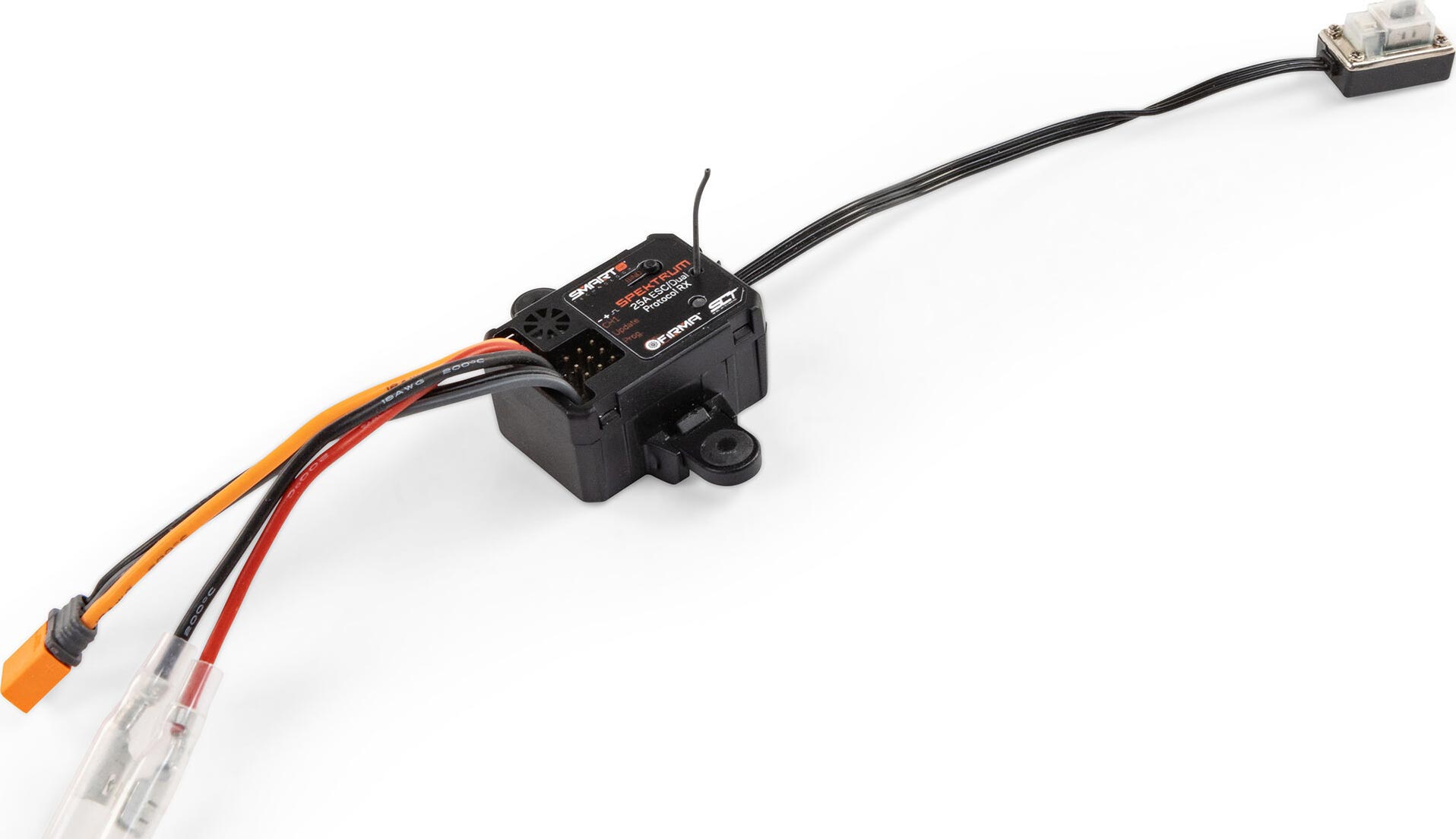

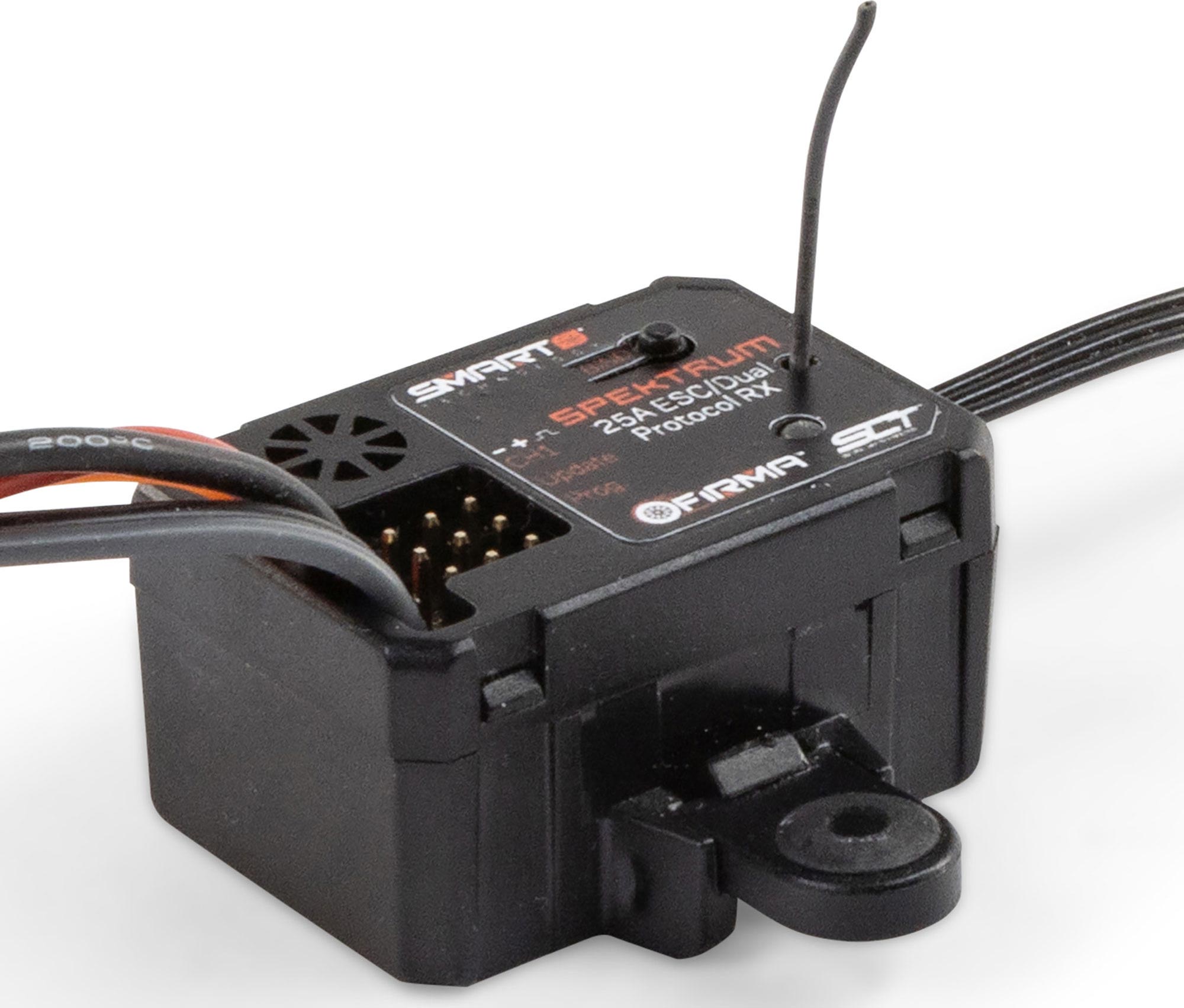

Firma 2-in-1 25A Smart ESC (Brushed)/Dual Protocol Receiver
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... SPEKTRUM
All items from... SPEKTRUM
But only from... SPEKTRUM
All items from... SPEKTRUM
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Brushed 2-in-1
Type:
25 A
Max Continuous Current:
70 A
Max Burst Current:
180-390 Size
Compatible Motors:
Yes
Waterproof:
2-3 cells
LiPo Cells:
5-9 cells
NiMH/NiCd Cells:
6 V
BEC Voltage:
IC2
Battery Connector:

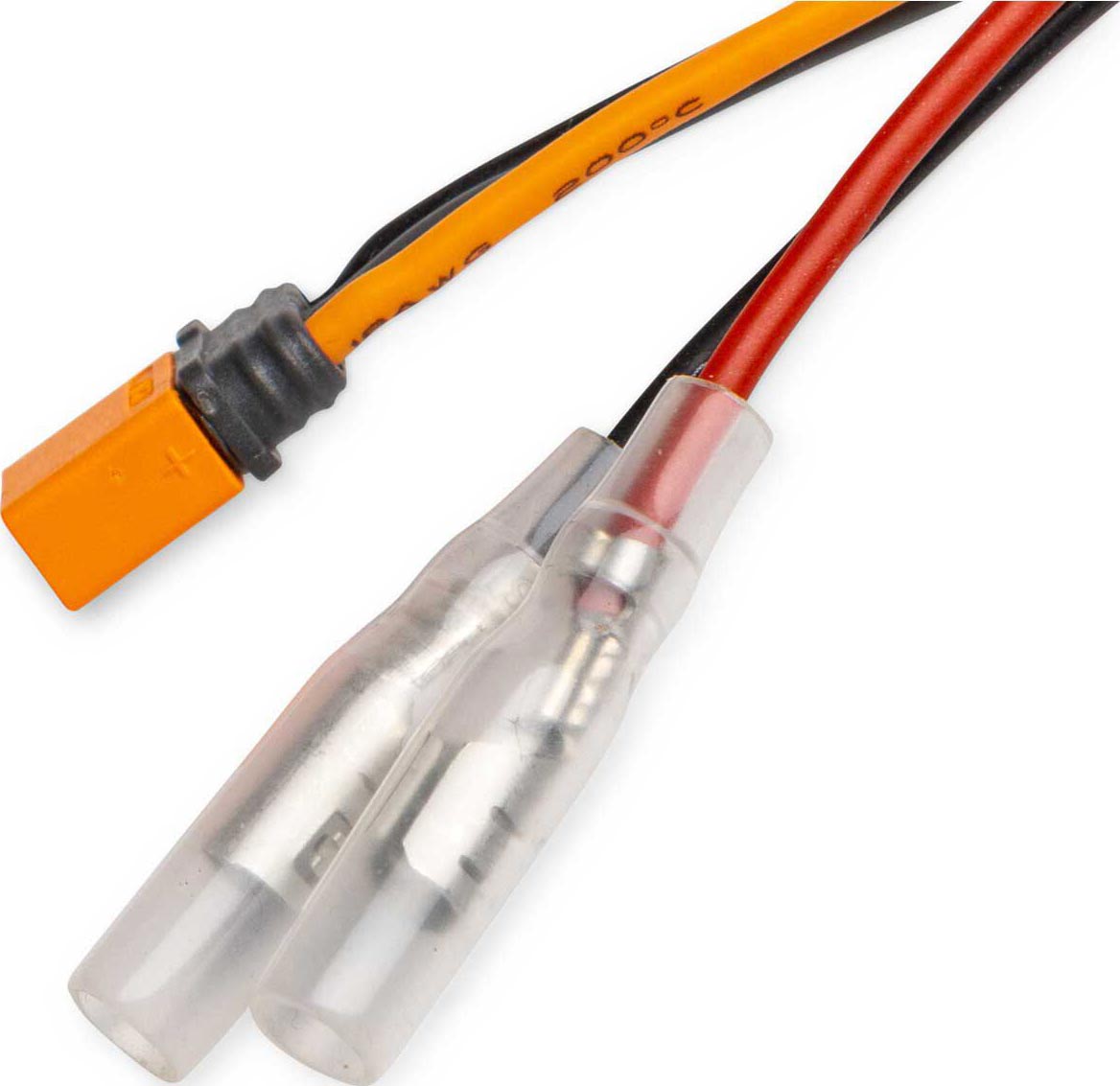

4mm Bullet
Motor Connector:
Dual Protocol RX (DSMR/SLT)
Receiver Protocol:
FEATURES
Ideal for 1/16 scale vehicles.
Upgrade your brushed motor equipped models to Spektrum Smart Technology with the Firma Smart 25A Brushed ESC + Dual Protocol Receiver. Get valuable battery and ESC telemetry data easily and in real-time right on your Smart-compatible Spektrum transmitter – including motor current, input voltage, remaining battery capacity and other information that will help a wide variety of RC drivers increase and extend battery life and run time. Clean and easy install with less wire mess in small confined small-scale vehicles.
Features
- Smart all-in-one telemetry
- Dual Protocol – compatible with SLT and DSMR Protocols transmitters
- 25 Amp continuous power / 70A burst – ideal for 1/16th mini and micro vehicles
- 2-3S LiPo Compatible
- 5-9Cell NiMH Compatible
- Waterproof Design
- Multiple Protection points
- Various Programming Options
- Programming from Transmitter via Text Gen Telemetry

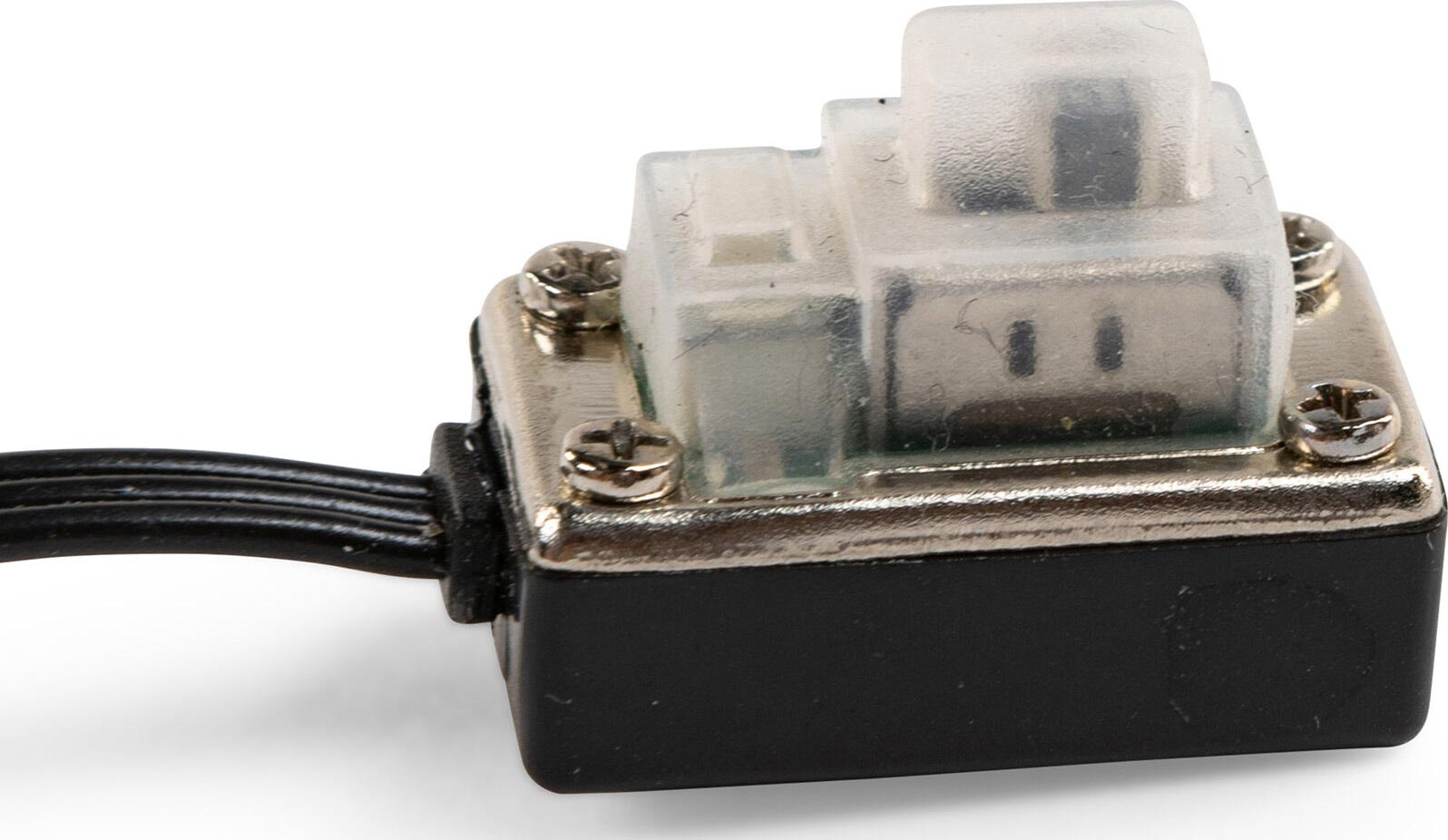

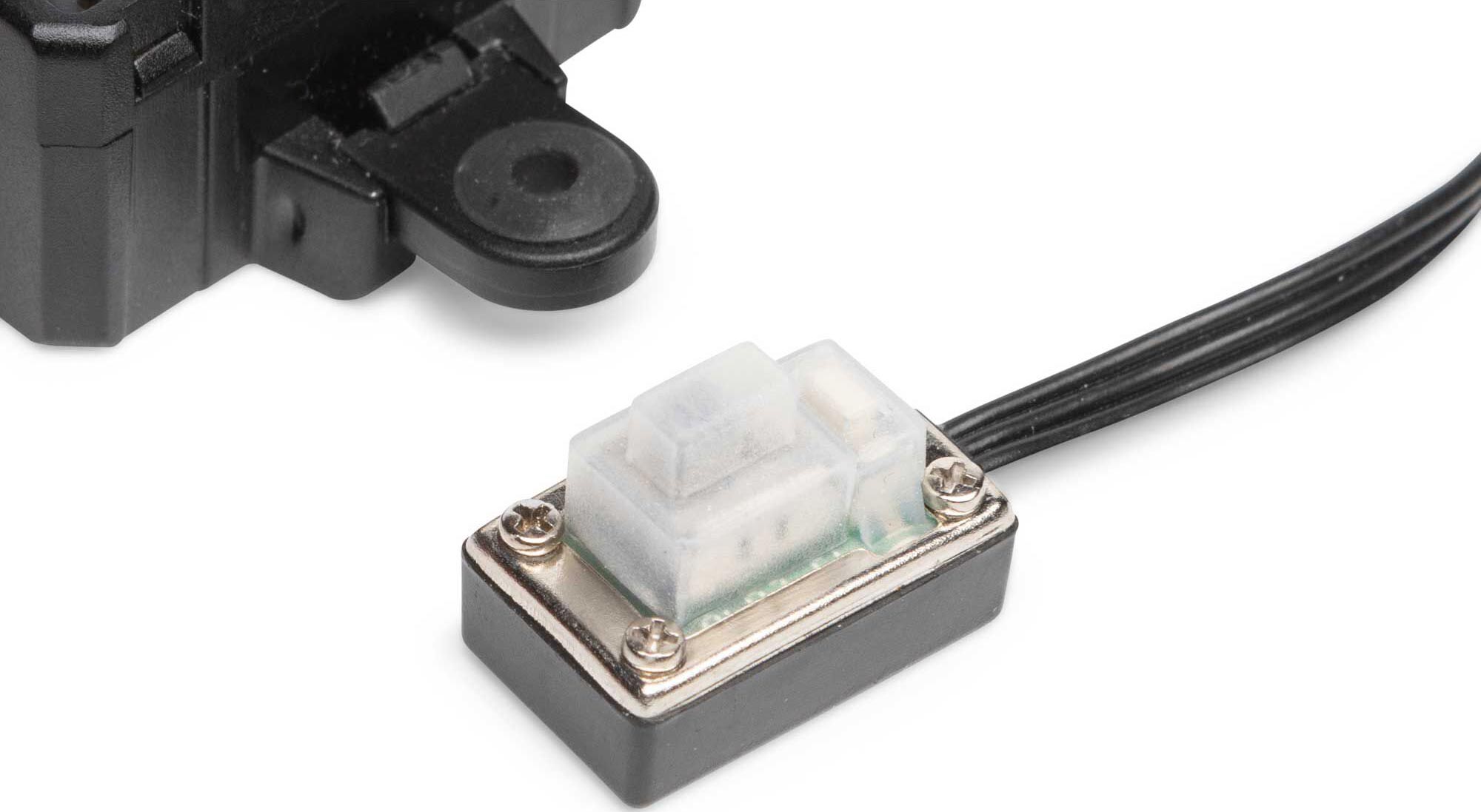

- Smart ESC Programming Box
- Push Button
- Compact for easy installation
- Ready to install – no soldering required
- Firmware updatable
