SPMXSE1100

Firma 100A Brushless SMART ESC 3S

Product Info | Fits What?
SPEKTRUM

SPMXSE1100
Firma 100A Brushless SMART ESC 3S
By SPEKTRUM
$139.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Car Electronic Speed Controls (ESC)
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
1
$139.99
Warehouse ?
StockStock availability for pick up
1
$139.99
Warehouse ?
0
$139.99
Store - Stratford ?
0
$139.99
Store - Edmonton ?
1
$139.99
Store - Mississauga ?
1
$139.99
Store - Ottawa ?
1
$139.99
Store - Oshawa ?
1
$139.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
100 A
Max Continuous Current:
650 A
Max Burst Current:
Yes
Waterproof:
2-4 cells
LiPo Cells:
5-9 cells
NiMH/NiCd Cells:
139 g
Weight:
43.3 mm
Length:
39 mm
Width:
33.9 mm
Height:

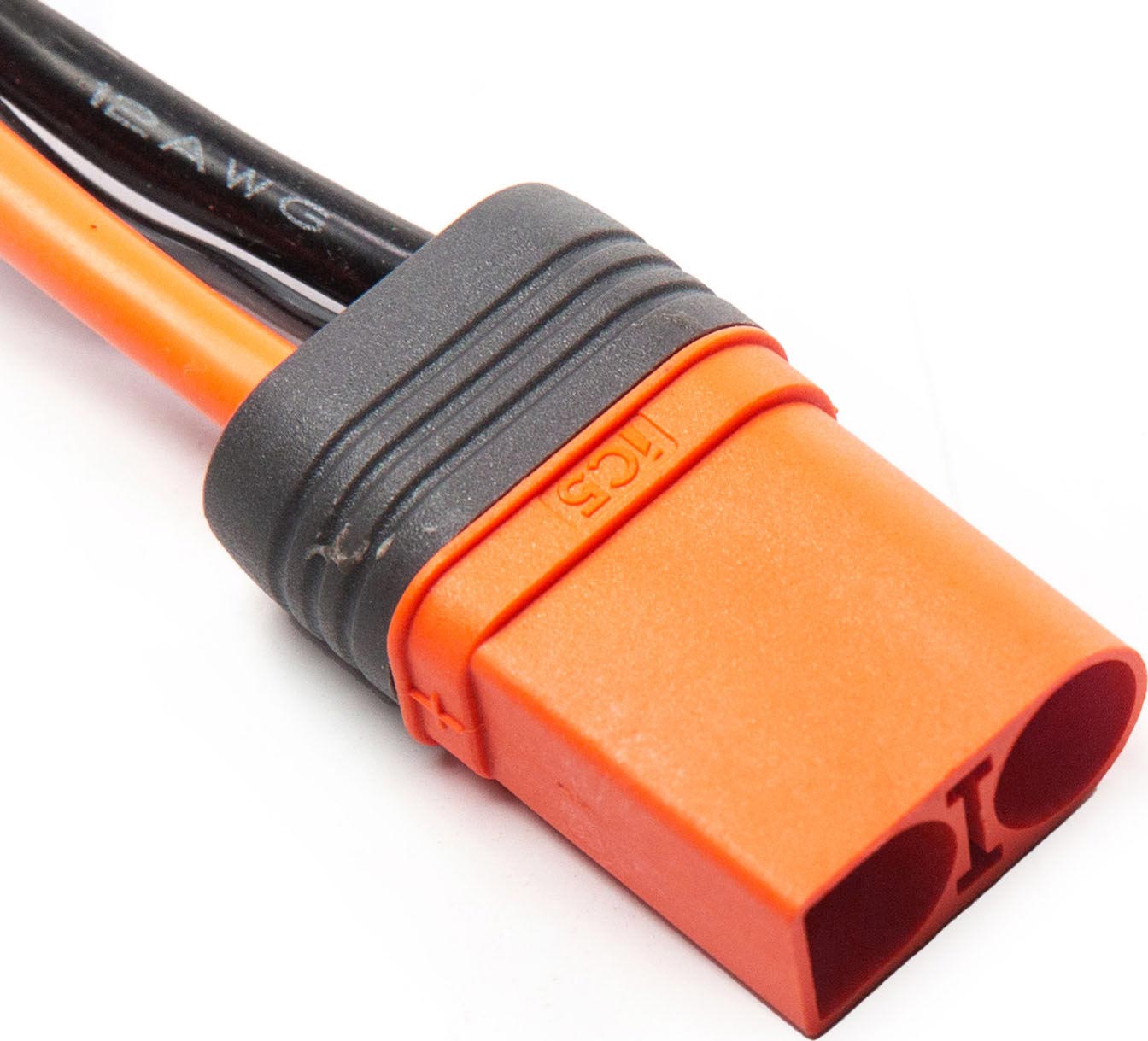

IC5
Battery Connector:

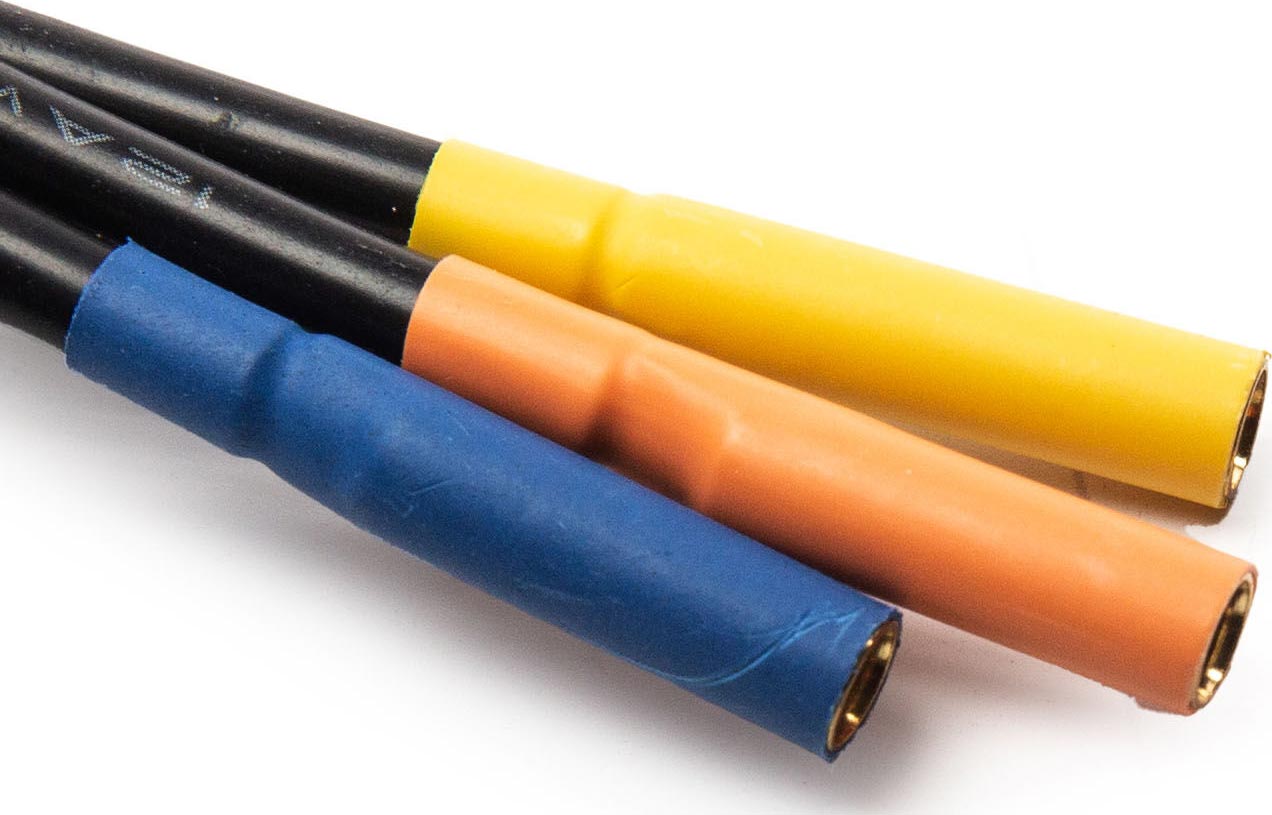

4mm Female Bullet
Motor Connector:

FEATURES
  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming
  • Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
  • Ideal for 4WD 1/10th – 1/8th scale surface applications running on 3s Lipo setups
  • High current adjustable BEC (6v or 7.4v @ 4 Amps)
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC connectors, backwards compatible with EC connectors
  • Limited 1-year warranty

Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete

Spektrum Surface Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter

What's in the Box?

(1) Spektrum Firma Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
