SPMXAM4796

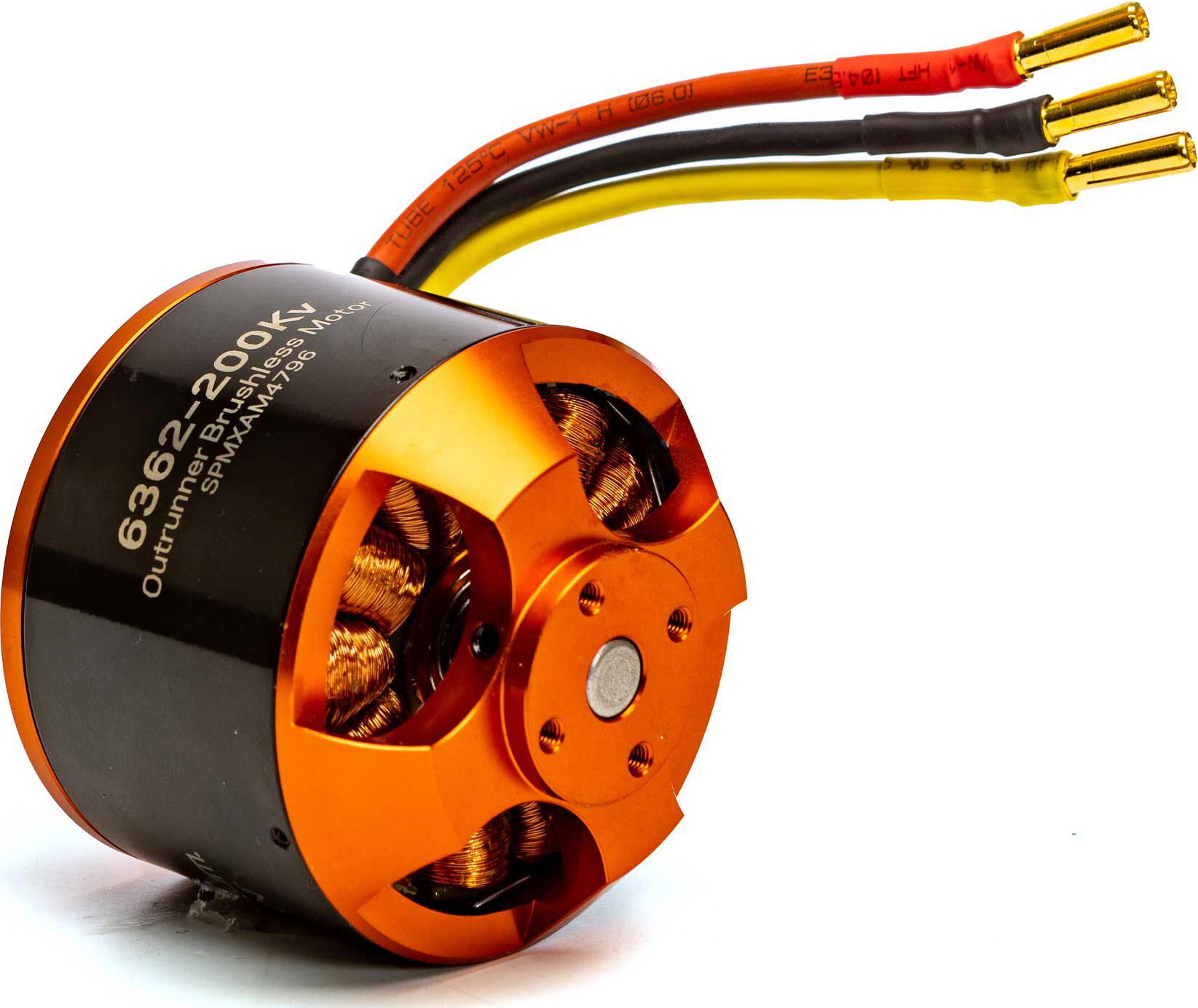

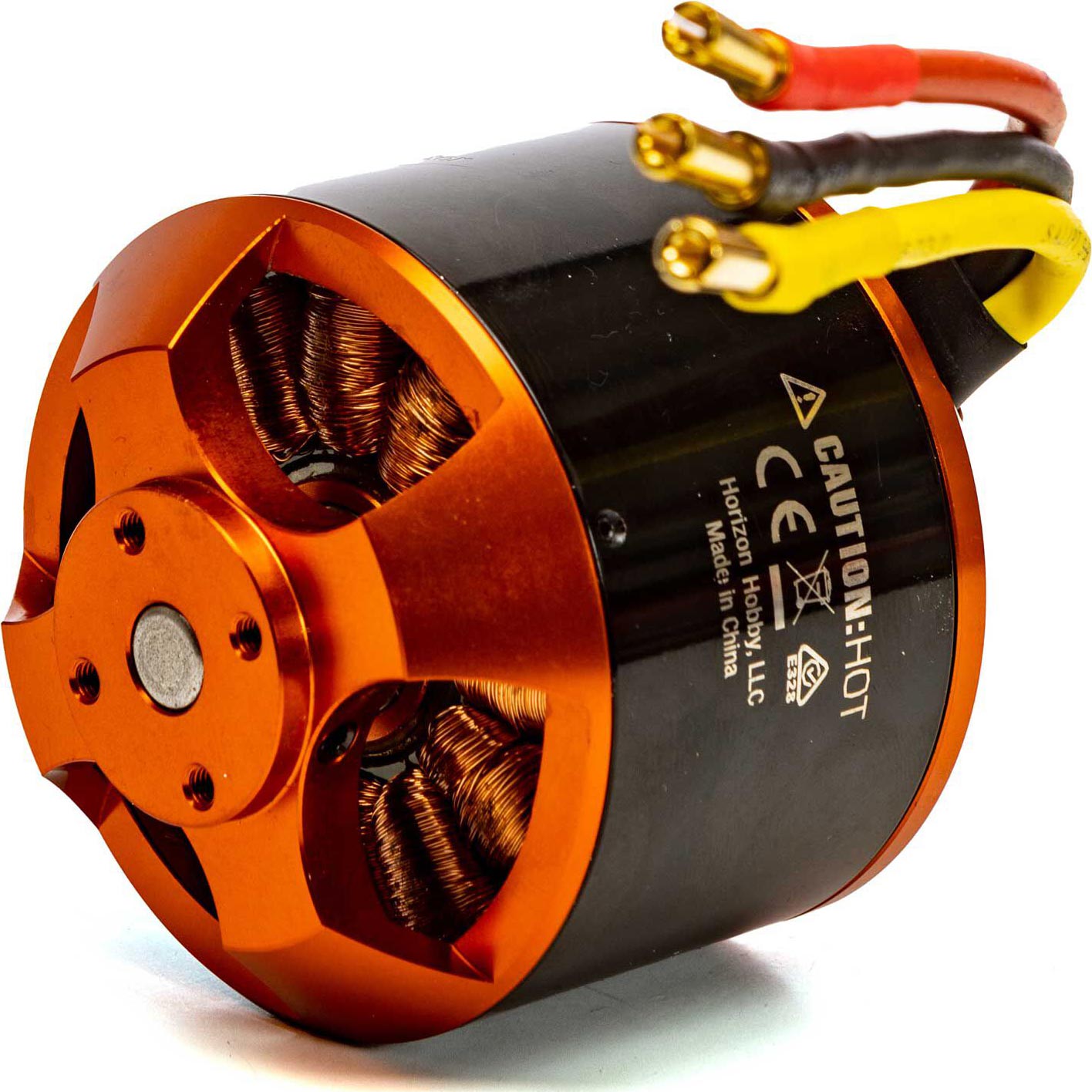

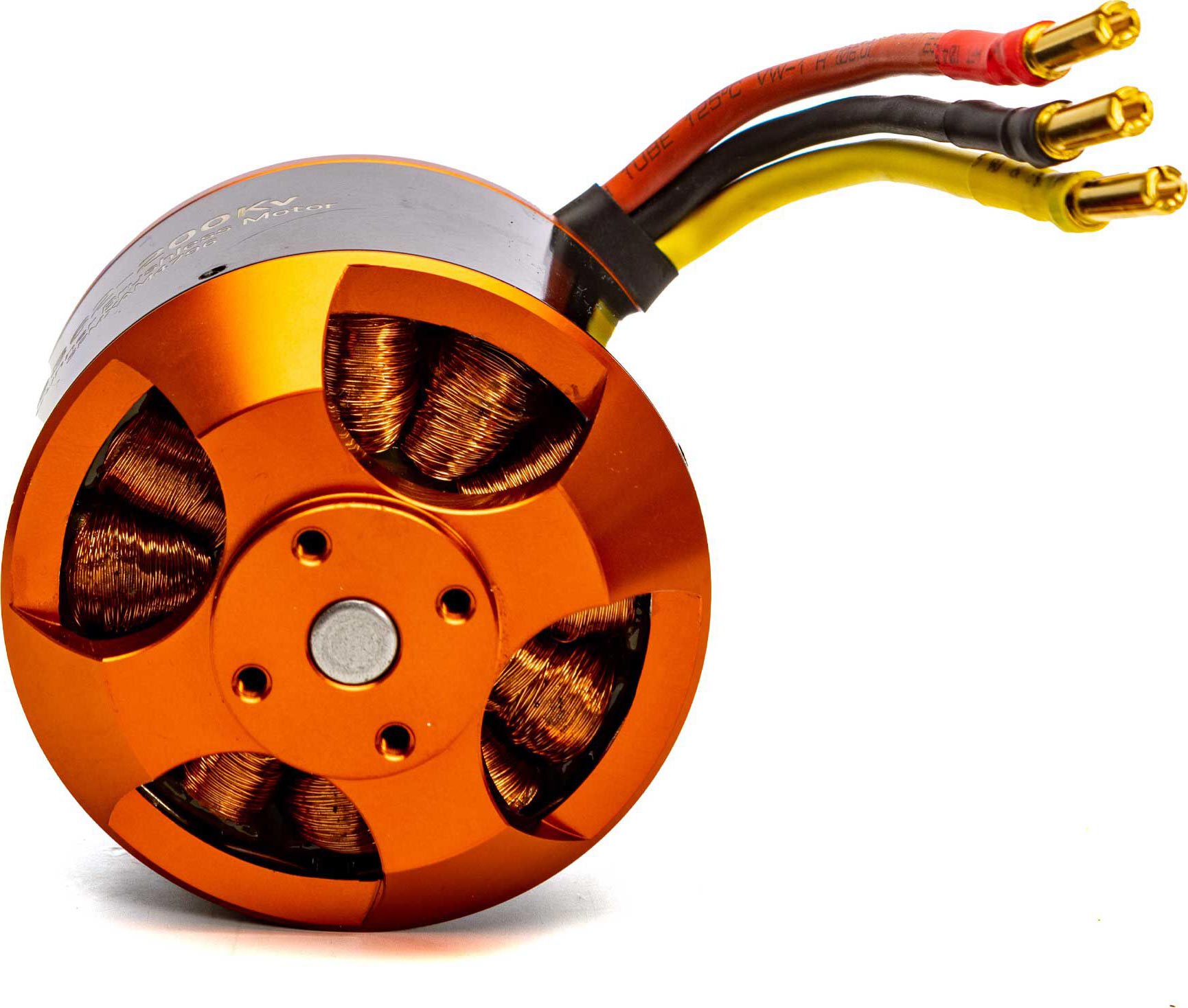

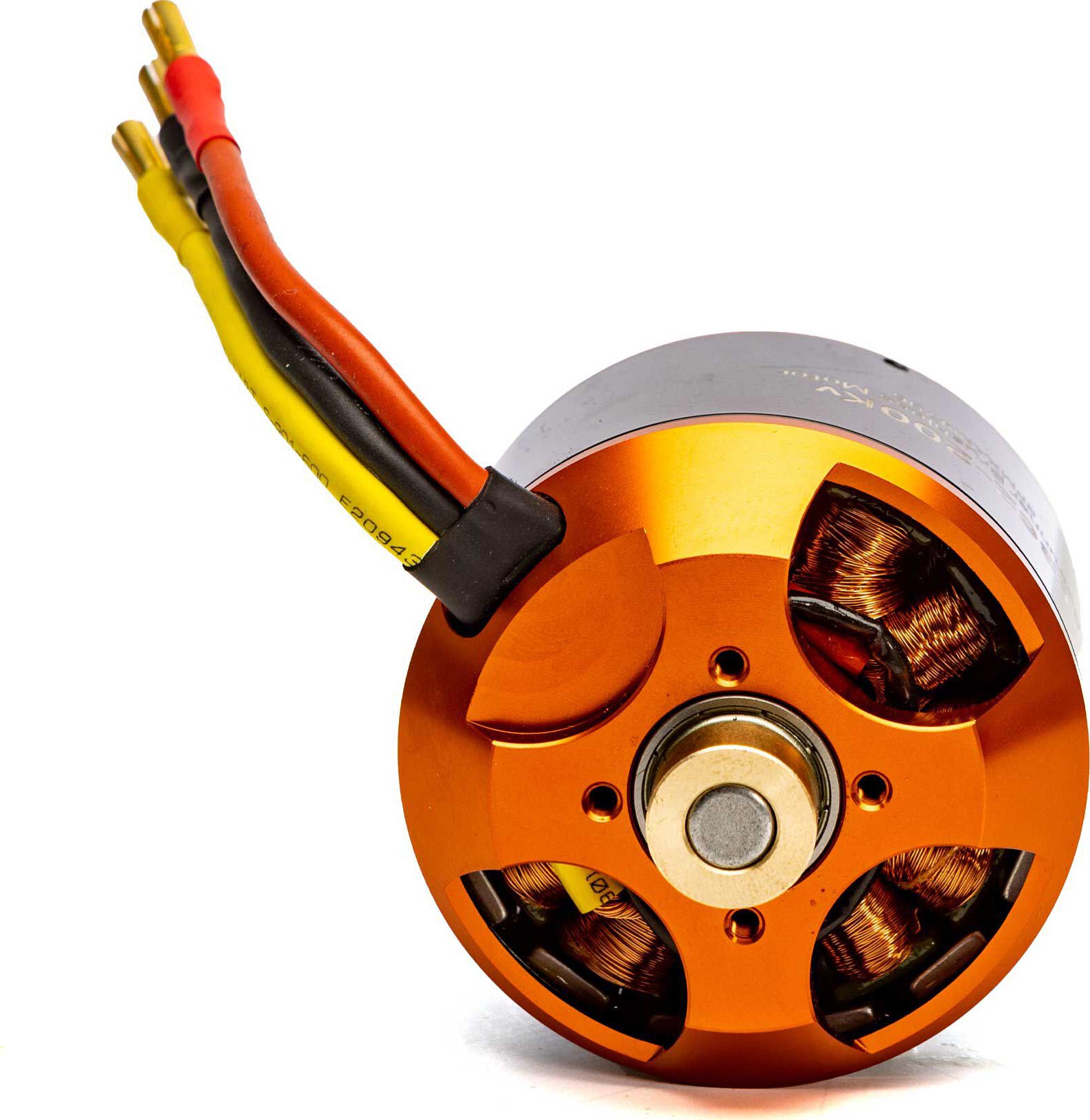

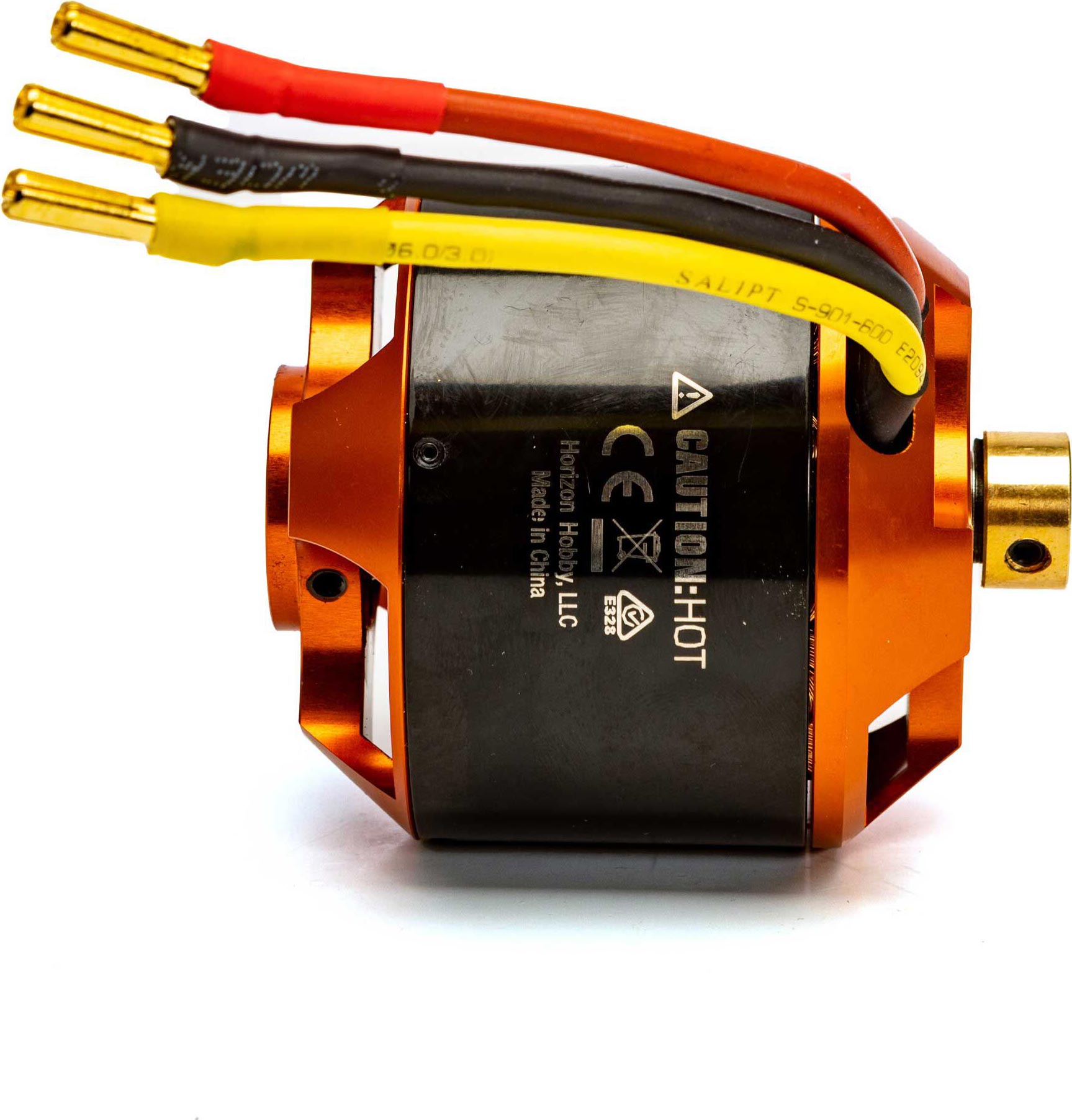

Avian 6362-200Kv Outrunner Brushless Motor

SPEKTRUM

SPMXAM4796
Avian 6362-200Kv Outrunner Brushless Motor
By SPEKTRUM
$279.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Aircraft Motors
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
1
$279.99
Warehouse ?
StockStock availability for pick up
1
$279.99
Warehouse ?
0
$279.99
Store - Stratford ?
0
$279.99
Store - Edmonton ?
0
$279.99
Store - Mississauga ?
0
$279.99
Store - Ottawa ?
0
$279.99
Store - Oshawa ?
0
$279.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Prop Electric Thin - 10 x 7
$5.99

Prop Electric Thin - 11 x 7
$6.99

Avian 45-Amp Brushless SMART ESC 3S-6S w/IC3
$84.99

Avian Prop Adapter 35mm
$7.99
Brushless Motor Mount Medium Motors
$29.99

ESC 40 Amp Brushless
$64.99

ESC 40A 230mm Wire EC3
$59.99

SPECIFICATIONS
33.3 - 44.4 V
Input Voltage:
200 KV RPM/Volt
Motor Kv:
1900 Watts
Max Continuous Power:
635 g
Weight:
5.5 - 9.1 kg
Recommended Model Weight:
16x8 to 19x10
Prop Range:
10 mm
Shaft Diameter:
Avian 120 Amp Brushless
Recommended Speed Control:

FEATURES
  • Lightweight design
  • Excellent power and efficiency on 12S power when matched with a 18x10 size propeller
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

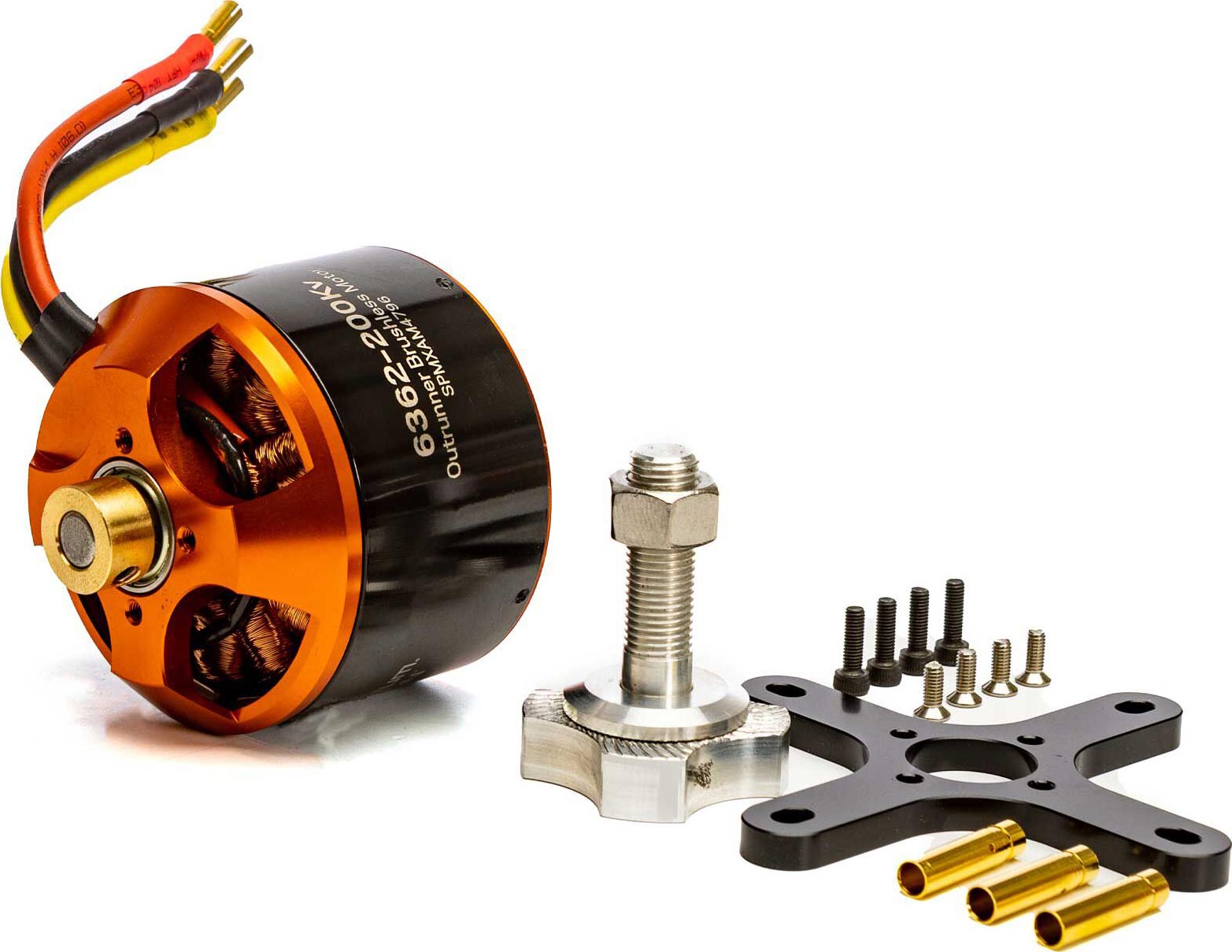

  • Includes all required hardware: preinstalled gold-plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 120 amp HV ESC
  • Perfect electric conversion upgrade for 30cc size gas combustion power systems running 12S LiPo power

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance Free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
