SPECIFICATIONS
18.5-22.2 V
Input Voltage:
8 mm
Shaft Diameter:
500 KV RPM/Volt
Motor Kv:
900 Watts
Max Continuous Power:
298 g
Weight:
3175g - 5215g
Recommended Model Weight:
15x6 to 15x8
Prop Range:
4mm Bullet
Connector:
FEATURES
Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion

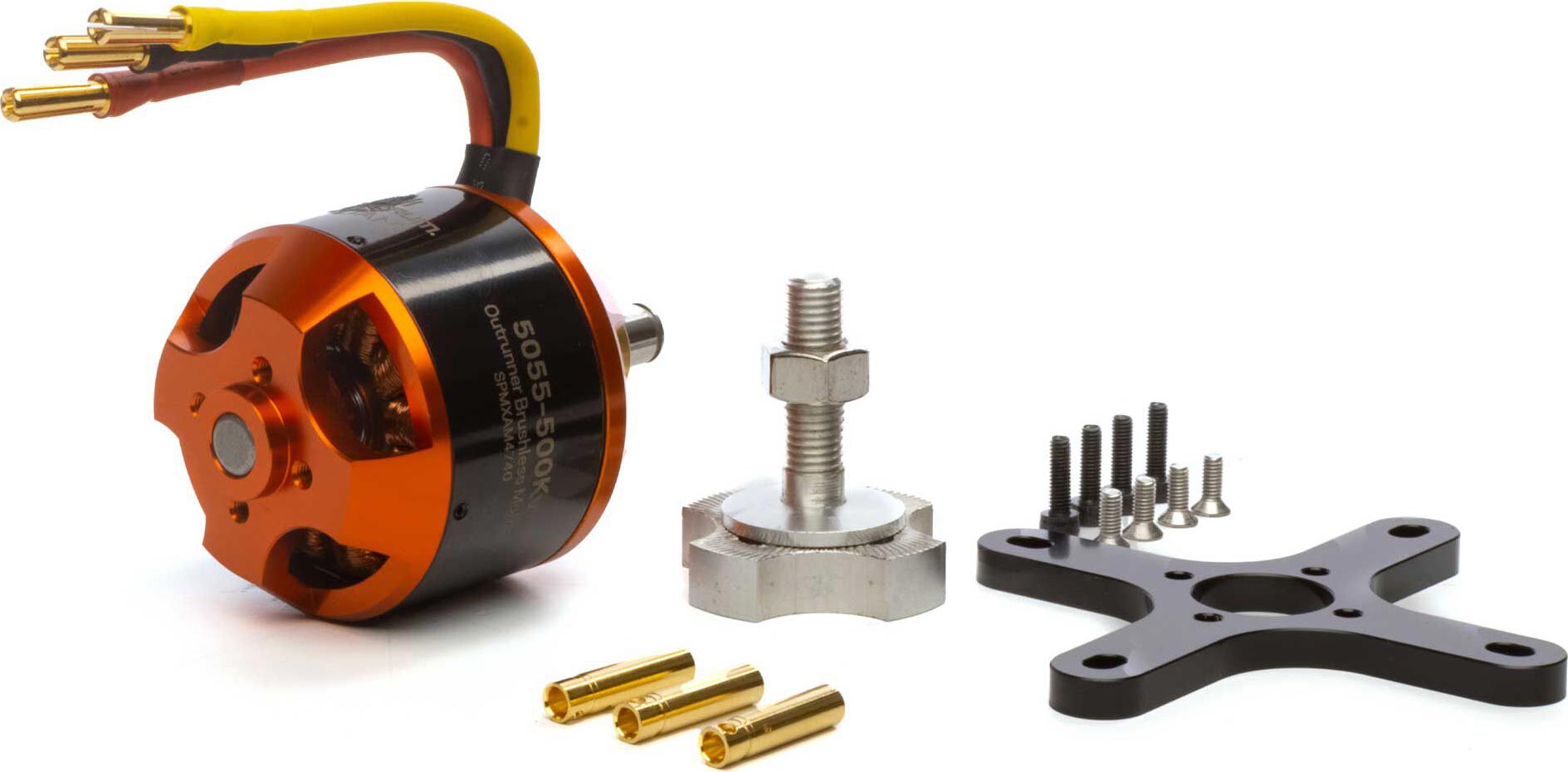

Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 60 amp ESC
Perfect electric conversion upgrade for .80 size glow combustion power systems
Recommended Model Flying weight – 3D 3175g (7 lbs) - 5215g (11.5 lbs)
Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo
Recommended Propeller Range – 15x6 to 15x8 Electric Propeller
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power. Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors. Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
