SPMXAE1120HV

Avian 120-Amp HV Brushless Smart ESC 6S-12S

Product Info | Fits What?
SPEKTRUM

SPMXAE1120HV

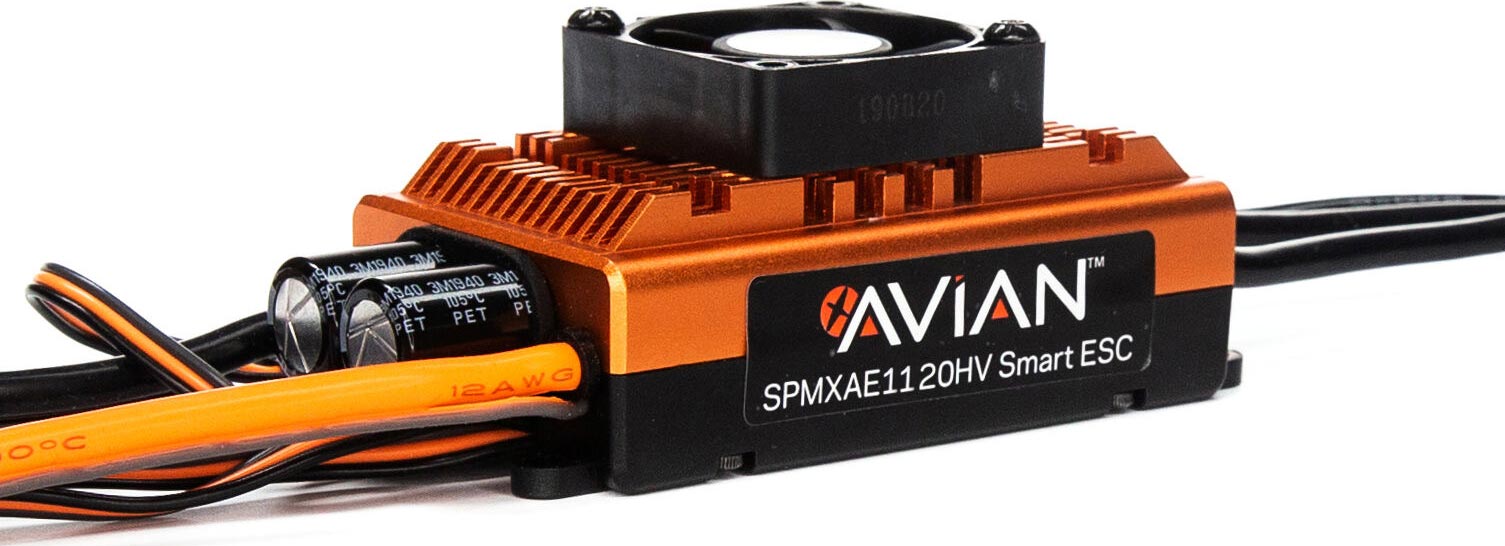

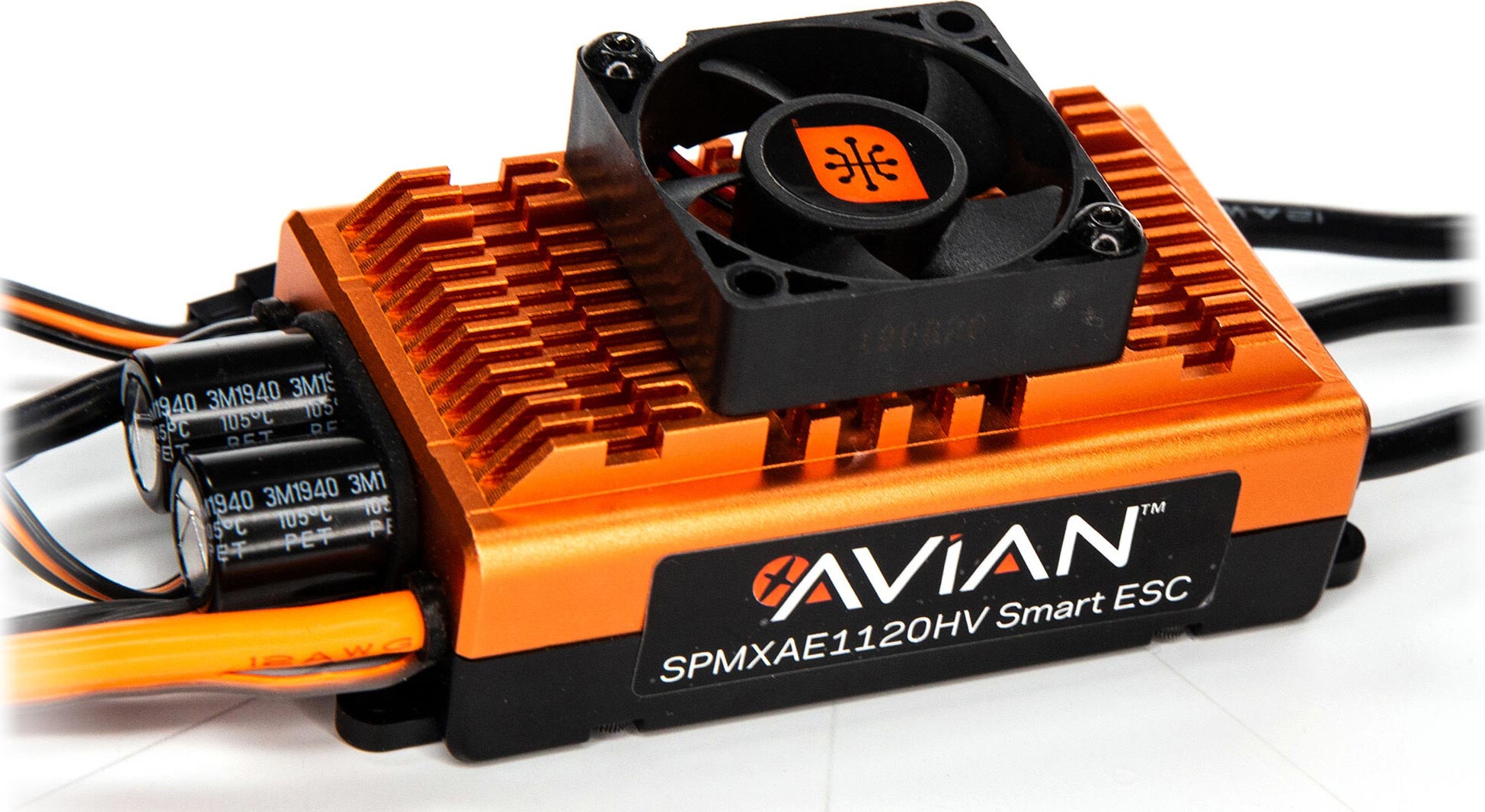

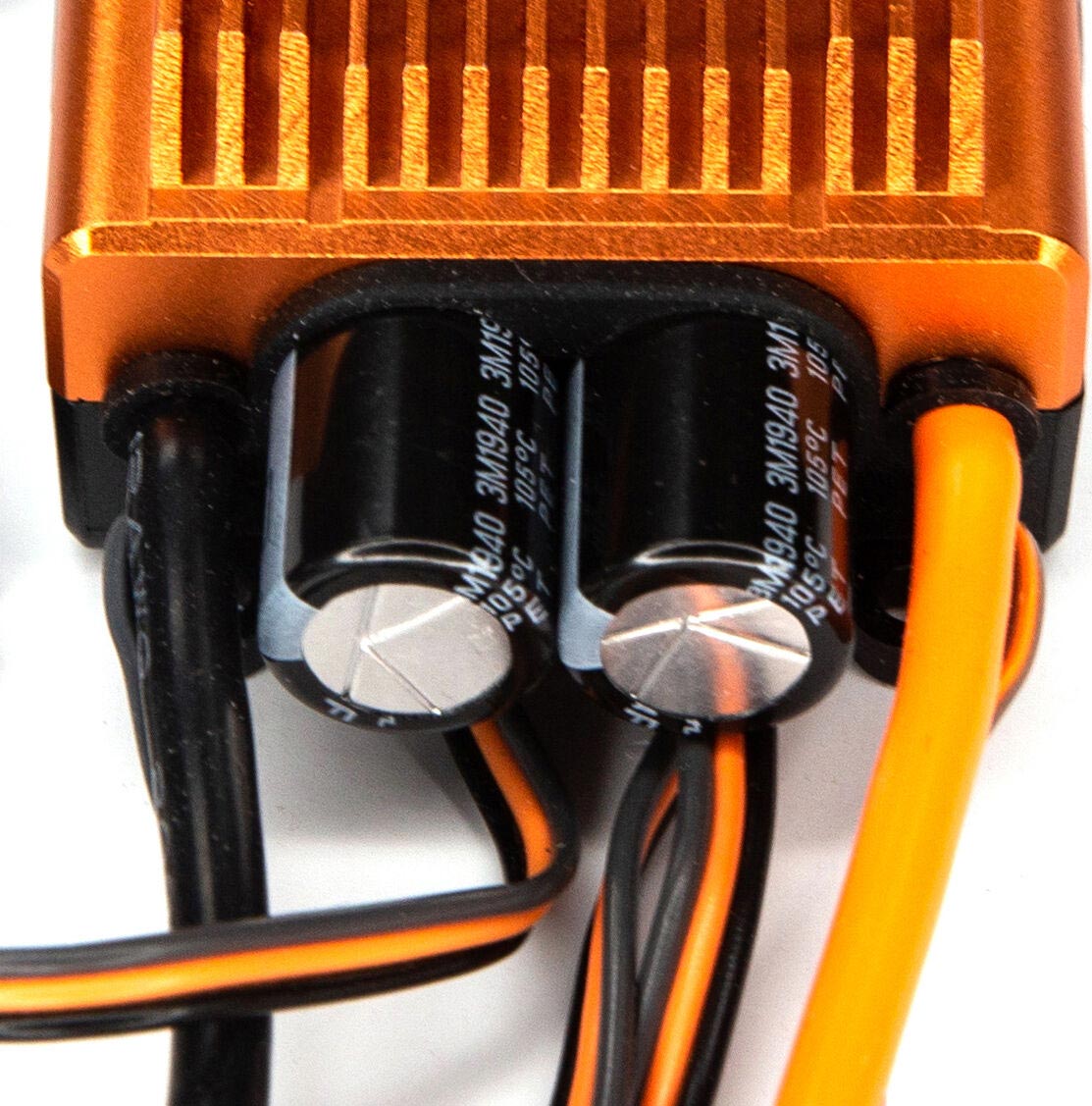

Avian 120-Amp HV Brushless Smart ESC 6S-12S
By SPEKTRUM
$309.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Aircraft Electronic Speed Controls (ESC)
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
1
$309.99
Warehouse ?
StockStock availability for pick up
1
$309.99
Warehouse ?
0
$309.99
Store - Stratford ?
0
$309.99
Store - Edmonton ?
0
$309.99
Store - Mississauga ?
0
$309.99
Store - Ottawa ?
0
$309.99
Store - Oshawa ?
0
$309.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
Air/Heli
Type:
120 A
Max Continuous Current:
140 A
Max Burst Current:
6-12 cells
LiPo Cells:
195 g
Weight:
88 mm
Length:
45 mm
Width:
27 mm
Height:
IC5
Battery Connector:

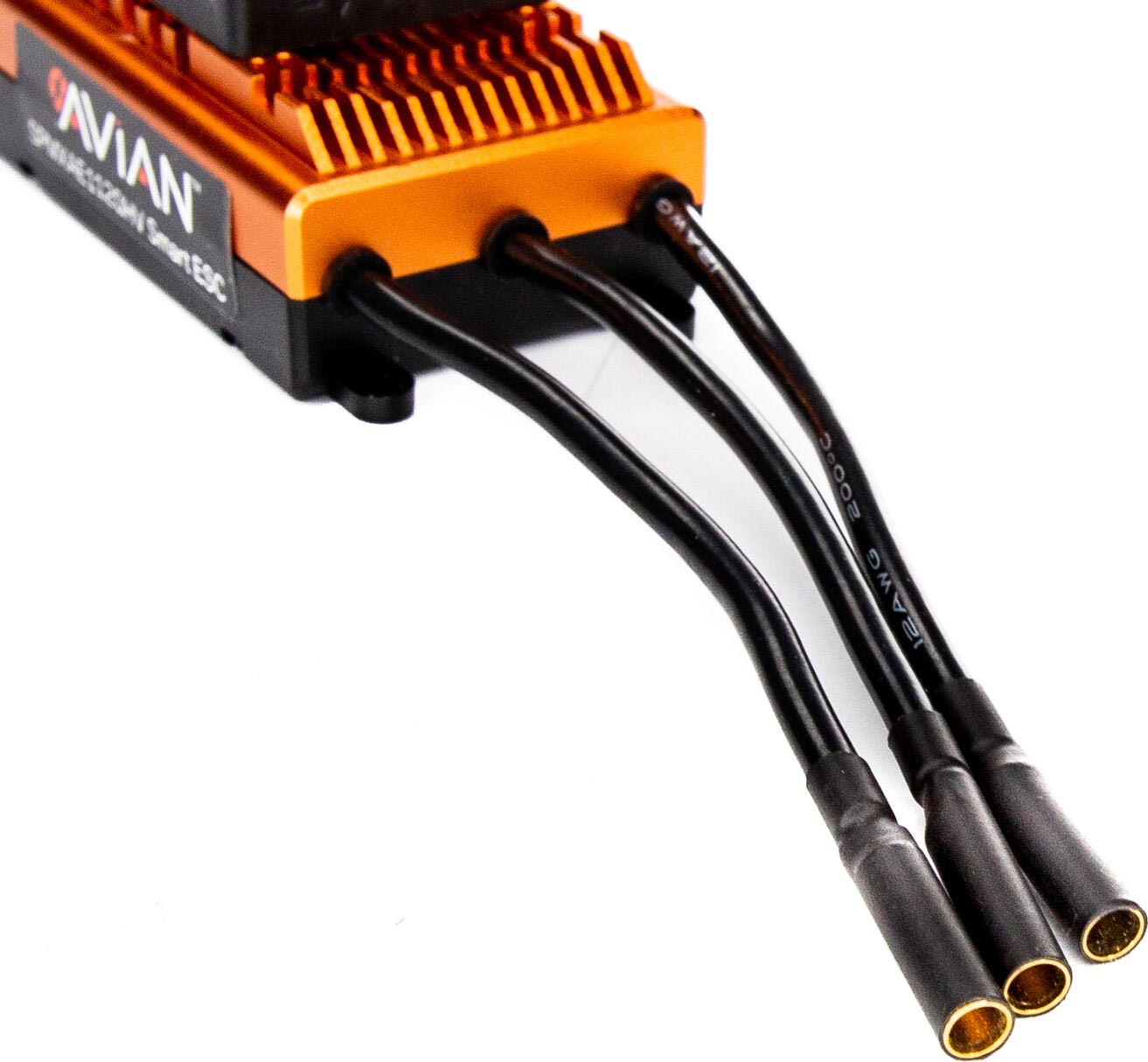

4.0mm Female Bullet
Motor Connector:

FEATURES
  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming
  • Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required

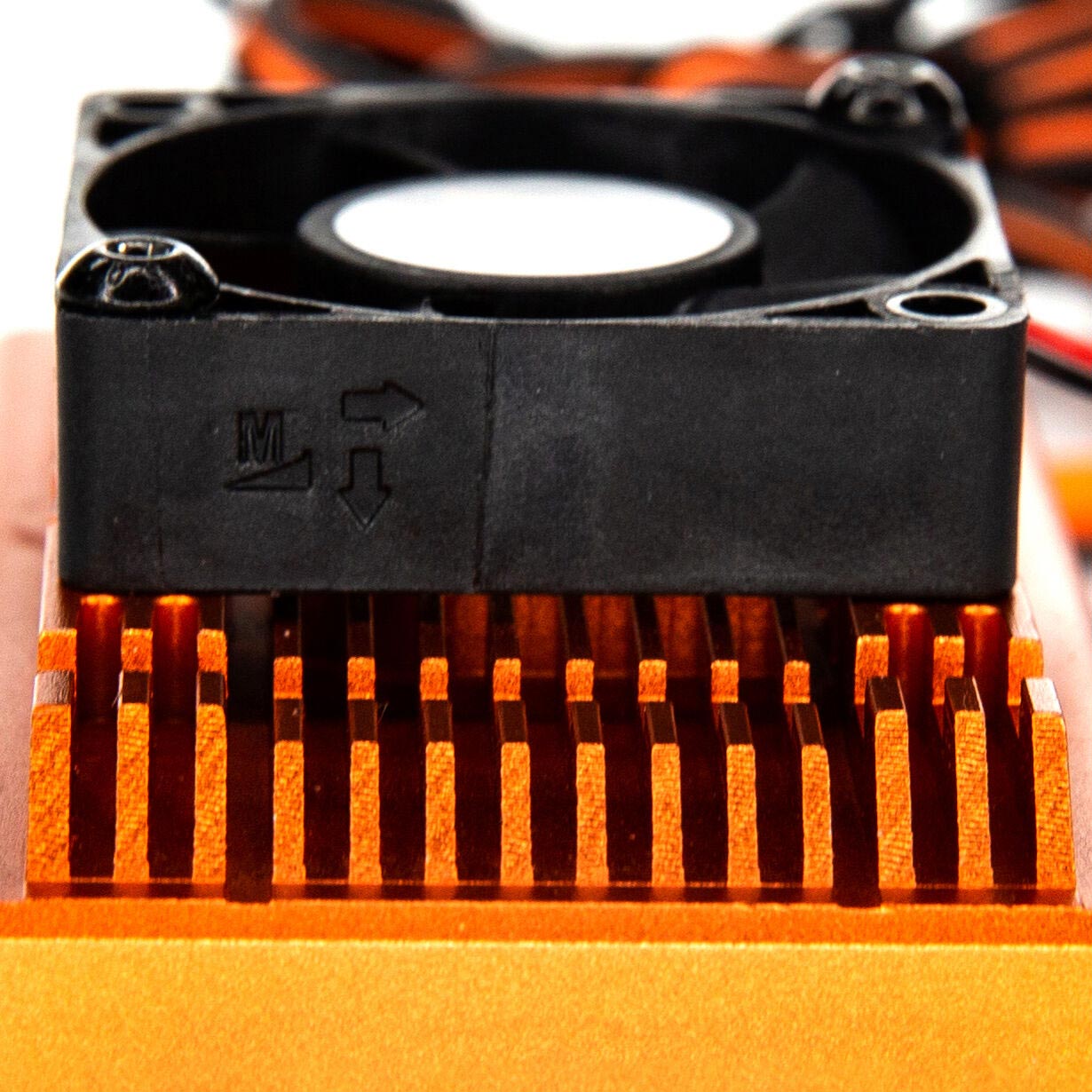

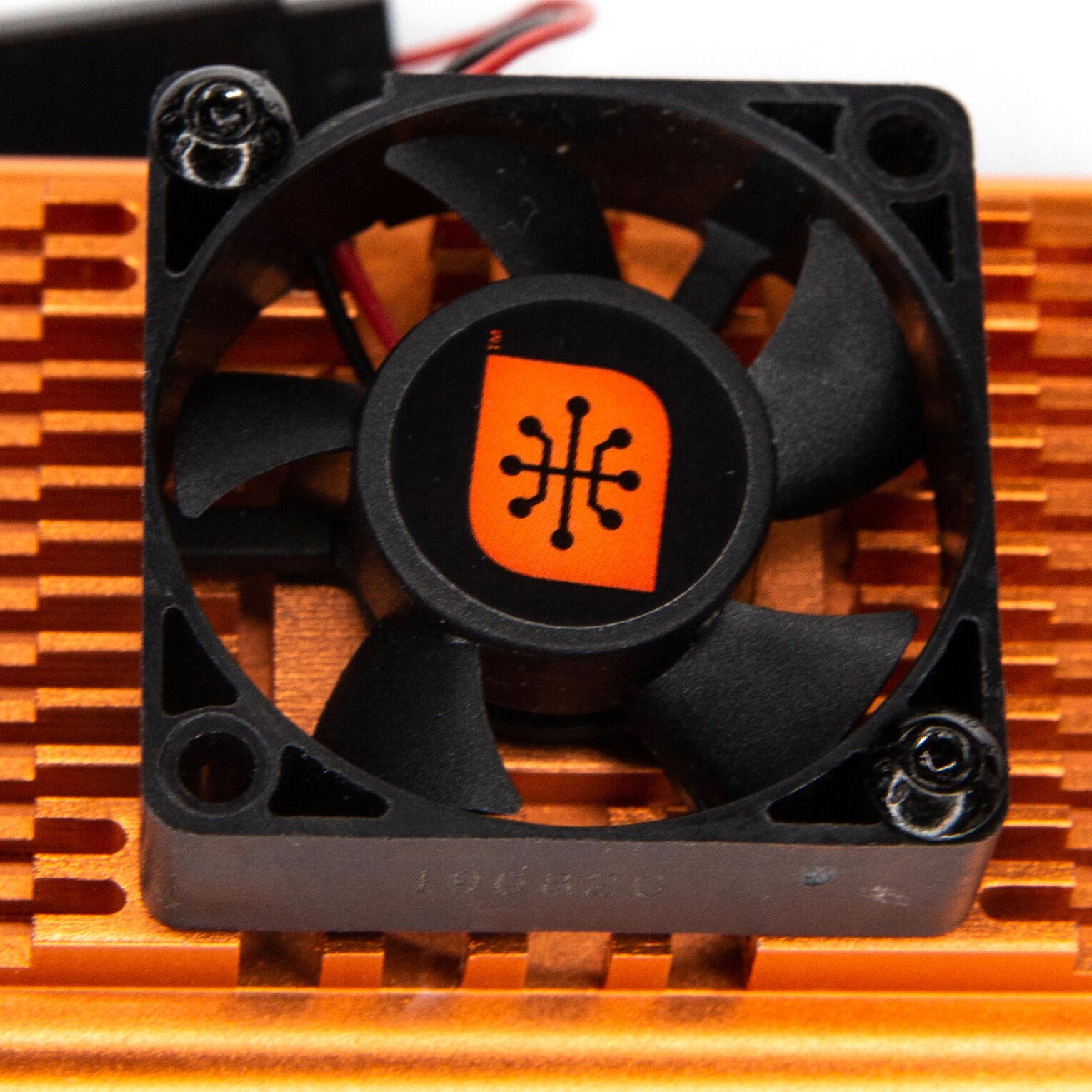

  • Heat dissipating design
  • Dual BEC power connectors
  • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
  • High heat-resistant IC connectors, backwards compatible with EC connectors
  • Limited 1-year warranty

Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete

Spektrum Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter

What's in the Box?

(1) Spektrum Avian Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
