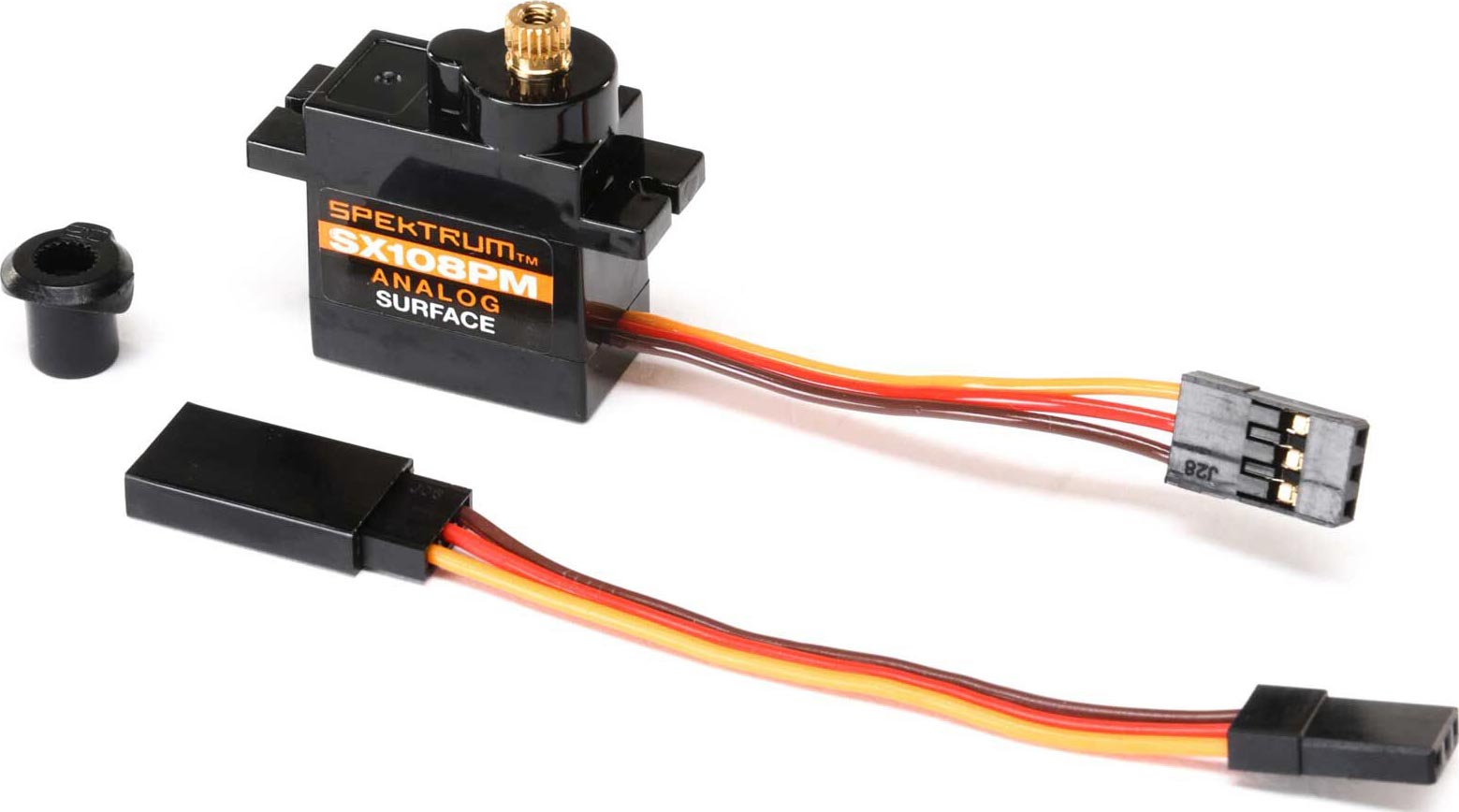

SX108PM Micro Gear Servo Promoto-MX
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
Analog
Type:
Dual Ball Bearing
Bearing:
20 Tooth
Output Spline:
23 mm
Length:
12 mm
Width:
22 mm
Height:
Metal
Geartrain:
2.52 kg-cm (35 oz-in)
Torque @ 4.8V:
3 kg-cm (41.8 oz-in)
Torque @ 6.0V:
FEATURES
The SX108 is purpose built for steering micro and mini models and is a great servo for utility functions like 2 – Speed transmissions and Dig. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 41.8 oz-in torque rating, the SX108 is the perfect mighty micro servo for your small scale vehicles.
PRODUCT RESOURCES
605482167274 0605482167274
SPMSSX108PM
