Spektrum 1/10 Servo Winch
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Low Profile
Size Class:
Digital
Type:
1/10 Winch
Application:
Ball Bearing
Bearing:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
25 mm
Height:
57 g
Weight:
Metal
Geartrain:
6.0V - 8.4 v
Voltage Range:
9.4 kg-cm (140 oz-in)
Torque @ 6.0V:
11.5 kg-cm (160 oz-in)
Torque @ 7.4V:
13 kg-cm (180 oz-in)
Torque @ 8.4V:
FEATURES
- Design for 1/10th Scalers and Crawlers
- 6V to 8.4V Operating Voltage
- Durable and long-lasting brushless motor
- High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
- All Aluminum servo case for heat dissipation
- 7' feet of line with scale recovery hook included
- Built-in Integrated brushless controller for easy set up and installation
- Precise metal internal gears
- Waterproof
- 25 teeth output shaft
- Includes everything needed to start winching

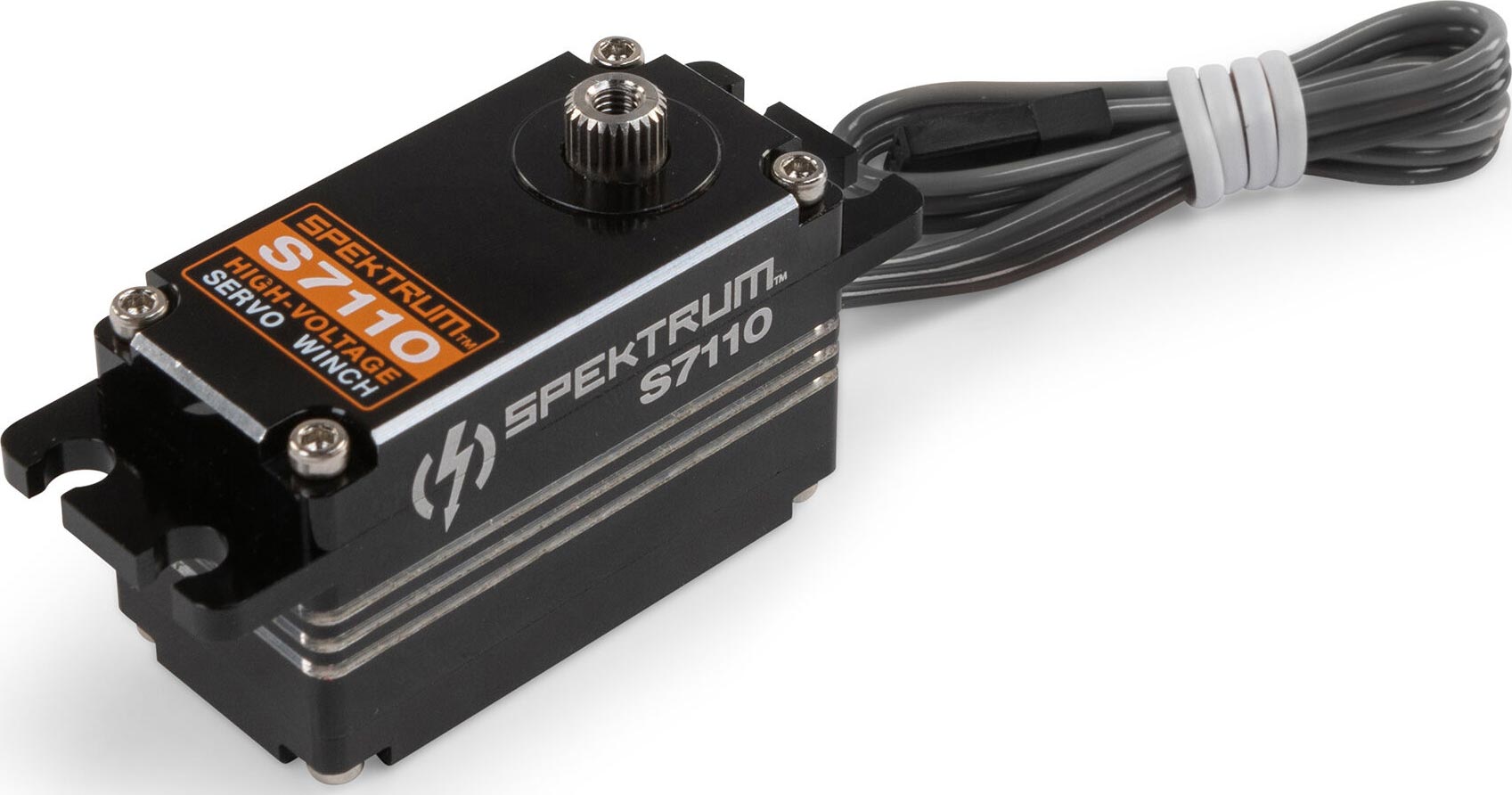

The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.

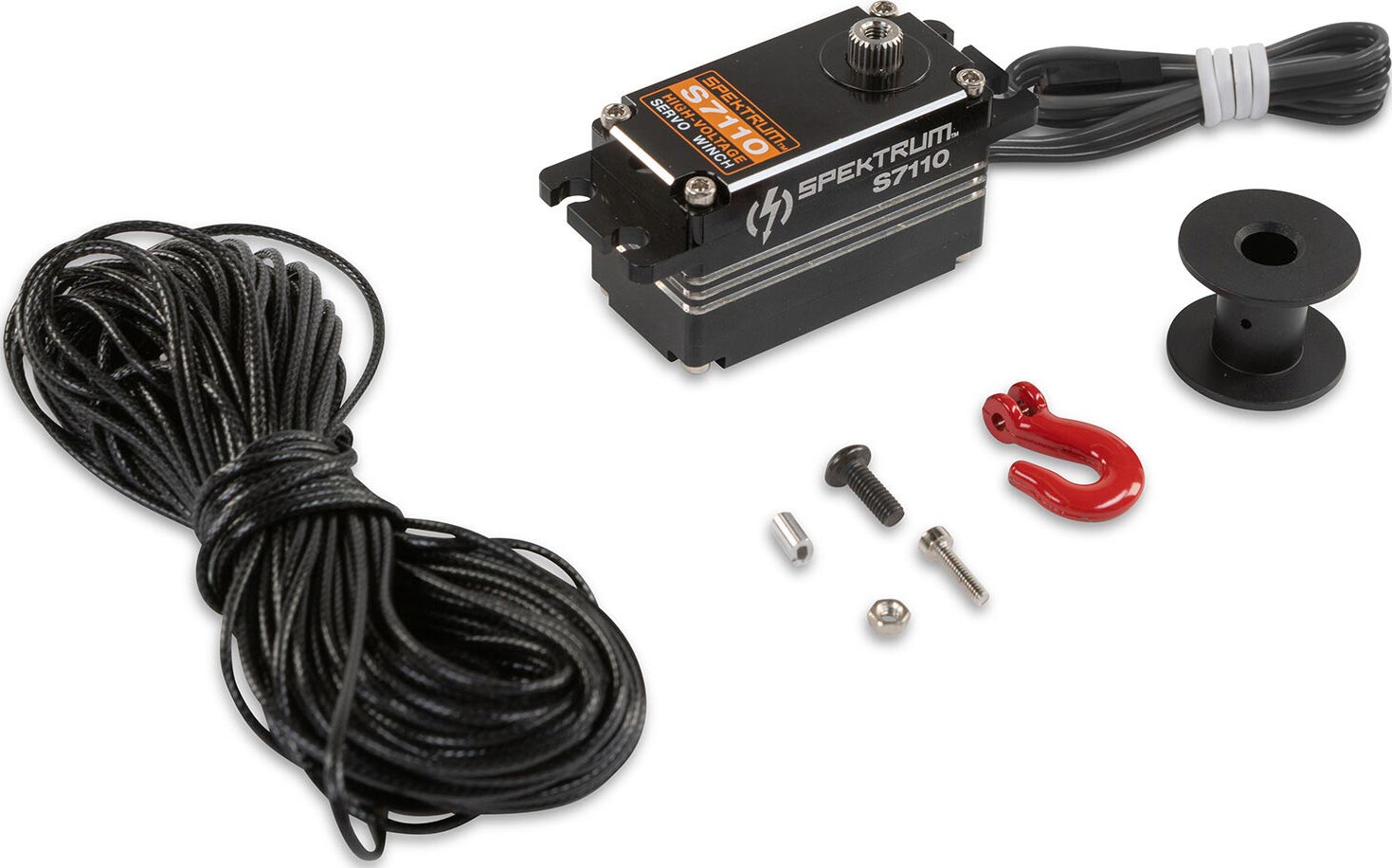

In The Box
(1) S7110 High Voltage Servo Winch
(1) Scale recovery hook
(1) Aluminum spool
(1) 7’ Fiber line
