SPECIFICATIONS
Standard
Size Class:
23 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
28 mm
Height:
Metal
Geartrain:
6.0 - 8.4 v
Voltage Range:
30 kg-cm (417 oz-in)
Torque @ 8.4V:
0.062 sec/60°
Speed @ 8.4V:
FEATURES
Sleek black and silver anodized metal case
Brushless power and reliability
High Voltage (HV) Capable (6.0V-8.4V)
23T output Spline
Water Resistant
Hardened steel gears
Precision engineered gear train for tight and low wear mesh
Ultra-fast transit speed (0.062sec at 8.4V)
Impressive torque (30kg-cm / 416oz-in at 8.4V)
Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers
Removable standard size servo connector for easy lead swaps
Soft-Start puts less strain on steering components during start up
Advanced failsafe and protections

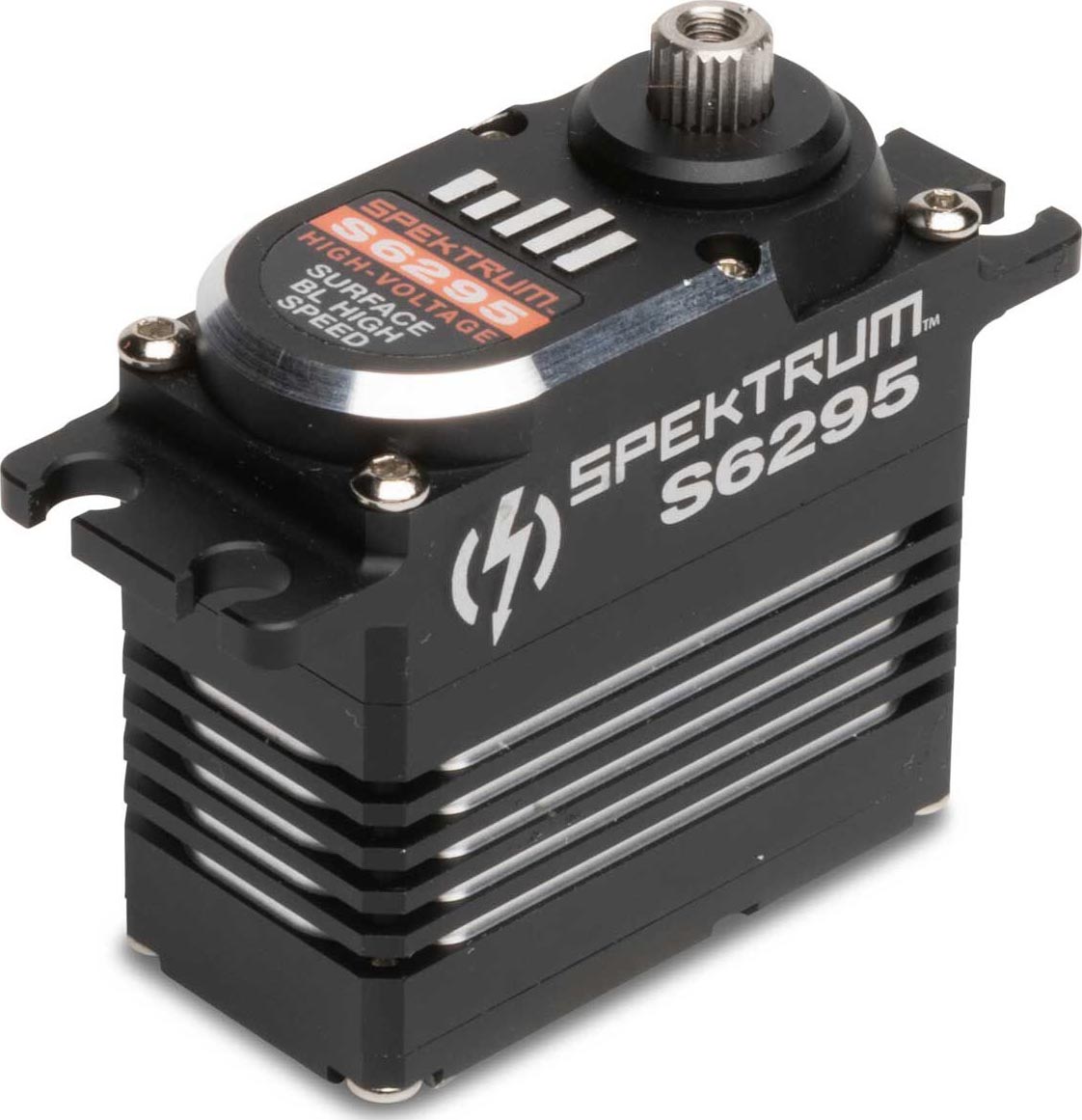

Spektrum High-Voltage Brushless Servos deliver premium power, precision, and performance. The S6295 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Powered by a class-leading brushless powertrain, the S6295 also offers superior protections, such as soft start, over current protection and advanced failsafes. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Featuring blindingly fast 0.062 sec speeds, the S6295 servo is a top choice for serious 1/8th scale off-road racers. Equally capable of high-performance operation in crawling and bashing applications that demand fast reactions, maximum torque and holding power. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications.
