Spektrum high-voltage servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software offers ultra-smooth performance more efficiently. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free. The Spektrum A6320 and A5080 servos uses this solid foundation to achieve an outstanding balance of power, speed, and value, plus the peace-of-mind over-current and over-temperature protection offers.

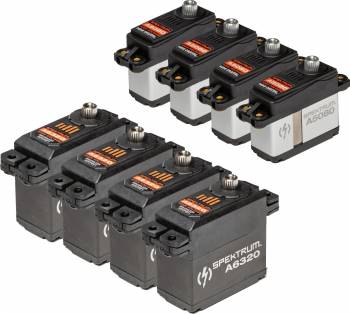

In The Box
(4) SPMSA6320 A6320 Standard Digital HV Brushless Mid Torque Metal Gear Servos
(4) SPMSA5080 A5080 MT/HS Mini Digital HV Servos

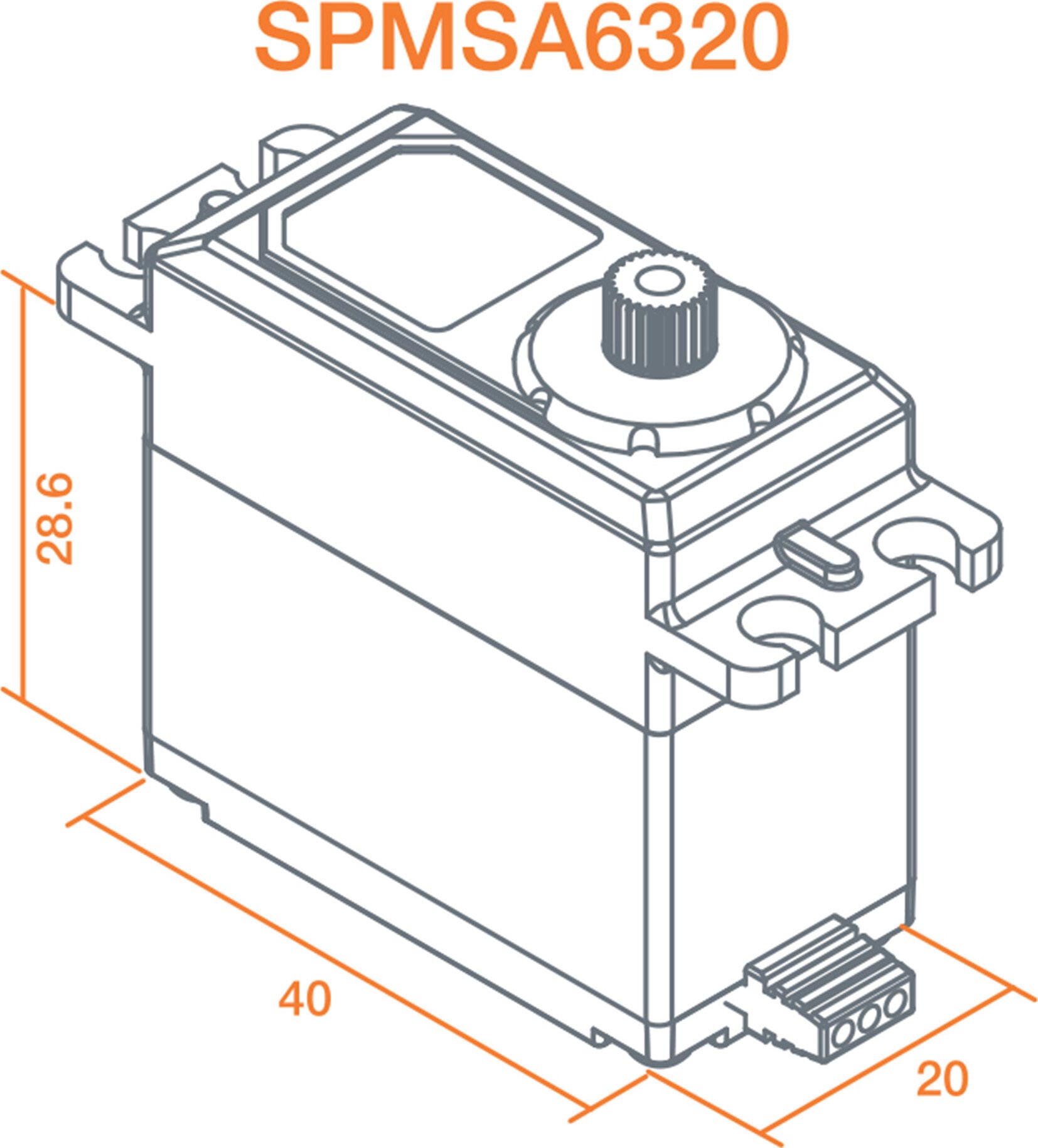

KEY FEATURES – A6320 Servo
High Voltage (HV) capable (6.0-8.4v input range)
Outstanding torque and speed in a standard servo size (270 oz-in and .10 sec/60° @8.4v)
Durable and long lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Aluminum center servo case helps keep operating temperatures low
Soft start helps prevent component and airframe damage during un-intentional initializations
Over Current and Temperature protection
Helpful initialization start tone lets pilot know when the servo is ready
Integrated servo failsafe holds last known position if signal is lost and power is maintained
Frequency : 50-400hz

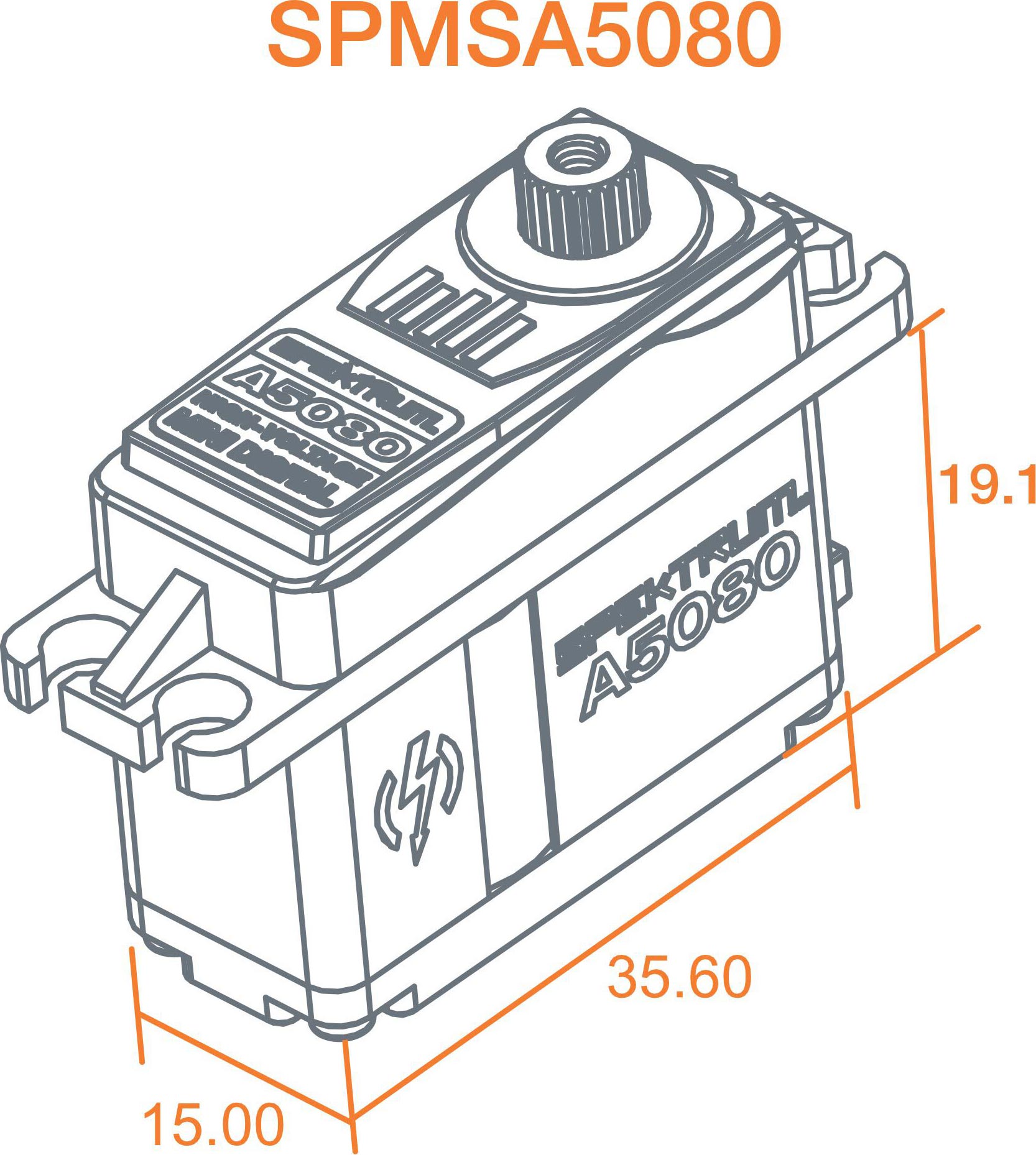

KEY FEATURES – A5080 Servo
High Voltage (HV) capable (4.8 8.4v input range)
Mini size is perfectly suited for parkflyer and sport size model aircraft
Servo Speed: 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V
Servo Torque: 110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V
Class leading performance (9.6kg cm and .094 sec/60° @8.4v)
Aluminum servo case helps keep operating temperatures low
Low wear and tightly meshed all metal gear train
Bearing supported drive train helps maximize smooth operation
Over Current and Temperature protection
Operating Frequency: 200hz to 333hz
