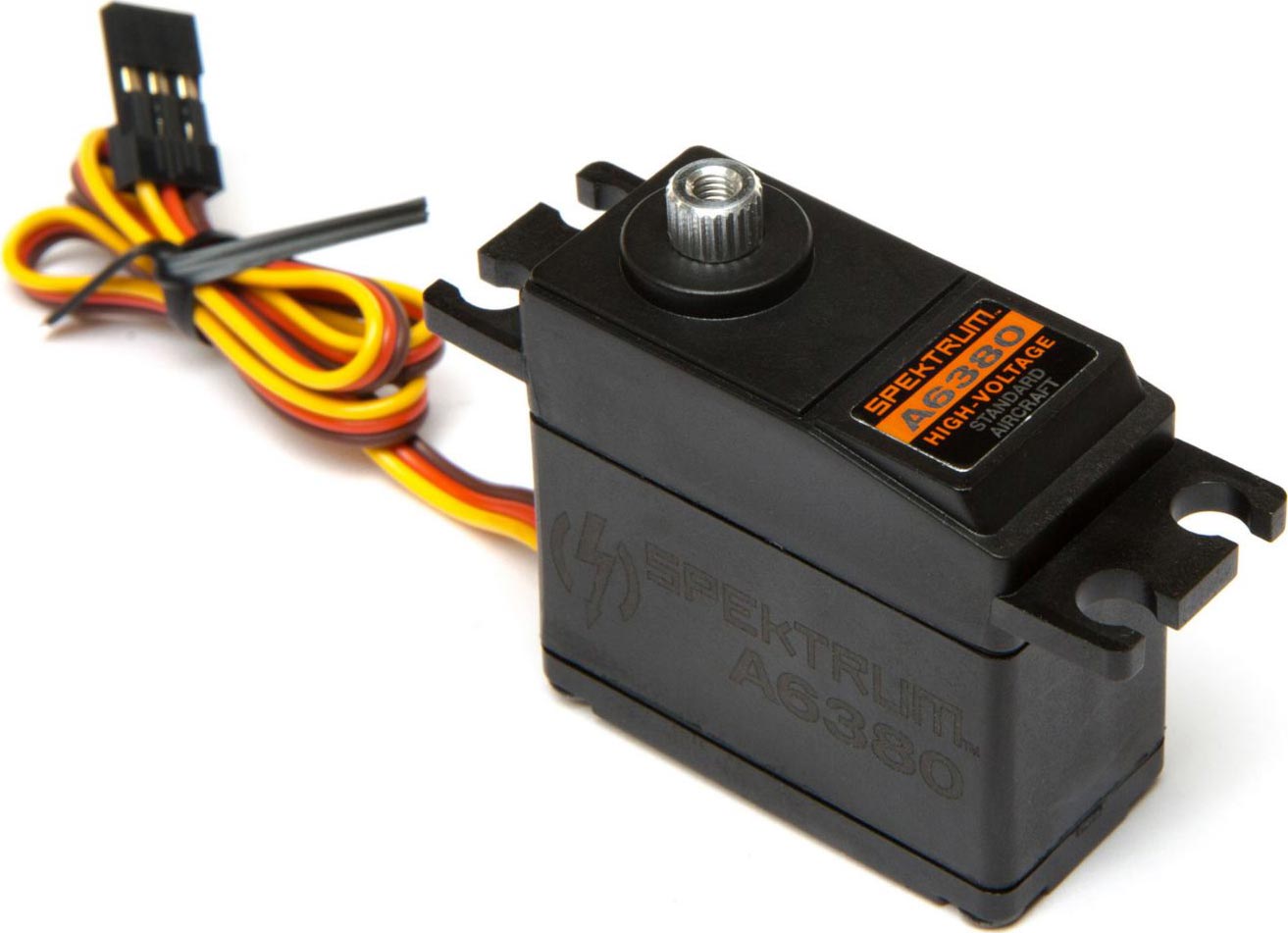

A6380 High Torque High Speed HV Standard Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Aircraft
Application:
Dual Bearing
Bearing/Bushing:
18.8 mm
Length:
38.6 mm
Width:
37 mm
Height:
42.5 g
Weight:
Metal
Geartrain:
Coreless
Motor Type:
6.0–8.4 v
Voltage Range:
7.3 kg-cm (102 oz-in)
Torque @ 6.0V:
0.17 sec/60°
Speed @ 6.0V:
11.5 kg-cm (160 oz-in)
Torque @ 8.4V:
0.13 oz-in
Speed @ 8.4V:
23 Tooth
Output Spline:
FEATURES
The Spektrum A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
