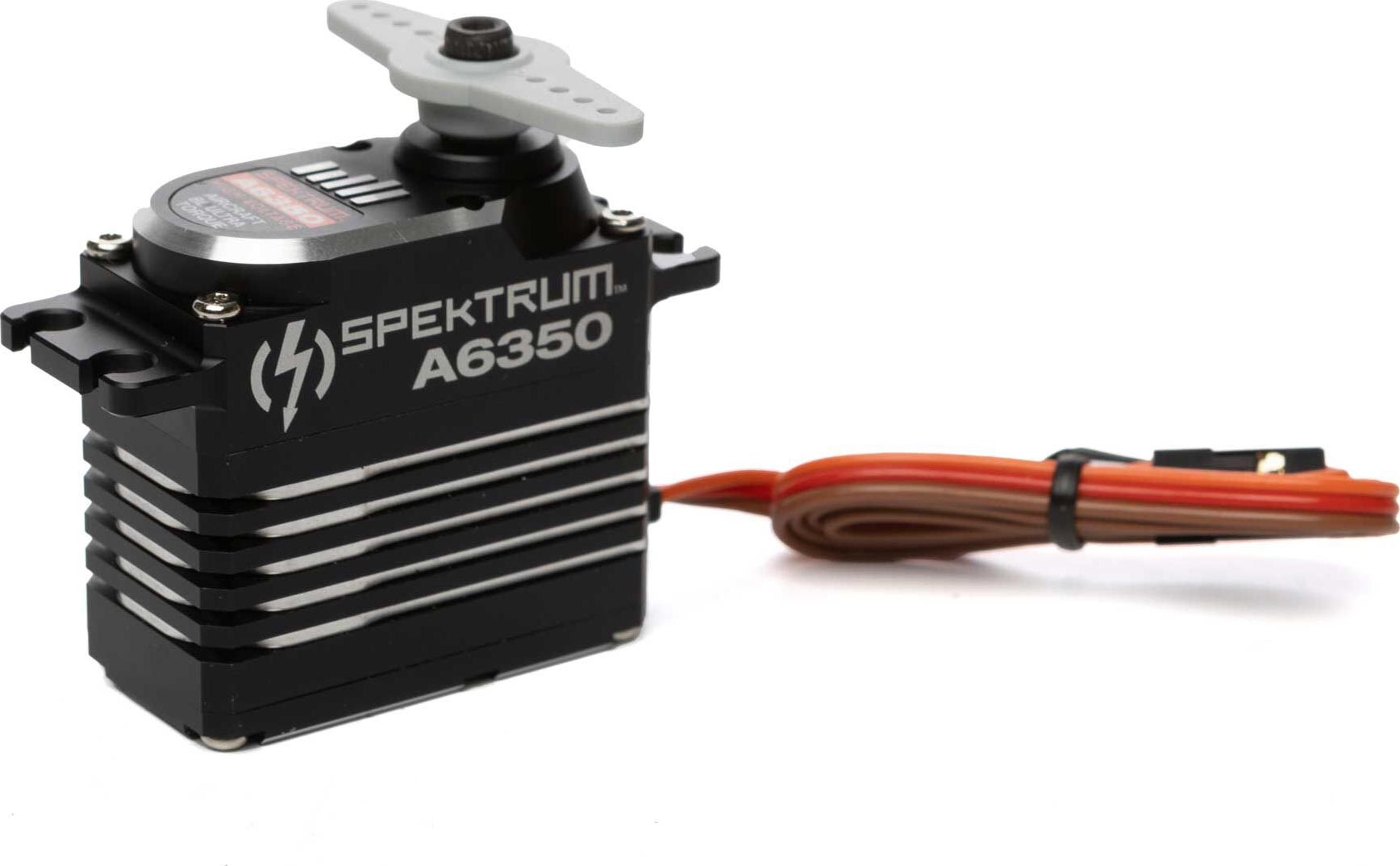

A6350 Ultra Torque / High Speed Brushless HV Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Standard
Size Class:
Digital
Type:
Air
Application:
Dual BB
Bearing/Bushing:
23 Tooth
Output Spline:
41 mm
Length:
21 mm
Width:
41 mm
Height:
85 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
6.0 to 8.4 v
Voltage Range:
41.5 kg-cm (576 oz-in)
Torque @ 6.0V:
0.145 sec/60°
Speed @ 6.0V:
52.2 kg-cm (725 oz-in)
Torque @ 7.4V:
0.115 sec/60°
Speed @ 7.4V:
61.4 kg-cm (852 oz-in)
Torque @ 8.4V:
0.095 sec/60°
Speed @ 8.4V:
FEATURES
- High Voltage (HV) capable (6.0-8.4v input range)
- Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating Frequency: 200hz to 333hz
The Spektrum A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum. Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.

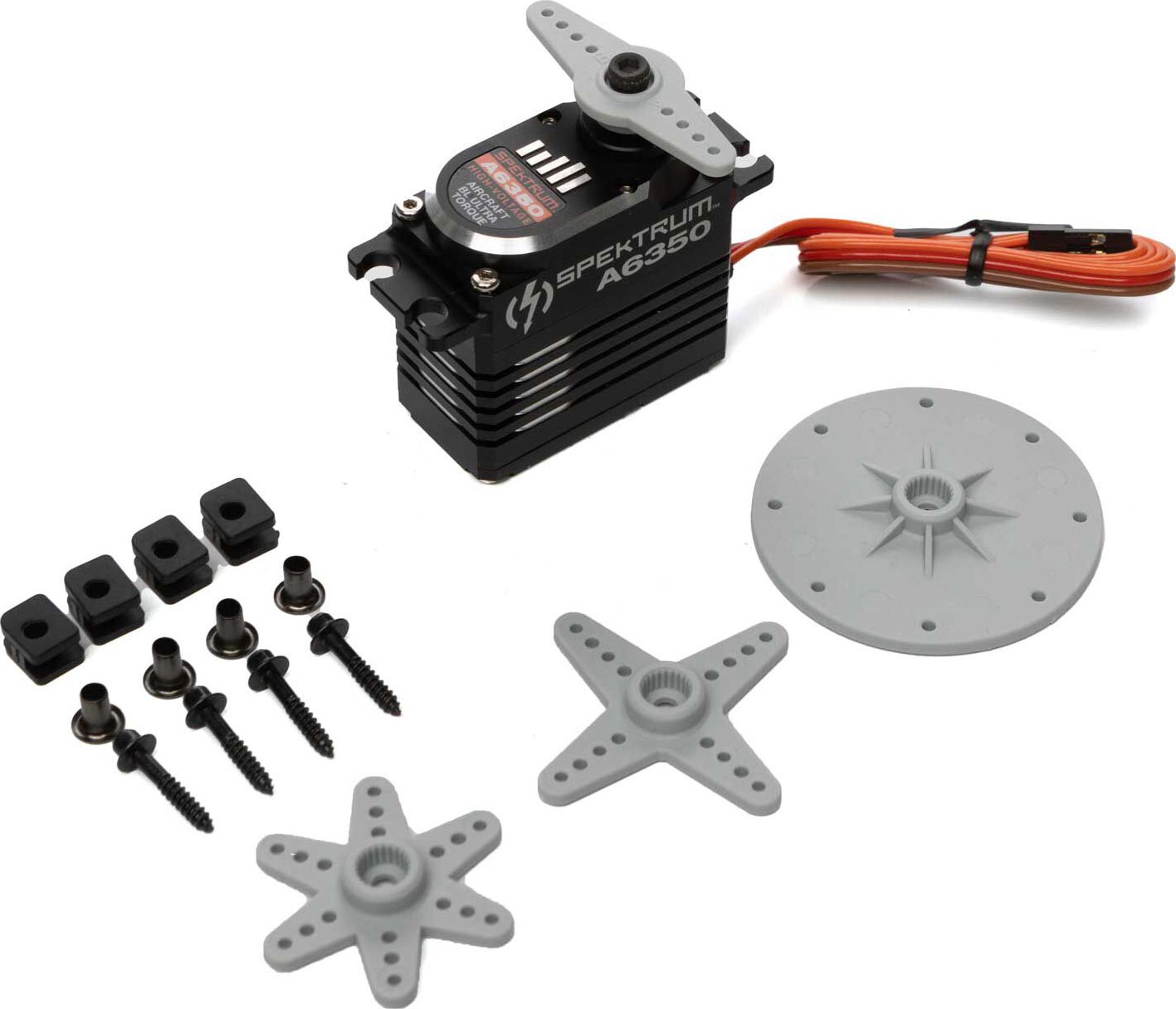

In The Box
(1) A6350 Brushless Servo
(4) Mounting Grommets, Eyelets, and Hardware
(4) Plastic Servo Arms and (1) Screw
(1 Set) “Guided by Spektrum” Decals
