SPMSA6330

Servo - A6330 High Torque/High Speed MG HV Brushless

Product Info | Fits What?
SPEKTRUM

SPMSA6330
Servo - A6330 High Torque/High Speed MG HV Brushless
By SPEKTRUM
$109.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
2
$109.99
Warehouse ?
StockStock availability for pick up
2
$109.99
Warehouse ?
0
$109.99
Store - Stratford ?
1
$109.99
Store - Edmonton ?
1
$109.99
Store - Mississauga ?
1
$109.99
Store - Ottawa ?
1
$109.99
Store - Oshawa ?
1
$109.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
Digital
Type:
Air
Application:
23 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
28.6 mm
Height:
71 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
6.0 - 8.4 v
Voltage Range:
9.15 kg-cm (127 oz-in)
Torque @ 6.0V:
12.8 kg-cm (178 oz-in)
Torque @ 7.4V:
17.8 kg-cm (248 oz-in)
Torque @ 8.4V:

FEATURES
  • Brushless motor provides long lasting durability and impressive power and speed
  • High Voltage (HV) capable (6.0-8.4v input range)
  • Outstanding torque and speed in a standard servo size (248 oz-in and .10 sec/60° @8.4v)
  • Durable and long lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum center servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Frequency : 50-400hz

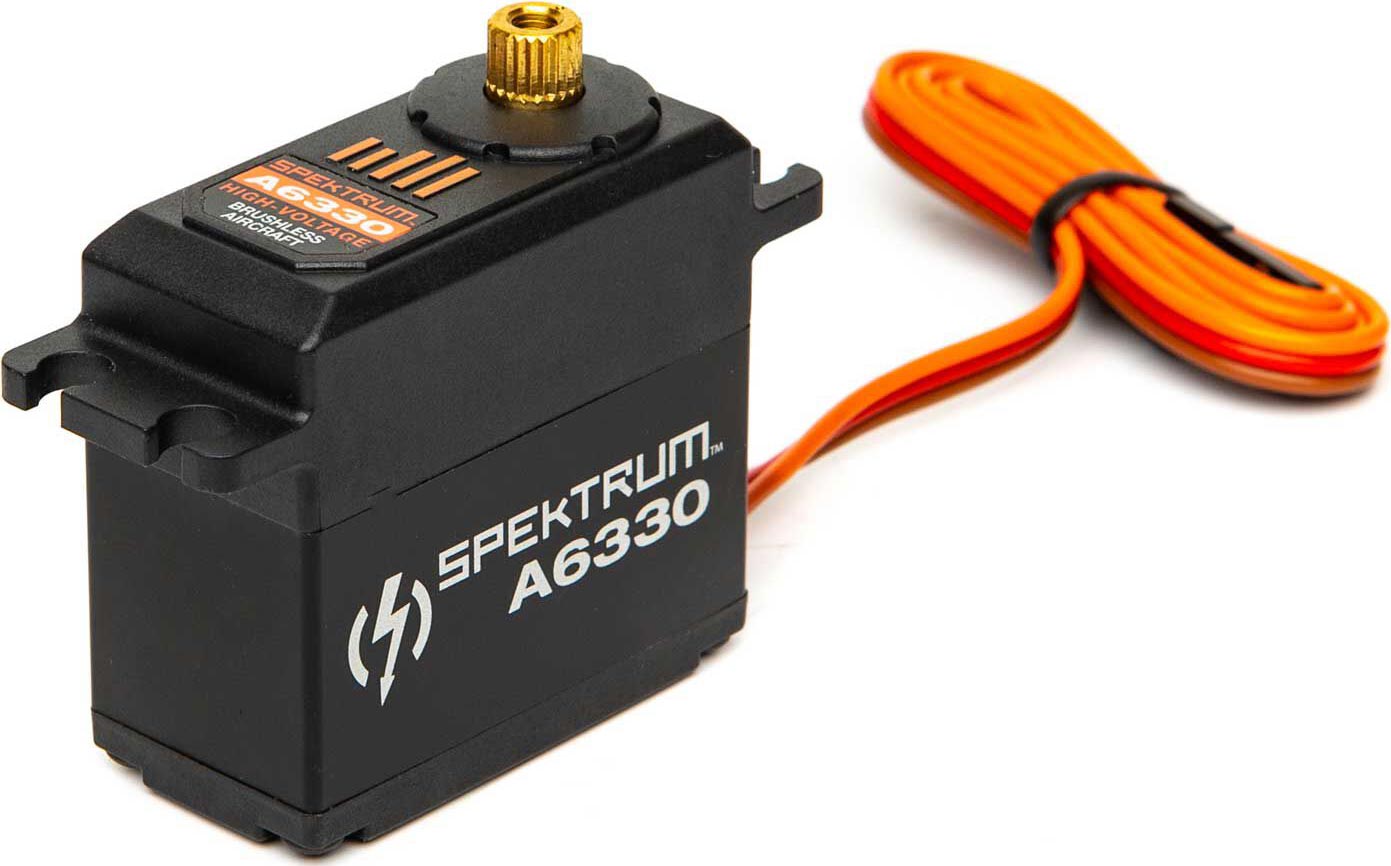

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.

Other features include: integrated servo failsafe, over-current and over-temperature protection, long 18 inch (457mm) lead for easy installation, initialization start tone to indicate servo readiness, and soft start to prevent damage during unintended initializations. Like all Spektrum 6300 Series servos, the A6330 delivers reliability, consistency and performance that are second to none.

PRODUCT RESOURCES
