SPMSA6320

A6320 High Torque High Speed Metal BL HV Servo

Product Info | Replacement Parts | Fits What?
SPEKTRUM

SPMSA6320

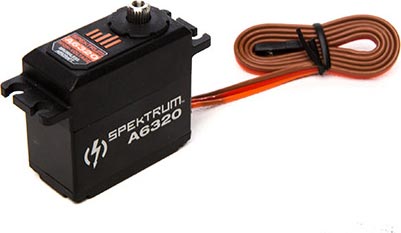

A6320 High Torque High Speed Metal BL HV Servo
By SPEKTRUM
$139.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
4
$139.99
Warehouse ?
StockStock availability for pick up
4
$139.99
Warehouse ?
0
$139.99
Store - Stratford ?
0
$139.99
Store - Edmonton ?
0
$139.99
Store - Mississauga ?
0
$139.99
Store - Ottawa ?
0
$139.99
Store - Oshawa ?
0
$139.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Servo Gear Set A6320
$42.99

Servo Case Set A6220
$9.99

Servo Gear Set A6220
$49.99

Hardware Set A6310
$16.99
SPECIFICATIONS
Digital
Type:
Dual Bearing
Bearing/Bushing:
37.8 mm
Length:
20 mm
Width:
40 mm
Height:
62 g
Weight:
Metal
Geartrain:
Brushless
Motor Type:
6.0-8.4 v
Voltage Range:
10.8 kg-cm (151 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
18 kg-cm (250 oz-in)
Torque @ 7.4V:
0.11 sec/60°
Speed @ 7.4V:
19.5 kg-cm (270 oz-in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:

FEATURES
  • High Voltage (HV) capable (6.0-8.4v input range)
  • Outstanding torque and speed in a standard servo size (270 oz-in and .10 sec/60° @8.4v)
  • Durable and long lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum center servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Frequency : 50-400hz

Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.

The Spektrum A6320 uses this solid foundation to achieve an outstanding balance of power, speed and value, plus the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for applications such as 30-50cc size 3D aerobatics, giant-scale or high-speed jets.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
