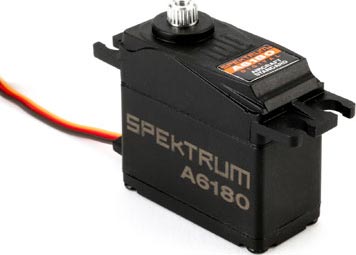

SA6180 Digital Aircraft Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Dual BB
Bearing:
Metal
Geartrain:
5-Pole Ferrite
Motor Type:
4.8-6.0 v
Voltage Range:
5.9 kg-cm (82 oz-in)
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
6.8 km-cm (94 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
Universal Servo
Connector Type:
38.8 mm
Length:
18.8 mm
Width:
34.9 mm
Height:
42 g
Weight:
25 Tooth
Output Spline:
FEATURES
- Metal gear train provides robust, durable performance
- Waterproof design ensures you can trust this servo in harsh conditions
- 94 oz-in of torque and a transit speed of 0.14 seconds at 6.0V
