*REORDER* SPMSA5080 (Mini HV Digital Hi-Torque MG Aircraft Servo)
Discontinued
|
click to enlarge
|
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Minis and Micros
Size Class:
Digital
Type:
25- to 32-size aircraft
Application:
Universal Servo
Connector Type:
Dual Bearing
Bearing/Bushing:
32.8 mm
Length:
14.7 mm
Width:
27.4 mm
Height:
26 g
Weight:
Metal
Geartrain:
Coreless
Motor Type:
6.0 - 8.4 v
Voltage Range:
87 oz-in
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
118 oz-in
Torque @ 8.4V:
0.11 sec/60°
Speed @ 8.4V:
FEATURES
- HV compatible
- 118 oz-in of torque and a transit speed of .11 sec/60° at 8.4V offers impressive performance for a mini servo
- Metal gear train for robust and rugged performance
- Aluminum center section case doubles as a heat sink to keep the motor cool which increases performance and life of the servo, and adds high end look and feel.
PRODUCT RESOURCES
Customers who bought this item also bought...
|
|
|
|
|
|
|
|
605482069547 0605482069547

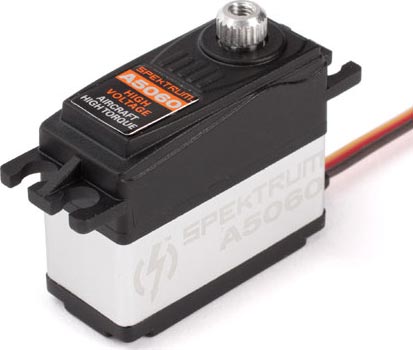

SPMSA5060
