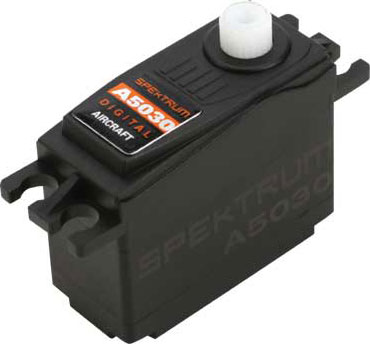

A5030 Mini Digital Aircraft Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Minis and Micros
Size Class:
Digital
Type:
25 - 32 size airplanes
Application:
Dual Bearing
Bearing/Bushing:
32.8 mm
Length:
14.7 mm
Width:
27.4 mm
Height:
21.6 g
Weight:
Nylon
Geartrain:
Coreless
Motor Type:
4.8 - 6 v
Voltage Range:
50 oz-in
Torque @ 4.8V:
0.12 sec/60°
Speed @ 4.8V:
66 oz-in
Torque @ 6.0V:
0.10 sec/60°
Speed @ 6.0V:
FEATURES
- Digital precision and power
- Low deadband accuracy
- Dual ball bearing support
- Plastic Gears
- Coreless Motor
The A5030's lightweight plastic gear train, digital precision and incredible .10 transit time is ideal for 25-32 size aircraft. Aerobatic and 3D aircraft that demand performance need the precision of digital accuracy. This servo is ideal and will last the pilot a long time thanks to its tight nylon gear train.
This mini-class servo is durable enough for either glow or electric power applications. Dual ball-bearing support means there’s less resistance to the high output of the high-speed coreless motor. In all these features mean you can expect great performance and long life.
