SPMSA4040

A4040 MT/HS Micro MG HV Servo

Product Info | Fits What?
SPEKTRUM

SPMSA4040
A4040 MT/HS Micro MG HV Servo
By SPEKTRUM
$79.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
1
$79.99
Warehouse ?
StockStock availability for pick up
1
$79.99
Warehouse ?
0
$79.99
Store - Stratford ?
0
$79.99
Store - Edmonton ?
0
$79.99
Store - Mississauga ?
0
$79.99
Store - Ottawa ?
0
$79.99
Store - Oshawa ?
0
$79.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.

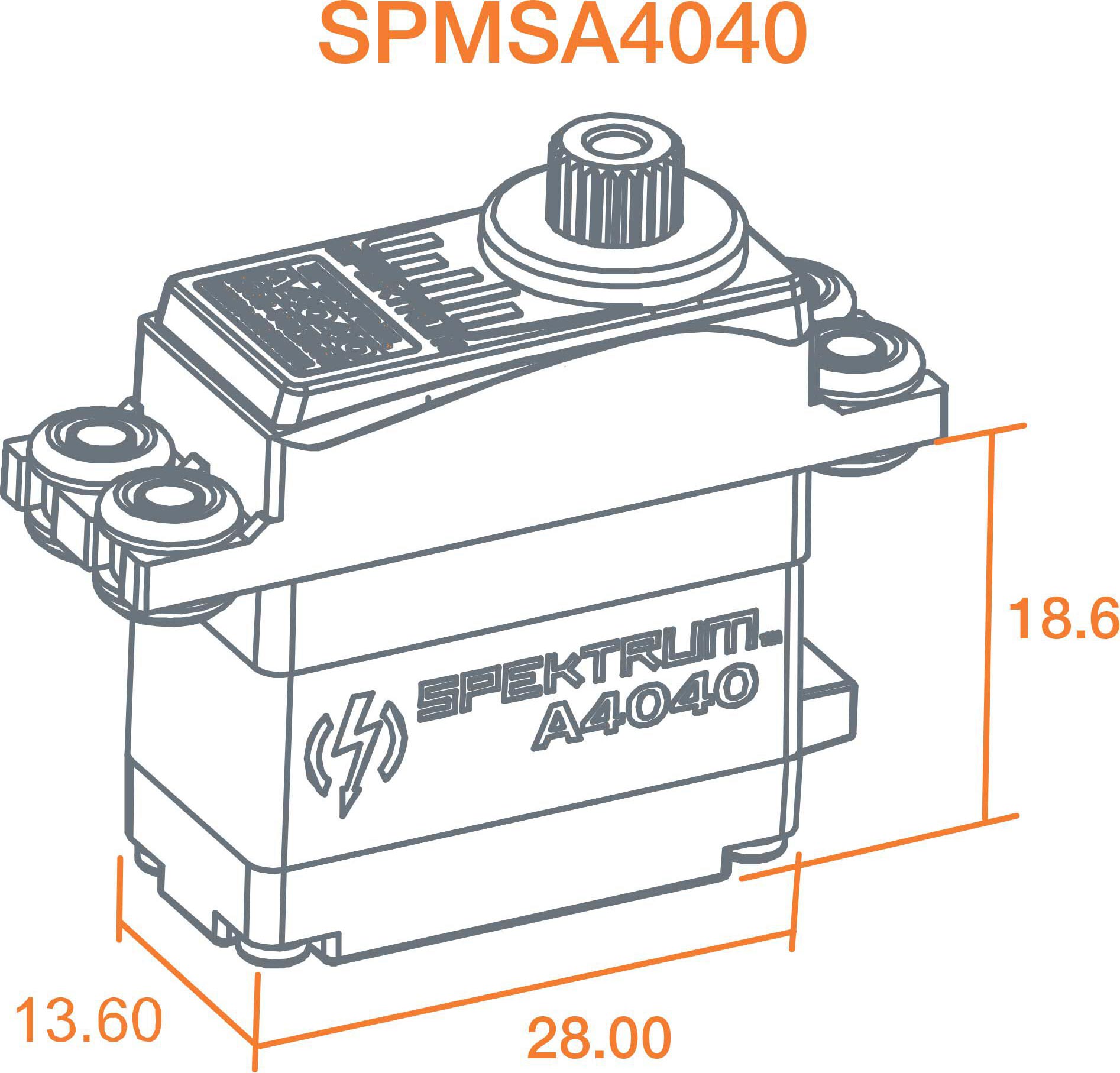

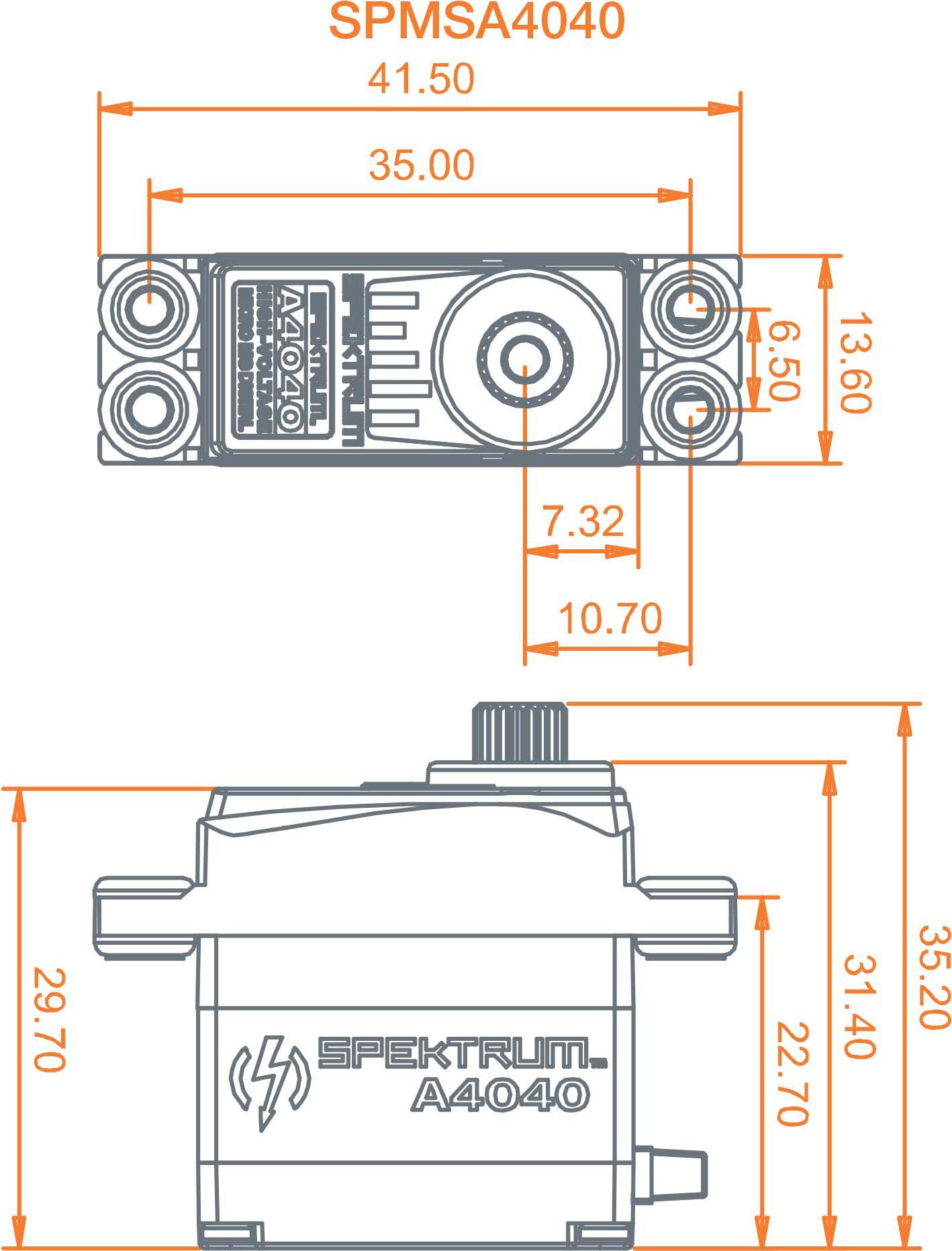

SPECIFICATIONS
23 Tooth
Output Spline:
28 mm
Length:
14 mm
Width:
31 mm
Height:
26 g
Weight:
Brushed
Motor Type:
4.8 - 8.4 v
Voltage Range:
6.05 kg-cm (84 oz-in)
Torque @ 6.0V:
0.16 sec/60°
Speed @ 6.0V:
6.55 kg-cm (91 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
7 kg-cm (96 oz-in)
Torque @ 8.4V:
0.10 sec/60°
Speed @ 8.4V:

FEATURES
  • High Voltage (HV) capable (4.8-8.4v input range)
  • Micro size is perfectly suited for parkflyer and sport size model aircraft
  • Class leading performance (7.0kg-cm and .094 sec/60° @8.4v)
  • Aluminum servo case helps keep operating temperatures low
  • Low wear and tightly meshed all metal gear train
  • Bearing supported drive train helps maximize smooth operation
  • Over Current and Temperature protection
  • Operating Frequency: 200hz to 333hz

The Spektrum A4040 digital micro, metal gear servo offers extraordinary performance for park flyer size (15-25 size) and specialty aircraft applications. High voltage capable, the A4040 can produce 7.0kg-cm (96 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A4040 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A4040 delivers reliability, consistency and performance that are second to none.

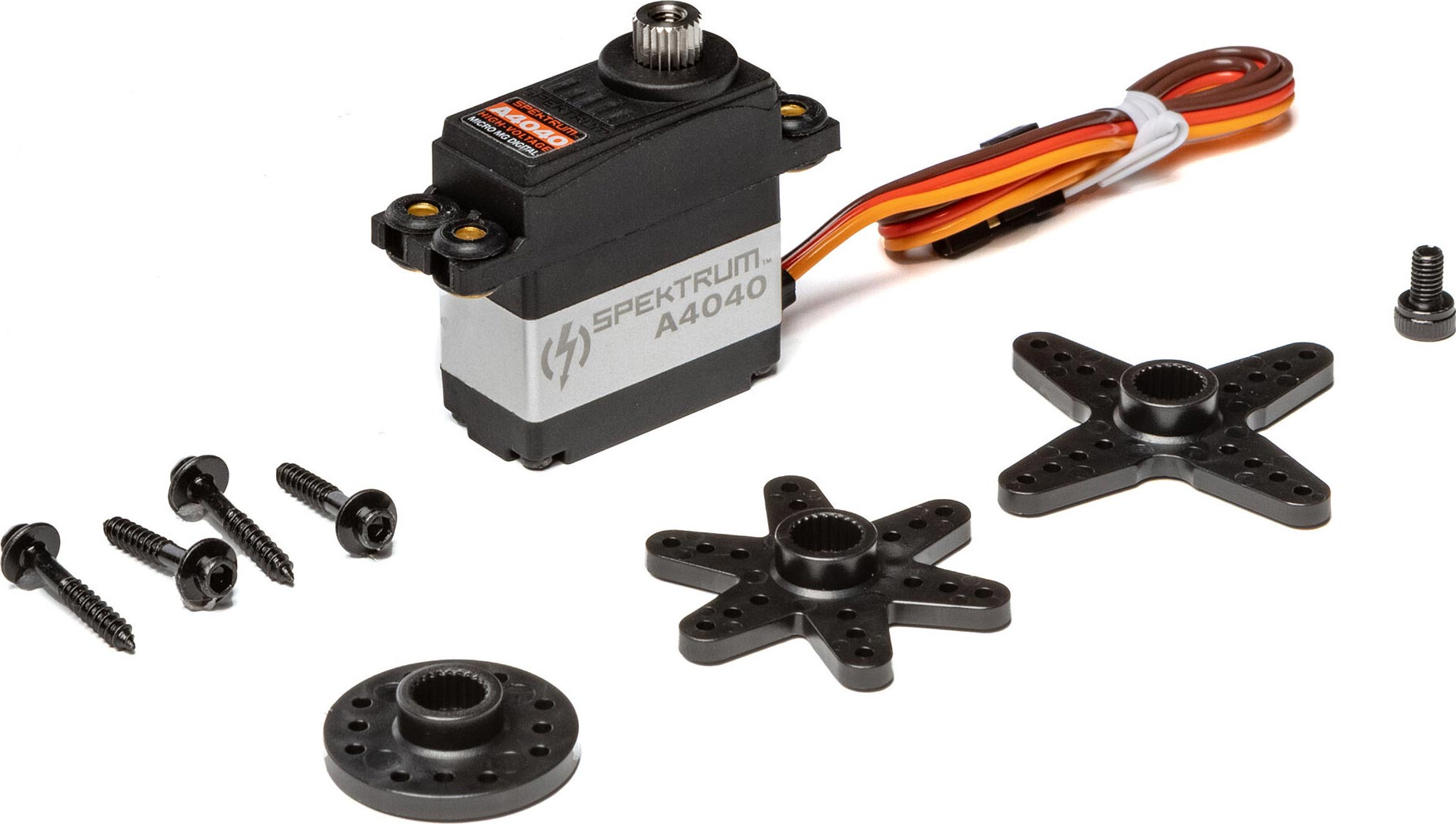

In The Box

(1) A4040 Micro Digital Servo
(4) Pre-installed Mounting Grommets and Eyelets With Hardware
(3) Plastic Servo Arms and (1) Screw

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
605482153796 0605482153796
SPMSA4040
