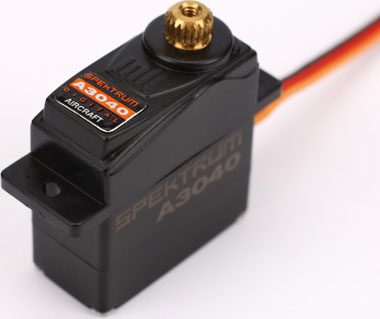

Sub-Micro Dig Hi-Trq MG Servo
|
click to enlarge
|
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Metal
Geartrain:
Cored
Motor Type:
4.8 or 6.0 V
Voltage Range:
1.7 kg-in (23 oz-in)
Torque @ 4.8V:
.12 sec/60°
Speed @ 4.8V:
2 kg-cm (28 oz-in)
Torque @ 6.0V:
.10 sec/60°
Speed @ 6.0V:
Minis and Micros
Size Class:
Digital
Type:
Slow and park flyer aircraft
Application:
Z Type
Connector Type:
Single Bearing
Bearing/Bushing:
23.6 mm
Length:
11.5 mm
Width:
25.5 mm
Height:
12.6 g
Weight:
FEATURES
- High speed
- Low deadband
- Digital precision
- Metal gears
This 0.10-second transit time (at 6 volts), 28 oz-in of torque, metal gear servo is an ideal combination of weight, speed and holding power for slow and park flyer aircraft. Ball bearing support around the output shank helps keep the servo precise for many flights to come.
Choose the A3040 servo for electric aircraft and sailplanes where the robust nature of metal gears is desired. The low deadband technology means that you’ll enjoy reliable accuracy and precision.
