Overview

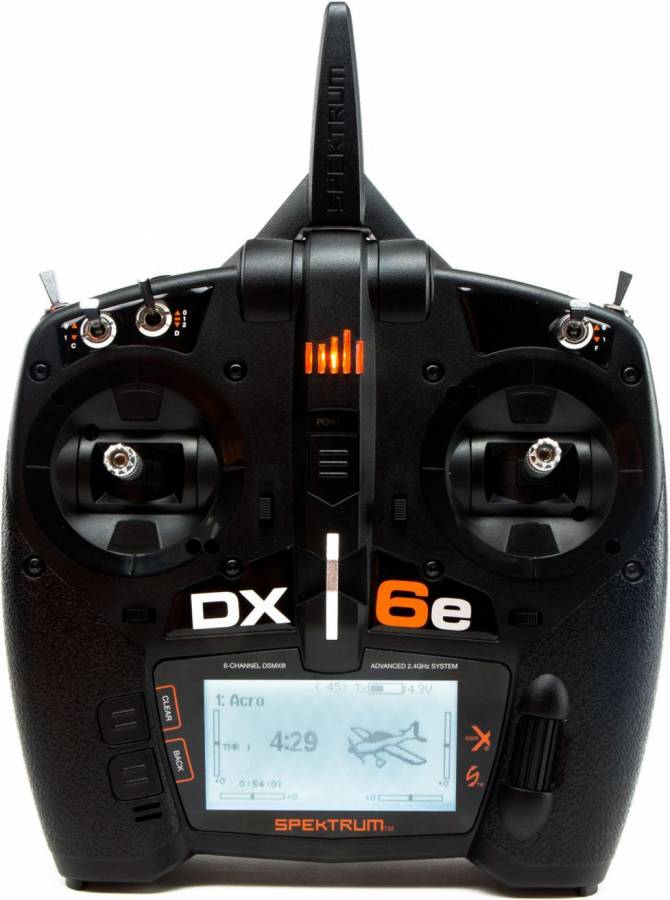

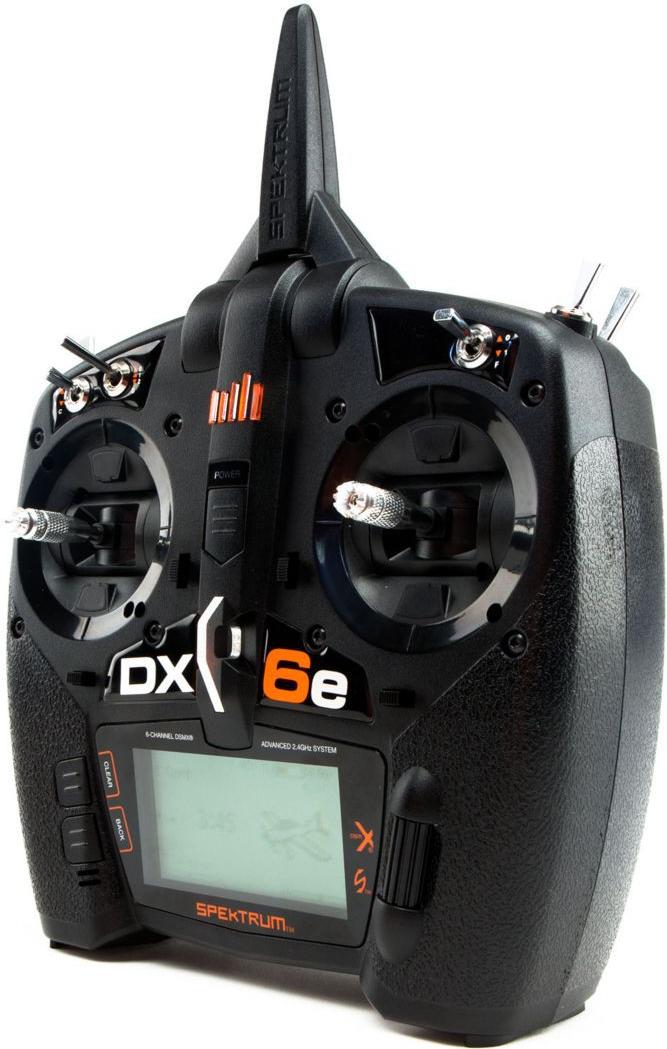

Being on a budget doesn't have to mean you have to settle for less than the best. The Spektrum DX6e gives you the unbeatable response of DSMX technology, the simplicity of Spektrum AirWare programming software and many other features you can't find on other "budget" radios.
Airplane, Helicopter, Sailplane and Multirotor Programming
The DX6e comes equipped with the programming you need to fly almost anything. And because it's based on the same Spektrum AirWare software used in most other Spektrum transmitters, you can share model setups with just about any Spektrum user you meet.
AIRPLANE PROGRAMMING
7 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 2 Aileron 1 flap, Elevon A, Elevon B
6 Tail Types: Normal, V-Tail A, V-tail B, Dual Elevator, Dual Rudder, Dual Rudder/Elevator
Flap System with Elevator Compensation
3 Flight Modes
Dual Rates and Expo
7-Point Throttle Curve
3 Preset Mixes: Rudder-to-Aileron/Elevon, Aileron-to-Rudder, Elevator-to-Rudder
4 Programmable Mixes – Normal or Curve
HELICOPTER PROGRAMMING
Gyro
7-Point Throttle Curve
7-Point Pitch Curve
7-Point Tail Curve
2 Swash Plate Types: Normal, 3-Servo 120˚
3 Flight Modes + Throttle Hold
Dual Rates and Expo
Cyclic-to-Throttle and Swashplate Timing Mixes
4 Programmable Mixes – Normal or Curve
SAILPLANE PROGRAMMING
4 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap
3 Tail Types: Normal, V-Tail A, V-Tail B
Camber System
Camber Preset
5 Flight Modes
Dual Rates and Expo
Dual Rates and Expo
4 Preset Mixes: Aileron-to-Rudder, Aileron-to-Flap, Elevator-to-Flap, Flap-to-Elevator
4 Programmable Mixes – Normal or Curve
MULTIROTOR PROGRAMMING
Multirotor Channel Inputs – ALT (Altitude), ROL (Roll), PIT (Pitch), YAW
Multirotor Checklists and Warnings
Simplified Multirotor Flight Mode Setup and Switch Assignment
250-Model Memory

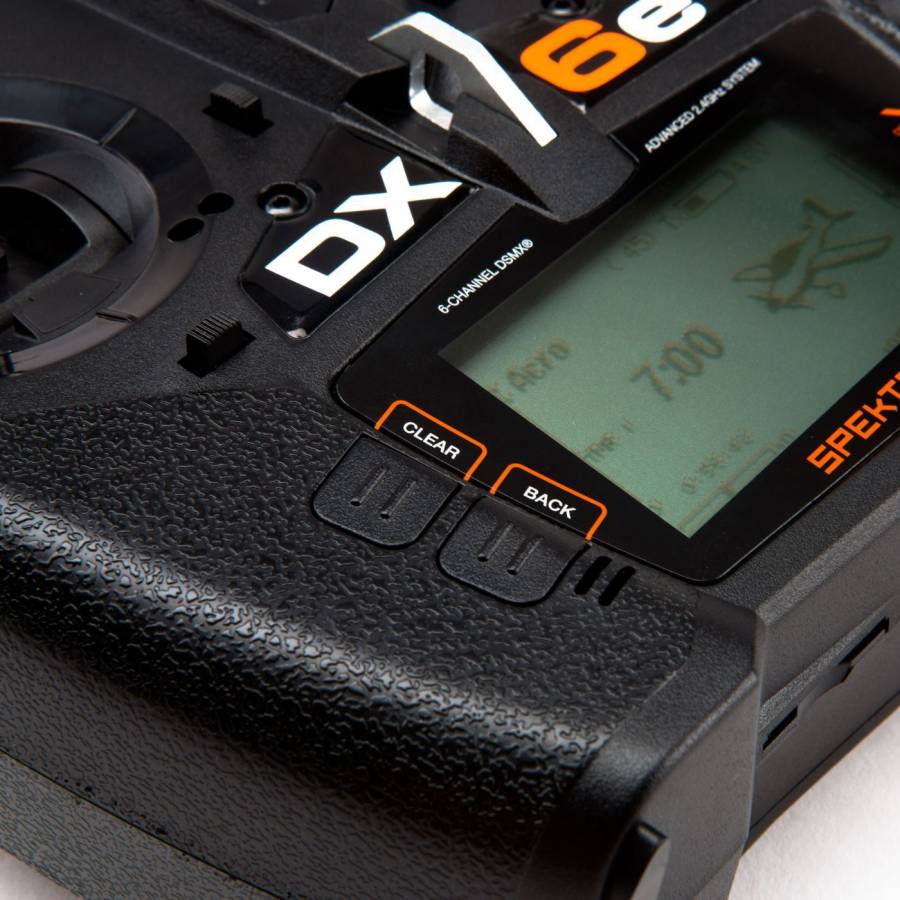

The enormous capacity of the DX6e's on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card. The model memory menu is easy to navigate too. Only memory slots with model settings saved to them will appear. You won't have to scroll through empty slots or move models around if one is deleted.
Built-In Telemetry
The built-in telemetry feature can give you real-time information on things like battery voltage, signal quality, motor temperature and more.* You can also program alerts that let you know when specific telemetry values reach or exceed limits you define.
* Requires telemetry sensors and a telemetry-enabled receiver.

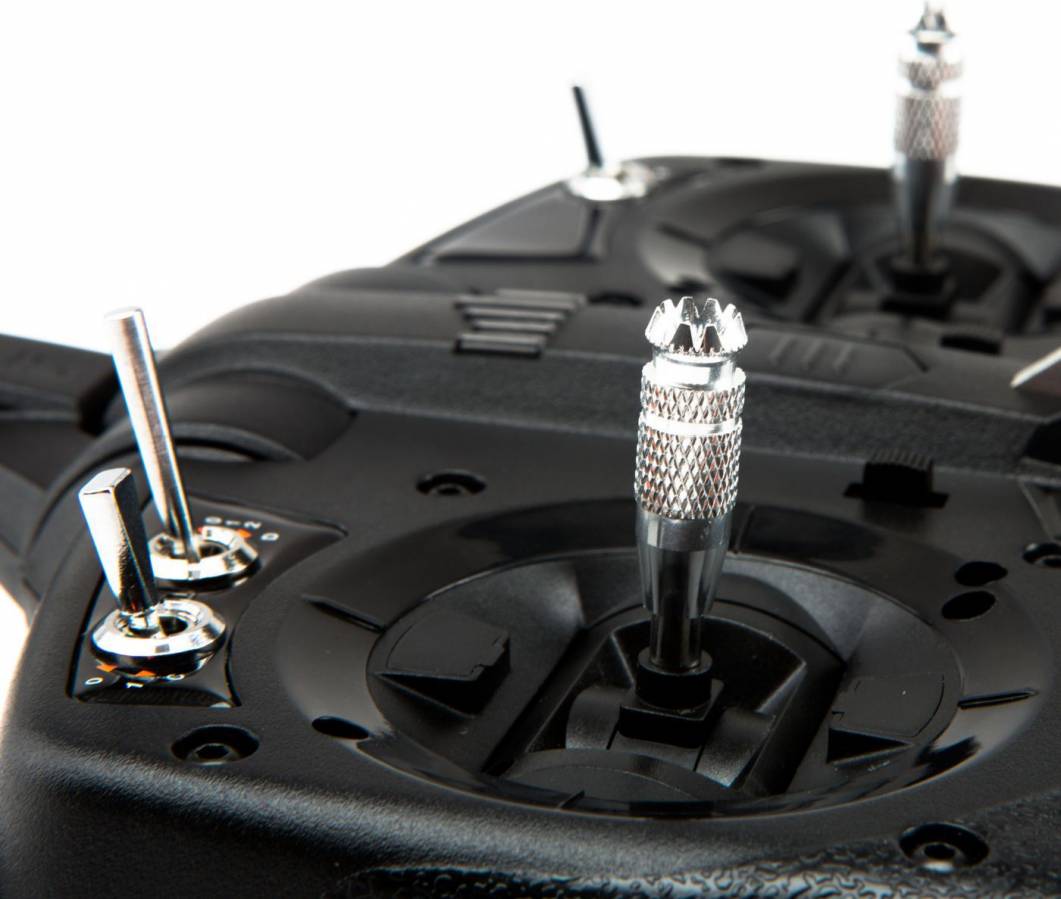

Patent-Pending Gimbal Design with Spring Configuration Switch

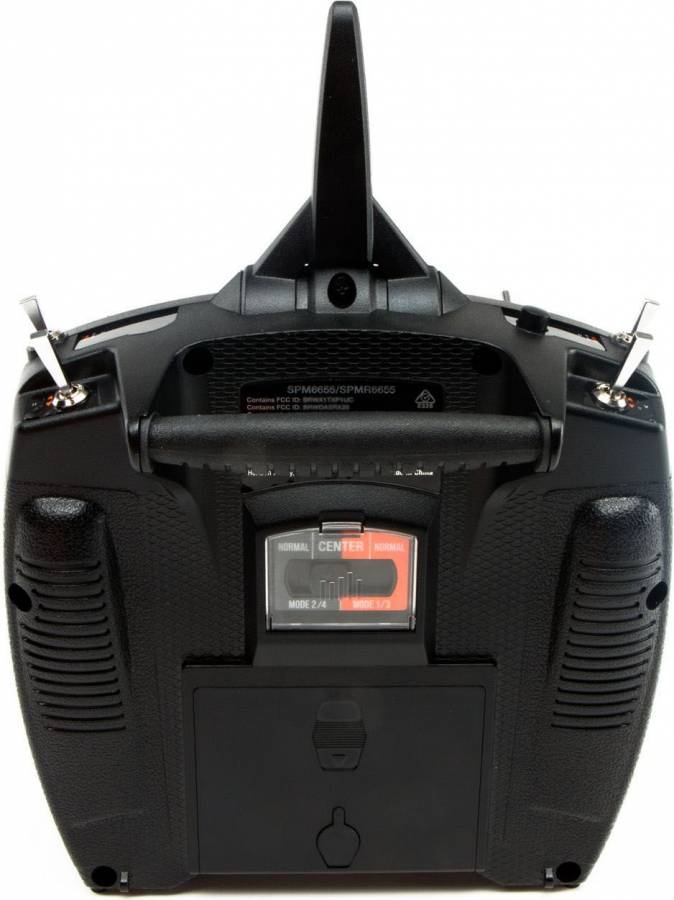

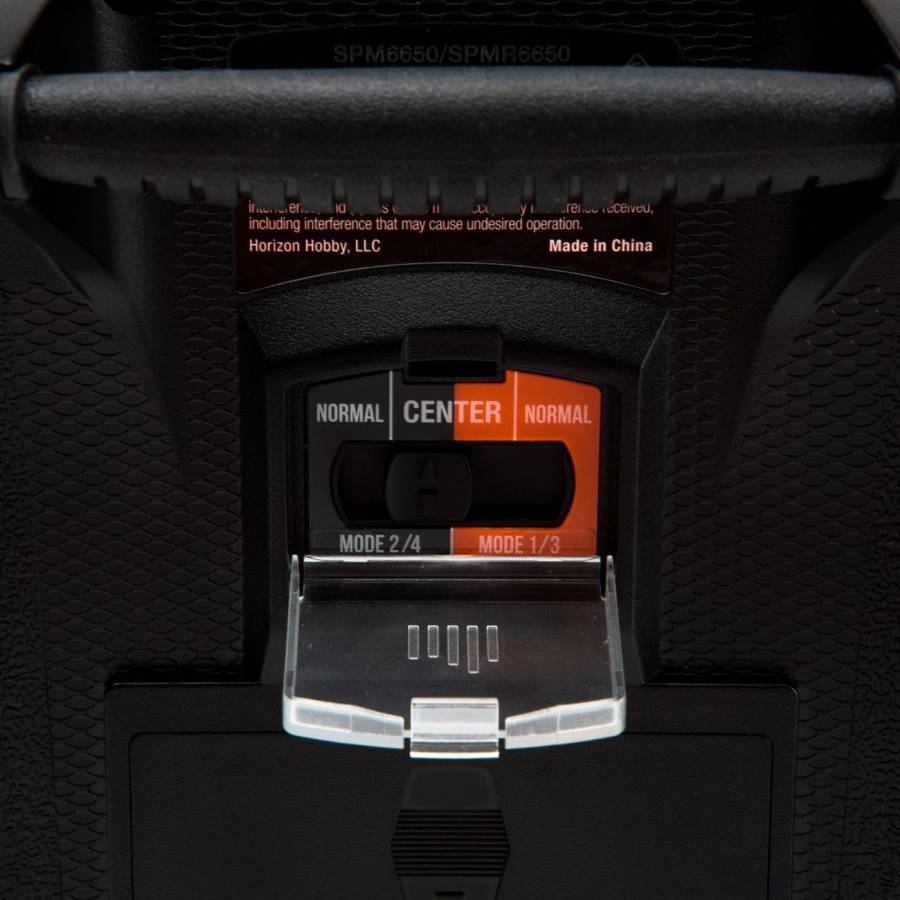

The DX6e's patent-pending gimbal design lets you change gimbal spring configurations simply by moving a slider switch on the back of the transmitter. No tools are required. Just select the spring configuration that matches the mode you are using and model type you are flying. That's it.
There are four spring configurations to choose from:
Normal Throttle for Modes 2 and 4 (Air, Heli and Sailplane Model Types)
Spring-Centered Throttle for Modes 2 and 4 (Multirotor Model Type)
Spring-Centered Throttle for Modes 1 and 3 (Multirotor Model Type)
Normal Throttle for Modes 1 and 3 (Air, Heli and Sailplane Model Types)
The slider switch is protected by a hinged cover that prevents you from accidentally changing spring configurations in flight.
Wireless Trainer Link
The wireless trainer link gives instructors the option to wirelessly ''buddy box'' with another DSMX/DSM2 transmitter. Once bound to another transmitter, ModelMatch technology will allow the DX6e to re-link without having to go through the bind process again.
In The Box:
- (1) DX6e 6-Channel DSMX Transmitter
- (4) AA Batteries
- (1) Product Manual
Needed to Complete:
- (1) Compatible Spektrum™ DSMX/DSM2 receiver
