SPMR20110C

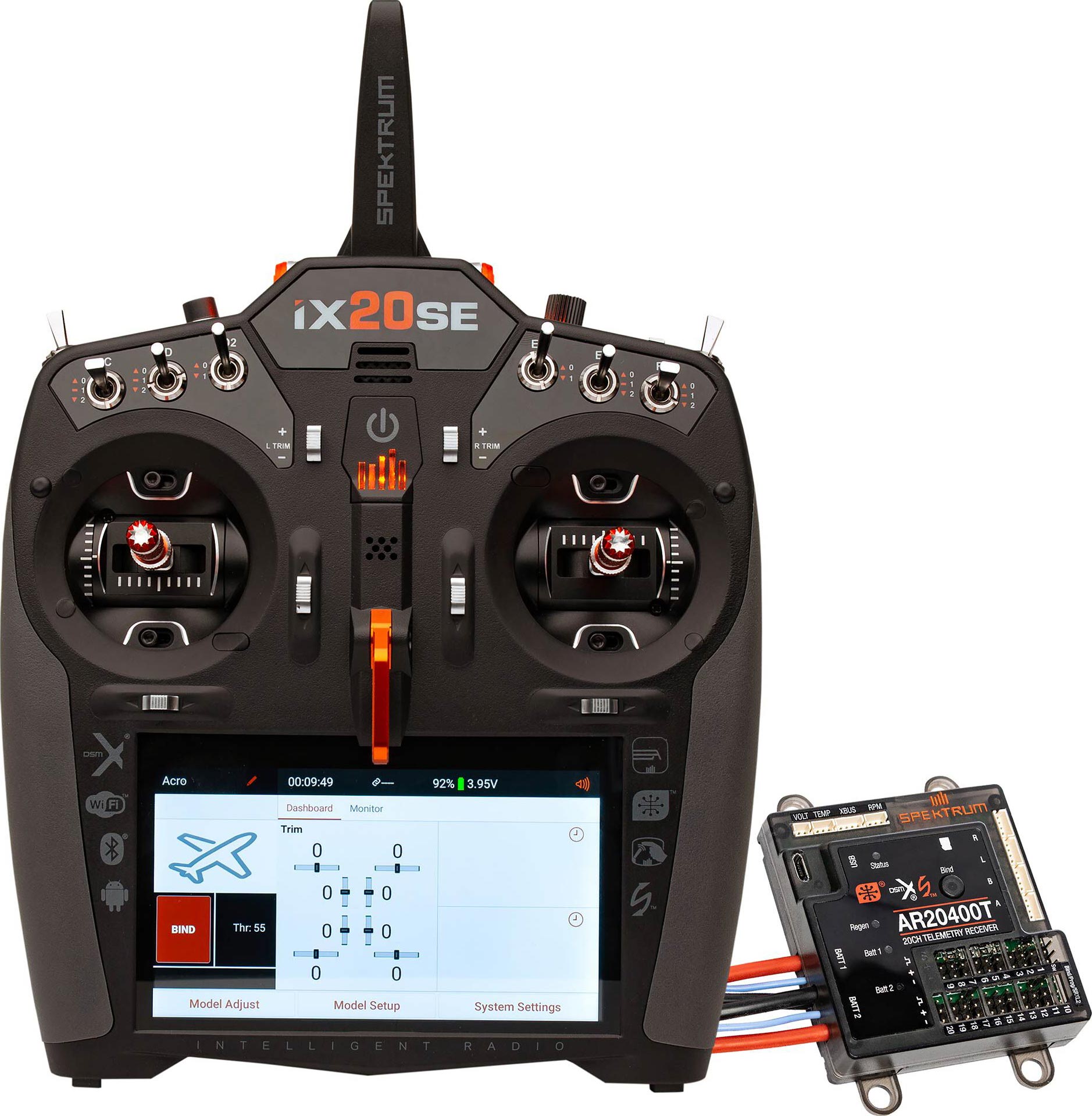

iX20SE Transmitter Combo w/AR20400T Powersafe Receiver

Product Info
SPEKTRUM

SPMR20110C
iX20SE Transmitter Combo w/AR20400T Powersafe Receiver
By SPEKTRUM
$3,049.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... 9-Ch & Up Spread Spectrum Aircraft Radio Systems
But only from... SPEKTRUM
All items from... SPEKTRUM


 Inventory Status Legend
StockStock availability for on-line ordering
0
$3,049.99
Warehouse ?
StockStock availability for pick up
0
$3,049.99
Warehouse ?
0
$3,049.99
Store - Stratford ?
0
$3,049.99
Store - Edmonton ?
0
$3,049.99
Store - Mississauga ?
0
$3,049.99
Store - Ottawa ?
0
$3,049.99
Store - Oshawa ?
0
$3,049.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
20 Channels
Channels:
DSMX
Modulation:
2.4 GHz
Band:
250
Model Memory:
Lithium Ion, 3.7V 1S 10,500mAh with XH-1S connector
Transmitter Battery Included:

FEATURES

The most powerful, intelligent, and feature-packed Spektrum transmitter to date, the 20-channel iX20 has given accomplished pilots the tools they need to fly today's most advanced, high-performance aircraft. This Special Edition version includes all of the original's programming and connectivity innovations and adds exclusive upgrades, making the iX20 SE a uniquely pro-class flying experience.

The Spektrum AR20400T PowerSafe receiver is a feature-packed 20 channel receiver with integrated full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current such as those found on giant-scale airplanes and jet models.

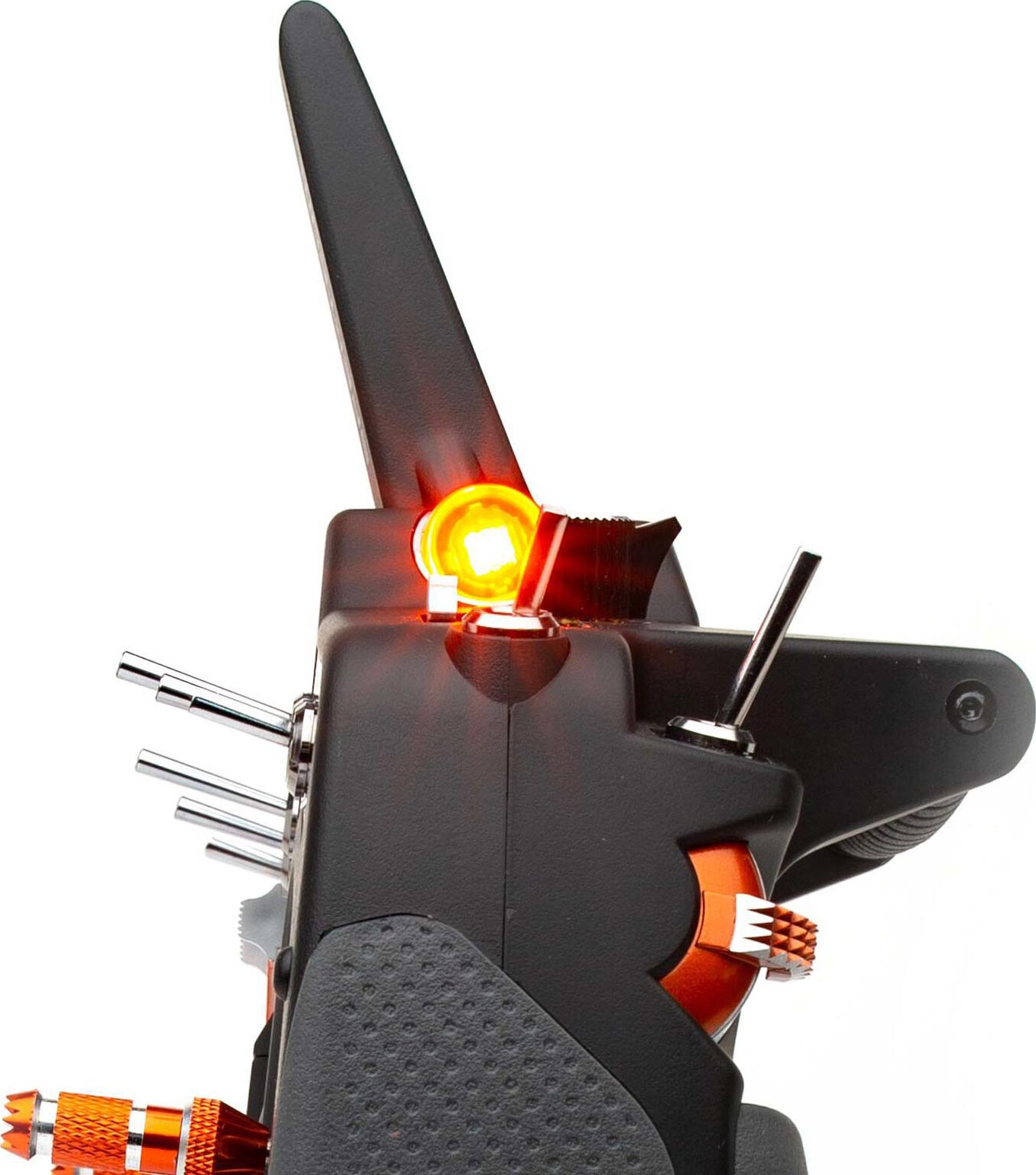

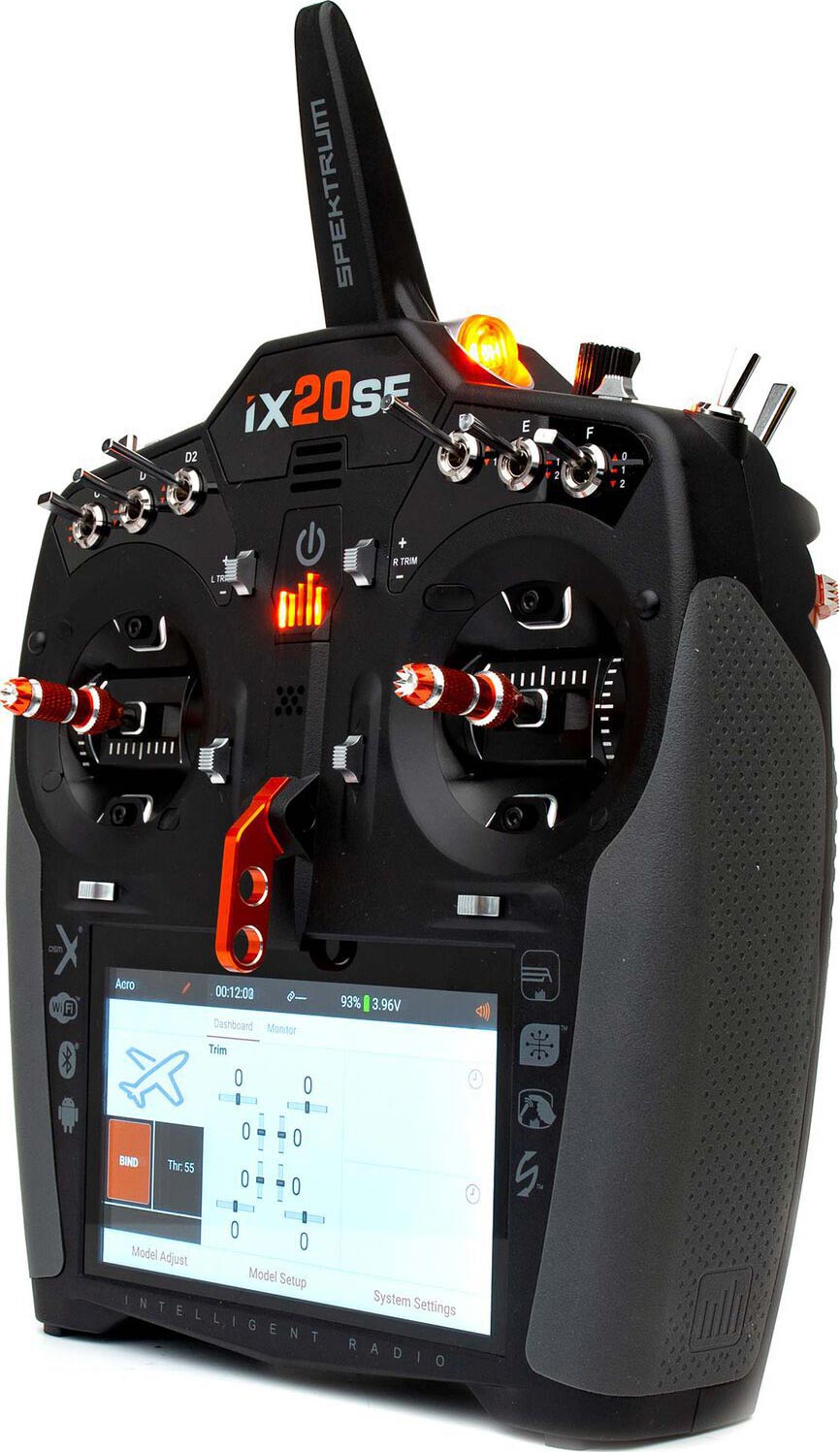

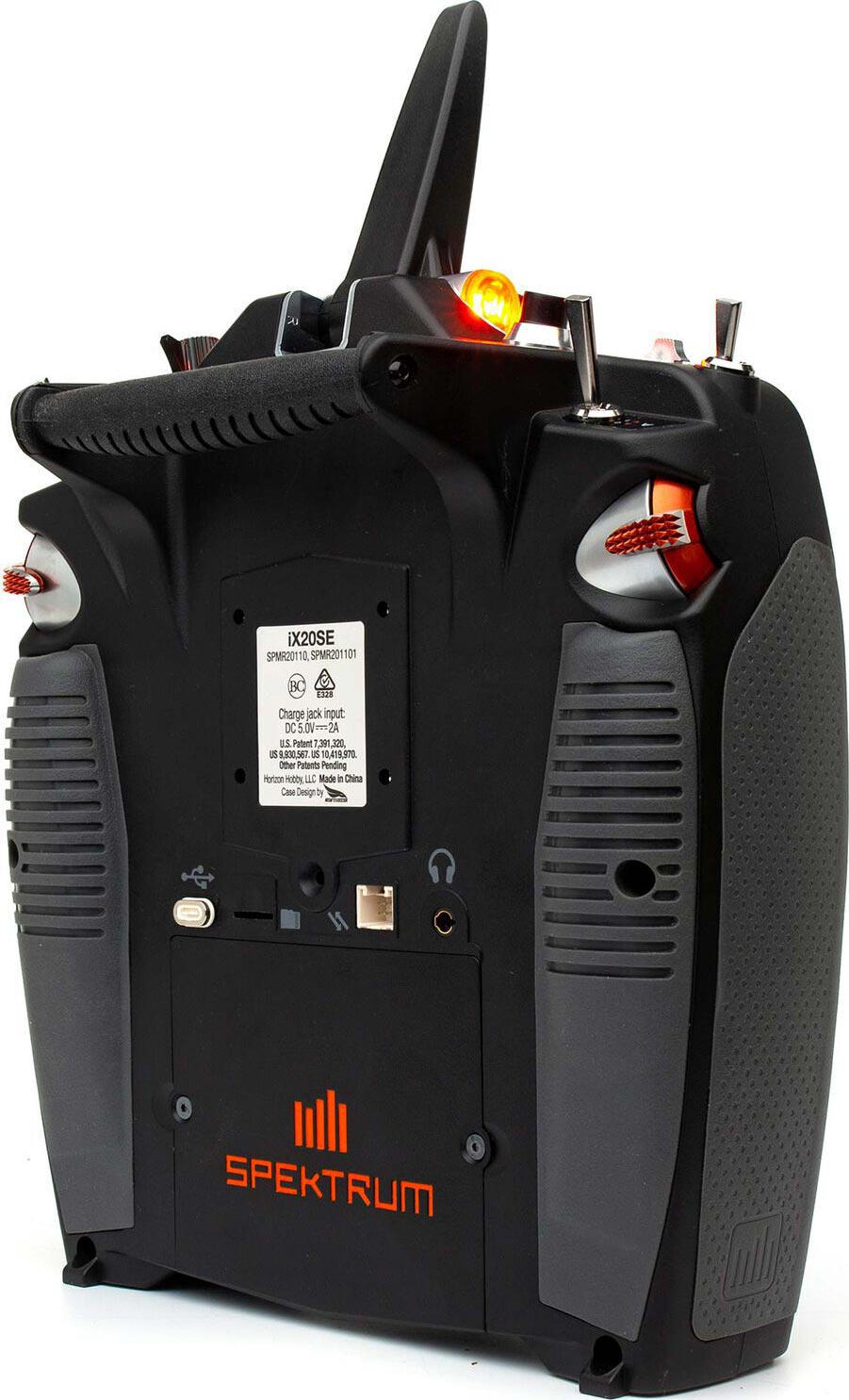

iX20SE Special Edition 20-Channel DSMX Transmitter Features

Hall-effect sensor quad-bearing gimbals made of premium machined aluminum
Special Edition dual transmitter case
High-quality, lanyard style neck strap
20 fully proportional channels
720p HD high-resolution color, 5-inch Android touchscreen interface
Superb ergonomics by Mirco Pecorari and AircraftStudioDesign
Text-to-speech voice alerts—type it and iX20 will say it
Intuitive Spektrum AirWare Touch programming app
Bluetooth connectivity with compatible devices
Smart Telemetry compatibility, including Smart battery and Smart ESC support with multiple screens and warnings
Integrated Wi-Fi connectivity for internet access
Camera included for taking model images or photos/videos
Easy access to updates, apps and online content

Capacitive-touch (on/off) switching technology
On-the-Fly trim capability lets you fine tune special mixes in flight
Accepts G2 AirWare firmware model setups
Dual 2.4GHz antennas deliver industry-leading diversity and reliability
Compatible with long-range Crossfire technology and the CRSF protocol
High-capacity 10,500mAh Li-Ion battery pack
11ms frame rate with compatible receivers
Voice alerts over speaker, headphones or Bluetooth
Convenient Micro-USB charging and connectivity
250-model internal memory, plus SD card storage support
Built-In telemetry support
Wireless trainer link
Optional orange side and rear grips included

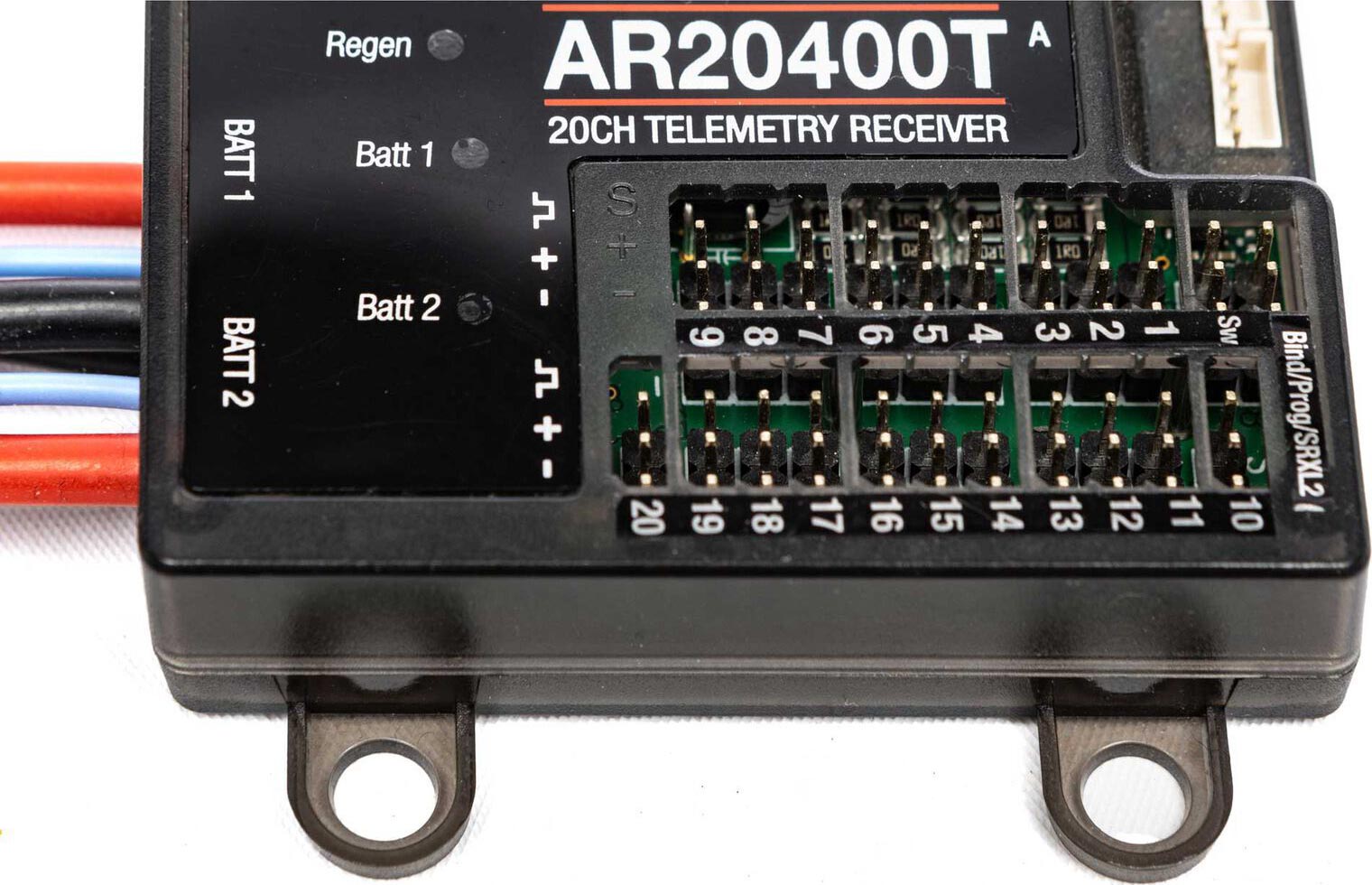

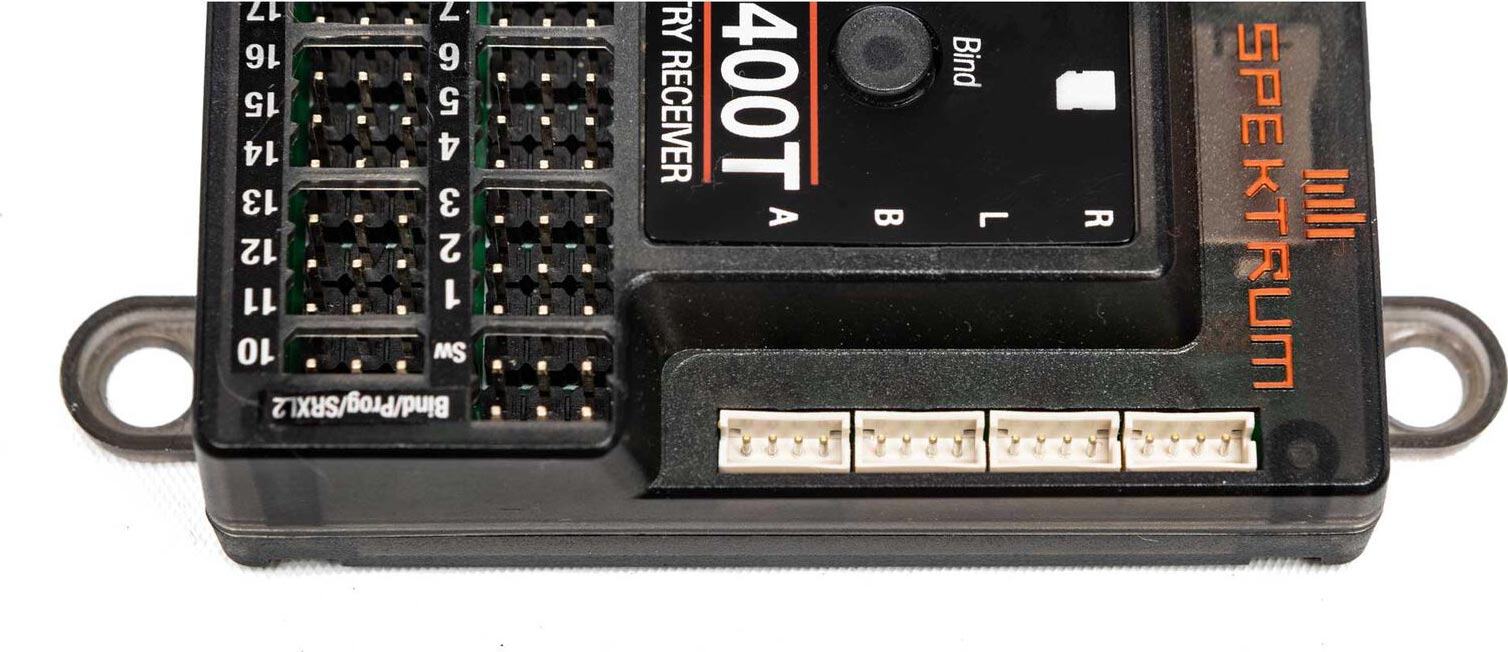

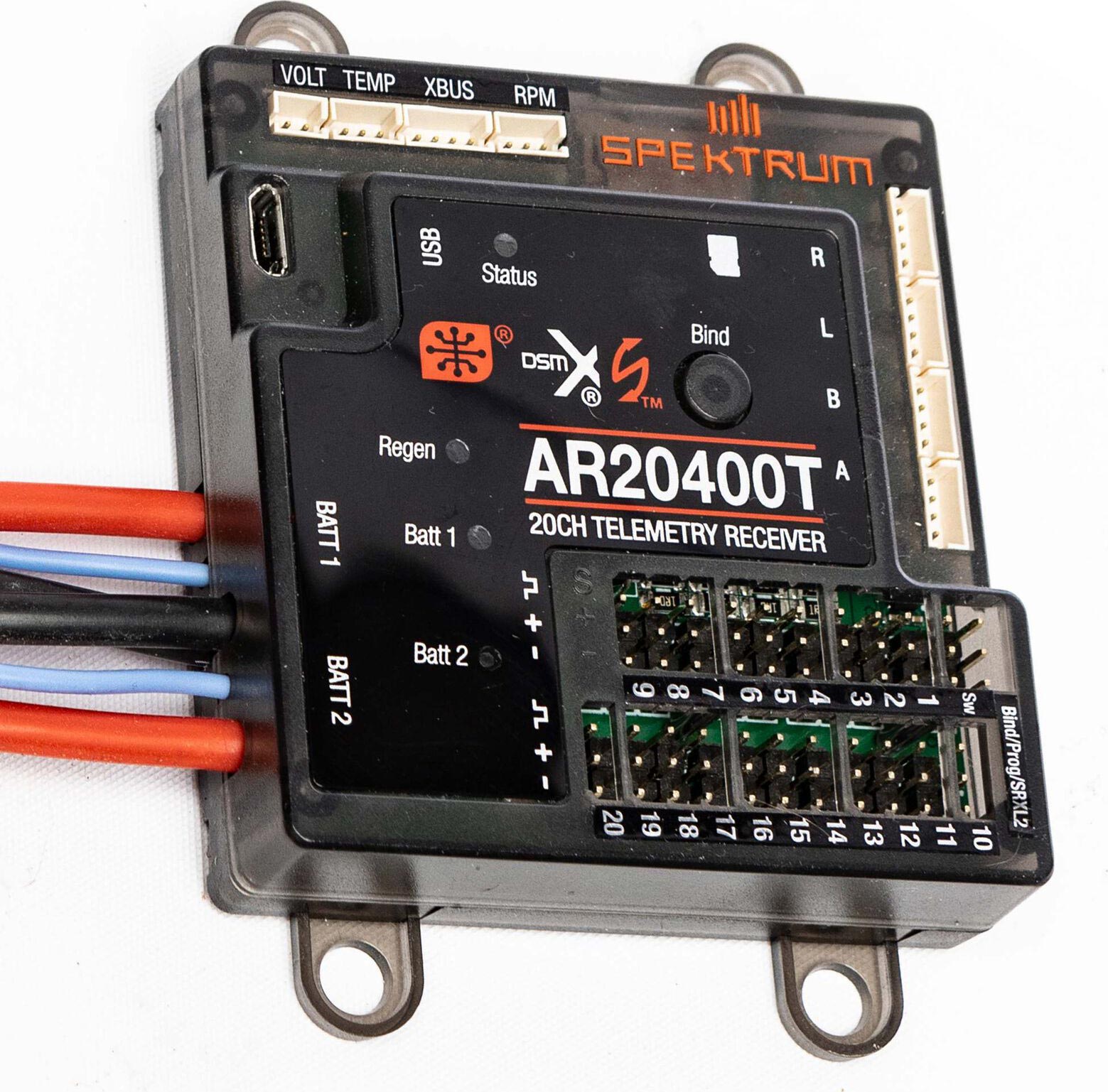

AR20400T 20-Channel PowerSafe Telemetry Receiver Features

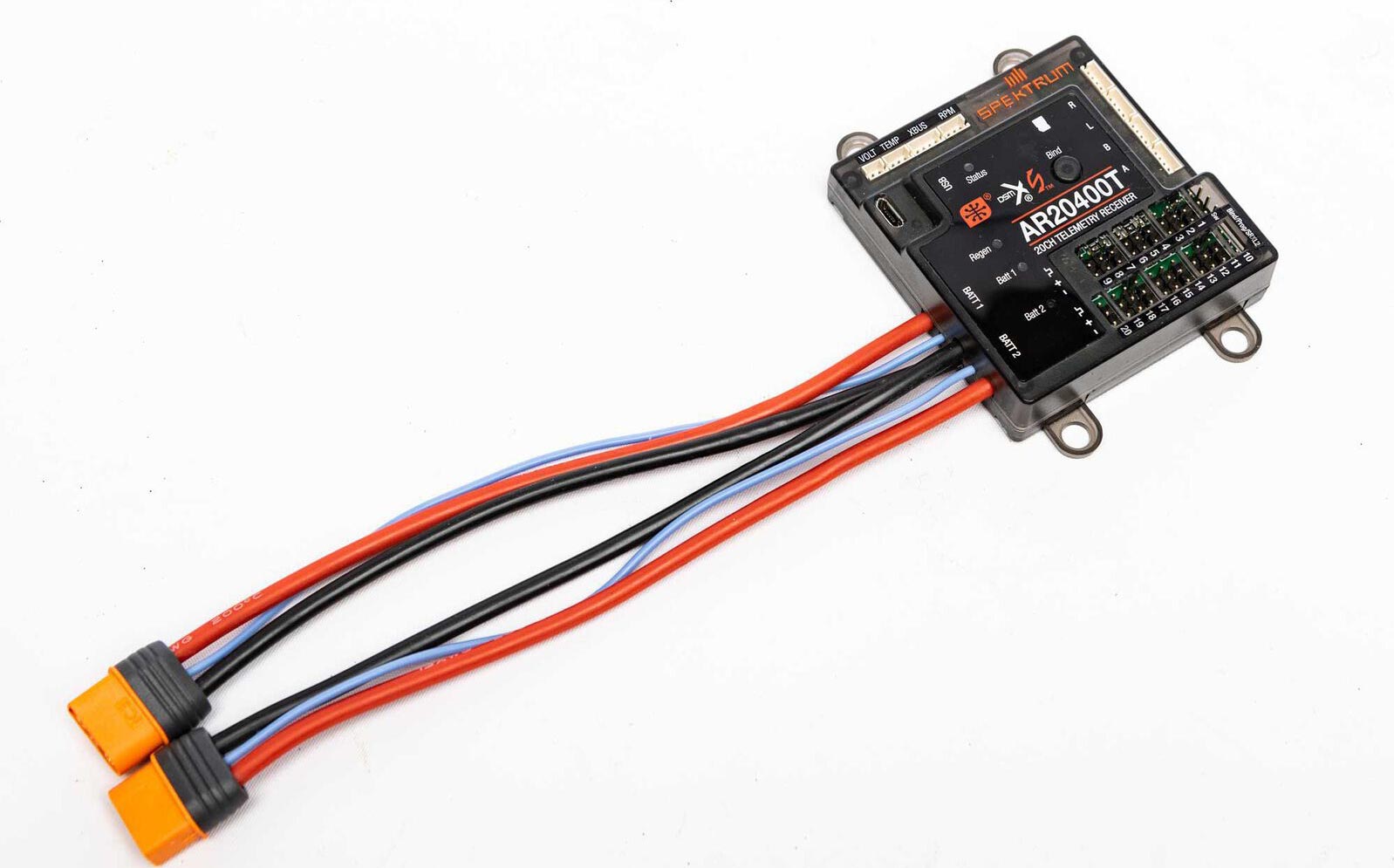

Patented PowerSafe redundancy system with dual battery input ports with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
Micro USB port for easy product registration and firmware updates
12V capable for use with 12 volt servo applications (must be activated via Forward Programming)
Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed

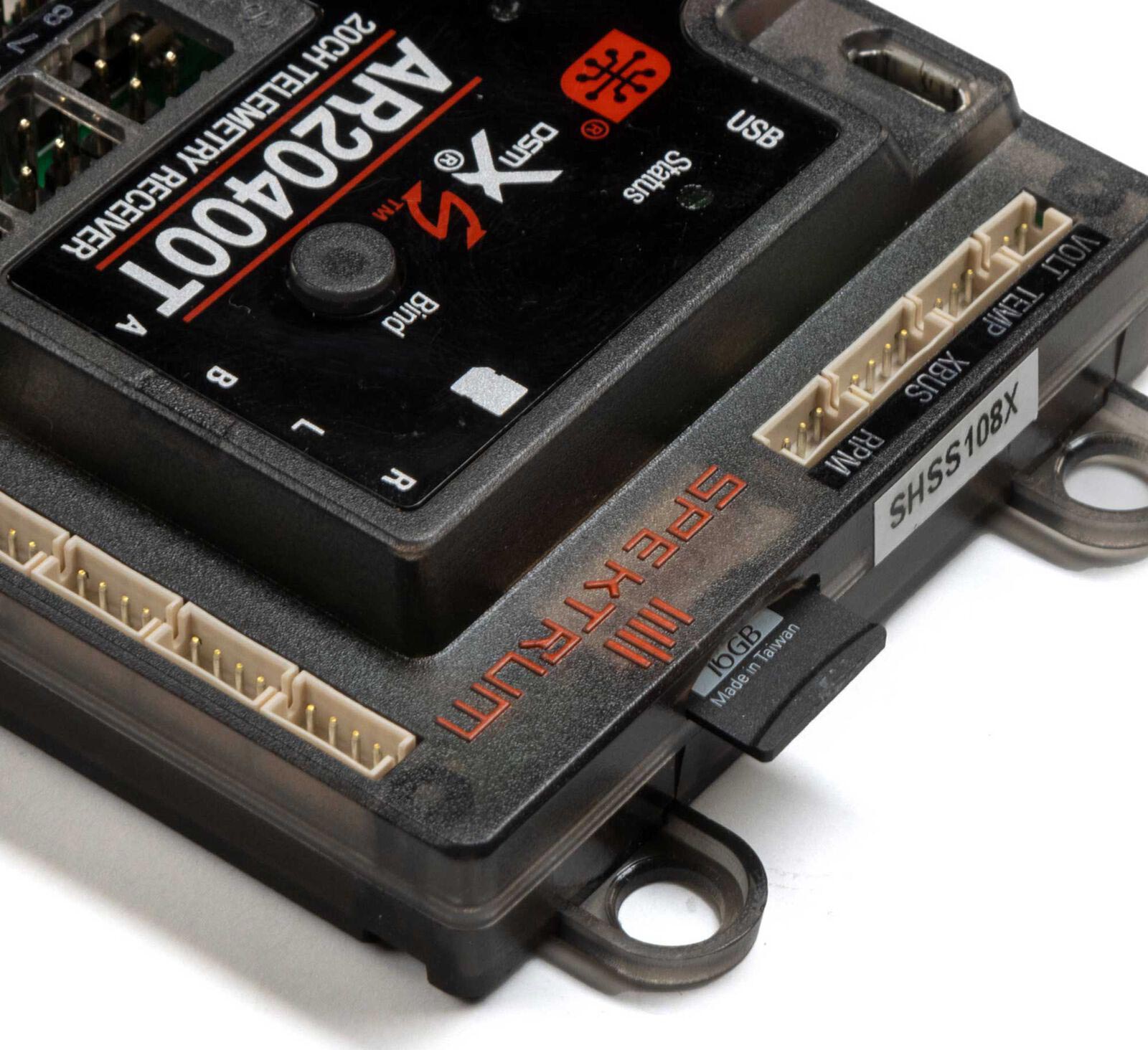

Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
Integrated status LED provides helpful information during start up, warnings and mode indicators
SRXL2 connectivity for easy, one wire connection to supported devices
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires

Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted.
Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
Capable of high-speed 11ms frame rates
Binding is easier than ever with four options to initiate the bind process
Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
Compatible with all Spektrum DSM2 and DSMX transmitters

Please Note:
Not compatible with Spektrum AS3000 Stabilization Module
Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)

In The Box

(1) iX20SE Special Edition 20-Channel DSMX Transmitter (SPMR20110)
(1) AR20400T 20-Channel Powersafe Telemetry Receiver (SPMAR20400T)
