For intermediate to advanced level pilots who fly high performance aircraft, the Spektrum NX10 10-channel DSMX transmitter has provided the best opportunity to enjoy truly innovative radio control. The NX10 includes an incredible array of exclusive technologies and advanced connectivity features that are found in no other 10-channel transmitters. This Special Edition version adds new upgrades that make it a uniquely next-level flying experience.
The Spektrum AR10400T PowerSafe receiver is a feature-packed 10 channel receiver with integrated full-range telemetry. Spektrum PowerSafe receivers are designed for models using numerous servos and accessories that draw excess current such as those found on giant-scale airplanes and jet models. They feature a robust power bus designed to manage high-current loads, as well as dual battery input ports with IC3 connectors for use with larger battery packs. This makes it possible to support high-current systems straight through the receiver without the need for a separate power distribution system.

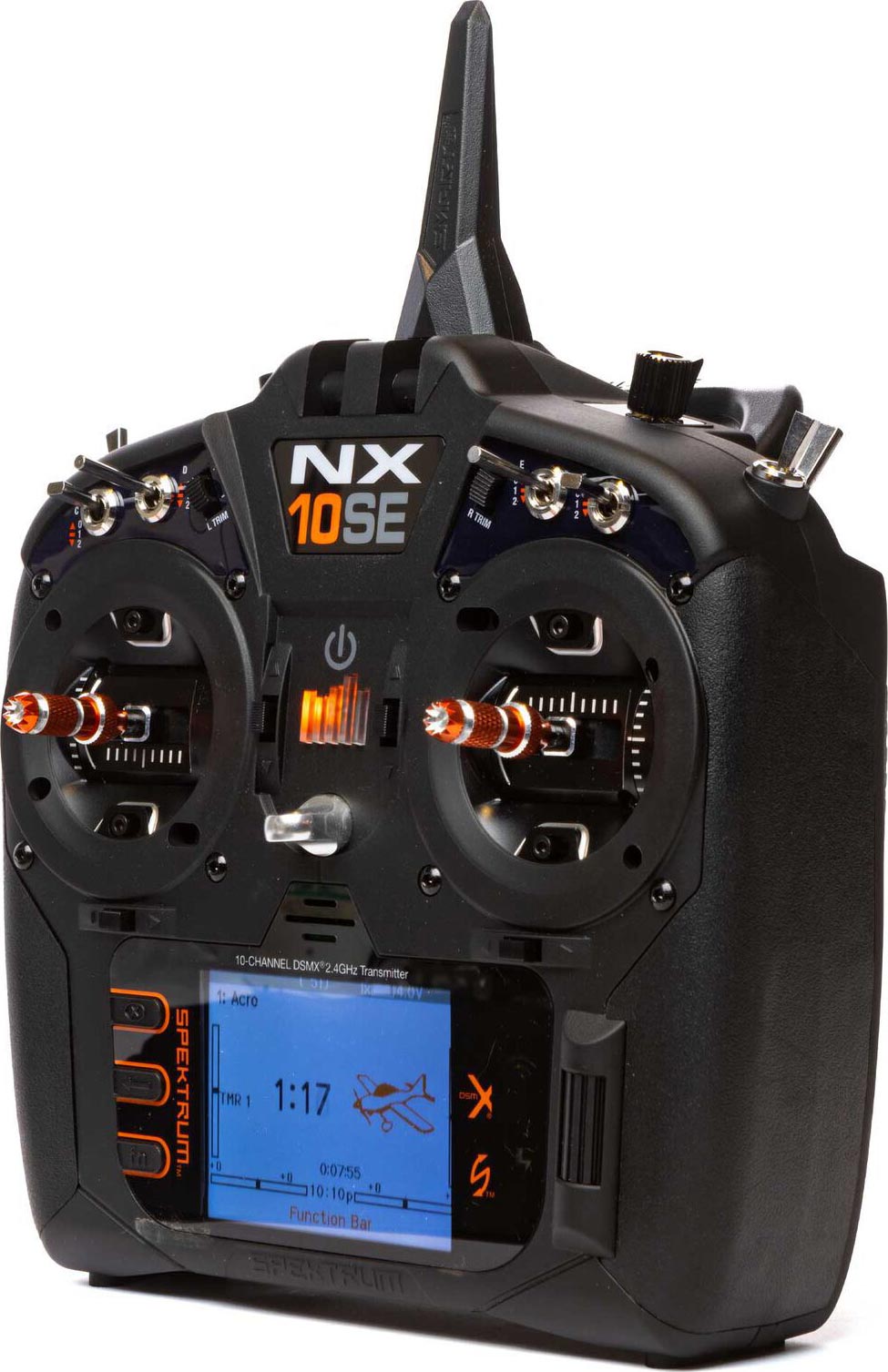

NX10SE 10-Channel DSMX Transmitter Features

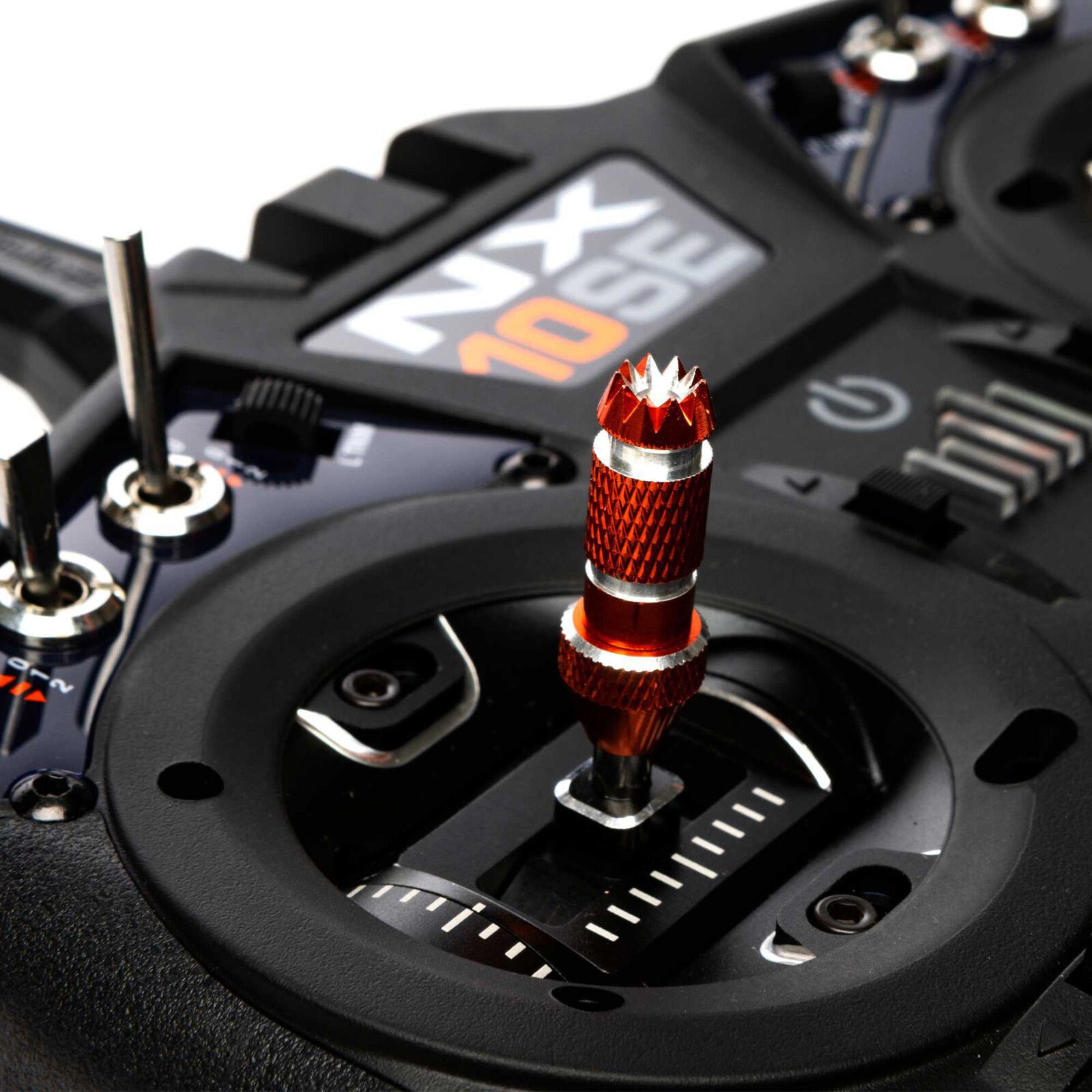

Machined aluminum gimbals with magnetic encoders for advanced precision, low maintenance, and exceptionally smooth operation
Optional orange switch nuts and orange grip set
Protective foam case with pockets for tools and accessories
Short, medium, and long stick ends for customization.
Backlit 3.2", 320x240 display screen with multiple color palette choices and user customizable colors
Wi-Fi connectivity for easy product registration and firmware updates
Superb ergonomics including smooth Hall-effect sensor gimbals
Exclusive Spektrum Airware programming software
Proven Spektrum DSMX 2.4GHz Frequency-agile technology
Smart Technology compatibility out of the box
3.7V 6000mAh 1S Lithium Ion transmitter battery and a magnetic USB Cable and Micro USB Adapter for convenient USB charging
Integrated serial port provides power and support for 3rd party modules
Airplane, sailplane, multi-rotor and helicopter programming
250 model memory
Model templates available for BNF aircraft

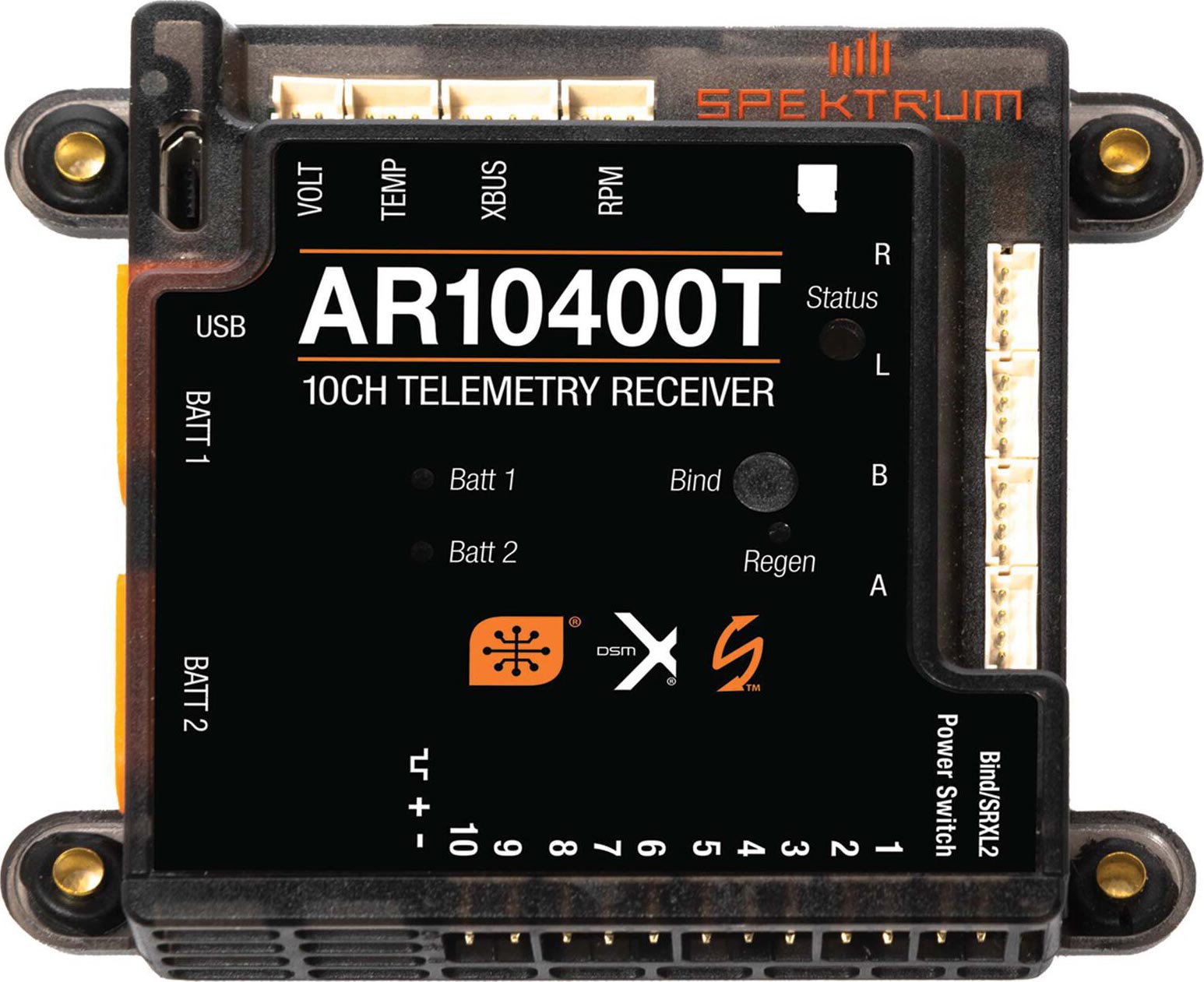

AR10400T 10-Channel PowerSafe Telemetry Receiver Features

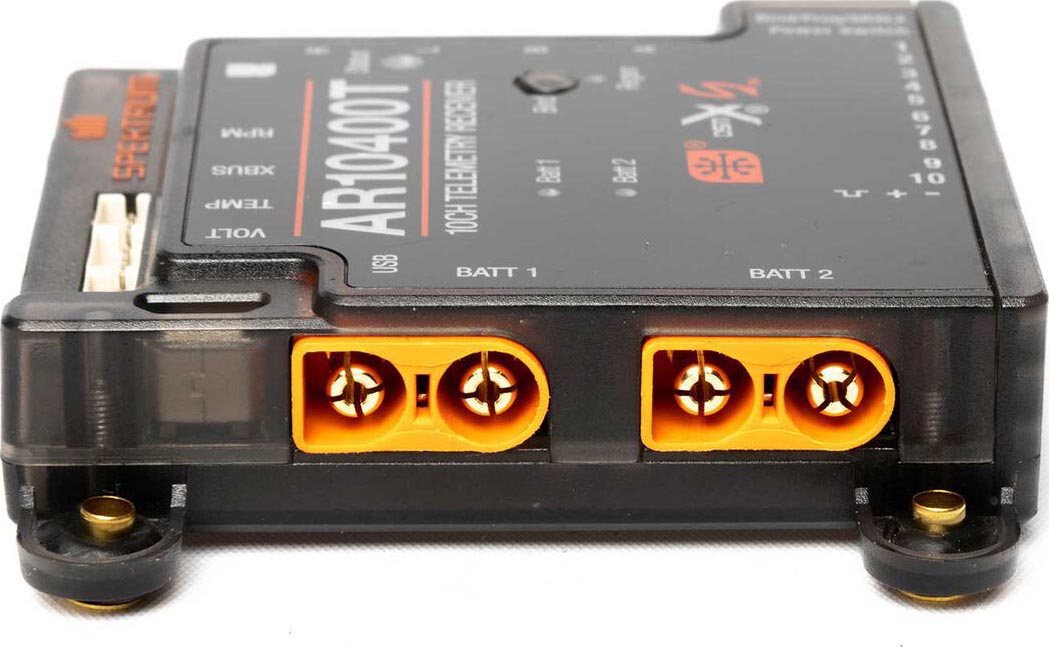

Patented PowerSafe redundancy system with dual battery input ports with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
Micro USB port for easy product registration and firmware updates
12V capable for use with 12 volt servo applications (must be activated via Forward Programming)
Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed

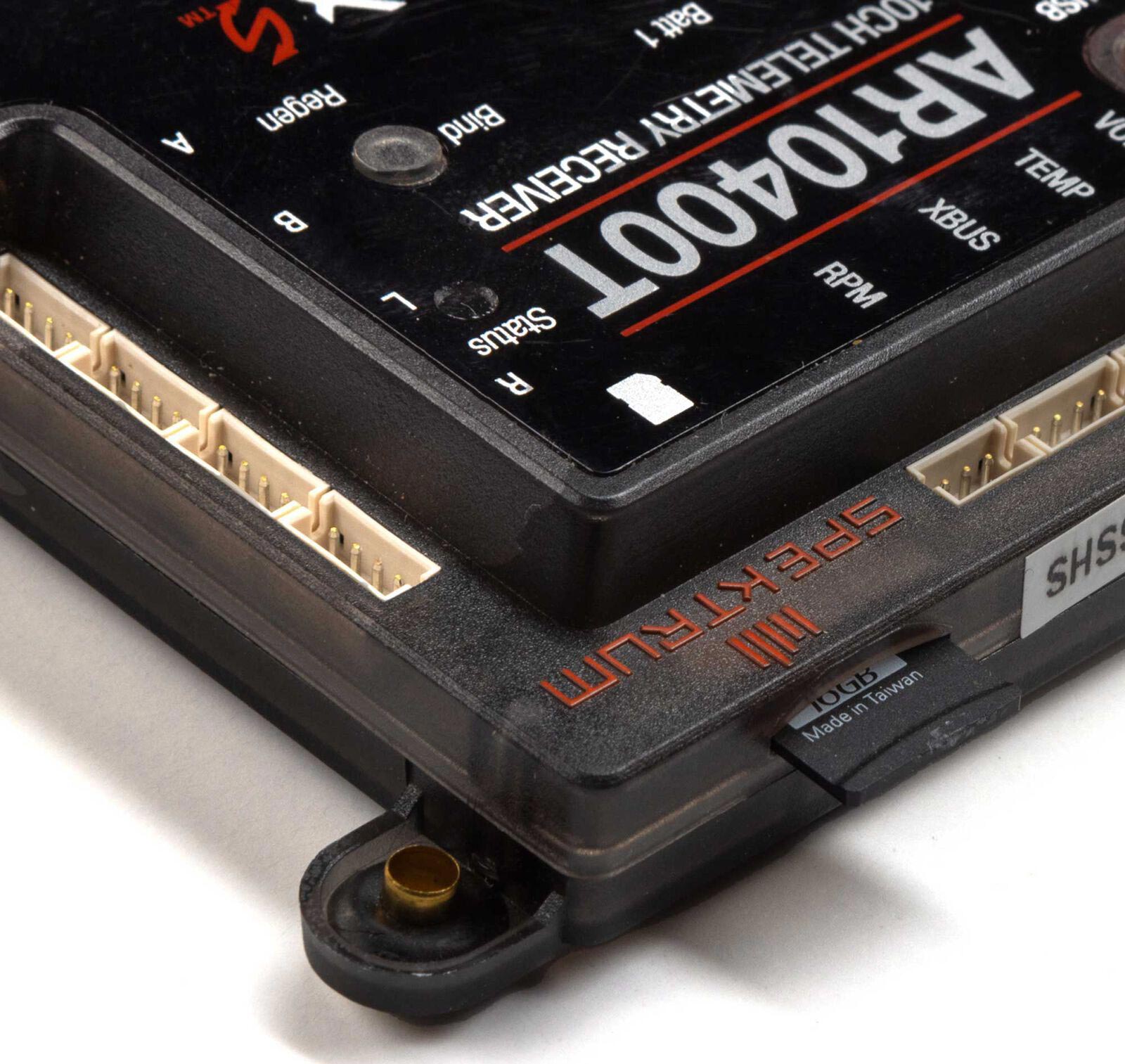

Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
Integrated status LED provides helpful information during start up, warnings and mode indicators
SRXL2 connectivity for easy, one wire connection to supported devices
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted.
Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
Capable of high-speed 11ms frame rates
Binding is easier than ever with four options to initiate the bind process
Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
Optional fourth SRXL2 remote receiver can be added for additional RF path redundancy (sold separately)
Compatible with all Spektrum DSM2 and DSMX transmitters
Please Note:
Not compatible with Spektrum AS3000 Stabilization Module
Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)

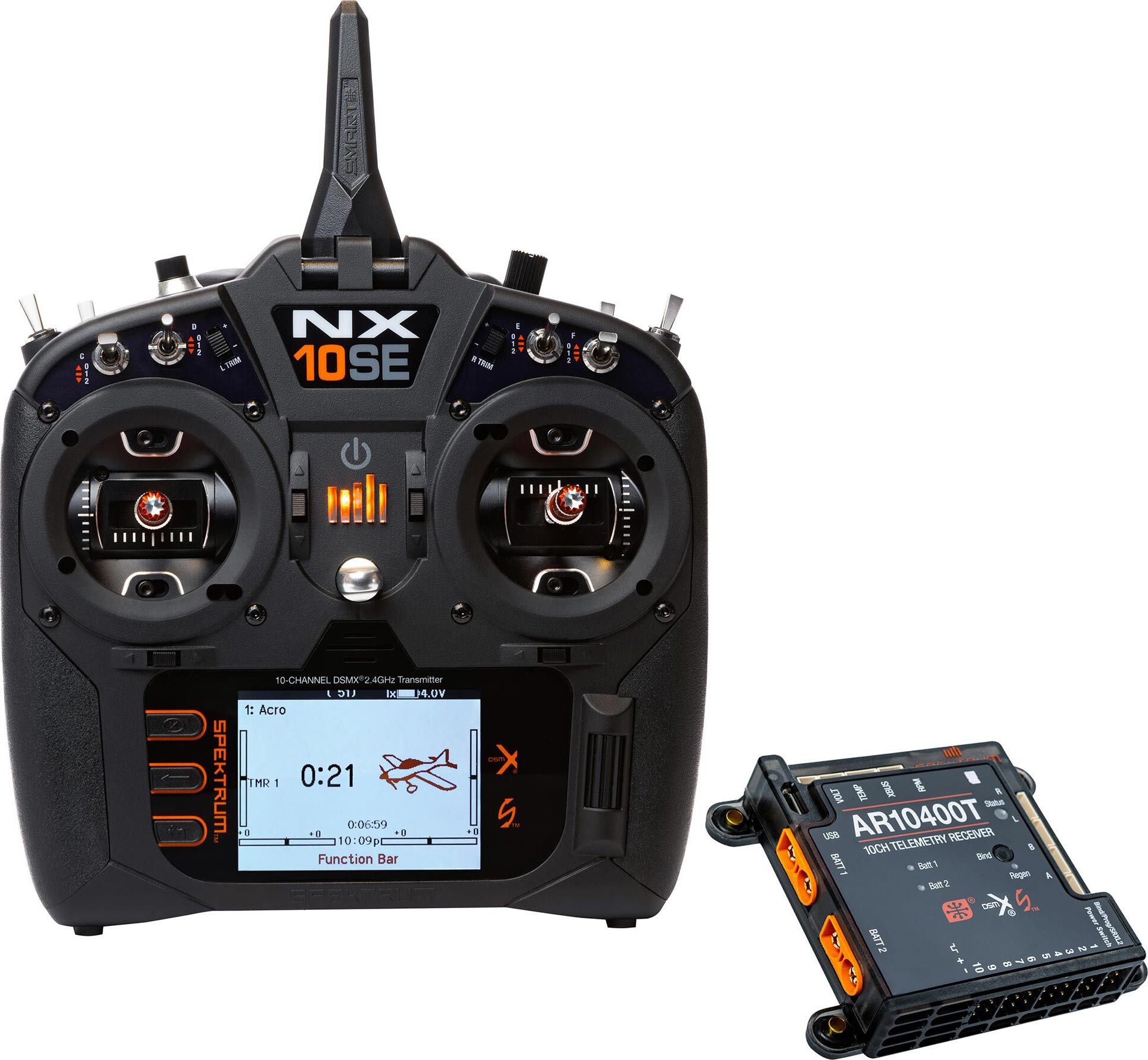

In The Box
(1) NX10SE Special Edition 10-Channel DSMX Transmitter (SPMR10110)
(1) AR10400T 10-Channel Powersafe Telemetry Receiver (SPMAR10400T)
