FEATURES
5.8GHz 32-Ch Dual Diversity video receivers
2-Axis Head Tracking, Magnetic, Inertial & Gyro sensors, PPM output
Integrated 640x480 VGA forward facing camera (button selectable)

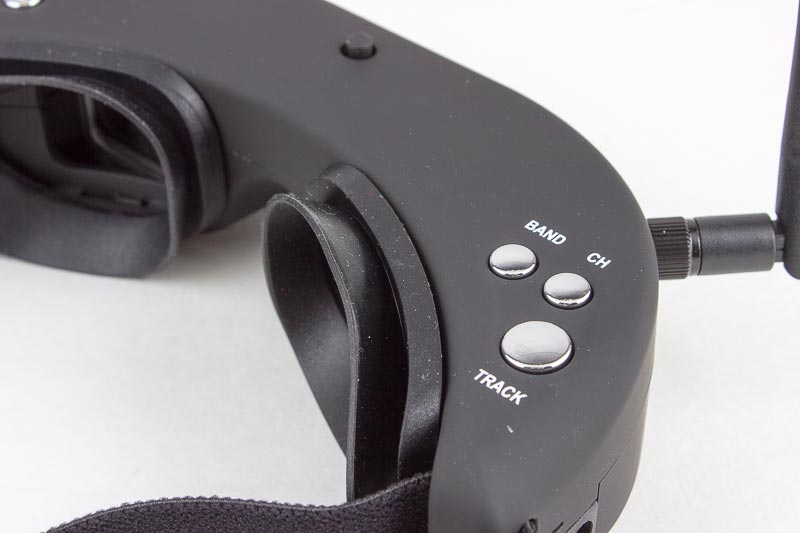

Receives all 4-Bands, 32-Channels

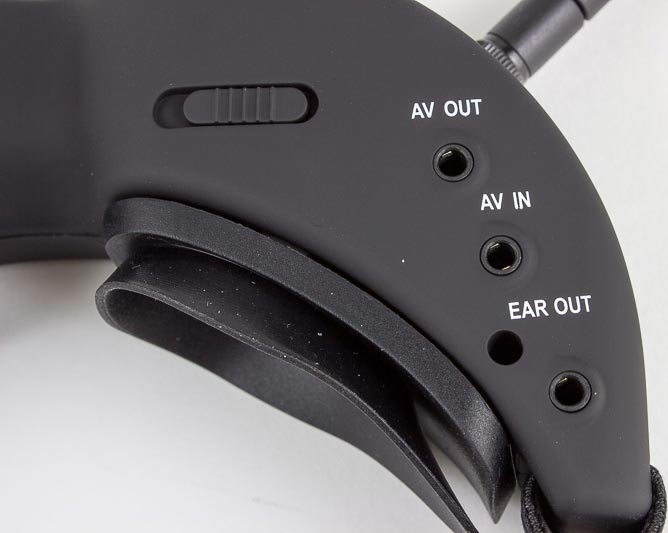

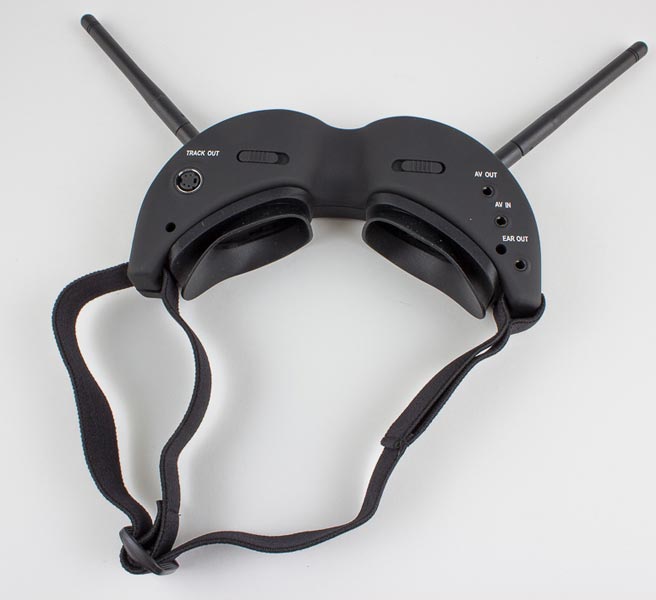

Audio/Video Input for watching movies
Audio Output with volume control
Audio/Video output for a separate LCD monitor
60-68mm Interpupillary adjustment
Resolution: Dual 854x480(WVGA) LCD screens
FOV: 30 Degree
Adjustable contrast/brightness
Brightness: 350cd/m2
Sensitivity: -90dBm +/-1dBm
Antennas Included: 2 SMA (with pin) 50ohm linear
Video Standard:NTSC/PAL
DC Input: 7-28V/1A
Power consumption: 4.3W @ 12V

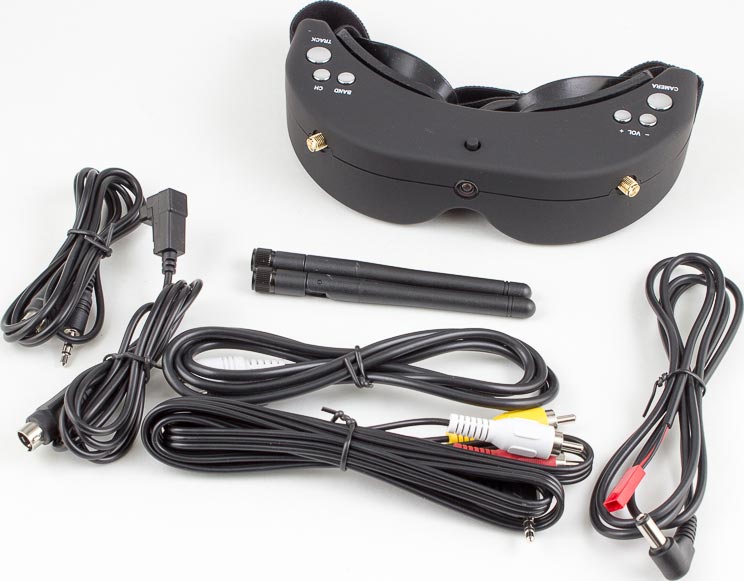

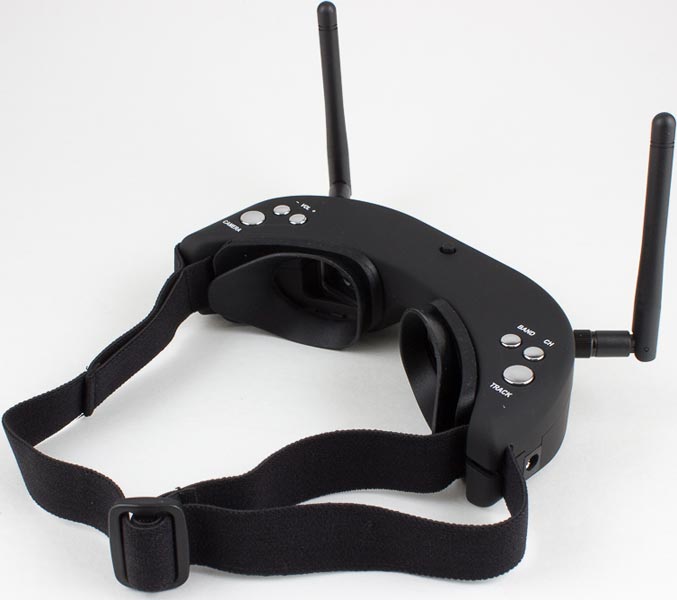

There are lots of video goggles on the market but the Boscam Skyzone video goggles are the only ones to incorporate dual diversity video receivers into an already feature packed goggle. Dual diversity receivers means that two separate receivers work in unison to deliver the clearest picture possible by selecting the one with the best signal. Add a circular polarized antenna to increase the performance of the system substantially. Maintain the standard linear antenna or add a patch antenna and utilize each antenna's unique characteristics for the ultimate reception. The Skyzone goggles are also the only goggles on the market to feature a wide 854x480 pixel resolution combined with dual backlit LCD screens, Skyzone creates a truly fantastic FPV experience.

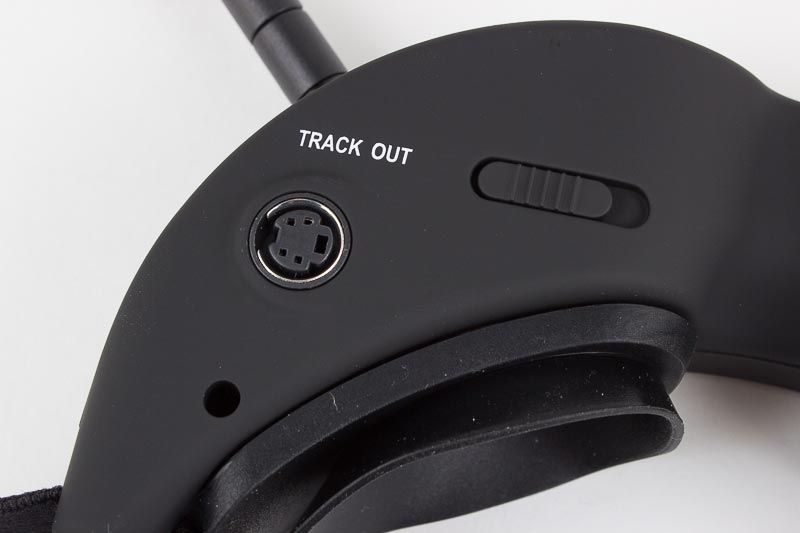

2-axis head tracking programmable on channels 5-8 works with most Futaba and JR radios that offer PPM signal on the trainer port.

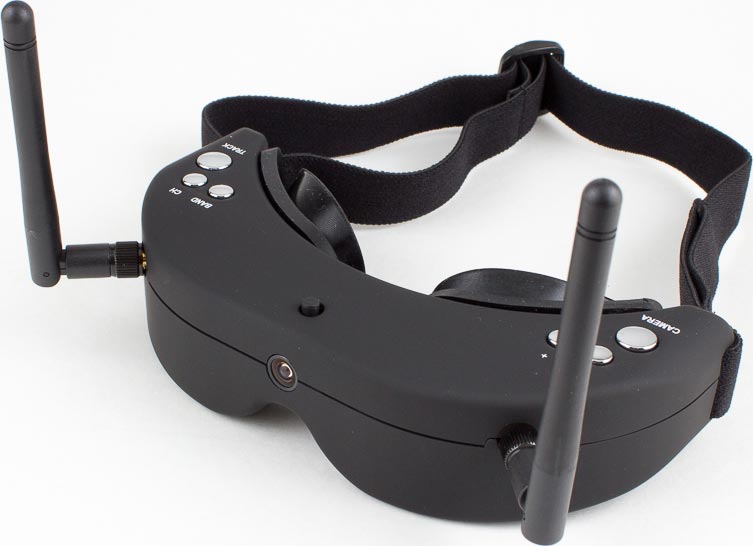

Features an integrated wide angle front facing camera that is selected with the push of a button on the top of the goggles. Not recommended for flying but it offers a quick way to look around without the need to remove the goggles.
