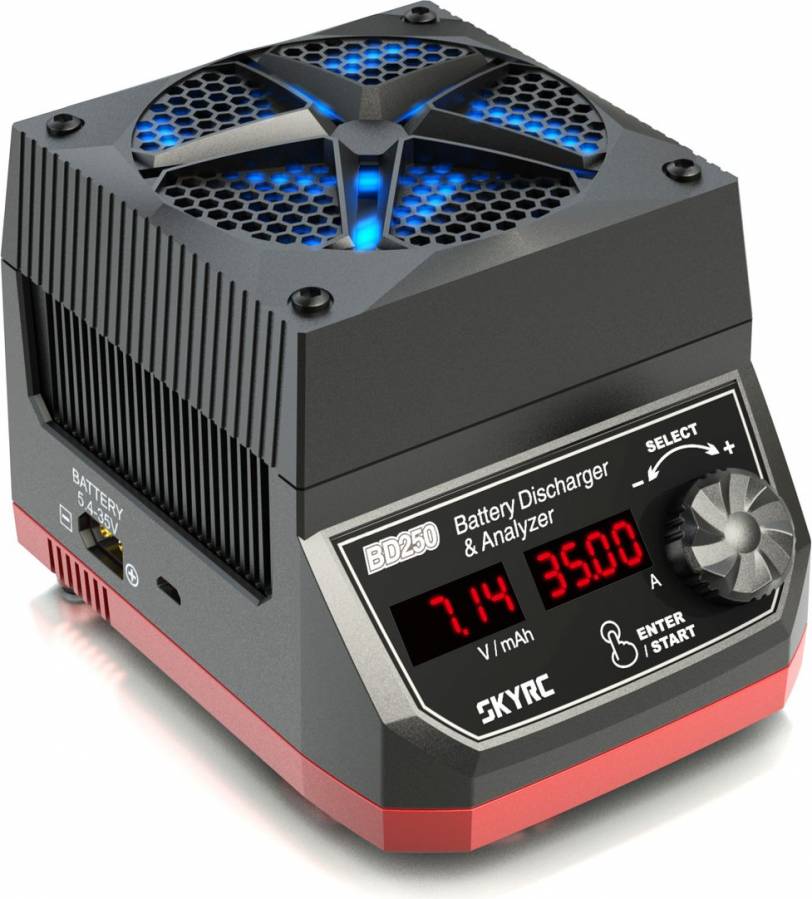

BD250 is not only a powerful discharging device but also a precise measurement tool for battery capacity. It takes the guesswork out of choosing the good-performance battery for your application. BD250 offers a maximum of 250 Watts/35 Amps to discharge your battery and will test virtually any battery type or size, any chemistry cells. It's stylish but small with a high-performance cooling system and uses MOSFETS from the well-known IXYS, to make sure it can discharge at 250 watts continuously.
Test virtually any type, size and chemistry battery.
BD250 is a voltage oriented discharger, virtually any type of battery can be operated. Accepted voltage ranges from 5.40V to 35.00V.
After the discharge process completes, rotate the button to view the real-time battery voltage every 30 seconds for the first six minutes.
At certain intervals, the slower the voltage reduces during discharge, the better the battery performances.
This feature can help to select a good-performance battery for your race or flight.
Dimension: 136.6x104.8x107mm
Weight: 879g
Voltage Range: 5.40-35.00V
Low Voltage Alert: <5.2V
High Voltage Alert: >35V Max.
Discharge Power: 250W
Discharge Current Range: 0.01A-35.00A
Discharge Power: 250W
